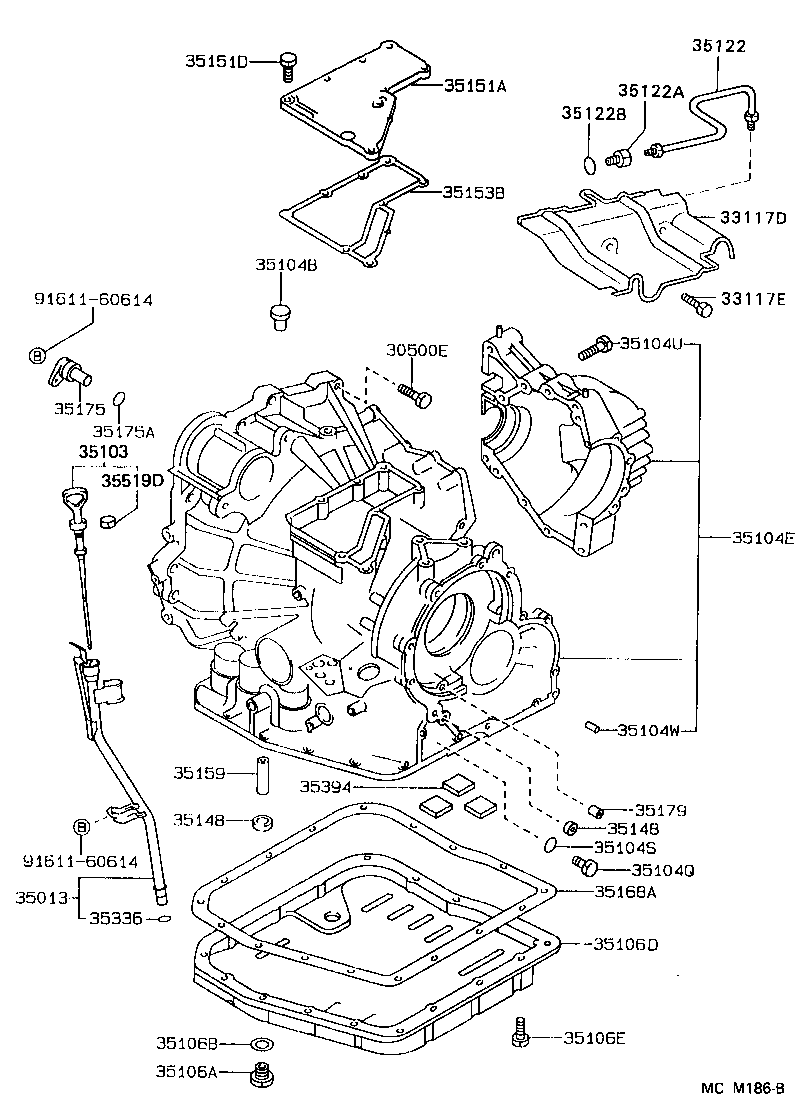

VCV10L-AEPDKK (1991)
Toyota Camry (Jpp)
(9106-9308)VCV10..JPP..ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 90105-08040 |
SXV10,VCV10..JPP..ATM *8-1.25PX18-15 |
1 | ||
| 90105-10077 |
VCV10..JPP..ATM *10-1.25PX43-26 |
2 | ||
| 91619-61265 |
MCV10,VCV10..JPP..ATM *12-1.25PX65-30 |
1 | ||
| 90119-12250 |
VCV10..JPP..ATM *12-1.25PX50-30 |
3 | ||
| 33117D - PROTECTOR, AUTOMATIC TRANSMISSION CASE | ||||
| 33117-32040 |
MCV10,VCV10..JPP..ATM |
1 | ||
| 33117E - BOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR) | ||||
| 90105-08040 |
MCV10,SXV10,VCV10..JPP..ATM |
2 | ||
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-33020 |
VCV10..JPP..ATM |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-33020 |
VCV10..JPP..ATM |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03001 |
MCV10,VCV10..JPP..ATM |
1 | ||
| 35104E - CASE SUB-ASSY, AUTOMATIC TRANSAXLE | ||||
| 35104-33011 |
VCV10..JPP..ATM |
1 | ||
| 35104-33010 |
VCV10..JPP..ATM |
1 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
VCV10..JPP..ATM |
3 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
VCV10..JPP..ATM |
3 | ||
| 35104U - BOLT (FOR TRANSAXLE CASE) | ||||
| 90105-10222 |
VCV10..JPP..ATM *10-1.25PX65-30 |
7 | ||
| 90105-10224 |
MCV10,VCV10..JPP..ATM *10-1.25PX100-30 |
2 | ||
| 90105-10223 |
MCV10,VCV10..JPP..ATM *10-1.25PX75-30 |
2 | ||
| 35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE) | ||||
| 90250-10232 |
MCV10,VCV10..JPP..ATM |
2 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-18016 |
MCV10,SXV10,VCV10..JPP..ATM |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 90430-18008 |
MCV10,SXV10,VCV10..JPP..ATM |
1 | ||
| 35106D - PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL | ||||
| 35106-32041 |
VCV10..JPP..ATM |
1 | ||
| 35106E - BOLT (FOR TRANSAXLE OIL PAN) | ||||
| 90119-06173 |
MCV10,VCV10..JPP..ATM |
17 | ||
| 35122 - TUBE, BREATHER (FOR AUTOMATIC TRANSAXLE) | ||||
| 35122-32010 |
VCV10..JPP..ATM |
1 | ||
| 35122A - UNION (FOR AUTOMATIC TRANSAXLE BREATHER TUBE) | ||||
| 90404-14007 |
VCV10..JPP..ATM |
2 | ||
| 35122B - RING, O (FOR AUTOMATIC TRANSAXLE BREATHER TUBE UNION) | ||||
| 90301-10189 |
MCV10,VCV10..JPP..ATM |
2 | ||
| 35148 - GASKET, GOVERNOR APPLY, NO.1 | ||||
| 35148-16010 |
MCV10,VCV10..JPP..ATM |
2 | ||
| 35148 - GASKET, GOVERNOR APPLY, NO.1 | ||||
| 35148-16010 |
MCV10,VCV10..JPP..ATM |
2 | ||
| 35151A - COVER, TRANSAXLE CASE, UPPER | ||||
| 35151-33010 |
VCV10..JPP..ATM |
1 | ||
| 35151D - BOLT (FOR TRANSAXLE CASE UPPER COVER) | ||||
| 90109-10120 |
VCV10..JPP..ATM *10-1.25PX30-22 |
1 | ||
| 90105-06113 |
VCV10..JPP..ATM *6-1.00PX20-18 |
7 | ||
| 90109-08167 |
VCV10..JPP..ATM *8-1.25PX28-20 |
1 | ||
| 35153B - GASKET, TRANSAXLE CASE UPPER COVER | ||||
| 35153-33010 |
VCV10..JPP..ATM |
1 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-32011 |
MCV10,SXV10,VCV10..JPP..ATM |
1 | ||
| 35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN | ||||
| 35168-32020 |
VCV10..JPP..ATM |
1 | ||
| 35175 - CAP, TRANSAXLE CASE, NO.2 | ||||
| 35175-32010 |
SXV10,VCV10..JPP..ATM |
1 | ||
| 35175A - RING, O (FOR TRANSAXLE CASE CAP) | ||||
| 90301-21002 |
SXV10,VCV10..JPP..ATM |
1 | ||
| 35179 - GASKET, OVERDRIVE BRAKE | ||||
| 35179-32010 |
MCV10,SXV10,VCV10..JPP..ATM |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
MCV10,SXV10,VCV10..JPP..ATM |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
SXV10,VCV10..JPP..ATM |
3 | ||
| 35519D - LABEL, AUTOMATIC TRANSMISSION INFORMATION | ||||
| 35519-32030 |
SXV10,VCV10..JPP..ATM |
1 | ||
| Common parts | ||||
| 91611-60614 | ||||
