VCV10L-AEPDKK (1991)
Toyota Camry (Jpp)
Production
Jun 1991
-
Aug 1993
Engine
3VZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9106-9308)3VZFE..JPP

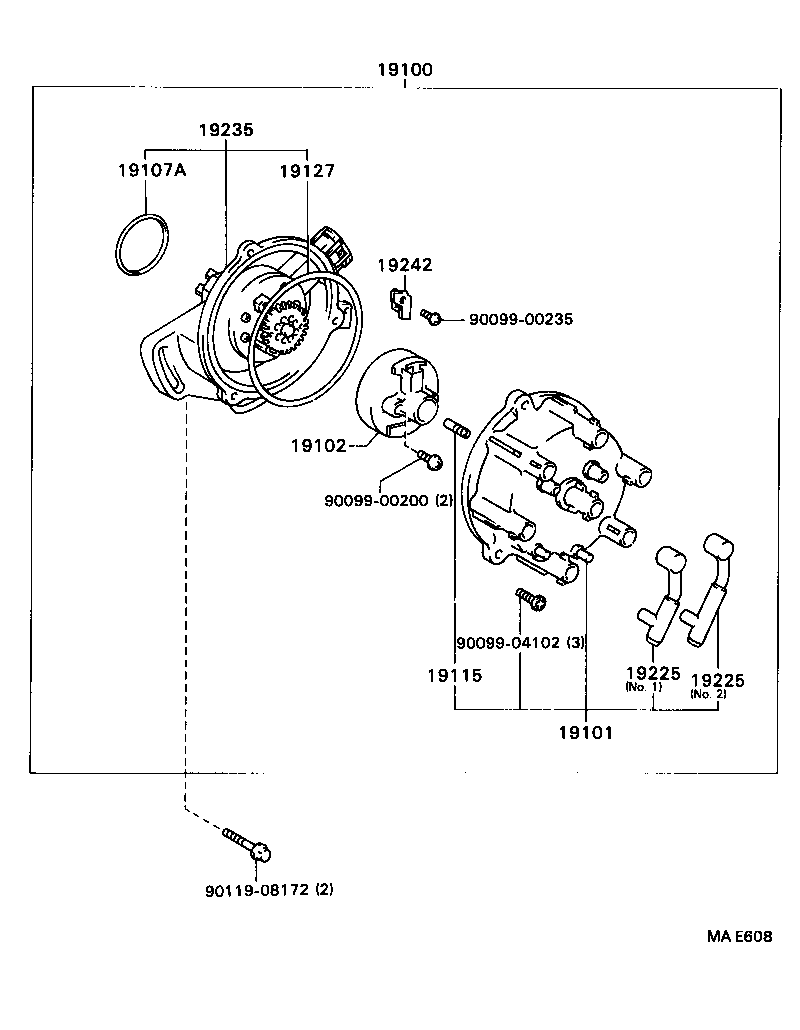

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19100-62050 |
3VZFE..VCV10..JPP |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-62050 |
3VZFE..VCV10..JPP |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-62030 |
3VZFE..VCV10..JPP |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 90099-14089 |
3VZFE..VCV10..JPP |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-88280 |
3VZFE..VCV10..JPP |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-61240 |
3VZFE..VCV10..JPP |
1 | ||
| 19225 - CAP, RUBBER | ||||
| 19225-62050 |
3VZFE..VCV10..JPP NO.1 |
1 | ||
| 19225-62060 |
3VZFE..VCV10..JPP NO.2 |
1 | ||
| 19225 - CAP, RUBBER | ||||
| 19225-62050 |
3VZFE..VCV10..JPP NO.1 |
1 | ||
| 19225-62060 |
3VZFE..VCV10..JPP NO.2 |
1 | ||
| 19235 - HOUSING, DISTRIBUTOR | ||||
| 19235-62050 |
3VZFE..VCV10..JPP |
1 | ||
| 19242 - CLAMP, CORD | ||||
| 19242-62030 |
3VZFE..VCV10..JPP |
1 | ||
| Common parts | ||||
| 90099-00200 | ||||
| 90099-00235 | ||||
| 90099-04102 | ||||
| 90119-08172 | ||||
