VCV10L-AEPDKK (1991)

Toyota Camry (Jpp)

Production Jun 1991 - Aug 1993
Engine 3VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9106-9308)3VZFE..JPP

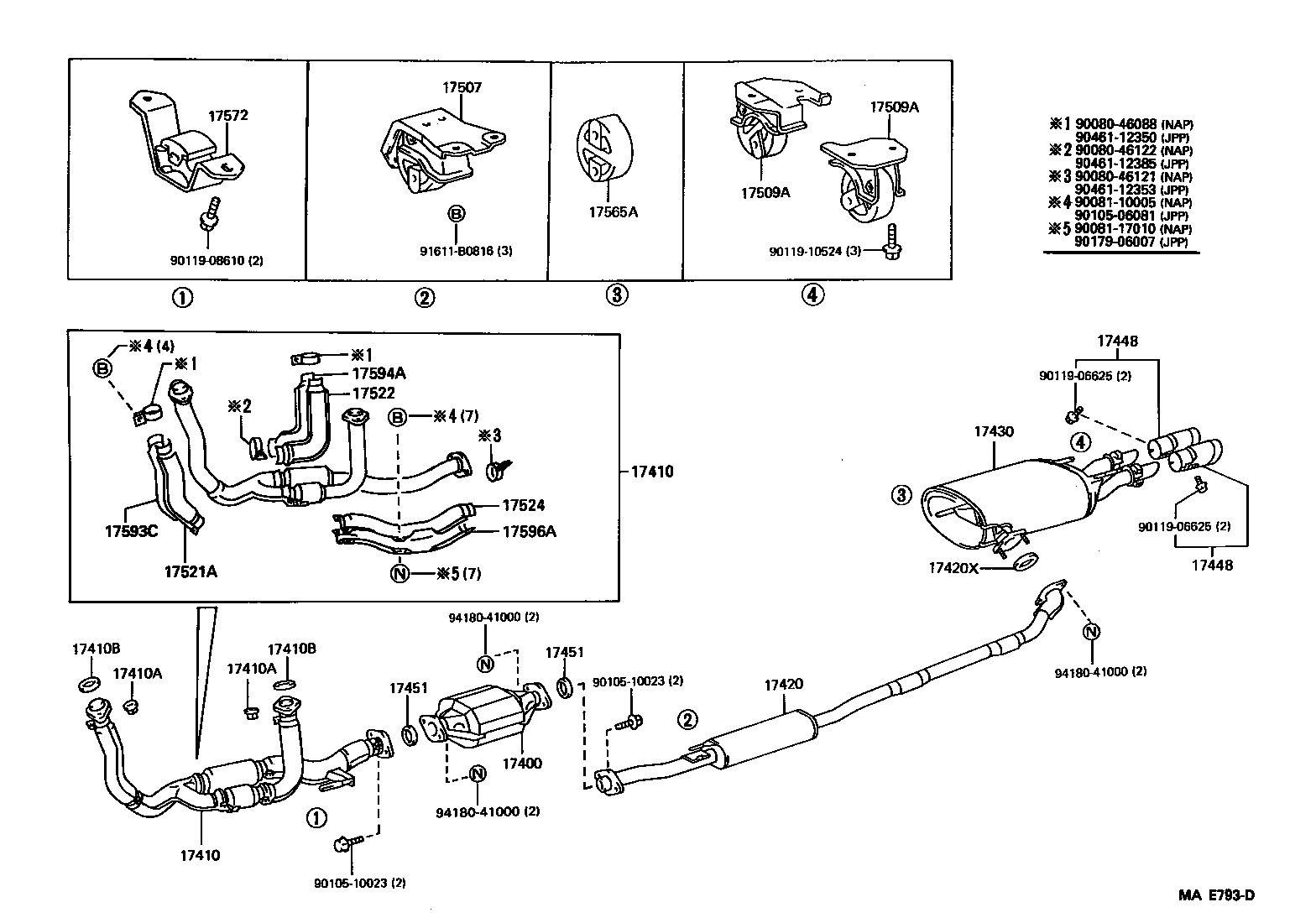

Click highlighted areas on diagram

diagram 17400 17410 17410 17410A 17410A 17410B 17410B 17420 17420X 17430 17448 17448 17451 17451 17507 17509A 17509A 17521A 17522 17524 17565A 17572 17593C 17594A 17596A 9008046088 9008046121 9008046122 9008110005 9008117010 9010506081 9010510023 9010510023 9011906625 9011906625 9011908610 9011910524 9017906007 9046112350 9046112353 9046112385 91611B0816 9418041000 9418041000 9418041000
Part # Description Qty Price
17400 - CONVERTER ASSY, W/CATALYST
18450-62080

1MZFE,3VZFE..MCV10,VCV10..JPP

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-62060

3VZFE..VCV10..JPP

 1
17410-62061

3VZFE..VCV10..JPP

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-62060

3VZFE..VCV10..JPP

 1
17410-62061

3VZFE..VCV10..JPP

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1MZFE,3VZFE..MCV10,VCV10..JPP

 4
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1MZFE,3VZFE..MCV10,VCV10..JPP

 4
17410B - GASKET, EXHAUST PIPE
90917-06045

1MZFE,3VZFE..MCV10,VCV10..JPP

 2
17410B - GASKET, EXHAUST PIPE
90917-06045

1MZFE,3VZFE..MCV10,VCV10..JPP

 2
17420 - PIPE ASSY, EXHAUST, CENTER
17420-62080

3VZFE..VCV10..JPP

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06046

5SFE,3VZFE..SXV10,VCV10..JPP

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-62091

3VZFE..VCV10..JPP

 1
17430-62090

3VZFE..VCV10..JPP

 1
17448 - BAFFLE, TAIL PIPE
17448-79035

3VZFE..VCV10..JPP

 2
17448 - BAFFLE, TAIL PIPE
17448-79035

3VZFE..VCV10..JPP

 2
17451 - GASKET, EXHAUST PIPE
90917-06054

1MZFE,3VZFE..MCV10,VCV10..JPP

 2
17451 - GASKET, EXHAUST PIPE
90917-06054

1MZFE,3VZFE..MCV10,VCV10..JPP

 2
17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17507-62020

5SFE,3VZFE..SXV10,VCV10..JPP

 1
17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
17509-62030

1MZFE,5SFE,3VZFE..MCV10,SXV10,VCV10..JPP

LH

 1
17509-62020

1MZFE,5SFE,3VZFE..MCV10,SXV10,VCV10..JPP

RH

 1
17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
17509-62030

1MZFE,5SFE,3VZFE..MCV10,SXV10,VCV10..JPP

LH

 1
17509-62020

1MZFE,5SFE,3VZFE..MCV10,SXV10,VCV10..JPP

RH

 1
17521A - PROTECTOR, EXHAUST PIPE, UPPER NO.1
17521-62040

3VZFE..VCV10..JPP

 1
17522 - PROTECTOR, EXHAUST PIPE, UPPER NO.2
17522-62050

3VZFE..VCV10..JPP

 1
17524 - PROTECTOR, EXHAUST PIPE, UPPER NO.4
17524-62020

3VZFE..VCV10..JPP

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-74280

1MZFE,5SFE,3VZFE..MCV10,SXV10,VCV10..JPP

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572-62040

3VZFE..VCV10..JPP

 1
17593C - PROTECTOR, EXHAUST PIPE, LOWER NO.1
17593-62040

3VZFE..VCV10..JPP

 1
17594A - PROTECTOR, EXHAUST PIPE, LOWER NO.2
17594-62050

3VZFE..VCV10..JPP

 1
17596A - PROTECTOR, EXHAUST PIPE, LOWER NO.4
17596-62020

3VZFE..VCV10..JPP

 1
Common parts
90080-46088
90080-46121
90080-46122
90081-10005
90081-17010
90105-06081
90105-10023
90119-06625
90119-08610
90119-10524
90179-06007
90461-12350
90461-12353
90461-12385
91611-B0816
94180-41000
