VCV10L-AEPDKK (1991)

Toyota Camry (Jpp)

Production Jun 1991 - Aug 1993
Engine 3VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9106-9308)3VZFE..JPP

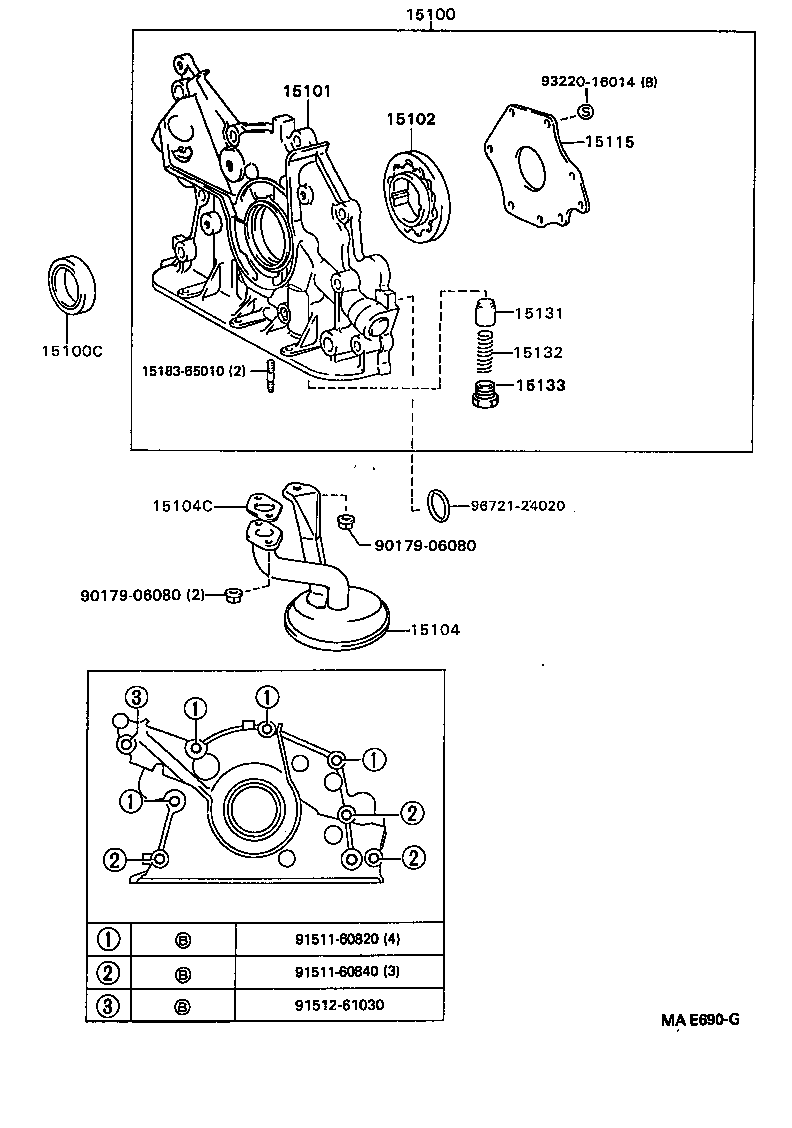

Click highlighted areas on diagram

diagram 15100 15100C 15101 15102 15104 15104C 15115 15131 15132 15133 1518365010 9017906080 9017906080 9151160820 9151160840 9151261030 9322016014 9672124020
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-62030

3VZFE..VCV10..JPP

 1
15100C - SEAL(FOR OIL PUMP)
90311-40013

3VZFE..VCV10..JPP

 1
15101 - BODY SUB-ASSY, OIL PUMP
15101-62030

3VZFE..VCV10..JPP

 1
15102 - ROTOR SET, OIL PUMP
15103-62030

3VZFE..VCV10..JPP

 1
15104 - STRAINER SUB-ASSY, OIL
15104-62030

3VZFE..VCV10..JPP

 1
15104C - GASKET(FOR OIL STRAINER)
15147-62020

3VZFE..VCV10..JPP

 1
15115 - COVER, OIL PUMP
15115-62030

3VZFE..VCV10..JPP

 1
15131 - VALVE, OIL PUMP RELIEF
15131-24010

3VZFE..VCV10..JPP

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-62030

3VZFE..VCV10..JPP

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-62030

3VZFE..VCV10..JPP

 1
Common parts
15183-65010
90179-06080
91511-60820
91511-60840
91512-61030
93220-16014
96721-24020
