SXV20L-AEPNKA (1996)
Toyota Camry (Jpp)

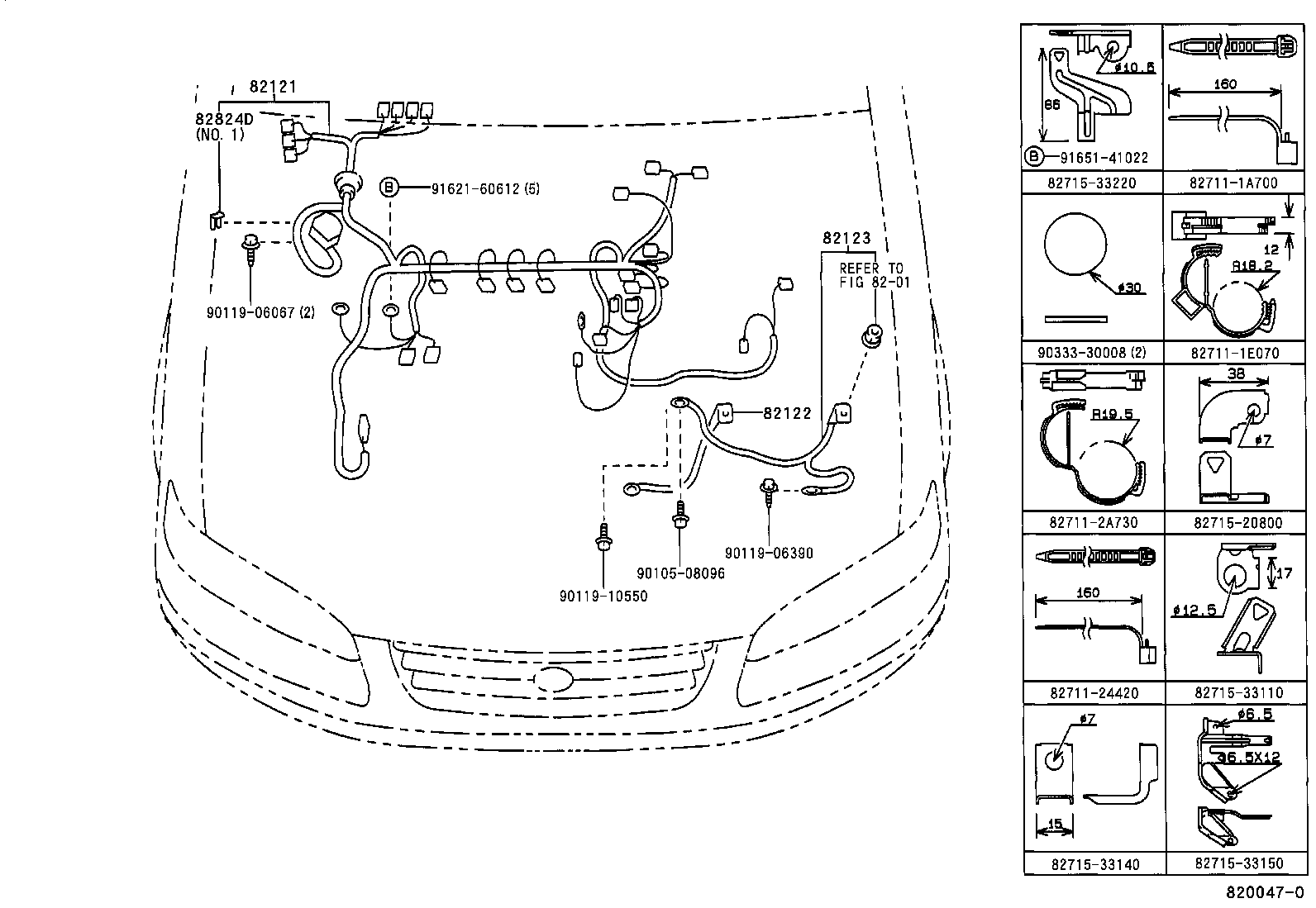

ILLUST NO. 1 OF 8(9608- )SXV2#..JPP
ENGINE WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-06410 |
SXV20..JPP..USA CALIFORNIA SPEC |
1 | ||
| 82121-06250 |
SXV20..JPP CALIFORNIA SPEC |
1 | ||
| 82121-06230 |
SXV20..JPP |
1 | ||
| 82121-06440 |
SXV20..JPP..USA CALIFORNIA SPEC & W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER)) |
1 | ||
| 82121-3T370 |
SXV20..JPP..USA CALIFORNIA SPEC,(J) |
1 | ||
| 82121-06390 |
SXV20..JPP |
1 | ||
| 82121-3T360 |
SXV20..JPP..ATM (J) |
1 | ||
| 82121-06430 |
SXV20..JPP..USA W(ENGINE IMMOBILIZER SYSTEM),(L) |
1 | ||
| 82121-06410 |
SXV20..JPP..USA CALIFORNIA SPEC,(L) |
1 | ||
| 82121-3T380 |
SXV20..JPP..(LE,XLE) W(ENGINE IMMOBILIZER SYSTEM),(J) |
1 | ||
| 82121-06390 |
SXV20..JPP..ATM (L) |
1 | ||
| 82121-3T390 |
SXV20..JPP..USA W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER)) |
1 | ||
| 82121-06500 |
SXV20..JPP..LE..USA CALIFORNIA SPEC,(L) |
1 | ||
| 82121-3T520 |
SXV20..JPP..LE..USA CALIFORNIA SPEC,(J) |
1 | ||
| 82121-06520 |
SXV20..JPP..LE W(THEFT-DETERRENT SYSTEM(IMMOBILIZER)),(L) |
1 | ||
| 82121-06480 |
SXV20..JPP..ATM..(CE,LE) (L) |
1 | ||
| 82121-3T510 |
SXV20..JPP..ATM..(CE,LE) (J) |
1 | ||
| 82121-06540 |
SXV20..JPP..LE..USA CALIFORNIA SPEC & W(THEFT-DETERRENT SYSTEM(IMMOBILIZER)),(L) |
1 | ||
| 82121-3T530 |
SXV20..JPP..LE W(THEFT-DETERRENT SYSTEM(IMMOBILIZER)),(J) |
1 | ||
| 82121-3T540 |
SXV20..JPP..LE..USA CALIFORNIA SPEC & W(THEFT-DETERRENT SYSTEM(IMMOBILIZER)),(J) |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-33020 |
MCV20,SXV20..JPP |
1 | ||
| 82122-33020 |
MCV20,SXV2#..JPP |
1 | ||
| 82122-07010 |
MCV20,SXV20..JPP |
1 | ||
| 82122-33020 |
MCV20,SXV20..JPP |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-33020 |
MCV20,SXV2#..JPP |
1 | ||
| 82123-33020 |
MCV20,SXV20..JPP |
1 | ||
| 82123-06020 |
MCV20,SXV20..JPP |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-24010 |
MCV20,SXV20..JPP..ATM NO.1 |
1 | ||
| 82824-24010 |
SXV20..JPP NO.1 |
2 | ||
| Common parts | ||||
| 82711-1A700 | ||||
| 82711-1E070 | ||||
| 82711-24420 | ||||
| 82711-2A730 | ||||
| 82715-20800 | ||||
| 82715-33110 | ||||
| 82715-33140 | ||||
| 82715-33150 | ||||
| 82715-33220 | ||||
| 90105-08096 | ||||
| 90119-06067 | ||||
| 90119-06390 | ||||
| 90119-10550 | ||||
| 90333-30008 | ||||
| 91621-60612 | ||||
| 91651-41022 | ||||
| Linked diagrams | ||||
| 8201 | ||||
ILLUST NO. 2 OF 8(9608- )JPP
ENGINE ROOM WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-33411 |
SXV20..JPP..USA |
1 | ||
| 82111-3T530 |
SXV20..JPP..USA W(ABS) |
1 | ||
| 82111-33410 |
SXV20..JPP |
1 | ||
| 82111-3T580 |
SXV20..JPP..CE;SXV20..JPP..LE..USA W(RUNNING LIGHT) |
1 | ||
| 82111-3T590 |
SXV20..JPP W(RUNNING LIGHT) OR W(ABS) OR W(RUNNING LIGHT & ABS) |
1 | ||
| 82115-33050 |
SXV20..JPP..LE..USA |
1 | ||
| 82111-3T870 |
SXV20..JPP..LE..USA |
1 | ||
| 82115-33130 |
SXV20..JPP W(ABS & DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82115-33120 |
SXV20..JPP..CE;SXV20..JPP..LE..USA W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82115-33060 |
SXV20..JPP..USA W(ABS) |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-06020 |
SXV20..JPP..USA |
1 | ||
| 82113-33020 |
SXV2#..JPP |
1 | ||
| 82113-33020 |
SXV20..JPP |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08282 |
MCV20,SXV20..JPP 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08202 |
MCV20,SXV2#..JPP 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08282 |
MCV20,SXV2#..JPP 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08246 |
MCV20,SXV20..JPP 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08280 |
MCV20,SXV20..JPP 30A,TERM.:FEMALE,PNK |
2 | ||
| 90982-08281 |
MCV20,SXV20..JPP 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08202 |
MCV20,SXV20..JPP 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08246 |
MCV20,SXV2#..JPP 100A,TERM.:MALE,BLUE |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-33350 |
MCV20,SXV2#..JPP |
1 | ||
| 82817-33350 |
MCV20,SXV20..JPP |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-2B730 |
MCV20,SXV20..JPP |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-22050 |
MCV20,SXV20..JPP |
1 | ||
| 82823-22050 |
MCV20,SXV2#..JPP |
1 | ||
| Common parts | ||||
| 82711-1E070 | ||||
| 82711-1E350 | ||||
| 82711-2B480 | ||||
| 82711-3F230 | ||||
| 90119-06390 | ||||
| 90333-20001 | ||||
| 93385-15010 | ||||
| 93385-16010 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF 8(9608- )JPP
COWL WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82135-33150 |
SXV20..JPP..USA |
1 | ||
| 82131-33640 |
SXV20..JPP |
1 | ||
| 82129-33140 |
SXV20..JPP..USA |
1 | ||
| 82135-33160 |
SXV20..JPP..USA W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER)) |
1 | ||
| 82129-33150 |
SXV20..JPP..USA W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER)) |
1 | ||
| 82129-33570 |
SXV20..JPP..LE..USA W(ABS) |
1 | ||
| 82129-33560 |
SXV20..JPP..LE..USA |
1 | ||
| 82129-33220 |
SXV20..JPP..USA W(ENGINE IMMOBILIZER SYSTEM & RUNNING LIGHT) |
1 | ||
| 82129-33580 |
SXV20..JPP..LE..USA W(THEFT-DETERRENT SYSTEM(IMMOBILIZER)) |
1 | ||
| 82129-33210 |
SXV20..JPP W(ABS) |
1 | ||
| 82129-33670 |
SXV20..JPP..CE;SXV20..JPP..LE..USA W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82129-33680 |
SXV20..JPP..(CE,LE) W(ABS & DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82129-33690 |
SXV20..JPP..LE W(DAY TIME RUNNING LIGHT SYSTEM & THEFT-DETERRENT SYSTEM(IMMOBILAZER)) |
1 | ||
| 82223B - WIRE, SWITCH, NO.2 | ||||
| 82223-33050 |
MCV20,SXV20..JPP..ATM |
1 | ||
| 82223-33050 |
MCV20,SXV2#..JPP..ATM |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-2B730 |
MCV20,SXV2#..JPP |
1 | ||
| 82817-2B730 |
MCV20,SXV20..JPP |
1 | ||
| Common parts | ||||
| 82711-1E350 | ||||
| 82711-2B480 | ||||
| 82711-30370 | ||||
| 90119-06610 | ||||
| 90159-70003 | ||||
| 90179-06032 | ||||
| 91621-40620 | ||||
| 93560-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 4 OF 8(9608- )JPP
INSTRUMENT PANEL WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-06300 |
MCV20,SXV20..JPP..LE W(*TRC OR LEATHER SEAT OR POWER SEAT OR ELECTRIC REMOTE CONTROL MIRROR W/HEATER)) |
1 | ||
| 82141-06310 |
MCV20,SXV20..JPP W(POWER WINDOW,THEFT-DETERRENT SYSTEM & TRACTION CONTROL) |
1 | ||
| 82141-06200 |
MCV20,SXV20..JPP..LE |
1 | ||
| 82141-3T460 |
MCV20,SXV20..JPP..LE..USA |
1 | ||
| 82145-33210 |
MCV20,SXV20..JPP..LE..USA W(KEY LESS ENTRY) |
1 | ||
| 82141-3T500 |
MCV20,SXV20..JPP W(POWER WINDOW) |
1 | ||
| 82145-06030 |
MCV20,SXV20..JPP..(LE,XLE) W(*TRC OR LEATHER SEAT OR POWER SEAT OR ELECTRIC REMOTE CONTROL MIRROR W/HEATER)) |
1 | ||
| 82141-3T480 |
MCV20,SXV20..JPP..USA W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER)) |
1 | ||
| 82145-06040 |
MCV20,SXV20..JPP..(LE,XLE) W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER)) |
1 | ||
| 82141-3T470 |
MCV20,SXV20..JPP..USA W(*TRC OR LEATHER SEAT OR POWER SEAT OR ELECTRIC REMOTE CONTROL MIRROR W/HEATER)) |
1 | ||
| 82145-06020 |
MCV20,SXV20..JPP..LE |
1 | ||
| 82141-3T510 |
MCV20,SXV20..JPP..USA W(ENGINE IMMOBILIZER SYSTEM & RUNNING LIGHT) |
1 | ||
| 82145-33250 |
MCV20,SXV20..JPP..LE..USA W(DAY TIME RUNNING LIGHT SYSTEM & KEY LESS ENTRY) |
1 | ||
| 82145-33240 |
MCV20,SXV20..JPP..(CE,LE) W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82145-33200 |
MCV20,SXV20..JPP..LE..USA |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-33050 |
MCV20,SXV20..JPP..(LE,XLE) |
1 | ||
| 82142-06020 |
MCV20,SXV20..JPP..(LE,XLE) |
1 | ||
| 82142-33040 |
MCV20,SXV20..JPP..(LE,XLE) |
1 | ||
| 82345A - DIODE | ||||
| 82345-12050 |
MCV20,SXV20..JPP |
1 | ||
| 82345-12050 |
MCV20,SXV2#..JPP |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-33640 |
MCV20,SXV20..JPP |
2 | ||
| 82817-33640 |
MCV20,SXV2#..JPP |
2 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-33640 |
MCV20,SXV20..JPP |
2 | ||
| 82817-33640 |
MCV20,SXV2#..JPP |
2 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-30180 |
MCV20,SXV2#..JPP NO.3 |
1 | ||
| 82824-50110 |
MCV20,SXV2#..JPP NO.5 |
1 | ||
| 82824-12210 |
MCV20,SXV2#..JPP W(POWER WINDOW),NO.1 |
3 | ||
| 82824-22080 |
MCV20,SXV2#..JPP NO.2 |
1 | ||
| 82824-30190 |
MCV20,SXV2#..JPP NO.4 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-30180 |
MCV20,SXV2#..JPP NO.3 |
1 | ||
| 82824-50110 |
MCV20,SXV2#..JPP NO.5 |
1 | ||
| 82824-12210 |
MCV20,SXV2#..JPP W(POWER WINDOW),NO.1 |
3 | ||
| 82824-22080 |
MCV20,SXV2#..JPP NO.2 |
1 | ||
| 82824-30190 |
MCV20,SXV2#..JPP NO.4 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-30180 |
MCV20,SXV2#..JPP NO.3 |
1 | ||
| 82824-50110 |
MCV20,SXV2#..JPP NO.5 |
1 | ||
| 82824-12210 |
MCV20,SXV2#..JPP W(POWER WINDOW),NO.1 |
3 | ||
| 82824-22080 |
MCV20,SXV2#..JPP NO.2 |
1 | ||
| 82824-30190 |
MCV20,SXV2#..JPP NO.4 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-30180 |
MCV20,SXV2#..JPP NO.3 |
1 | ||
| 82824-50110 |
MCV20,SXV2#..JPP NO.5 |
1 | ||
| 82824-12210 |
MCV20,SXV2#..JPP W(POWER WINDOW),NO.1 |
3 | ||
| 82824-22080 |
MCV20,SXV2#..JPP NO.2 |
1 | ||
| 82824-30190 |
MCV20,SXV2#..JPP NO.4 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-30180 |
MCV20,SXV2#..JPP NO.3 |
1 | ||
| 82824-50110 |
MCV20,SXV2#..JPP NO.5 |
1 | ||
| 82824-12210 |
MCV20,SXV2#..JPP W(POWER WINDOW),NO.1 |
3 | ||
| 82824-22080 |
MCV20,SXV2#..JPP NO.2 |
1 | ||
| 82824-30190 |
MCV20,SXV2#..JPP NO.4 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-30180 |
MCV20,SXV2#..JPP NO.3 |
1 | ||
| 82824-50110 |
MCV20,SXV2#..JPP NO.5 |
1 | ||
| 82824-12210 |
MCV20,SXV2#..JPP W(POWER WINDOW),NO.1 |
3 | ||
| 82824-22080 |
MCV20,SXV2#..JPP NO.2 |
1 | ||
| 82824-30190 |
MCV20,SXV2#..JPP NO.4 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-30180 |
MCV20,SXV2#..JPP NO.3 |
1 | ||
| 82824-50110 |
MCV20,SXV2#..JPP NO.5 |
1 | ||
| 82824-12210 |
MCV20,SXV2#..JPP W(POWER WINDOW),NO.1 |
3 | ||
| 82824-22080 |
MCV20,SXV2#..JPP NO.2 |
1 | ||
| 82824-30190 |
MCV20,SXV2#..JPP NO.4 |
1 | ||
| Common parts | ||||
| 82711-1E350 | ||||
| 82711-35520 | ||||
| 87616-22010 | ||||
| 90119-06493 | ||||
| 90159-70003 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 5 OF 8(9608- )JPP
DOOR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-33250 |
MCV20,SXV20..JPP |
1 | ||
| 82151-33260 |
MCV20,SXV20..JPP W(6 SPEAKER) |
1 | ||
| 82151-33610 |
MCV20,SXV20..JPP..(CE,LE) W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER) |
1 | ||
| 82151-33261 |
MCV20,SXV20..JPP..LE W(6 SPEAKER) |
1 | ||
| 82151-33251 |
MCV20,SXV20..JPP..(CE,LE) W(ELECTRIC REMOTE CONTOROL MIRROR) |
1 | ||
| 82151-33261 |
MCV20,SXV20..JPP..(LE,XLE) W(6 SPEAKER) |
1 | ||
| 82151-33610 |
MCV20,SXV2#..JPP..(CE,LE) W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER) |
1 | ||
| 82151-33620 |
MCV20,SXV20..JPP..LE W(ELECTRIC REMOTE CONTOROL MIRROR W/HEATER & 6 SPEAKER) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-33750 |
MCV20,SXV20..JPP..LE W(ELECTRIC REMOTE CONTOROL MIRROR W/HEATER & 6 SPEAKER) |
1 | ||
| 82152-33290 |
MCV20,SXV20..JPP |
1 | ||
| 82152-33300 |
MCV20,SXV20..JPP W(6 SPEAKER) |
1 | ||
| 82152-33740 |
MCV20,SXV20..JPP..(CE,LE) W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER) |
1 | ||
| 82152-33301 |
MCV20,SXV20..JPP..(LE,XLE) W(6 SPEAKER) |
1 | ||
| 82152-33301 |
MCV20,SXV20..JPP..LE W(6 SPEAKER) |
1 | ||
| 82152-33291 |
MCV20,SXV20..JPP..(CE,LE) W(ELECTRIC REMOTE CONTOROL MIRROR) |
1 | ||
| 82152-33740 |
MCV20,SXV2#..JPP..(CE,LE) W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-AA020 |
MCV20,SXV20..JPP |
1 | ||
| 82153-33080 |
MCV20,SXV2#..JPP |
1 | ||
| 82153-33080 |
MCV20,SXV20..JPP |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82153-AA020 |
MCV20,SXV20..JPP |
1 | ||
| 82153-33080 |
MCV20,SXV20..JPP |
1 | ||
| 82153-33080 |
MCV20,SXV2#..JPP |
1 | ||
| Common parts | ||||
| 82711-1A770 | ||||
| 90950-01061 | ||||
| 90950-01310 | ||||
ILLUST NO. 6 OF 8(9608- )JPP
ROOF & FLOOR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-AA130 |
MCV20,SXV20..JPP W(POWER SEAT) |
1 | ||
| 82161-AA110 |
MCV20,SXV20..JPP..LE |
1 | ||
| 82161-AA190 |
SXV20..JPP..LE W(POWER SEAT) |
1 | ||
| 82161-AA180 |
MCV20..JPP..CE;SXV20..JPP..(CE,LE) W(POWER WINDOW) |
1 | ||
| 82161-AA220 |
SXV20..JPP..LE W(SIDE AIR BAG) |
1 | ||
| 82161-AA230 |
SXV20..JPP..LE W(POWER SEAT & SIDE AIR BAG) |
1 | ||
| 82161-3T720 |
MCV20,SXV20..JPP..(LE,XLE) W(POWER SEAT) |
1 | ||
| 82161-3T390 |
MCV20,SXV20..JPP..(LE,XLE) W(SIDE AIR BAG) |
1 | ||
| 82161-3T360 |
MCV20,SXV20..JPP..(CE,LE) W(POWER WINDOW) |
1 | ||
| 82161-3T380 |
MCV20,SXV20..JPP..(CE,LE) W(POWER WINDOW & SIDE AIR BAG) |
1 | ||
| 82161-3T740 |
MCV20,SXV20..JPP..(LE,XLE) W(POWER SEAT & *80, SIDE) |
1 | ||
| 82161-3T370 |
MCV20,SXV20..JPP..(LE,XLE) W(POWER SEAT) |
1 | ||
| 82161-3T730 |
MCV20,SXV20..JPP..(CE,LE) W(*80,SIDE) |
1 | ||
| 82161-3T741 |
MCV20,SXV20..JPP..(LE,XLE) W(POWER SEAT & *80, SIDE) |
1 | ||
| 82161-3T710 |
MCV20,SXV20..JPP..LE |
1 | ||
| 82161-3T721 |
MCV20,SXV20..JPP..(LE,XLE) W(POWER SEAT) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-AA080 |
MCV20,SXV20..JPP W(POWER SEAT) |
1 | ||
| 82162-AA040 |
MCV20,SXV20..JPP..LE |
1 | ||
| 82162-AA130 |
MCV20,SXV20..JPP..(LE,XLE) W(POWER SEAT) |
1 | ||
| 82162-3T220 |
MCV20,SXV20..JPP..(CE,LE) W(AIR BAG) |
1 | ||
| 82162-3T240 |
MCV20,SXV20..JPP..(CE,LE) W(SIDE AIR BAG) |
1 | ||
| 82162-3T250 |
MCV20,SXV20..JPP..(LE,XLE) W(POWER SEAT & SIDE AIR BAG) |
1 | ||
| 82162-AA110 |
MCV20,SXV20..JPP..(CE,LE) W(AIR BAG) |
1 | ||
| 82162-3T230 |
MCV20,SXV20..JPP..(LE,XLE) W(POWER SEAT) |
1 | ||
| 82162-3T540 |
MCV20,SXV2#..JPP..LE |
1 | ||
| 82162-3T560 |
MCV20,SXV20..JPP..LE W(*80,SIDE) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-AA050 |
MCV20,SXV20..JPP..(CE,LE) |
1 | ||
| 82171-33500 |
MCV20,SXV2#..JPP..(CE,LE) |
1 | ||
| 82171-33500 |
MCV20,SXV20..JPP..(CE,LE) |
1 | ||
| 82171-33270 |
MCV20,SXV20..JPP..LE W(MOON ROOF) |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-33180 |
MCV20,SXV20..JPP |
1 | ||
| 82666-33180 |
MCV20,SXV2#..JPP |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-33190 |
MCV20,SXV2#..JPP |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-33800 |
SXV20..JPP;MCV20..JPP..CE |
1 | ||
| 82817-33800 |
MCV20,SXV20..JPP |
1 | ||
| Common parts | ||||
| 82711-12770 | ||||
| 82711-16790 | ||||
| 82711-1A770 | ||||
| 82711-1E070 | ||||
| 82711-1E260 | ||||
| 82711-1E350 | ||||
| 82711-1E390 | ||||
| 82711-33130 | ||||
| 82711-3H630 | ||||
| 82711-60390 | ||||
| 90119-06390 | ||||
| 90159-70003 | ||||
| 90179-06070 | ||||
ILLUST NO. 8 OF 8(9608- )JPP
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07346 |
MCV20,SXV20..JPP |
1 | ||
| 90980-07346 |
MCV20,SXV2#..JPP |
1 | ||
| 82001C - CABLE, BOND, NO.2 | ||||
| 90980-07390 |
MCV20,SXV20..JPP |
1 | ||
| 90980-07390 |
SXV2#..JPP |
1 | ||
| 82001D - CABLE, BOND, NO.3 | ||||
| 90980-07315 |
SXV2#..JPP |
1 | ||
| 90980-07315 |
SXV20..JPP |
1 | ||
| 82001G - CABLE, BOND, NO.4 | ||||
| 90980-07280 |
SXV20..JPP (J) |
1 | ||
| 90084-98019 |
SXV20..JPP (L) |
1 | ||
| 90980-07280 |
SXV2#..JPP (J) |
1 | ||
| 90084-98019 |
SXV2#..JPP (L) |
1 | ||
| Common parts | ||||
| 82711-24420 | ||||
| 90119-06067 | ||||
| 91511-60612 | ||||
ILLUST NO. 8 OF 8(9608- )JPP
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07346 |
MCV20,SXV20..JPP |
1 | ||
| 90980-07346 |
MCV20,SXV2#..JPP |
1 | ||
| 82001C - CABLE, BOND, NO.2 | ||||
| 90980-07390 |
MCV20,SXV20..JPP |
1 | ||
| 90980-07390 |
SXV2#..JPP |
1 | ||
| 82001D - CABLE, BOND, NO.3 | ||||
| 90980-07315 |
SXV2#..JPP |
1 | ||
| 90980-07315 |
SXV20..JPP |
1 | ||
| 82001G - CABLE, BOND, NO.4 | ||||
| 90980-07280 |
SXV20..JPP (J) |
1 | ||
| 90084-98019 |
SXV20..JPP (L) |
1 | ||
| 90980-07280 |
SXV2#..JPP (J) |
1 | ||
| 90084-98019 |
SXV2#..JPP (L) |
1 | ||
| Common parts | ||||
| 82711-24420 | ||||
| 90119-06067 | ||||
| 91611-61020 | ||||
ILLUST NO. 7 OF 8(9608- )JPP
SEAT WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-33080 |
MCV20,SXV20..JPP..(LE,XLE) |
1 | ||
| 82168 - WIRE, SEAT, NO.2 | ||||
| 82168-33030 |
MCV20,SXV20..JPP..(LE,XLE) |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
