SXV20L-AEPNKA (1996)
Toyota Camry (Jpp)

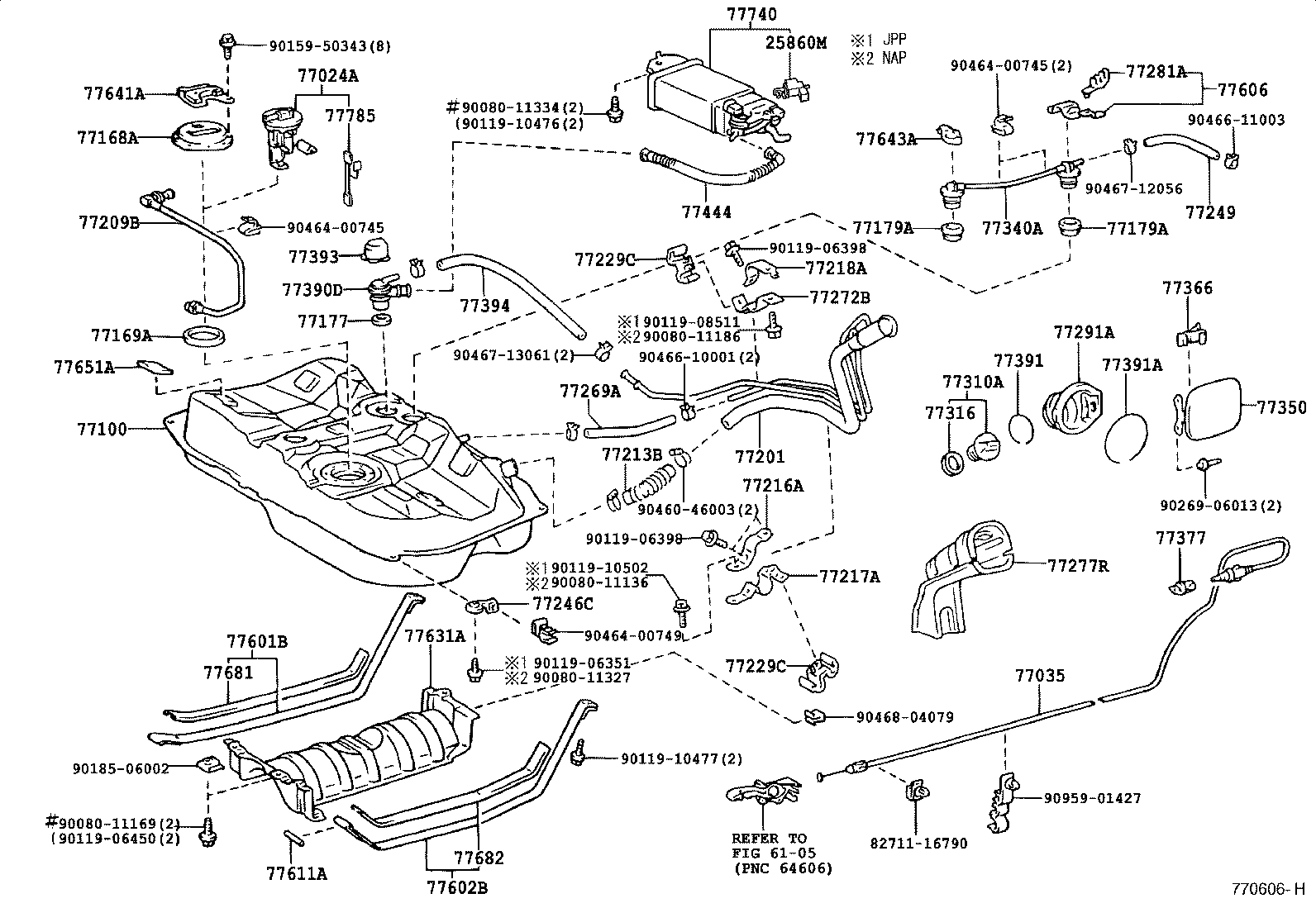

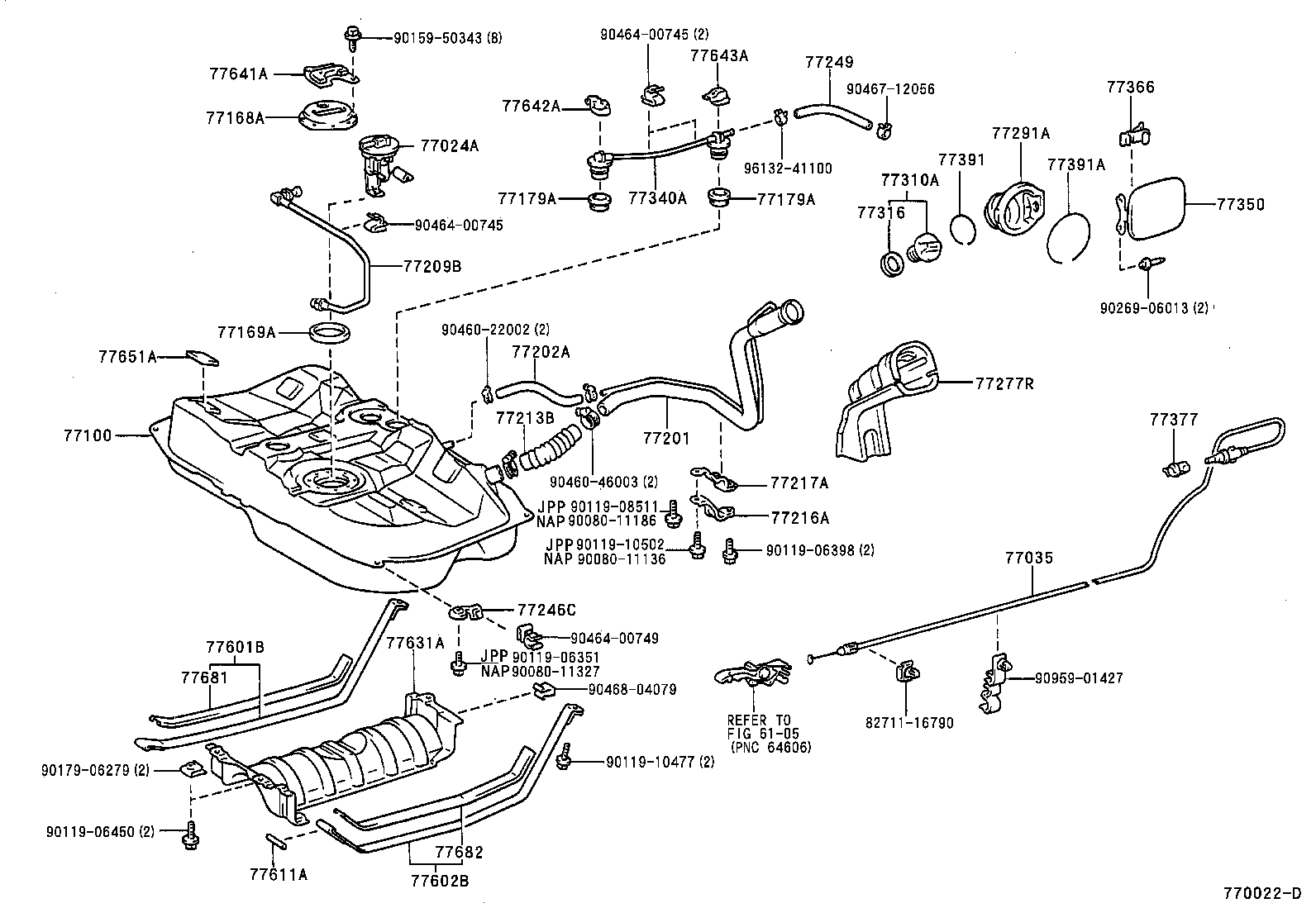

ILLUST NO. 1 OF 2(9608-9708)JPP ; (9708-9808)MCV20..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-33010 |
MCV20,SXV20..JPP |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-33080 |
MCV20,SXV20..JPP |
1 | ||
| 77035-33080 |
MCV20,SXV2#..JPP |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-39335 |
MCV20,SXV20..JPP |
1 | ||
| 77001-39355 |
MCV20,SXV20..JPP |
1 | ||
| 77001-33070 |
MCV20,SXV20..JPP |
1 | ||
| 77001-33070 |
SXV20..JPP |
1 | ||
| 77001-39385 |
MCV20,SXV20..JPP |
1 | ||
| 77001-33070 |
MCV20,SXV20..JPP |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-33030 |
MCV20,SXV20..JPP |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-33010 |
MCV20,SXV20..JPP |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-33010 |
MCV20,SXV20..JPP |
2 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-33010 |
MCV20,SXV20..JPP |
2 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-33020 |
MCV20,SXV20..JPP |
1 | ||
| 77201-33080 |
SXV20..JPP |
1 | ||
| 77201-33080 |
MCV20,SXV20..JPP |
1 | ||
| 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) | ||||
| 95312-13024 |
MCV20,SXV20..JPP L=240 |
1 | ||
| 77209B - TUBE SUB-ASSY, FUEL PUMP | ||||
| 77209-33010 |
MCV20,SXV20..JPP |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-06010 |
MCV20,SXV20..JPP L=182,(L) |
1 | ||
| 77213-33050 |
MCV20,SXV20..JPP L=182 |
1 | ||
| 77213-33050 |
MCV20,SXV20..JPP L=240,(J) |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-41020 |
SXV20..JPP |
1 | ||
| 77216-33010 |
MCV20,SXV20..JPP |
1 | ||
| 77216-41020 |
MCV20,SXV20..JPP |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-41010 |
SXV20..JPP |
1 | ||
| 77217-41010 |
MCV20,SXV20..JPP |
1 | ||
| 77217-33010 |
MCV20,SXV20..JPP |
1 | ||
| 77246C - SUPPORT, FUEL MAIN TUBE | ||||
| 77246-33010 |
MCV20,SXV20..JPP |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 95337-06018 |
MCV20,SXV20..JPP |
1 | ||
| 95327-06030 |
MCV20,SXV20..JPP |
1 | ||
| 95327-06030 |
SXV20..JPP |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-33041 |
MCV20,SXV20..JPP |
1 | ||
| 77277-33040 |
MCV20,SXV20..JPP |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-33010 |
MCV20,SXV2#..JPP |
1 | ||
| 77291-33010 |
MCV20,SXV20..JPP |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-12140 |
MCV20,SXV20..JPP |
1 | ||
| 77310-48020 |
MCV20,SXV20..JPP |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
MCV20,SXV20..JPP |
1 | ||
| 77340A - VALVE ASSY, FUEL CUT OFF W/TUBE | ||||
| 77340-33020 |
MCV20,SXV20..JPP..ATM |
1 | ||
| 77340-33020 |
MCV20,SXV20..JPP |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-33030 |
MCV20,SXV2#..JPP |
1 | ||
| 77350-33030 |
MCV20,SXV20..JPP |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-33020 |
MCV20,SXV20..JPP |
1 | ||
| 77360-22020 |
MCV20,SXV20..JPP |
1 | ||
| 77360-33020 |
MCV20,SXV2#..JPP |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12050 |
MCV20,SXV20..JPP |
1 | ||
| 77377-12050 |
MCV20,SXV2#..JPP |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
MCV20,SXV2#..JPP |
1 | ||
| 77391-12020 |
MCV20,SXV20..JPP |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-20030 |
MCV20,SXV20..JPP |
1 | ||
| 77391-20030 |
MCV20,SXV2#..JPP |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-33010 |
MCV20,SXV20..JPP |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-33010 |
MCV20,SXV20..JPP |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90250-08019 |
MCV20,SXV20..JPP |
2 | ||
| 77631A - PROTECTOR, FUEL TANK, LOWER CENTER | ||||
| 77631-33021 |
MCV20,SXV20..JPP |
1 | ||
| 77631-33020 |
MCV20,SXV20..JPP |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-33010 |
MCV20,SXV20..JPP |
1 | ||
| 77642A - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77642-33010 |
MCV20,SXV20..JPP |
1 | ||
| 77643A - PROTECTOR, FUEL TANK, NO.3 | ||||
| 77643-33010 |
MCV20,SXV20..JPP |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-32030 |
MCV20,SXV20..JPP |
7 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-32060 |
MCV20,SXV20..JPP |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-32060 |
MCV20,SXV20..JPP |
1 | ||
| Common parts | ||||
| 82711-16790 | ||||
| 90080-11136 | ||||
| 90080-11186 | ||||
| 90080-11327 | ||||
| 90119-06351 | ||||
| 90119-06398 | ||||
| 90119-06450 | ||||
| 90119-08511 | ||||
| 90119-10477 | ||||
| 90119-10502 | ||||
| 90159-50343 | ||||
| 90179-06279 | ||||
| 90269-06013 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90464-00745 | ||||
| 90464-00749 | ||||
| 90467-12056 | ||||
| 90468-04079 | ||||
| 90959-01427 | ||||
| 96132-41100 | ||||
| Linked diagrams | ||||
| 6105 | ||||

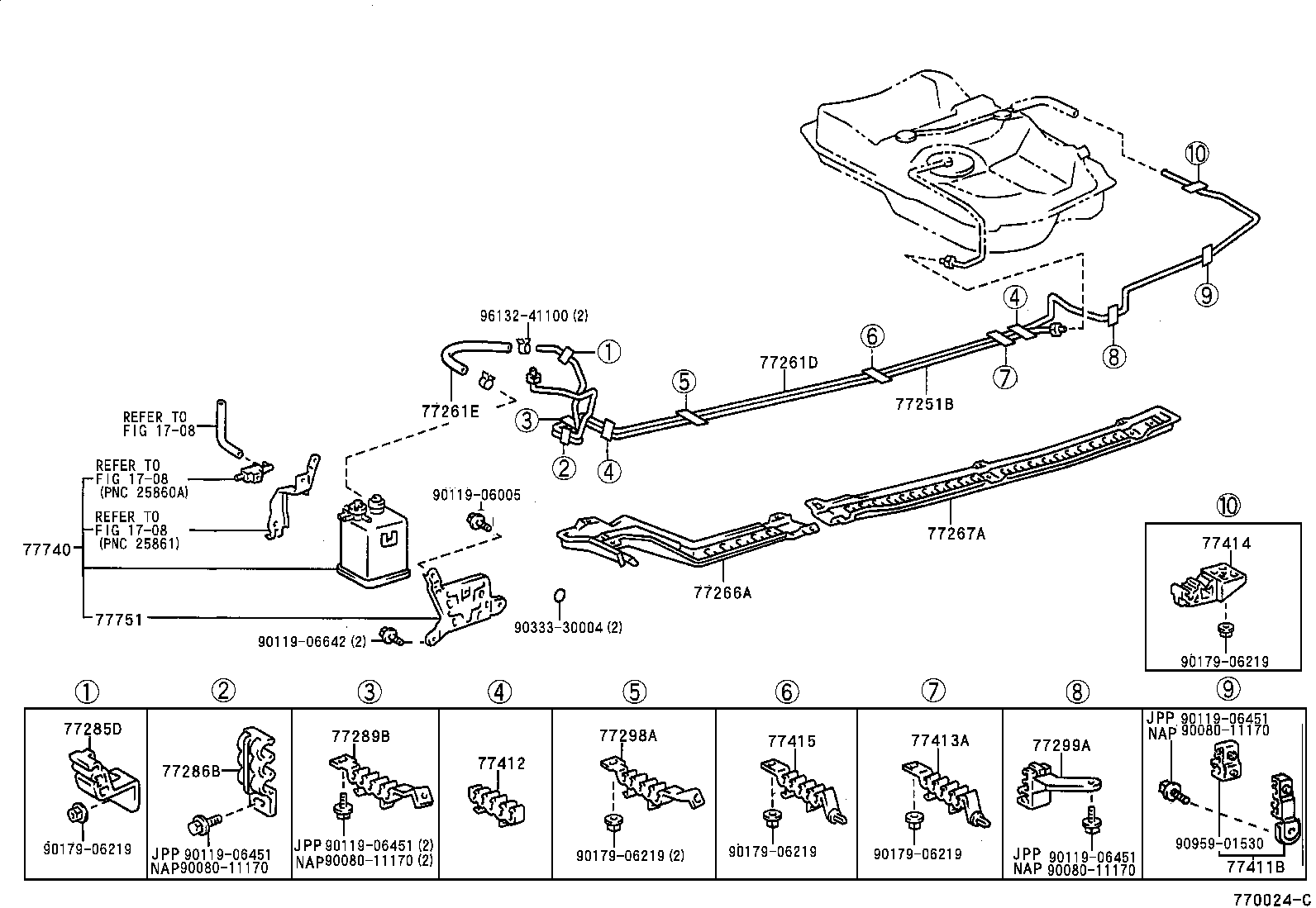

ILLUST NO. 2 OF 2(9608-9708)JPP ; (9708-9808)MCV20..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-33050 |
MCV20,SXV20..JPP |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-33040 |
MCV20,SXV20..JPP |
1 | ||
| 77261-33060 |
MCV20,SXV20..JPP |
1 | ||
| 77261-33060 |
SXV20..JPP |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77259-33060 |
MCV20,SXV20..JPP |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-33020 |
MCV20,SXV2#..JPP |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-33020 |
MCV20,SXV2#..JPP |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-33020 |
MCV20,SXV20..JPP |
1 | ||
| 77285-33030 |
MCV20,SXV20..JPP |
1 | ||
| 77285-33030 |
SXV20..JPP |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-33010 |
MCV20,SXV20..JPP |
1 | ||
| 77286-33020 |
SXV20..JPP |
1 | ||
| 77286-33020 |
MCV20,SXV20..JPP |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-33030 |
SXV20..JPP |
1 | ||
| 77289-33030 |
MCV20,SXV20..JPP |
1 | ||
| 77289-33020 |
MCV20,SXV20..JPP |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-33030 |
SXV20..JPP |
1 | ||
| 77298-33020 |
MCV20,SXV20..JPP |
1 | ||
| 77298-33030 |
MCV20,SXV20..JPP |
1 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-33020 |
MCV20,SXV20..JPP |
1 | ||
| 77299-33030 |
MCV20,SXV20..JPP |
1 | ||
| 77299-33030 |
SXV20..JPP |
1 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-33020 |
MCV20,SXV20..JPP |
1 | ||
| 77411-33030 |
SXV20..JPP |
1 | ||
| 77411-33030 |
MCV20,SXV20..JPP |
1 | ||
| 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 | ||||
| 77412-33030 |
SXV20..JPP |
2 | ||
| 77412-33020 |
MCV20,SXV20..JPP |
2 | ||
| 77412-33030 |
MCV20,SXV20..JPP |
2 | ||
| 77413A - SUPPORT, FUEL TUBE GROMMET, NO.3 | ||||
| 77413-33030 |
MCV20,SXV20..JPP |
1 | ||
| 77413-33020 |
MCV20,SXV20..JPP |
1 | ||
| 77413-33030 |
SXV20..JPP |
1 | ||
| 77414 - SUPPORT, FUEL TUBE GROMMET, NO.4 | ||||
| 77414-33020 |
MCV20,SXV20..JPP |
1 | ||
| 77414-33030 |
SXV20..JPP |
1 | ||
| 77414-33030 |
MCV20,SXV20..JPP |
1 | ||
| 77415 - SUPPORT, FUEL TUBE GROMMET, NO.5 | ||||
| 77415-33030 |
SXV20..JPP |
1 | ||
| 77415-33030 |
MCV20,SXV20..JPP |
1 | ||
| 77415-33020 |
MCV20,SXV20..JPP |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-33061 |
MCV20,SXV20..JPP |
1 | ||
| 77740-33111 |
SXV20..JPP |
1 | ||
| 77740-33110 |
SXV20..JPP |
1 | ||
| 77740-33111 |
MCV20,SXV20..JPP |
1 | ||
| 77740-33121 |
MCV20,SXV20..JPP |
1 | ||
| 77740-33120 |
MCV20,SXV20..JPP |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-41010 |
MCV20,SXV20..JPP |
1 | ||
| Common parts | ||||
| 90080-11170 | ||||
| 90119-06005 | ||||
| 90119-06451 | ||||
| 90119-06642 | ||||
| 90179-06219 | ||||
| 90333-30004 | ||||
| 90959-01530 | ||||
| 96132-41100 | ||||
| Linked diagrams | ||||
| 1708 | ||||

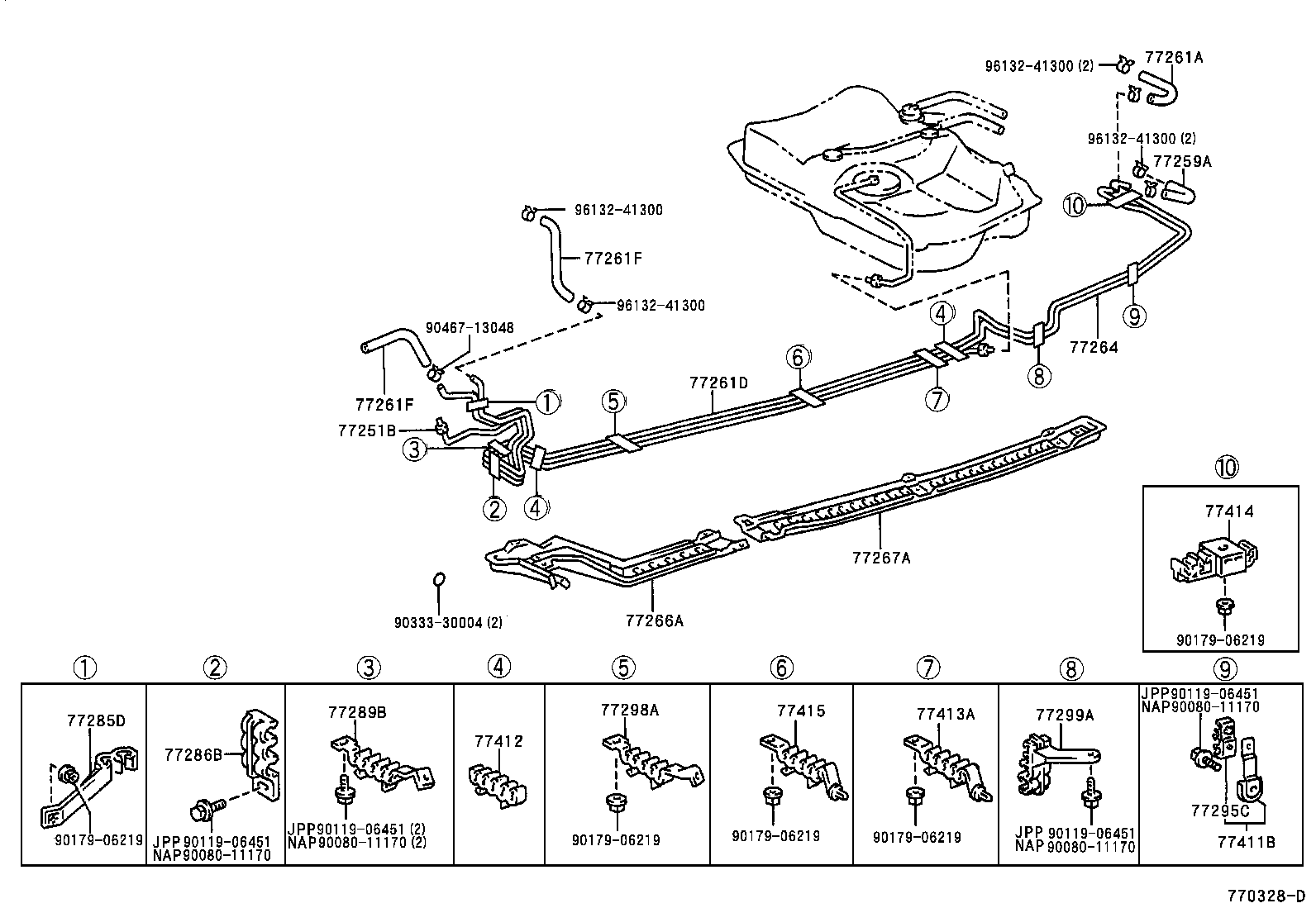

ILLUST NO. 2 OF 2(9708- )SXV20..JPP ; (9808- )MCV20..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-33050 |
MCV20,SXV20..JPP |
1 | ||
| 77259A - HOSE, FUEL(FOR BREATHER TUBE) | ||||
| 77419-33020 |
MCV20,SXV20..JPP |
1 | ||
| 77419-33020 |
SXV20..JPP |
1 | ||
| 77261A - HOSE, FUEL, NO.1 (FOR FUEL EMISSION TUBE) | ||||
| 95333-08020 |
MCV20,SXV20..JPP *H,L=180 |
1 | ||
| 95333-08020 |
SXV20..JPP *H,L=180 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-33040 |
MCV20,SXV20..JPP |
1 | ||
| 77261-33060 |
MCV20,SXV20..JPP |
1 | ||
| 77261-33060 |
SXV20..JPP |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95328-07022 |
SXV20..JPP *H,L=220 |
1 | ||
| 77279-33030 |
SXV20..JPP L=180 |
1 | ||
| 77279-33030 |
MCV20,SXV20..JPP L=180 |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95328-07022 |
SXV20..JPP *H,L=220 |
1 | ||
| 77279-33030 |
SXV20..JPP L=180 |
1 | ||
| 77279-33030 |
MCV20,SXV20..JPP L=180 |
1 | ||
| 77264 - TUBE, CANISTER TO FRONT SIDE MEMBER | ||||
| 77264-33030 |
SXV20..JPP |
1 | ||
| 77264-33010 |
SXV20..JPP |
1 | ||
| 77264-33010 |
MCV20,SXV20..JPP |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-33020 |
MCV20,SXV2#..JPP |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-33020 |
MCV20,SXV2#..JPP |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-33020 |
MCV20,SXV20..JPP |
1 | ||
| 77285-33030 |
MCV20,SXV20..JPP |
1 | ||
| 77285-33030 |
SXV20..JPP |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-33010 |
MCV20,SXV20..JPP |
1 | ||
| 77286-33020 |
SXV20..JPP |
1 | ||
| 77286-33020 |
MCV20,SXV20..JPP |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-33030 |
SXV20..JPP |
1 | ||
| 77289-33030 |
MCV20,SXV20..JPP |
1 | ||
| 77289-33020 |
MCV20,SXV20..JPP |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-33010 |
SXV20..JPP |
1 | ||
| 77295-33010 |
MCV20,SXV20..JPP |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-33030 |
SXV20..JPP |
1 | ||
| 77298-33020 |
MCV20,SXV20..JPP |
1 | ||
| 77298-33030 |
MCV20,SXV20..JPP |
1 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-33020 |
MCV20,SXV20..JPP |
1 | ||
| 77299-33030 |
MCV20,SXV20..JPP |
1 | ||
| 77299-33030 |
SXV20..JPP |
1 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-33020 |
MCV20,SXV20..JPP |
1 | ||
| 77411-33030 |
SXV20..JPP |
1 | ||
| 77411-33030 |
MCV20,SXV20..JPP |
1 | ||
| 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 | ||||
| 77412-33030 |
SXV20..JPP |
2 | ||
| 77412-33020 |
MCV20,SXV20..JPP |
2 | ||
| 77412-33030 |
MCV20,SXV20..JPP |
2 | ||
| 77413A - SUPPORT, FUEL TUBE GROMMET, NO.3 | ||||
| 77413-33030 |
MCV20,SXV20..JPP |
1 | ||
| 77413-33020 |
MCV20,SXV20..JPP |
1 | ||
| 77413-33030 |
SXV20..JPP |
1 | ||
| 77414 - SUPPORT, FUEL TUBE GROMMET, NO.4 | ||||
| 77414-33020 |
MCV20,SXV20..JPP |
1 | ||
| 77414-33030 |
SXV20..JPP |
1 | ||
| 77414-33030 |
MCV20,SXV20..JPP |
1 | ||
| 77415 - SUPPORT, FUEL TUBE GROMMET, NO.5 | ||||
| 77415-33030 |
SXV20..JPP |
1 | ||
| 77415-33030 |
MCV20,SXV20..JPP |
1 | ||
| 77415-33020 |
MCV20,SXV20..JPP |
1 | ||
| Common parts | ||||
| 90080-11170 | ||||
| 90119-06451 | ||||
| 90179-06219 | ||||
| 90333-30004 | ||||
| 90467-13048 | ||||
| 96132-41300 | ||||
ILLUST NO. 1 OF 2(9708- )SXV20..JPP ; (9808- )MCV20..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 25860M - VALVE ASSY, VACUUM SWITCING | ||||
| 90910-12198 |
5SFE..SXV20..JPP |
1 | ||
| 90910-12109 |
5SFE..SXV20..JPP |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-33010 |
MCV20,SXV20..JPP |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-33080 |
MCV20,SXV20..JPP |
1 | ||
| 77035-33080 |
MCV20,SXV2#..JPP |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-39335 |
MCV20,SXV20..JPP |
1 | ||
| 77001-39355 |
MCV20,SXV20..JPP |
1 | ||
| 77001-33070 |
MCV20,SXV20..JPP |
1 | ||
| 77001-33070 |
SXV20..JPP |
1 | ||
| 77001-39385 |
MCV20,SXV20..JPP |
1 | ||
| 77001-33070 |
MCV20,SXV20..JPP |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-33030 |
MCV20,SXV20..JPP |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-33010 |
MCV20,SXV20..JPP |
1 | ||
| 77177 - GASKET, CHECK VALVE | ||||
| 77177-33010 |
MCV20,SXV20..JPP |
1 | ||
| 77177-33010 |
SXV20..JPP |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-33010 |
MCV20,SXV20..JPP |
2 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-33010 |
MCV20,SXV20..JPP |
2 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-33020 |
MCV20,SXV20..JPP |
1 | ||
| 77201-33080 |
SXV20..JPP |
1 | ||
| 77201-33080 |
MCV20,SXV20..JPP |
1 | ||
| 77209B - TUBE SUB-ASSY, FUEL PUMP | ||||
| 77209-33010 |
MCV20,SXV20..JPP |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-06010 |
MCV20,SXV20..JPP L=182,(L) |
1 | ||
| 77213-33050 |
MCV20,SXV20..JPP L=182 |
1 | ||
| 77213-33050 |
MCV20,SXV20..JPP L=240,(J) |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-41020 |
SXV20..JPP |
1 | ||
| 77216-33010 |
MCV20,SXV20..JPP |
1 | ||
| 77216-41020 |
MCV20,SXV20..JPP |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-41010 |
SXV20..JPP |
1 | ||
| 77217-41010 |
MCV20,SXV20..JPP |
1 | ||
| 77217-33010 |
MCV20,SXV20..JPP |
1 | ||
| 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77218-33020 |
SXV20..JPP |
1 | ||
| 77218-33020 |
MCV20,SXV20..JPP |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-33040 |
SXV20..JPP |
2 | ||
| 77229-33040 |
MCV20,SXV20..JPP |
2 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-33040 |
SXV20..JPP |
2 | ||
| 77229-33040 |
MCV20,SXV20..JPP |
2 | ||
| 77246C - SUPPORT, FUEL MAIN TUBE | ||||
| 77246-33010 |
MCV20,SXV20..JPP |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 95337-06018 |
MCV20,SXV20..JPP |
1 | ||
| 95327-06030 |
MCV20,SXV20..JPP |
1 | ||
| 95327-06030 |
SXV20..JPP |
1 | ||
| 77269A - HOSE, FUEL TANK BREATHER | ||||
| 77269-33010 |
MCV20,SXV20..JPP |
1 | ||
| 77269-33010 |
SXV20..JPP |
1 | ||
| 77272B - SUPPORT, BREATHER TUBE, NO.1 | ||||
| 77272-33010 |
MCV20,SXV20..JPP |
1 | ||
| 77272-33010 |
SXV20..JPP |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-33041 |
MCV20,SXV20..JPP |
1 | ||
| 77277-33040 |
MCV20,SXV20..JPP |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-33010 |
MCV20,SXV20..JPP |
1 | ||
| 77281-33010 |
SXV20..JPP |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-33010 |
MCV20,SXV2#..JPP |
1 | ||
| 77291-33010 |
MCV20,SXV20..JPP |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-12140 |
MCV20,SXV20..JPP |
1 | ||
| 77310-48020 |
MCV20,SXV20..JPP |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
MCV20,SXV20..JPP |
1 | ||
| 77340A - VALVE ASSY, FUEL CUT OFF W/TUBE | ||||
| 77340-33020 |
MCV20,SXV20..JPP..ATM |
1 | ||
| 77340-33020 |
MCV20,SXV20..JPP |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-33030 |
MCV20,SXV2#..JPP |
1 | ||
| 77350-33030 |
MCV20,SXV20..JPP |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-33020 |
MCV20,SXV20..JPP |
1 | ||
| 77360-22020 |
MCV20,SXV20..JPP |
1 | ||
| 77360-33020 |
MCV20,SXV2#..JPP |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12050 |
MCV20,SXV20..JPP |
1 | ||
| 77377-12050 |
MCV20,SXV2#..JPP |
1 | ||
| 77390D - VALVE ASSY, FUEL TANK OVER FILL CHECK | ||||
| 77390-33011 |
SXV20..JPP |
1 | ||
| 77390-33010 |
SXV20..JPP |
1 | ||
| 77390-33011 |
MCV20,SXV20..JPP |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
MCV20,SXV2#..JPP |
1 | ||
| 77391-12020 |
MCV20,SXV20..JPP |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-20030 |
MCV20,SXV20..JPP |
1 | ||
| 77391-20030 |
MCV20,SXV2#..JPP |
1 | ||
| 77393 - PROTECTOR, CHECK VALVE | ||||
| 77393-33010 |
MCV20,SXV20..JPP |
1 | ||
| 77393-33010 |
SXV20..JPP |
1 | ||
| 77393-52010 |
MCV20,SXV20..JPP |
1 | ||
| 77394 - HOSE, VALVE TO FUEL FILLER PIPE | ||||
| 95337-08034 |
SXV20..JPP L=340 |
1 | ||
| 95337-08034 |
MCV20,SXV20..JPP L=340 |
1 | ||
| 95337-08034 |
MCV20,SXV20..JPP L=320 |
1 | ||
| 95337-08034 |
SXV20..JPP..USA L=320 |
1 | ||
| 77444 - HOSE, FUEL TANK VENT | ||||
| 77404-33010 |
SXV20..JPP |
1 | ||
| 77404-33010 |
MCV20,SXV20..JPP |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-33010 |
MCV20,SXV20..JPP |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-33010 |
MCV20,SXV20..JPP |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-33010 |
SXV20..JPP |
1 | ||
| 77606-33010 |
MCV20,SXV20..JPP |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90250-08019 |
MCV20,SXV20..JPP |
2 | ||
| 77631A - PROTECTOR, FUEL TANK, LOWER CENTER | ||||
| 77631-33021 |
MCV20,SXV20..JPP |
1 | ||
| 77631-33020 |
MCV20,SXV20..JPP |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-33010 |
MCV20,SXV20..JPP |
1 | ||
| 77643A - PROTECTOR, FUEL TANK, NO.3 | ||||
| 77643-33010 |
MCV20,SXV20..JPP |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-32030 |
MCV20,SXV20..JPP |
7 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-32060 |
MCV20,SXV20..JPP |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-32060 |
MCV20,SXV20..JPP |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-33061 |
MCV20,SXV20..JPP |
1 | ||
| 77740-33111 |
SXV20..JPP |
1 | ||
| 77740-33110 |
SXV20..JPP |
1 | ||
| 77740-33111 |
MCV20,SXV20..JPP |
1 | ||
| 77740-33121 |
MCV20,SXV20..JPP |
1 | ||
| 77740-33120 |
MCV20,SXV20..JPP |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-33020 |
MCV20,SXV20..JPP |
1 | ||
| Common parts | ||||
| 82711-16790 | ||||
| 90080-11136 | ||||
| 90080-11169 | ||||
| 90080-11186 | ||||
| 90080-11327 | ||||
| 90080-11334 | ||||
| 90119-06351 | ||||
| 90119-06398 | ||||
| 90119-06450 | ||||
| 90119-08511 | ||||
| 90119-10476 | ||||
| 90119-10477 | ||||
| 90119-10502 | ||||
| 90159-50343 | ||||
| 90185-06002 | ||||
| 90269-06013 | ||||
| 90460-46003 | ||||
| 90464-00745 | ||||
| 90464-00749 | ||||
| 90466-10001 | ||||
| 90466-11003 | ||||
| 90467-12056 | ||||
| 90467-13061 | ||||
| 90468-04079 | ||||
| 90959-01427 | ||||
| Linked diagrams | ||||
| 6105 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
