SXV20L-AEPNKA (1996)
Toyota Camry (Jpp)
(9608- )SXV2#..JPP

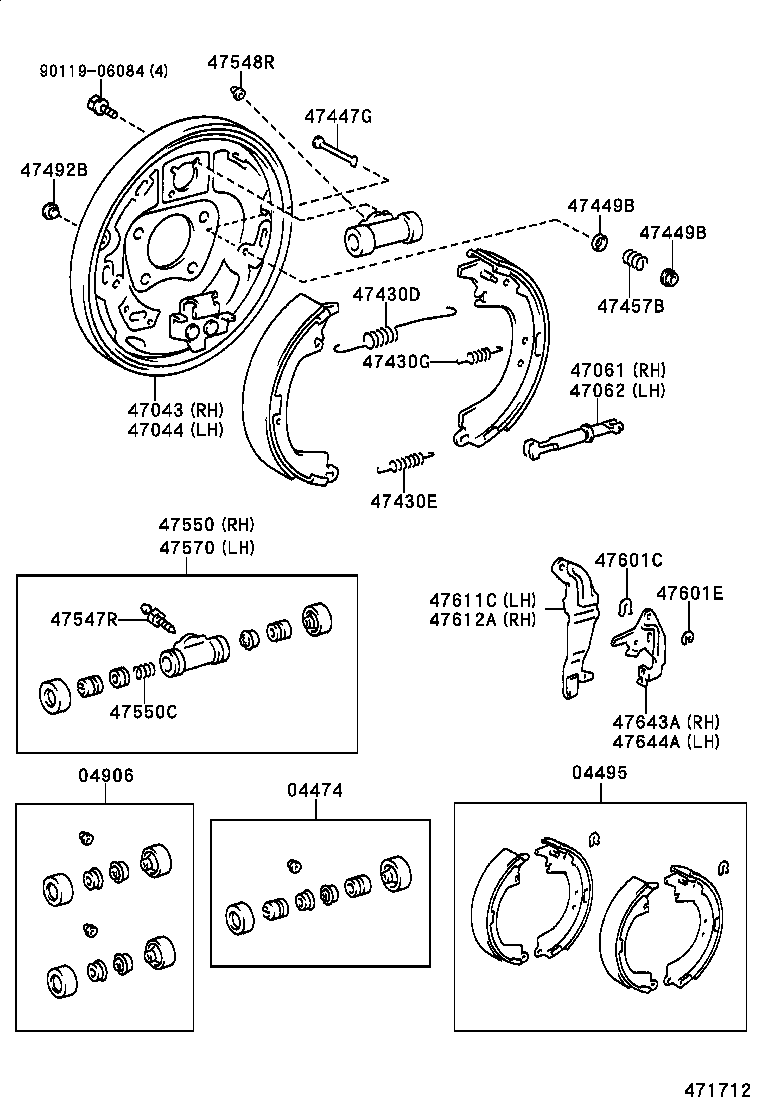

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-33010 |
SXV20..JPP |
2 | ||
| 04474-33010 |
SXV2#..JPP |
1 | ||
| 04474-20030 |
SXV20..JPP |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-33010 |
SXV2#..JPP |
1 | ||
| 04495-33010 |
SXV20..JPP |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-33010 |
SXV20..JPP |
1 | ||
| 04906-33010 |
SXV2#..JPP |
1 | ||
| 04906-20030 |
SXV20..JPP |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-32020 |
SXV20..JPP |
1 | ||
| 47043-32020 |
SXV2#..JPP |
1 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-32020 |
SXV20..JPP |
1 | ||
| 47044-32020 |
SXV2#..JPP |
1 | ||
| 47061 - STRUT SET, PARKING BRAKE SHOE, RH | ||||
| 47061-33010 |
SXV20..JPP |
1 | ||
| 47061-33010 |
SXV2#..JPP |
1 | ||
| 47062 - STRUT SET, PARKING BRAKE SHOE, LH | ||||
| 47062-33010 |
SXV20..JPP |
1 | ||
| 47062-33010 |
SXV2#..JPP |
1 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-29008 |
SXV2#..JPP RH |
1 | ||
| 90506-29008 |
SXV20..JPP RH |
1 | ||
| 90506-29009 |
SXV20..JPP LH |
1 | ||
| 90506-29009 |
SXV2#..JPP LH |
1 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-23346 |
SXV20..JPP |
2 | ||
| 90506-23346 |
SXV2#..JPP |
2 | ||
| 47430G - SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER) | ||||
| 90506-12011 |
SXV2#..JPP |
2 | ||
| 90506-12011 |
SXV20..JPP |
2 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-20030 |
SXV20..JPP |
4 | ||
| 47447-20030 |
SXV2#..JPP |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
SXV2#..JPP |
8 | ||
| 47449-30020 |
SXV20..JPP |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
SXV2#..JPP |
8 | ||
| 47449-30020 |
SXV20..JPP |
8 | ||
| 47457B - SPRING, COMPRESSION(FOR REAR SHOE HOLD DOWN SPRING PIN) | ||||
| 90501-18017 |
SXV20..JPP |
4 | ||
| 90501-18017 |
SXV2#..JPP |
4 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-28010 |
SXV20..JPP |
2 | ||
| 47492-28010 |
SXV2#..JPP |
2 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-22020 |
SXV2#..JPP |
2 | ||
| 47547-22020 |
SXV20..JPP |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
SXV2#..JPP |
4 | ||
| 31478-30010 |
SXV20..JPP |
4 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-33010 |
SXV20..JPP |
1 | ||
| 47550-33010 |
SXV2#..JPP |
1 | ||
| 47550-20190 |
SXV20..JPP |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-09079 |
SXV2#..JPP |
2 | ||
| 90501-09079 |
SXV20..JPP |
2 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-20190 |
SXV20..JPP |
1 | ||
| 47570-33010 |
SXV20..JPP |
1 | ||
| 47570-33010 |
SXV2#..JPP |
1 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-06013 |
SXV2#..JPP T=1.2 |
2 | ||
| 90213-06013 |
SXV20..JPP T=1.2 |
2 | ||
| 47601E - RING, E(FOR REAR BRAKE) | ||||
| 96160-00500 |
SXV2#..JPP |
2 | ||
| 96160-00500 |
SXV20..JPP |
2 | ||
| 47611C - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47611-33010 |
SXV20..JPP |
1 | ||
| 47611-33010 |
SXV2#..JPP |
1 | ||
| 47612A - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47612-33010 |
SXV20..JPP |
1 | ||
| 47612-33010 |
SXV2#..JPP |
1 | ||
| 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH | ||||
| 47643-33010 |
SXV20..JPP |
1 | ||
| 47643-33010 |
SXV2#..JPP |
1 | ||
| 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH | ||||
| 47644-33010 |
SXV2#..JPP |
1 | ||
| 47644-33010 |
SXV20..JPP |
1 | ||
| Common parts | ||||
| 90119-06084 | ||||
