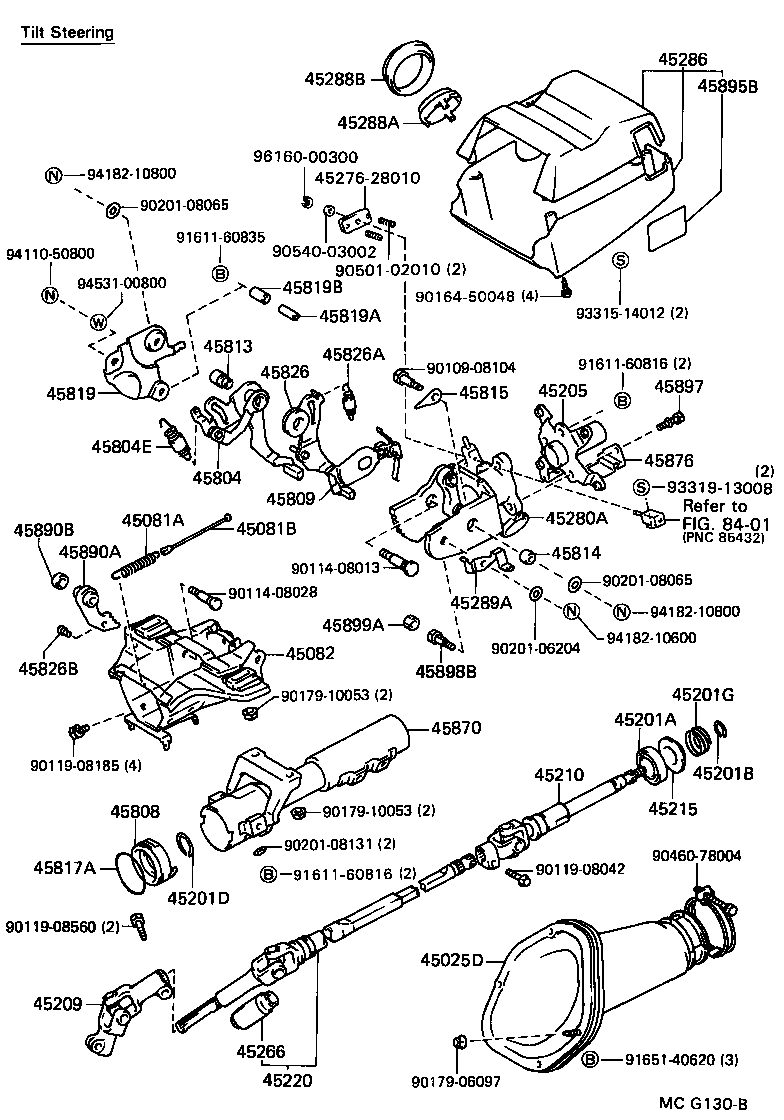

SV25L-UEPNKA (1988)
Toyota Camry (Jpp)
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-32120 |
SV2#,VZV21 |
1 | ||
| 45025-32080 |
SV2#,VZV21 |
1 | ||
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-26016 |
SV2#,VZV21 |
2 | ||
| 45081B - CORD(FOR TILT STEERING) | ||||
| 90945-02052 |
SV2#,VZV21 L=122 |
2 | ||
| 90945-02078 |
SV2#,VZV21 L=123 |
2 | ||
| 45082 - BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE | ||||
| 45082-32040 |
SV2#,VZV21 |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-28001 |
SV2#,VZV21 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
SV2#,VZV21..DX,LE T=1.20 |
1 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96152-00300 |
SV2#,VZV21..DX,LE |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-45011 |
SV2#,VZV21 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-32081 |
SV2#,VZV21..4FC |
1 | ||
| 45205-32081 |
SV2#,VZV21 |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-32020 |
SV2#,VZV21 |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-32140 |
SV2#,VZV21..DX,LE |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-22011 |
SV2#,VZV21 |
1 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-32060 |
SV2#,VZV21 |
1 | ||
| 45220-32070 |
SV2#,VZV21 |
1 | ||
| 45266 - COVER, STEERING INTERMEDIATE SHAFT DUST | ||||
| 45266-20010 |
SV2#,VZV21 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-32260 |
SV2#,VZV21..4FC..(DX,LE) |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-3291803 |
SV2#,VZV21..DX,LE MEDIUM GRAY,TRIM1# |
1 | ||
| 45286-3291802 |
SV2#,VZV21..(DX,LE)..USA MAROON,TRIM3# |
1 | ||
| 45286-3291806 |
SV2#,VZV21..DX,LE BROWN,TRIM4# |
1 | ||
| 45286-3291804 |
SV2#,VZV21..DX,LE DARK BLUE,TRIM8# |
1 | ||
| 45288B - COVER, STEERING COLUMN, UPPER | ||||
| 45288-3203106 |
SV2#,VZV21 BROWN,TRIM4# |
1 | ||
| 45288-3203104 |
SV2#,VZV21 DARK BLUE,TRIM8# |
1 | ||
| 45288-3203103 |
SV2#,VZV21 MEDIUM GRAY,TRIM1# |
1 | ||
| 45288-3203102 |
SV2#,VZV21..USA MAROON,TRIM3# |
1 | ||
| 45288-3203103 |
SV2#,VZV21 MEDIUM GRAY,TRIM1# |
1 | ||
| 45288-3203106 |
SV2#,VZV21..DX,LE BROWN,TRIM4# |
1 | ||
| 45288-3203103 |
SV25,VZV21;SV21..LE,STD;SV21..SED..DX MEDIUM GRAY,TRIM1# |
1 | ||
| 45288-3203102 |
SV2#,VZV21..USA MAROON,TRIM3# |
1 | ||
| 45288-3203104 |
SV2#,VZV21 DARK BLUE,TRIM8# |
1 | ||
| 45288-3203102 |
SV2#,VZV21..(DX,LE)..USA MAROON,TRIM3# |
1 | ||
| 45288-3203106 |
SV2#,VZV21 BROWN,TRIM4# |
1 | ||
| 45288-3203104 |
SV2#,VZV21..DX,LE DARK BLUE,TRIM8# |
1 | ||
| 45288-3203103 |
SV2#,VZV21..DX,LE MEDIUM GRAY,TRIM1# |
1 | ||
| 45289A - SUPPORT, STEERING COLUMN COVER | ||||
| 45289-32050 |
SV2#,VZV21 |
1 | ||
| 45289-32020 |
SV2#,VZV21 |
1 | ||
| 45804 - LEVER SUB-ASSY, STEERING TILT | ||||
| 45804-32020 |
SV2#,VZV21 |
1 | ||
| 45804-32021 |
SV2#,VZV21 |
1 | ||
| 45804E - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90506-13001 |
SV2#,VZV21 |
1 | ||
| 45808 - STOPPER SUB-ASSY, STEERING SHAFT THRUST | ||||
| 45808-32010 |
SV2#,VZV21 |
1 | ||
| 45808-32020 |
SV2#,VZV21 |
1 | ||
| 45809 - COVER SUB-ASSY, ADJUSTER MEMORY | ||||
| 45809-32010 |
SV2#,VZV21 |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-30011 |
SV2#,VZV21 OD=17.996-18.003 |
1 | ||
| 45813-30021 |
SV2#,VZV21 OD=18.003-18.010 |
1 | ||
| 45813-30051 |
SV2#,VZV21 OD=17.989-17.996 |
1 | ||
| 45813-30031 |
SV2#,VZV21 OD=17.982-17.989 |
1 | ||
| 45813-30041 |
SV2#,VZV21 OD=18.017-18.024 |
1 | ||
| 45814 - COLLAR, TILT STEERING SUPPORT, NO.2 | ||||
| 45814-32020 |
SV2#,VZV21 OD=18.018-18.011 |
1 | ||
| 45814-32010 |
SV2#,VZV21 OD=18.000-17.993 |
1 | ||
| 45815 - SHIM, TILT STEERING SUPPORT | ||||
| 45815-22100 |
SV2#,VZV21 T=1.8 |
1 | ||
| 45815-22080 |
SV2#,VZV21 T=0.8 |
1 | ||
| 45815-22060 |
SV2#,VZV21 T=0.2 |
1 | ||
| 45815-22070 |
SV2#,VZV21 T=0.5 |
1 | ||
| 45815-22090 |
SV2#,VZV21 T=1.4 |
1 | ||
| 45817A - RING, O(FOR STEERING SHAFT THRUST STOPPER) | ||||
| 90301-54002 |
SV2#,VZV21 |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-32010 |
SV2#,VZV21 |
1 | ||
| 45819A - COLLAR(FOR TILT LEVER RETAINER) | ||||
| 90387-08046 |
SV2#,VZV21 |
1 | ||
| 45819B - CUSHION(FOR TILT LEVER RETAINER) | ||||
| 90540-11007 |
SV2#,VZV21 |
1 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45826-32030 |
SV2#,VZV21 |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-10011 |
SV2#,VZV21 |
1 | ||
| 45826B - PIN(FOR STEERING TILT LEVER) | ||||
| 72538-12010 |
SV2#,VZV21 |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-32110 |
SV2#,VZV21..DX,LE |
1 | ||
| 45876 - GUIDE, TURN SIGNAL CORD | ||||
| 45876-32020 |
SV2#,VZV21 |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-32010 |
SV2#,VZV21 |
1 | ||
| 45890B - SPACER(FOR TILT STEERING PAWL) | ||||
| 90560-13008 |
SV2#,VZV21 |
1 | ||
| 45895B - PLATE, TILT LEVER INSTRUCTION | ||||
| 45895-22060 |
SV2#,VZV21 |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-32010 |
SV2#,VZV21..DX,LE |
1 | ||
| 45898B - BOLT, TILT STEERING SUPPORT STOPPER | ||||
| 45898-22020 |
SV2#,VZV21 |
1 | ||
| 45899A - COVER, TILT STEERING SUPPORT STOPPER | ||||
| 45899-22020 |
SV2#,VZV21 |
1 | ||
| Common parts | ||||
| 45276-28010 | ||||
| 90109-08104 | ||||
| 90114-08013 | ||||
| 90114-08028 | ||||
| 90119-08042 | ||||
| 90119-08185 | ||||
| 90119-08560 | ||||
| 90164-50048 | ||||
| 90179-06097 | ||||
| 90179-10053 | ||||
| 90201-06204 | ||||
| 90201-08065 | ||||
| 90201-08131 | ||||
| 90460-78004 | ||||
| 90501-02010 | ||||
| 90540-03002 | ||||
| 91611-60816 | ||||
| 91611-60835 | ||||
| 91651-40620 | ||||
| 93315-14012 | ||||
| 93319-13008 | ||||
| 94110-50800 | ||||
| 94182-10600 | ||||
| 94182-10800 | ||||
| 94531-00800 | ||||
| 96160-00300 | ||||
| Linked diagrams | ||||
| 8401 | ||||
