SV25L-UEPDKK (1988)
Toyota Camry (Jpp)
Production
Aug 1988
-
Jun 1991
Engine
3SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )3SFE..SV25..4FC

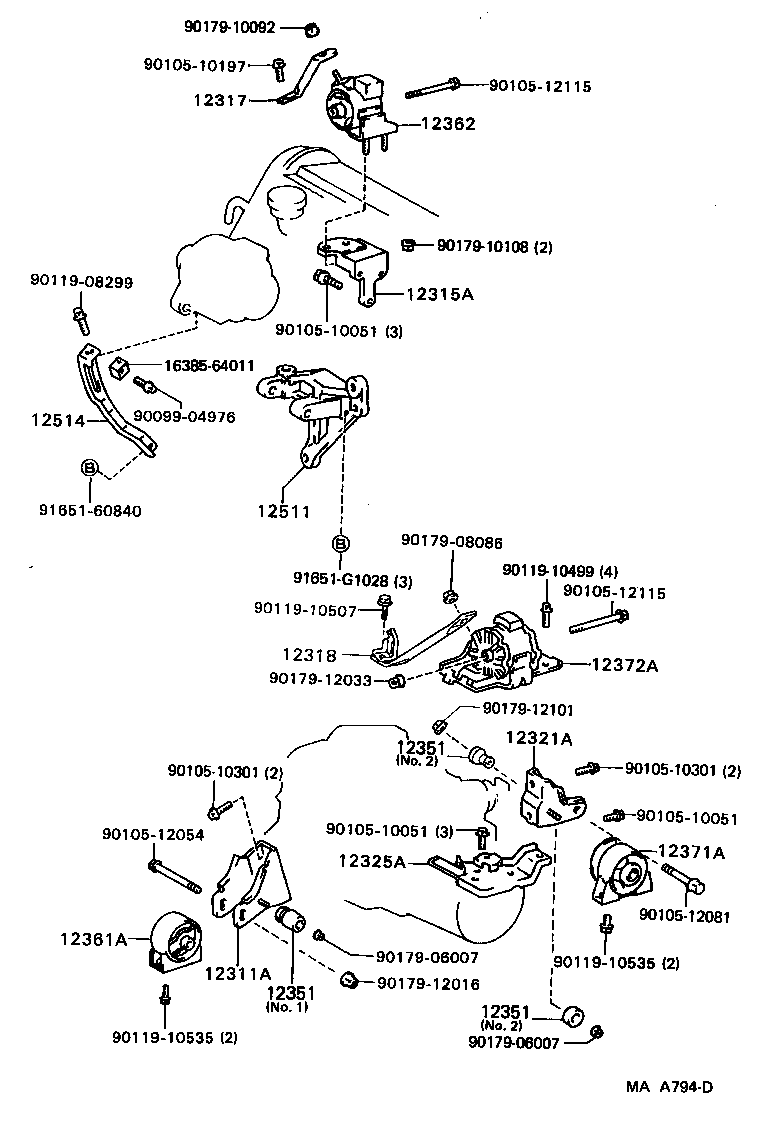

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-74050 |
3SFE..SV25 |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-74030 |
3SFE..SV25 |
1 | ||
| 12317 - STAY, ENGINE MOUNTING, RH | ||||
| 12317-74060 |
3SFE..SV2# |
1 | ||
| 12317-74010 |
3SFE..SV25..4FC |
1 | ||
| 12318 - STAY, ENGINE MOUNTING, LH | ||||
| 12318-74050 |
3SFE..SV25..4FC |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-74110 |
3SFE..SV25..4FC |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-62020 |
3SFE..SV25..4FC |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-63010 |
3SFE..SV25..4FC NO.1 |
1 | ||
| 12351-74020 |
3SFE..SV25..4FC NO.2 |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-63010 |
3SFE..SV25..4FC NO.1 |
1 | ||
| 12351-74020 |
3SFE..SV25..4FC NO.2 |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-63010 |
3SFE..SV25..4FC NO.1 |
1 | ||
| 12351-74020 |
3SFE..SV25..4FC NO.2 |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-74120 |
3SFE..SV25..4FC |
1 | ||
| 12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12362-74060 |
3SFE..SV25 |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-74130 |
3SFE..SV25..4FC |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-74150 |
3SFE..SV25..4FC |
1 | ||
| 12372-74151 |
3SFE..SV25..4FC |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-74020 |
3SFE..SV2# |
1 | ||
| 12514 - BAR, ALTERNATOR BELT ADJUSTING | ||||
| 12514-74011 |
3SFE..SV2# |
1 | ||
| 12514-74010 |
3SFE..SV2# |
1 | ||
| Common parts | ||||
| 16385-64011 | ||||
| 90099-04976 | ||||
| 90105-10051 | ||||
| 90105-10197 | ||||
| 90105-10301 | ||||
| 90105-12054 | ||||
| 90105-12081 | ||||
| 90105-12115 | ||||
| 90119-08299 | ||||
| 90119-10499 | ||||
| 90119-10507 | ||||
| 90119-10535 | ||||
| 90179-06007 | ||||
| 90179-08086 | ||||
| 90179-10092 | ||||
| 90179-10108 | ||||
| 90179-12016 | ||||
| 90179-12033 | ||||
| 90179-12101 | ||||
| 91651-60840 | ||||
| 91651-G1028 | ||||
