SV25L-UEPDKA (1988)
Toyota Camry (Jpp)
(8808- )SV25
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58387 - PLATE, REAR FLOOR FINISH | ||||
| 58387-3202003 |
SV2#,VZV21..SED..USA LIGHT GRAY,TRIM1#,3#,4#,8# |
1 | ||
| 58387A - PLUG, HOLE(FOR REAR FLOOR FINISH PLATE) | ||||
| 90950-0150312 |
SV2#,VZV21..SED..USA MAROON,TRIM3# |
4 | ||
| 90950-01503B0 |
SV2#,VZV21..SED..USA LIGHT GRAY,TRIM1#,3#,4#,8# |
4 | ||
| 90950-0150336 |
SV2#,VZV21..SED BROWN,TRIM4# |
4 | ||
| 90950-01503B0 |
SV25..DX LIGHT GRAY,TRIM1# |
4 | ||
| 90950-0150313 |
SV2#,VZV21..SED MEDIUM GRAY,TRIM1# |
4 | ||
| 90950-0150314 |
SV2#,VZV21..SED DARK BLUE,TRIM8# |
4 | ||
| 58703A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH | ||||
| 58703-32020 |
SV25 |
1 | ||
| 58704A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH | ||||
| 58704-32040 |
SV25 |
1 | ||
| 64033B - GRILLE SUB-ASSY, REAR SPEAKER, RH | ||||
| 64033-2204006 |
SV2#,VZV21..SED BROWN,TRIM4# |
1 | ||
| 64033-2204002 |
SV2#,VZV21..SED..USA MAROON,TRIM3# |
1 | ||
| 64033-2204003 |
SV2#,VZV21..SED MEDIUM GRAY,TRIM1# |
1 | ||
| 64033-03010E0 |
SV2#,VZV21..SED..(DX,STD)..USA BROWN,TRIM4# |
1 | ||
| 64033-03010B1 |
SV2#,VZV21..SED..(DX,STD)..USA MEDIUM GRAY,TRIM1# |
1 | ||
| 64033-03010J1 |
SV2#,VZV21..SED..(DX,STD)..USA LIGHT BLUE,TRIM8# |
1 | ||
| 64033-2204003 |
SV2#,VZV21..SED..(DX,STD)..USA MEDIUM GRAY,TRIM1# |
1 | ||
| 64033-2204004 |
SV2#,VZV21..SED DARK BLUE,TRIM8# |
1 | ||
| 64033-03010D1 |
SV2#,VZV21..SED..(DX,STD)..USA MAROON,TRIM3# |
1 | ||
| 64033-2204004 |
SV2#,VZV21..SED..(DX,STD)..USA DARK BLUE,TRIM8# |
1 | ||
| 64033-2204006 |
SV2#,VZV21..SED..(DX,STD)..USA BROWN,TRIM4# |
1 | ||
| 64033-2204002 |
SV2#,VZV21..SED..(DX,STD)..USA MAROON,TRIM3# |
1 | ||
| 64034B - GRILLE SUB-ASSY, REAR SPEAKER, LH | ||||
| 64033-2204006 |
SV2#,VZV21..SED BROWN,TRIM4# |
1 | ||
| 64033-03010B1 |
SV2#,VZV21..SED..(DX,STD)..USA MEDIUM GRAY,TRIM1# |
1 | ||
| 64033-2204002 |
SV2#,VZV21..SED..USA MAROON,TRIM3# |
1 | ||
| 64033-2204004 |
SV2#,VZV21..SED DARK BLUE,TRIM8# |
1 | ||
| 64033-2204003 |
SV2#,VZV21..SED..(DX,STD)..USA MEDIUM GRAY,TRIM1# |
1 | ||
| 64033-2204003 |
SV2#,VZV21..SED MEDIUM GRAY,TRIM1# |
1 | ||
| 64033-03010D1 |
SV2#,VZV21..SED..(DX,STD)..USA MAROON,TRIM3# |
1 | ||
| 64033-03010J1 |
SV2#,VZV21..SED..(DX,STD)..USA LIGHT BLUE,TRIM8# |
1 | ||
| 64033-2204002 |
SV2#,VZV21..SED..(DX,STD)..USA MAROON,TRIM3# |
1 | ||
| 64033-03010E0 |
SV2#,VZV21..SED..(DX,STD)..USA BROWN,TRIM4# |
1 | ||
| 64033-2204004 |
SV2#,VZV21..SED..(DX,STD)..USA DARK BLUE,TRIM8# |
1 | ||
| 64033-2204006 |
SV2#,VZV21..SED..(DX,STD)..USA BROWN,TRIM4# |
1 | ||
| 64261 - GARNISH, ROOM PARTITION | ||||
| 64261-3201002 |
SV2#,VZV21..SED..(DX,LE)..USA MAROON,TRIM3# |
1 | ||
| 64261-3201004 |
SV2#,VZV21..SED..(DX,LE) DARK BLUE,TRIM8# |
1 | ||
| 64261-3201003 |
SV2#,VZV21..SED..(DX,LE) MEDIUM GRAY,TRIM1# |
1 | ||
| 64261-3201006 |
SV2#,VZV21..SED..(DX,LE) BROWN,TRIM4# |
1 | ||
| 64271F - TRIM, ROOM PARTITION | ||||
| 64271-32030 |
SV2#,VZV21..SED..(DX,STD) |
1 | ||
| 64279 - PROTECTOR, ROOM PARTITION | ||||
| 64279-3202004 |
SV2#,VZV21..SED..(DX,LE) DARK BLUE,TRIM8# |
1 | ||
| 64279-3202002 |
SV25..DX MAROON,TRIM4# |
1 | ||
| 64279-3202003 |
SV2#,VZV21..SED..(DX,LE) MEDIUM GRAY,TRIM1# |
1 | ||
| 64279-3202006 |
SV2#,VZV21..SED..(DX,LE) BROWN,TRIM4# |
1 | ||
| 64279-3202002 |
SV2#,VZV21..SED..(DX,LE)..USA MAROON,TRIM3# |
1 | ||
| 64330 - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-3223203 |
SV2#,VZV21..SED..DX..USA W(REAR SPEAKER),MEDIUM GRAY,TRIM1# |
1 | ||
| 64330-3223202 |
SV2#,VZV21..SED..DX..USA W(REAR SPEAKER),MAROON,TRIM3# |
1 | ||
| 64330-3214204 |
SV2#,VZV21..SED..(DX,STD) DARK BLUE,TRIM8# |
1 | ||
| 64330-3214202 |
SV2#,VZV21..SED..(DX,STD)..USA MAROON,TRIM3# |
1 | ||
| 64330-3223206 |
SV2#,VZV21..SED..DX..USA W(REAR SPEAKER),BROWN,TRIM4# |
1 | ||
| 64330-3214203 |
SV2#,VZV21..SED..(DX,STD) MEDIUM GRAY,TRIM1# |
1 | ||
| 64330-3223204 |
SV2#,VZV21..SED..DX..USA W(REAR SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 64330-3223203 |
SV2#,VZV21..SED..(DX,STD)..USA W(REAR SPEAKER),MEDIUM GRAY,TRIM1# |
1 | ||
| 64330-3223202 |
SV2#,VZV21..SED..(DX,STD)..USA W(REAR SPEAKER),MAROON,TRIM3# |
1 | ||
| 64330-3223204 |
SV2#,VZV21..SED..(DX,STD)..USA W(REAR SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 64330-3214206 |
SV2#,VZV21..SED..(DX,STD) BROWN,TRIM4# |
1 | ||
| 64330-3223206 |
SV2#,VZV21..SED..(DX,STD)..USA W(REAR SPEAKER),BROWN,TRIM4# |
1 | ||
| 64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL) | ||||
| 90467-08046B0 |
SV2#,VZV21..SED MEDIUM GRAY,TRIM1# |
4 | ||
| 90467-08046D0 |
SV2#,VZV21..SED..USA MAROON,TRIM3# |
4 | ||
| 90467-08046J0 |
SV21..STD..USA;SV2#,VZV21..SED..(DX,LE) LIGHT BLUE,TRIM8# |
4 | ||
| 90467-08046E0 |
SV2#,VZV21..SED BROWN,TRIM4# |
4 | ||
| 90467-08046E0 |
SV21..STD..USA;SV2#,VZV21..SED..(DX,LE) BROWN,TRIM4# |
4 | ||
| 90467-08046J0 |
SV2#,VZV21..SED LIGHT BLUE,TRIM8# |
4 | ||
| 64347B - BRACKET, PACKAGE TRAY REINFORCEMENT, RH | ||||
| 64347-32020 |
SV2#,VZV21..SED |
1 | ||
| 64348B - BRACKET, PACKAGE TRAY REINFORCEMENT, LH | ||||
| 64348-32010 |
SV2#,VZV21..SED |
1 | ||
| 64711 - MAT, LUGGAGE COMPARTMENT FLOOR | ||||
| 64711-3213003 |
SV25..DX..USA W(SPLIT REAR SEAT),LIGHT GRAY,TRIM1#,3#,4#,8# |
1 | ||
| 64711-3212003 |
SV25..DX..USA LIGHT GRAY,TRIM1#,3#,4#,8# |
1 | ||
| 64714D - COVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH | ||||
| 64714-3212003 |
SV25..USA GRAY,TRIM1#,3#,4#,8# |
1 | ||
| 64716C - CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER) | ||||
| 90467-0500433 |
SV2#,VZV21..SED..USA GRAY,TRIM1#,3#,4#,8# |
12 | ||
| 64716G - COVER, LUGGAGE COMPARTMENT TRIM, REAR | ||||
| 64716-3212003 |
SV25..DX..USA LIGHT GRAY,TRIM1#,3#,4#,8# |
1 | ||
| 64717A - COVER, LUGGAGE COMPARTMENT TRIM, FRONT | ||||
| 64717-3204003 |
SV25..DX..USA LIGHT GRAY,TRIM1#,3#,4#,8# |
1 | ||
| 64717B - CLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER) | ||||
| 90467-0601658 |
SV25..DX..USA GRAY,TRIM1#,3#,4#,8#,LOWER |
3 | ||
| 90467-1003401 |
SV25..DX..USA BLACK,TRIM1#,3#,4#,8#,UPPER |
2 | ||
| 64717B - CLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER) | ||||
| 90467-0601658 |
SV25..DX..USA GRAY,TRIM1#,3#,4#,8#,LOWER |
3 | ||
| 90467-1003401 |
SV25..DX..USA BLACK,TRIM1#,3#,4#,8#,UPPER |
2 | ||
| 64721 - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH | ||||
| 64721-3213003 |
SV25..DX..USA GRAY,TRIM1#,3#,4#,8# |
1 | ||
| 64721-3212003 |
SV25..DX..USA W(SPLIT REAR SEAT),LIGHT GRAY,TRIM1#,3#,4#,8# |
1 | ||
| 64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER) | ||||
| 90467-0611403 |
SV2#,VZV21..SED..DX..USA W(SPLIT REAR SEAT),LIGHT GRAY,TRIM1#,3#,4#,8# |
6 | ||
| 90467-07042B0 |
SV2#,VZV21..SED..(DX,STD)..USA LIGHT GRAY,TRIM1#,3#,4#,8# |
4 | ||
| 90467-0611403 |
SV2#,VZV21..SED..(DX,STD)..USA LIGHT GRAY,TRIM1#,3#,4#,8# |
4 | ||
| 64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER) | ||||
| 90467-0611403 |
SV2#,VZV21..SED..DX..USA W(SPLIT REAR SEAT),LIGHT GRAY,TRIM1#,3#,4#,8# |
6 | ||
| 90467-07042B0 |
SV2#,VZV21..SED..(DX,STD)..USA LIGHT GRAY,TRIM1#,3#,4#,8# |
4 | ||
| 90467-0611403 |
SV2#,VZV21..SED..(DX,STD)..USA LIGHT GRAY,TRIM1#,3#,4#,8# |
4 | ||
| 64722 - COVER, LUGGAGE COMPARTMENT TRIM, INNER LH | ||||
| 64722-3212003 |
SV25..DX..USA W(SPLIT REAR SEAT),LIGHT GRAY,TRIM1#,3#,4#,8# |
1 | ||
| 64722-3213003 |
SV25..DX..USA GRAY,TRIM1#,3#,4#,8# |
1 | ||
| 64770 - COVER ASSY, SPARE WHEEL | ||||
| 64770-32060 |
SV25 |
1 | ||
| 64777 - CLAMP, SPARE WHEEL COVER | ||||
| 64777-32030 |
SV2#,VZV21..SED |
1 | ||
| Common parts | ||||
| 90159-60057 | ||||
| 90468-05017 | ||||
| 90541-09010 | ||||
| 93560-14016 | ||||
| Linked diagrams | ||||

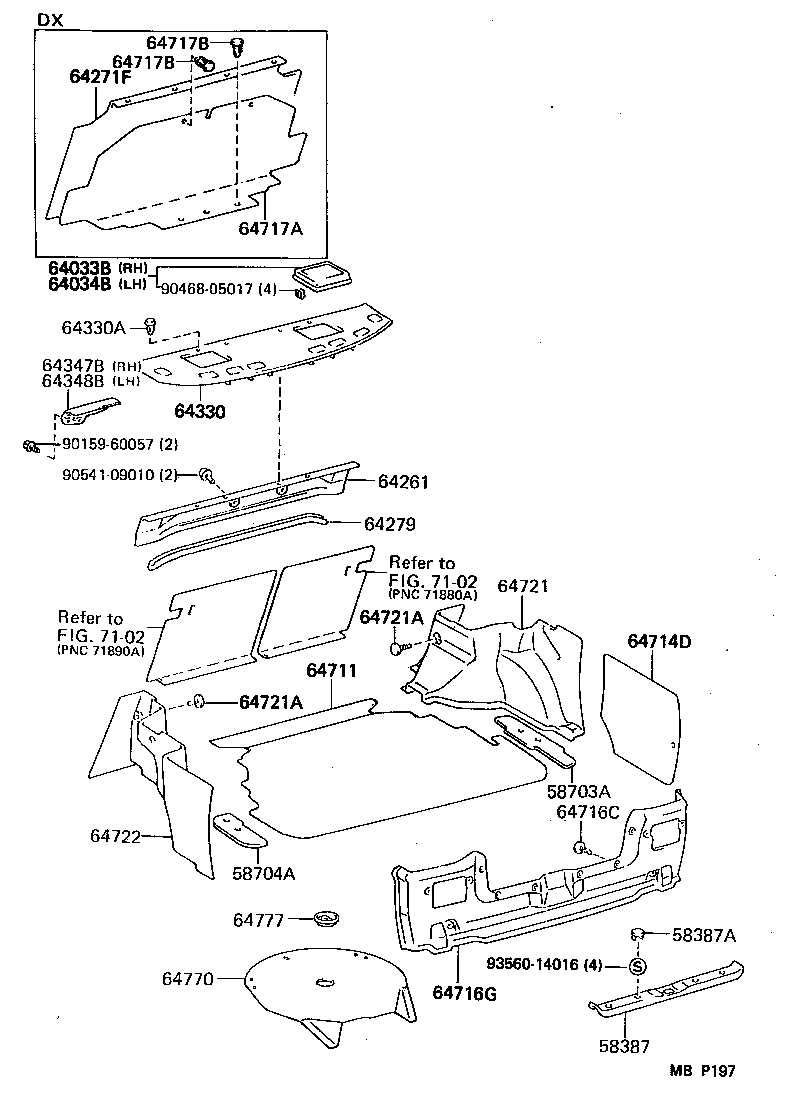

| 7102 | ||||
