SV25L-UEPDKA (1988)

Toyota Camry (Jpp)

Production Aug 1988 - Jun 1991
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )USA

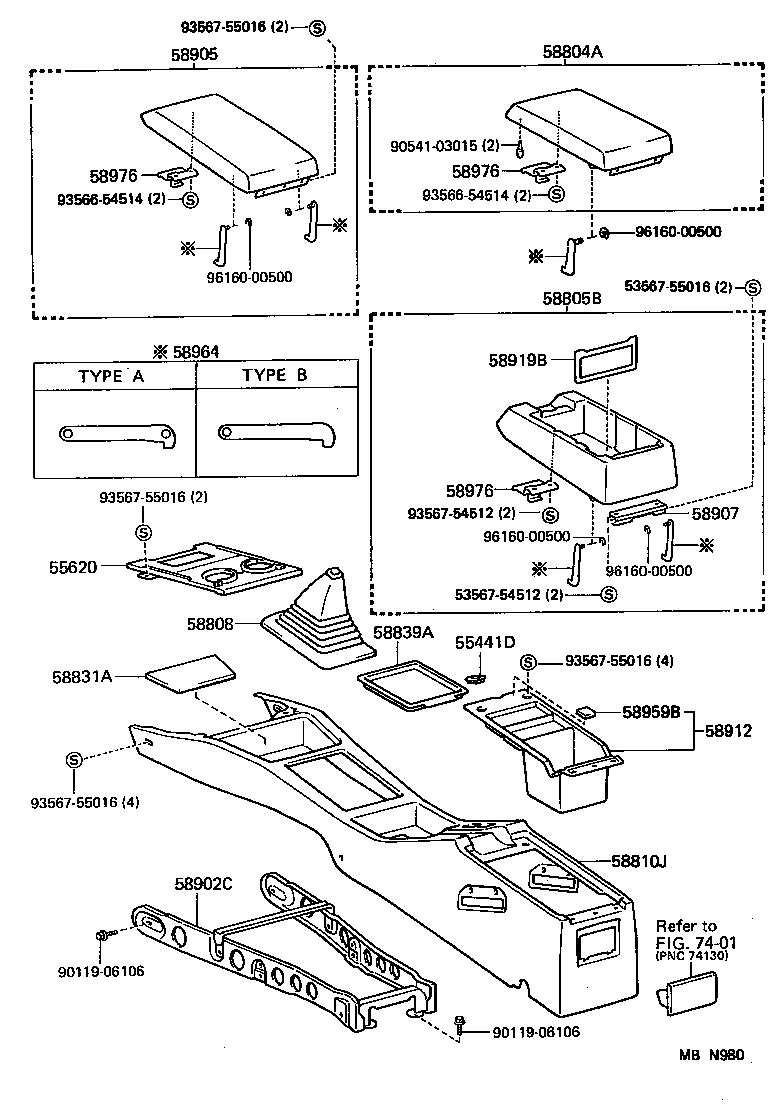

Click highlighted areas on diagram

diagram 5356754512 5356755016 55441D 55620 58804A 58805B 58808 58810J 58831A 58839A 58902C 58905 58907 58912 58919B 58959B 58964 58976 58976 58976 7401 9011906106 9011906106 9054103015 9356654514 9356654514 9356754512 9356755016 9356755016 9356755016 9356755016 9616000500 9616000500 9616000500 9616000500
Part # Description Qty Price
55620 - HOLDER ASSY, INSTRUMENT PANEL CUP
55620-32010

SV2#,VZV21

 1
58810J - BOX ASSY, CONSOLE
58810-3202003

SV25..USA

MEDIUM GRAY,TRIM1#

 1
58810-3202002

SV25..USA

MAROON,TRIM3#

 1
58810-3202006

SV25..USA

BROWN,TRIM4#

 1
58810-3202004

SV25..USA

DARK BLUE,TRIM8#

 1
58831A - GARNISH, CONSOLE UPPER PANEL, FRONT
58831-32010

SV2#,VZV21..USA

 1
58839A - COVER, CONSOLE BOX HOLE
58839-3203004

SV2#,VZV21..USA

DARK BLUE,TRIM8#

 1
58839-3203002

SV2#,VZV21..USA

MAROON,TRIM3#

 1
58839-3203006

SV2#,VZV21..USA

BROWN,TRIM4#

 1
58839-3203003

SV2#,VZV21..USA

MEDIUM GRAY,TRIM1#

 1
58902C - BRACKET SUB-ASSY, CONSOLE BOX MOUNTING
58902-32011

SV2#,VZV21

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-3213102

SV2#,VZV21..(DX,STD)..USA

MAROON,TRIM3#

 1
58905-3213103

SV2#,VZV21..(DX,STD)..USA

MEDIUM GRAY,TRIM1#

 1
58905-3213104

SV2#,VZV21..(DX,STD)..USA

DARK BLUE,TRIM8#

 1
58905-3213106

SV2#,VZV21..(DX,STD)..USA

BROWN,TRIM4#

 1
58912 - BOX, REAR CONSOLE, NO.2
58912-3201106

SV2#,VZV21..USA

BROWN,TRIM4#

 1
58912-3201102

SV2#,VZV21..USA

MAROON,TRIM3#

 1
58912-3201103

SV2#,VZV21..USA

MEDIUM GRAY,TRIM1#

 1
58912-3201104

SV2#,VZV21..USA

DARK BLUE,TRIM8#

 1
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
58959-16010

SV2#,VZV21

 2
58959-32010

SV2#,VZV21..USA

 2
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-30040

SV2#,VZV21..DX,STD

TYPE A

 1
58964-32040

SV2#,VZV21

TYPE B

 1
58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK
58976-22020

SV2#,VZV21..DX,STD

 1
58908-32020

SV2#,VZV21..DX,STD

 1
58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK
58976-22020

SV2#,VZV21..DX,STD

 1
58908-32020

SV2#,VZV21..DX,STD

 1
58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK
58976-22020

SV2#,VZV21..DX,STD

 1
58908-32020

SV2#,VZV21..DX,STD

 1
Common parts
53567-54512
53567-55016
90119-06106
90541-03015
93566-54514
93567-54512
93567-55016
96160-00500
Linked diagrams
7401
