SV21LG-UWPNKK (1988)
Toyota Camry (Jpp)

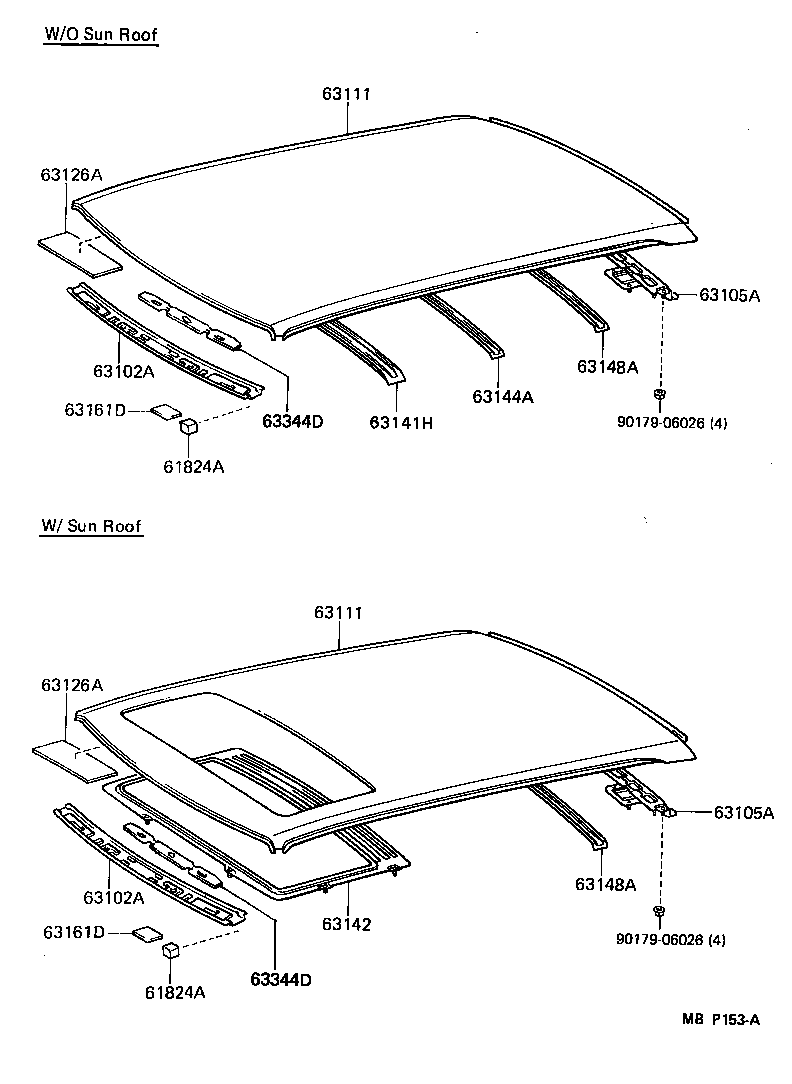

ILLUST NO. 1 OF 2(8808- )WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61824A - PLATE, NOISE CONTROL, NO.1 | ||||
| 62475-12040 |
SV2#,VZV21 |
2 | ||
| 61824A - PLATE, NOISE CONTROL, NO.1 | ||||
| 62475-12040 |
SV2#,VZV21 |
2 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-32060 |
SV2#,VZV21..LE |
1 | ||
| 63102-32050 |
SV2#,VZV21..LE W(MOON ROOF) |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-32060 |
SV2#,VZV21..LE |
1 | ||
| 63102-32050 |
SV2#,VZV21..LE W(MOON ROOF) |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-32040 |
SV21,VZV21..WG |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-32040 |
SV21,VZV21..WG |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-32070 |
SV21,VZV21..WG |
1 | ||
| 63111-32080 |
SV21,VZV21..WG W(MOON ROOF) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-32070 |
SV21,VZV21..WG |
1 | ||
| 63111-32080 |
SV21,VZV21..WG W(MOON ROOF) |
1 | ||
| 63126A - DAMPER, WINDSHIELD HEADER PANEL | ||||
| 63126-32010 |
SV2#,VZV21 |
2 | ||
| 63126A - DAMPER, WINDSHIELD HEADER PANEL | ||||
| 63126-32010 |
SV2#,VZV21 |
2 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63141-32040 |
SV21,VZV21..WG |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-32030 |
SV21,VZV21..WG |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-32020 |
SV21,VZV21..WG |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-32010 |
SV21,VZV21..WG |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-32010 |
SV21,VZV21..WG |
1 | ||
| 63161D - PLATE, ROOF HEADER PANEL, NO.1 | ||||
| 61815-32020 |
SV21,VZV21..WG |
2 | ||
| 63161D - PLATE, ROOF HEADER PANEL, NO.1 | ||||
| 61815-32020 |
SV21,VZV21..WG |
2 | ||
| 63344D - PAD, ROOF SILENCER, NO.4 | ||||
| 63344-32010 |
SV21,VZV21..WG |
1 | ||
| 63344D - PAD, ROOF SILENCER, NO.4 | ||||
| 63344-32010 |
SV21,VZV21..WG |
1 | ||
| Common parts | ||||
| 90179-06026 | ||||
ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-32032 |
SV21,VZV21..WG *TL,T=4.7,BRONZE |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-32030 |
SV2#,VZV21..DX,LE |
1 | ||
| 63207 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, RH | ||||
| 63207-32012 |
SV2#,VZV21..DX,LE |
1 | ||
| 63207-32011 |
SV2#,VZV21..DX,LE |
1 | ||
| 63207-32010 |
SV2#,VZV21..DX,LE |
1 | ||
| 63208 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, LH | ||||
| 63208-32010 |
SV2#,VZV21..DX,LE |
1 | ||
| 63208-32011 |
SV2#,VZV21..DX,LE |
1 | ||
| 63208-32012 |
SV2#,VZV21..DX,LE |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-32012 |
SV2#,VZV21..DX,LE |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-32010B0 |
SV2#,VZV21..DX,LE LIGHT GRAY,TRIM1# |
1 | ||
| 63217-32010E0 |
SV2#,VZV21..DX,LE LIGHT BROWN,TRIM4# |
1 | ||
| 63217-32010J0 |
SV2#,VZV21..DX,LE LIGHT BLUE,TRIM8# |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-32060 |
SV21,VZV21..WG REAR |
2 | ||
| 63249-20080 |
SV2#,VZV21..DX,LE FRONT |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-32060 |
SV21,VZV21..WG REAR |
2 | ||
| 63249-20080 |
SV2#,VZV21..DX,LE FRONT |
2 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-32010J0 |
SV2#,VZV21..DX,LE LIGHT BLUE,TRIM8# |
1 | ||
| 63218-32010B0 |
SV2#,VZV21..DX,LE LIGHT GRAY,TRIM1# |
1 | ||
| 63218-32010E0 |
SV2#,VZV21..DX,LE LIGHT BROWN,TRIM4# |
1 | ||
| 63219A - GARNISH, SLIDING ROOF, REAR | ||||
| 63219-32011E0 |
SV2#,VZV21..DX,LE LIGHT BROWN,TRIM4# |
1 | ||
| 63219-32011B0 |
SV2#,VZV21..DX,LE LIGHT GRAY,TRIM1# |
1 | ||
| 63219-32011B0 |
SV25,VZV21;SV21..LE..CND;SV21..(DX,LE)..USA;SV21..SED..DX..CND LIGHT GRAY,TRIM1# |
1 | ||
| 63219-32011J0 |
SV2#,VZV21..DX,LE LIGHT BLUE,TRIM8# |
1 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-32010 |
SV2#,VZV21..DX,LE |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-32010 |
SV2#,VZV21..DX,LE |
1 | ||
| 63223-32012 |
SV2#,VZV21..DX,LE |
1 | ||
| 63223-32011 |
SV2#,VZV21..DX,LE |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-32012 |
SV2#,VZV21..DX,LE |
1 | ||
| 63224-32010 |
SV2#,VZV21..DX,LE |
1 | ||
| 63224-32011 |
SV2#,VZV21..DX,LE |
1 | ||
| 63239 - STOPPER, SLIDING ROOF PANEL | ||||
| 63239-24010 |
SV2#,VZV21..DX,LE |
2 | ||
| 63255 - COVER, SLIDING ROOF GUIDE RAIL, RH | ||||
| 63255-32010 |
SV2#,VZV21..DX,LE |
1 | ||
| 63256 - COVER, SLIDING ROOF GUIDE RAIL, LH | ||||
| 63255-32010 |
SV2#,VZV21..DX,LE |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-32011 |
SV2#,VZV21..DX,LE |
1 | ||
| 63260-32010 |
SV2#,VZV21..DX,LE |
1 | ||
| 63261C - SHOE, SLIDING ROOF, FRONT RH | ||||
| 63261-32010 |
SV2#,VZV21..DX,LE |
1 | ||
| 63261-32011 |
SV2#,VZV21..DX,LE |
1 | ||
| 63262 - SHOE, SLIDING ROOF, FRONT LH | ||||
| 63262-32011 |
SV2#,VZV21..DX,LE |
1 | ||
| 63262-32010 |
SV2#,VZV21..DX,LE |
1 | ||
| 63265B - GEAR, SLIDING ROOF DRIVE | ||||
| 63265-20010 |
SV2#,VZV21..DX,LE |
1 | ||
| 63277C - SHIM, SLIDING ROOF PANEL | ||||
| 63277-24010 |
SV2#,VZV21..DX,LE T=1.0,T=1.0,REAR |
1 | ||
| 63277-32020 |
SV2#,VZV21..DX,LE T=2.0,T=2.0,REAR |
1 | ||
| 63277-30020 |
SV2#,VZV21..DX,LE T=1.0,T=1.0,FRONT |
1 | ||
| 63277-32010 |
SV2#,VZV21..DX,LE T=2.0,T=2.0,FRONT |
1 | ||
| 63277C - SHIM, SLIDING ROOF PANEL | ||||
| 63277-24010 |
SV2#,VZV21..DX,LE T=1.0,T=1.0,REAR |
1 | ||
| 63277-32020 |
SV2#,VZV21..DX,LE T=2.0,T=2.0,REAR |
1 | ||
| 63277-30020 |
SV2#,VZV21..DX,LE T=1.0,T=1.0,FRONT |
1 | ||
| 63277-32010 |
SV2#,VZV21..DX,LE T=2.0,T=2.0,FRONT |
1 | ||
| 63279D - STOPPER, SLIDING ROOF GUIDE RAIL | ||||
| 63279-32010 |
SV2#,VZV21..DX,LE |
2 | ||
| 63279D - STOPPER, SLIDING ROOF GUIDE RAIL | ||||
| 63279-32010 |
SV2#,VZV21..DX,LE |
2 | ||
| 63635A - GARNISH, SLIDING ROOF, FRONT | ||||
| 63635-32011B0 |
SV2#,VZV21..DX,LE LIGHT GRAY,TRIM1# |
1 | ||
| 63635-32011J0 |
SV2#,VZV21..DX,LE LIGHT BLUE,TRIM8# |
1 | ||
| 63635-32011E0 |
SV2#,VZV21..DX,LE LIGHT BROWN,TRIM4# |
1 | ||
| 63699A - SEAL, SLIDING ROOF GUIDE RAIL | ||||
| 63699-12040 |
SV2#,VZV21..DX,LE |
1 | ||
| Common parts | ||||
| 90159-40193 | ||||
| 90159-60219 | ||||
| 90162-50007 | ||||
| 90168-40027 | ||||
| 90179-05011 | ||||
| 90179-06070 | ||||
| 90179-06115 | ||||
| 90189-05044 | ||||
| 90189-06043 | ||||
| 90333-30002 | ||||
| 90467-10079 | ||||
| 90467-14001 | ||||
| 90468-05017 | ||||
| 90468-16009 | ||||
| 90480-26011 | ||||
| 93382-16012 | ||||
| 96160-00400 | ||||
