MCV30L-AEPNKA (2001)
Toyota Camry (Jpp)
(0107-0301)1MZFE..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17119A - BRACKET, AIR CLEANER | ||||
| 17119-28040 |
1MZFE,3MZFE..MCV3#..JPP |
1 | ||
| 17330 - VALVE ASSY, INTAKE AIR CONTROL, NO.3 | ||||
| 17330-20010 |
1MZFE,3MZFE..MCV3#..JPP |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-20170 |
1MZFE..MCV30..JPP |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-20160 |
1MZFE..MCV30..JPP |
1 | ||
| 17710B - GROMMET | ||||
| 90480-17013 |
1MZFE,3MZFE..MCV3#..JPP |
1 | ||
| 17750A - INLET ASSY, AIR CLEANER | ||||
| 17750-20110 |
1MZFE,3MZFE..MCV3#..JPP |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-20020 |
1MZFE,3MZFE..MCV3#..JPP |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-0H020 |
1MZFE,3MZFE..MCV3#..JPP (L) |
1 | ||
| 17801-20040 |
1MZFE,3MZFE..MCV3#..JPP (J) |
1 | ||
| 17805F - RESONATOR SUB-ASSY, INTAKE AIR | ||||
| 17805-20040 |
1MZFE,3MZFE..MCV3#..JPP |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-20130 |
1MZFE,3MZFE..MCV3#..JPP |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10850 |
1MZFE,3MZFE..MCV3#..JPP NO.2 |
1 | ||
| 96111-10880 |
1MZFE,3MZFE..MCV3#..JPP NO.1 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10850 |
1MZFE,3MZFE..MCV3#..JPP NO.2 |
1 | ||
| 96111-10880 |
1MZFE,3MZFE..MCV3#..JPP NO.1 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-20150 |
1MZFE..MCV30..JPP |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10850 |
1MZFE,3MZFE..MCV3#..JPP NO.1 |
1 | ||
| 96111-10800 |
1MZFE..MCV30..JPP NO.2 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10850 |
1MZFE,3MZFE..MCV3#..JPP NO.1 |
1 | ||
| 96111-10800 |
1MZFE..MCV30..JPP NO.2 |
1 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-20070 |
1MZFE,3MZFE..MCV3#..JPP |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-22010 |
1MZFE,3MZFE..MCV3#..JPP |
1 | ||
| 22204A - RING, O(FOR INTAKE AIR FLOW METER) | ||||
| 90099-14141 |
1MZFE,3MZFE..MCV3#..JPP |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90099-00306 | ||||
| 90099-04593 | ||||
| 90099-05286 | ||||
| 90119-06245 | ||||
| 90119-06465 | ||||
| 90119-06527 | ||||
| 90385-07002 | ||||
| 90387-09033 | ||||
| 90467-06200 | ||||
| 90469-12014 | ||||
| 90910-12199 | ||||
| 91631-60622 | ||||

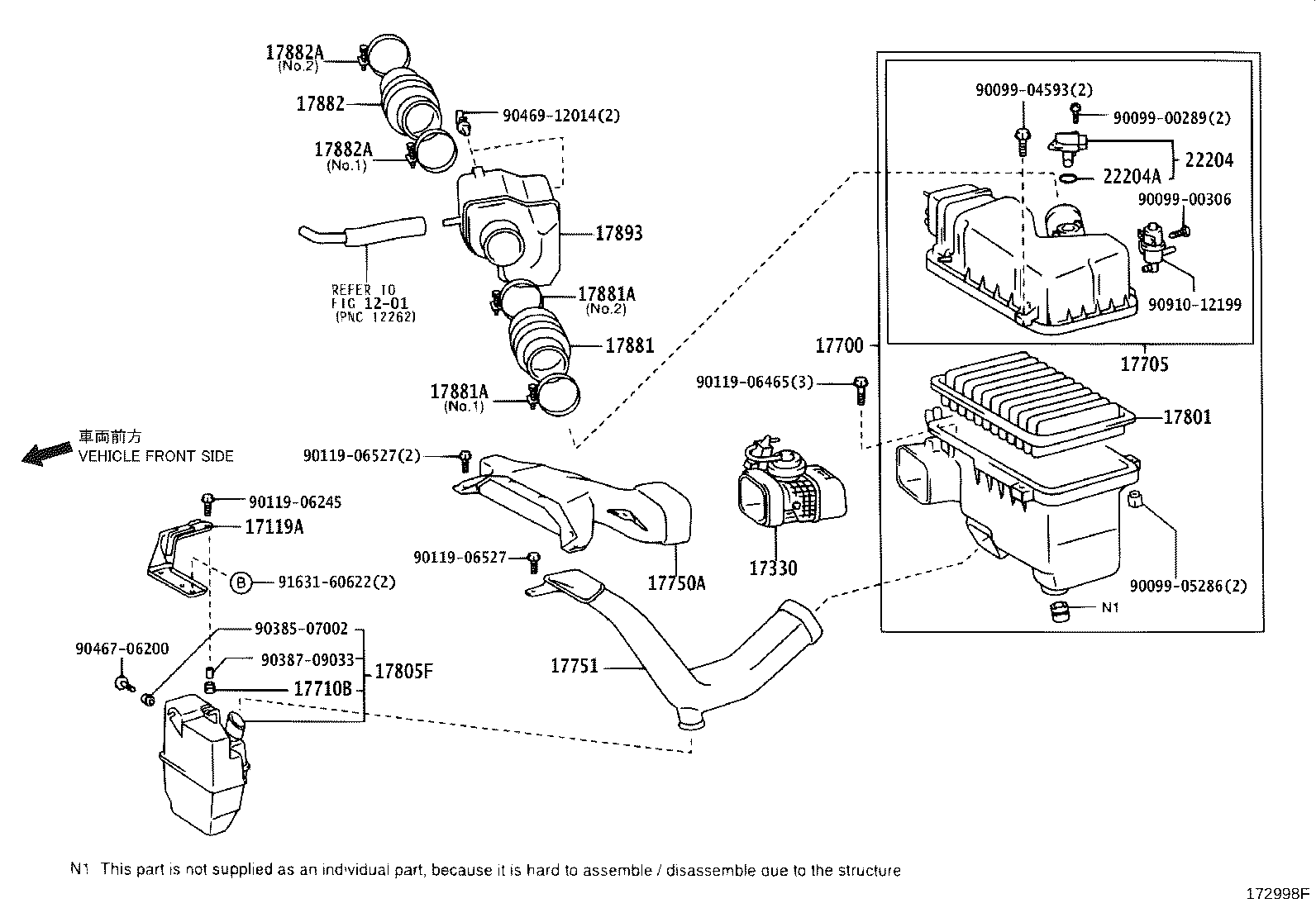

| Linked diagrams | ||||
| 1201 | ||||
