Toyota Camry (jpp) MCV30 VANE PUMP & RESERVOIR (POWER STEERING)

MCV30L-AEPGKA (2001)

Toyota Camry (Jpp)

Production Jul 2001 - Jan 2003

Engine 1MZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

Click highlighted areas on diagram

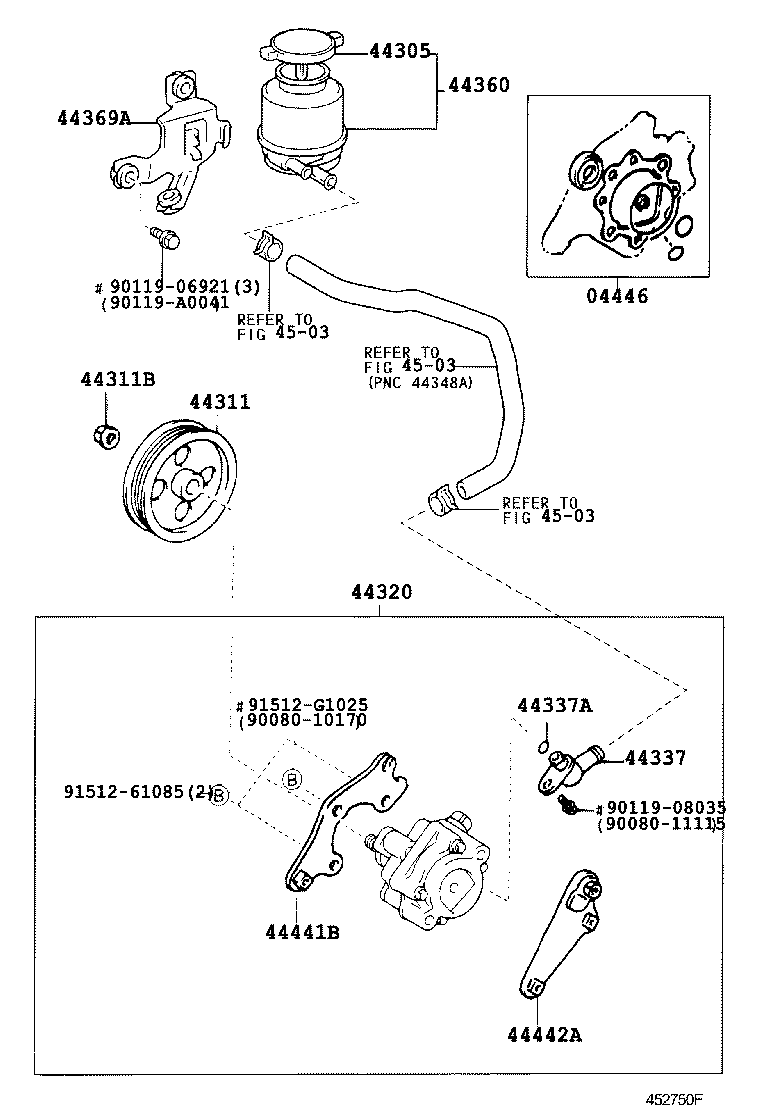

TYPE A

Part #	Description	Period	Qty
04446 - GASKET KIT, POWER STEERING PUMP
04446-06040	MCV3#..JPP (L)	07/2001 - 06/2004	1
04446-34010	MCV30..JPP (J)	07/2001 - 07/2003	1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-28030	ACV30,MCV30..JPP	07/2001 - 01/2003	1
44311 - PULLEY, VANE PUMP
44311-28110	MCV30..JPP	07/2001 - 07/2003	1
44311B - NUT(FOR VANE PUMP PULLEY)
90178-12003	MCV30..JPP	07/2001 - 07/2003	1
44320 - PUMP ASSY, VANE
44320-33140	MCV30..JPP..(LE,XLE) TYPE A:REFER TO ILLUSTRATION	07/2001 - 06/2004	1
44310-06080	MCV30..JPP..(LE,XLE) TYPE B:REFER TO ILLUSTRATION	07/2001 - 06/2004	1
44337 - UNION, POWER STEERING SUCTION PORT
44337-33040	MCV30..JPP (J)	07/2001 - 07/2003	1
44337-06040	MCV30..JPP (L)	07/2001 - 07/2003	1
44337A - RING, O(FOR POWER STEERING SUCTION PORT)
90301-11016	MCV30..JPP (J)	07/2001 - 07/2003	1
90080-30034	MCV30..JPP (L)	07/2001 - 07/2003	1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-33040	ACV30,MCV30..JPP	07/2001 - 01/2003	1
44369A - BRACKET, OIL RESERVOIR, NO.1
44390-33010	ACV30,MCV30..JPP	07/2001 - 01/2003	1
44441B - BRACKET, PUMP, FRONT
44441-06040	MCV30..JPP (L)	07/2001 - 07/2003	1
44441-28020	MCV30..JPP (J)	07/2001 - 07/2003	1
44442A - BRACKET, VANE PUMP, REAR
44442-07010	MCV30..JPP TYPE B:REFER TO ILLUSTRATION	07/2001 - 07/2003	1
44442-33021	MCV30..JPP TYPE A:REFER TO ILLUSTRATION	07/2001 - 07/2003	1
Common parts
90080-10170
90080-11115
90119-06921
90119-08035
90119-A0041
91512-61085
91512-G1025
Linked diagrams
4503

Click highlighted areas on diagram

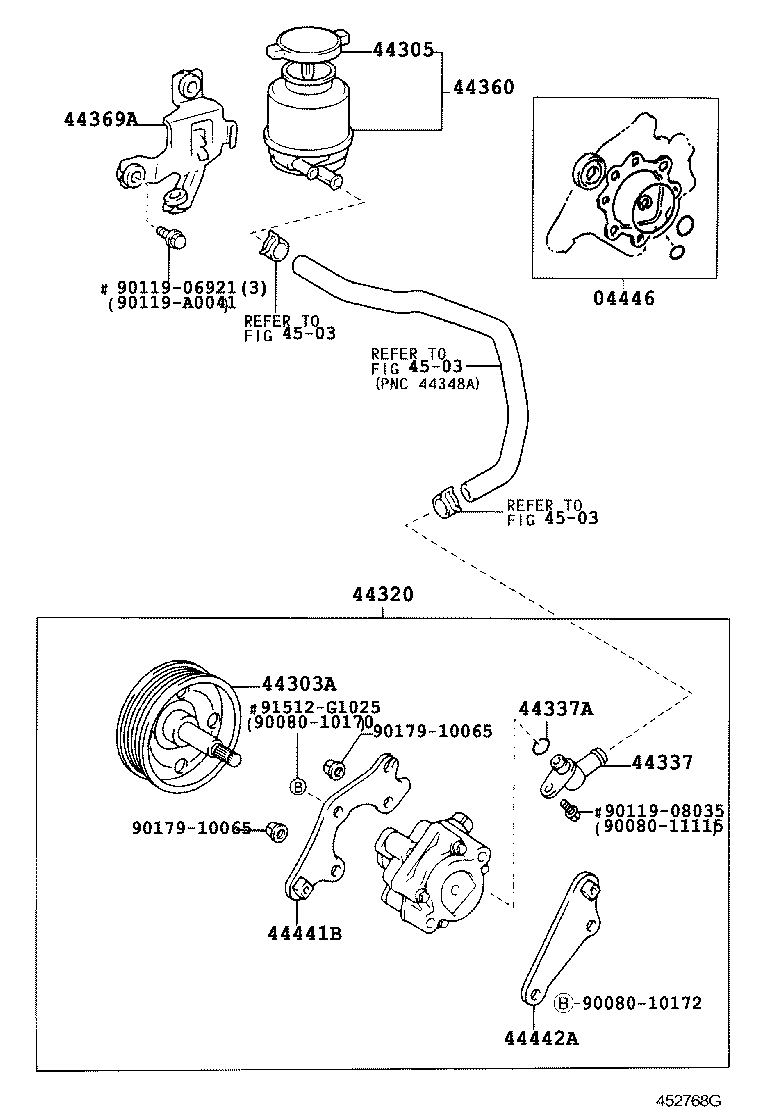

TYPE B

Part #	Description	Period	Qty
04446 - GASKET KIT, POWER STEERING PUMP
04446-06040	MCV3#..JPP (L)	07/2001 - 06/2004	1
04446-34010	MCV30..JPP (J)	07/2001 - 07/2003	1
44303A - SHAFT SUB-ASSY, W/PULLEY
44303-06030	MCV3#..JPP	07/2001 - 06/2004	1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-28030	ACV30,MCV30..JPP	07/2001 - 01/2003	1
44320 - PUMP ASSY, VANE
44320-33140	MCV30..JPP..(LE,XLE) TYPE A:REFER TO ILLUSTRATION	07/2001 - 06/2004	1
44310-06080	MCV30..JPP..(LE,XLE) TYPE B:REFER TO ILLUSTRATION	07/2001 - 06/2004	1
44337 - UNION, POWER STEERING SUCTION PORT
44337-33040	MCV30..JPP (J)	07/2001 - 07/2003	1
44337-06040	MCV30..JPP (L)	07/2001 - 07/2003	1
44337A - RING, O(FOR POWER STEERING SUCTION PORT)
90301-11016	MCV30..JPP (J)	07/2001 - 07/2003	1
90080-30034	MCV30..JPP (L)	07/2001 - 07/2003	1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-33040	ACV30,MCV30..JPP	07/2001 - 01/2003	1
44369A - BRACKET, OIL RESERVOIR, NO.1
44390-33010	ACV30,MCV30..JPP	07/2001 - 01/2003	1
44441B - BRACKET, PUMP, FRONT
44441-06040	MCV30..JPP (L)	07/2001 - 07/2003	1
44441-28020	MCV30..JPP (J)	07/2001 - 07/2003	1
44442A - BRACKET, VANE PUMP, REAR
44442-07010	MCV30..JPP TYPE B:REFER TO ILLUSTRATION	07/2001 - 07/2003	1
44442-33021	MCV30..JPP TYPE A:REFER TO ILLUSTRATION	07/2001 - 07/2003	1
Common parts
90080-10170
90080-10172
90080-11115
90119-06921
90119-08035
90119-A0041
90179-10065
91512-G1025
Linked diagrams
4503
