MCV30L-AEANKA (2003)

Toyota Camry (Jpp)

Production Jan 2003 - Jan 2006
Engine 1MZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0301- )1MZFE,3MZFE..JPP

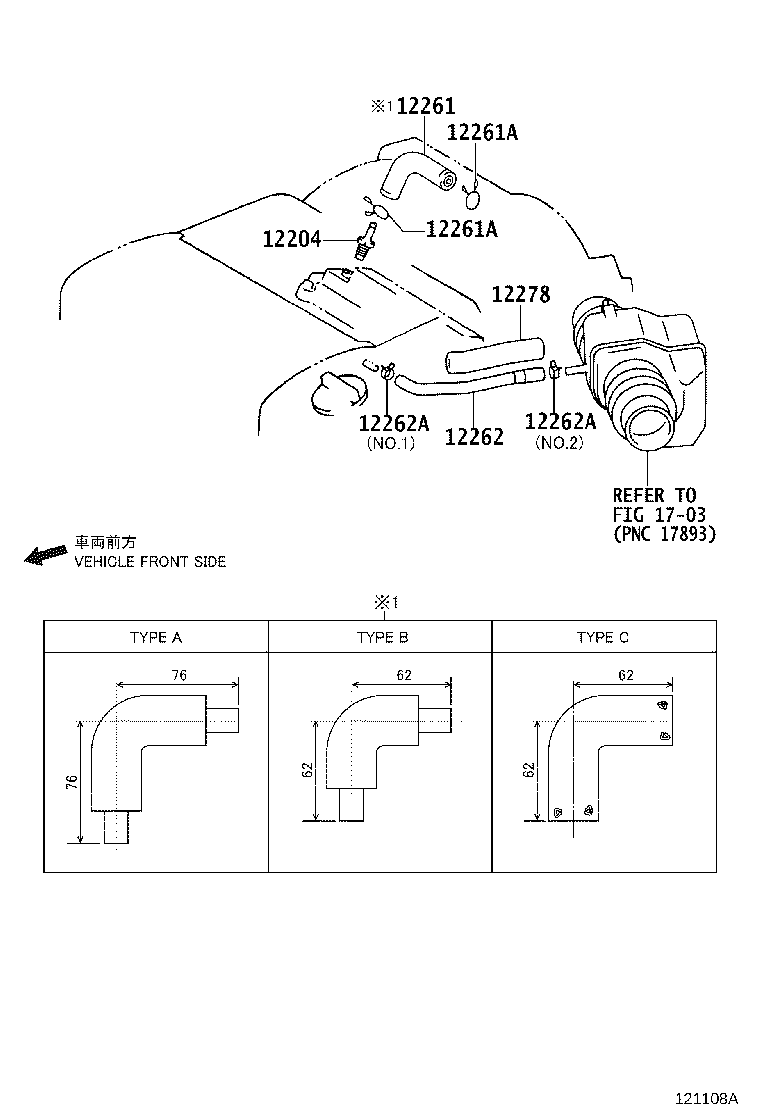

Click highlighted areas on diagram

diagram 12204 12261 12261A 12261A 12262 12262A 12262A 12278 1703
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-20040

3MZFE..MCV31..JPP;1MZFE..MCV30..JPP..(LE,XLE)

 1
12204-20040

1MZFE,3MZFE..MCV3#..JPP

 1
12204-20020

1MZFE..MCV30..JPP

 1
12204-20040

1MZFE..MCV30..JPP

 1
12204-20060

1MZFE,3MZFE..MCV3#..JPP

 1
12261 - HOSE, VENTILATION
12261-20011

1MZFE,3MZFE..MCV3#..JPP

TYPE A:REFER ILLUST.

 1
12261-20090

1MZFE,3MZFE..MCV3#..JPP

TYPE B:REFER ILLUST.

 1
12261-20091

1MZFE,3MZFE..MCV3#..JPP

TYPE C:REFER ILLUST.

 1
12261-20011

1MZFE,3MZFE..MCV3#..JPP

TYPE A:REFER ILLUST.

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14017

1MZFE..MCV30..JPP

 2
90467-14017

1MZFE,3MZFE..MCV3#..JPP

 2
90467-14017

3MZFE..MCV31..JPP;1MZFE..MCV30..JPP..(LE,XLE)..5FC

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14017

1MZFE..MCV30..JPP

 2
90467-14017

1MZFE,3MZFE..MCV3#..JPP

 2
90467-14017

3MZFE..MCV31..JPP;1MZFE..MCV30..JPP..(LE,XLE)..5FC

 2
12262 - HOSE, VENTILATION, NO.2
12261-20050

1MZFE,3MZFE..MCV3#..JPP

 1
12261-20050

1MZFE,3MZFE..MCV3#..JPP

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
96134-41900

1MZFE,3MZFE..MCV3#..JPP

NO.2

 1
96134-51700

1MZFE,3MZFE..MCV3#..JPP

NO.1

 1
96134-51700

1MZFE,3MZFE..MCV3#..JPP

NO.1

 1
96134-41900

1MZFE,3MZFE..MCV3#..JPP

NO.2

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
96134-41900

1MZFE,3MZFE..MCV3#..JPP

NO.2

 1
96134-51700

1MZFE,3MZFE..MCV3#..JPP

NO.1

 1
96134-51700

1MZFE,3MZFE..MCV3#..JPP

NO.1

 1
96134-41900

1MZFE,3MZFE..MCV3#..JPP

NO.2

 1
12278 - INSULATOR, VENTILATION HOSE HEAT
12278-20030

1MZFE..MCV30..JPP

 1
12278-20040

1MZFE,3MZFE..MCV3#..JPP

 1
12278-20040

1MZFE,3MZFE..MCV3#..JPP

 1
Linked diagrams
1703
