MCV20L-AEPDKK (1998)

Toyota Camry (Jpp)

Production May 1998 - Jul 2001
Engine 1MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )JPP

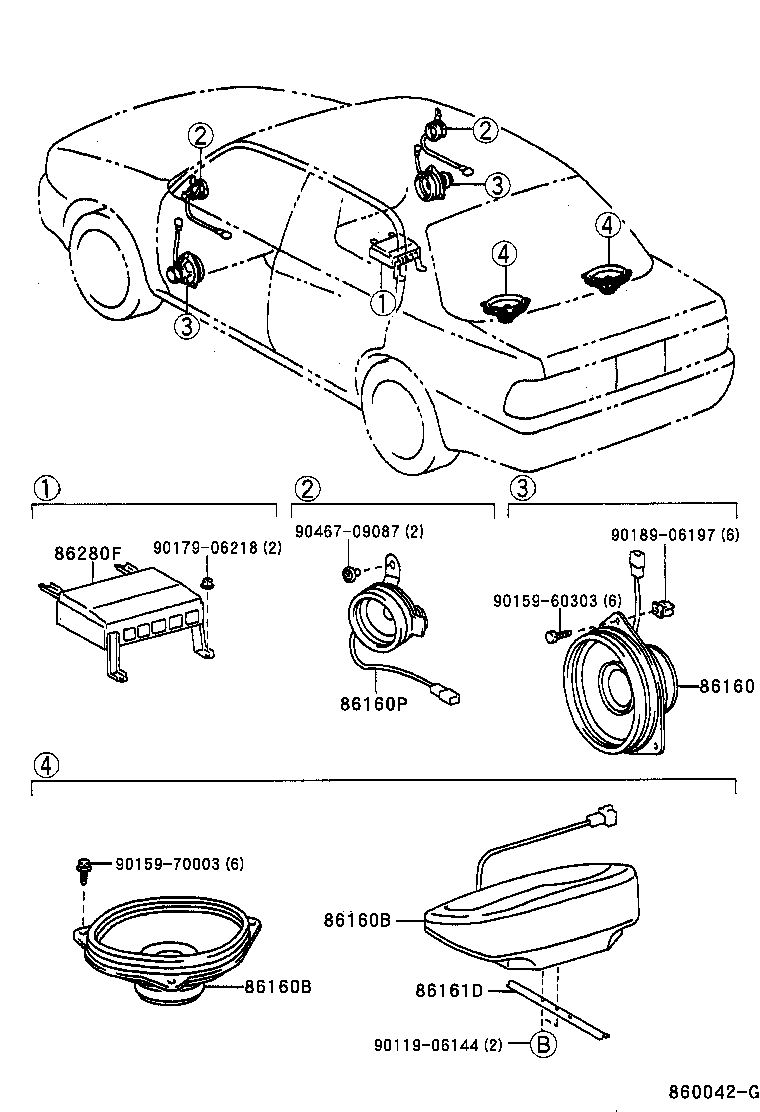

Click highlighted areas on diagram

diagram 86160 86160B 86160B 86160P 86161D 86280F 9011906144 9015960303 9015970003 9017906218 9018906197 9046709087
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-AA090

MCV20,SXV20..JPP

 2
86160-AA091

MCV20,SXV20..JPP..(CE,LE)

 2
86160-AA091

MCV20,SXV2#..JPP..(CE,LE)

 2
86160B - SPEAKER ASSY, REAR
86160-AA100

MCV20,SXV20..JPP

 2
86160-AA101

MCV20,SXV20..JPP..(CE,LE)

 2
86160B - SPEAKER ASSY, REAR
86160-AA100

MCV20,SXV20..JPP

 2
86160-AA101

MCV20,SXV20..JPP..(CE,LE)

 2
86280F - AMPLIFIER ASSY, STEREO COMPONENT
86280-AA020

MCV20,SXV20..JPP

 1
Common parts
90119-06144
90159-60303
90159-70003
90179-06218
90189-06197
90467-09087
