MCV20L-AEPDKK (1998)
Toyota Camry (Jpp)

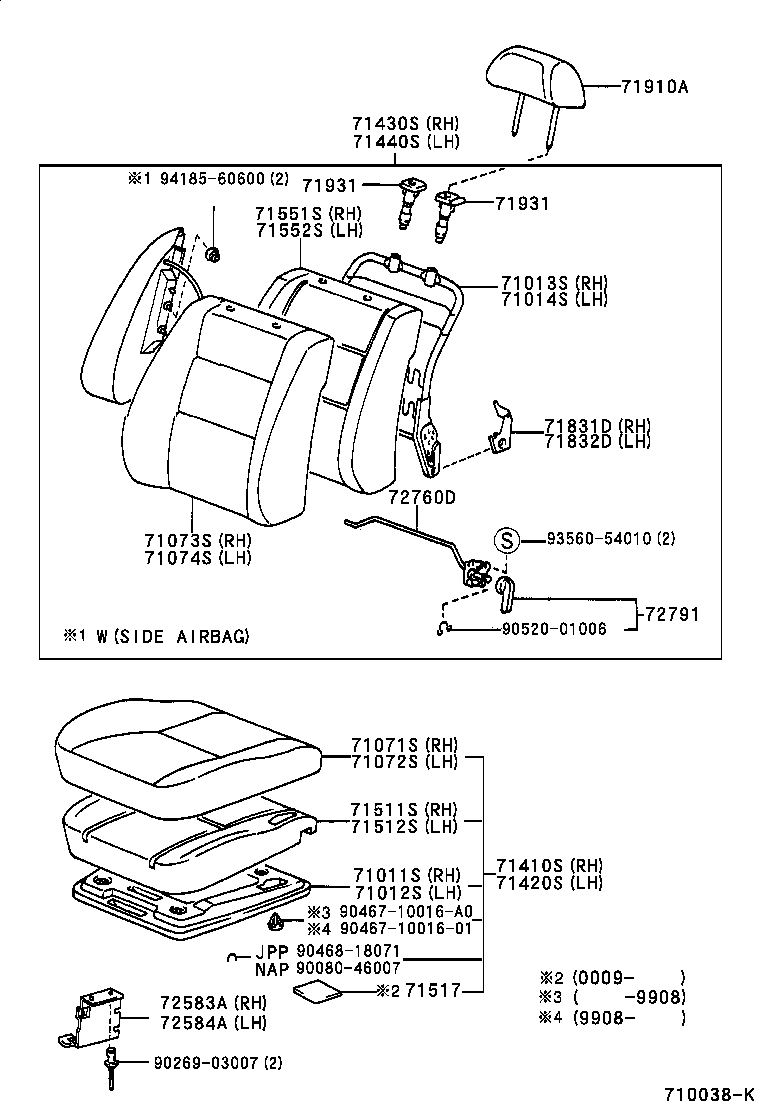

ILLUST NO. 1 OF 2(9608- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-33010 |
MCV20,SXV20..JPP |
1 | ||
| 71011-33010 |
MCV20,SXV2#..JPP |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71011-33010 |
MCV20,SXV2#..JPP |
1 | ||
| 71011-33010 |
MCV20,SXV20..JPP |
1 | ||
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-33070 |
MCV20,SXV20..JPP |
1 | ||
| 71013-33070 |
MCV20,SXV2#..JPP |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71013-33070 |
MCV20,SXV20..JPP |
1 | ||
| 71013-33070 |
MCV20,SXV2#..JPP |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-33670B0 |
MCV20,SXV20..JPP..CE BLUE GRAY,TRIM1# |
1 | ||
| 71071-33670E0 |
MCV20,SXV20..JPP..CE MEDIUM OAK,TRIM4# |
1 | ||
| 71071-33671B0 |
MCV20,SXV20..JPP..CE BLUE GRAY,TRIM1# |
1 | ||
| 71071-33671E0 |
MCV20,SXV20..JPP..CE MEDIUM OAK,TRIM4# |
1 | ||
| 71071-33670G0 |
MCV20,SXV20..JPP..CE SAGE,TRIM6# |
1 | ||
| 71071-33671G0 |
MCV20,SXV20..JPP..CE SAGE,TRIM6# |
1 | ||
| 71071-33671E2 |
MCV20,SXV20..JPP..CE OAK,TRIM4# |
1 | ||
| 71071-33671G2 |
MCV20,SXV20..JPP..CE DK.SAGE,TRIM6# |
1 | ||
| 71071-33671B2 |
MCV20,SXV20..JPP..CE BLUISH GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-33670G0 |
MCV20,SXV20..JPP..CE SAGE,TRIM6# |
1 | ||
| 71072-33671E0 |
MCV20,SXV20..JPP..CE MEDIUM OAK,TRIM4# |
1 | ||
| 71072-33671B0 |
MCV20,SXV20..JPP..CE BLUE GRAY,TRIM1# |
1 | ||
| 71072-33670B0 |
MCV20,SXV20..JPP..CE BLUE GRAY,TRIM1# |
1 | ||
| 71072-33670E0 |
MCV20,SXV20..JPP..CE MEDIUM OAK,TRIM4# |
1 | ||
| 71072-33671G0 |
MCV20,SXV20..JPP..CE SAGE,TRIM6# |
1 | ||
| 71072-33671G2 |
MCV20,SXV20..JPP..CE DK.SAGE,TRIM6# |
1 | ||
| 71072-33671B2 |
MCV20,SXV20..JPP..CE BLUISH GRAY,TRIM1# |
1 | ||
| 71072-33671E2 |
MCV20,SXV20..JPP..CE OAK,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-33880B0 |
MCV20,SXV20..JPP..CE BLUE GRAY,TRIM1# |
1 | ||
| 71073-33880G0 |
MCV20,SXV20..JPP..CE SAGE,TRIM6# |
1 | ||
| 71073-33880E0 |
MCV20,SXV20..JPP..CE MEDIUM OAK,TRIM4# |
1 | ||
| 71073-33891B0 |
MCV20,SXV20..JPP..ATM..CE W(*80, SIDE),BLUE GRAY,TRIM1# |
1 | ||
| 71073-33881B0 |
MCV20,SXV20..JPP..CE BLUE GRAY,TRIM1# |
1 | ||
| 71073-33881G0 |
MCV20,SXV20..JPP..CE SAGE,TRIM6# |
1 | ||
| 71073-33881E0 |
MCV20,SXV20..JPP..CE MEDIUM OAK,TRIM4# |
1 | ||
| 71073-33891G0 |
MCV20,SXV20..JPP..ATM..CE W(*80, SIDE),SAGE,TRIM6# |
1 | ||
| 71073-33891E0 |
MCV20,SXV20..JPP..ATM..CE W(*80, SIDE),MEDIUM OAK,TRIM4# |
1 | ||
| 71073-33881B2 |
MCV20,SXV20..JPP..CE BLUISH GRAY,TRIM1# |
1 | ||
| 71073-33881E2 |
MCV20,SXV20..JPP..CE OAK,TRIM4# |
1 | ||
| 71073-33881G2 |
MCV20,SXV20..JPP..CE DK.SAGE,TRIM6# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-33880E0 |
MCV20,SXV20..JPP..CE MEDIUM OAK,TRIM4# |
1 | ||
| 71073-33880G0 |
MCV20,SXV20..JPP..CE SAGE,TRIM6# |
1 | ||
| 71073-33881E0 |
MCV20,SXV20..JPP..CE MEDIUM OAK,TRIM4# |
1 | ||
| 71074-33721G0 |
MCV20,SXV20..JPP..CE W(*80, SIDE),SAGE,TRIM6# |
1 | ||
| 71073-33880B0 |
MCV20,SXV20..JPP..CE BLUE GRAY,TRIM1# |
1 | ||
| 71073-33881B0 |
MCV20,SXV20..JPP..CE BLUE GRAY,TRIM1# |
1 | ||
| 71073-33881G0 |
MCV20,SXV20..JPP..CE SAGE,TRIM6# |
1 | ||
| 71074-33721B0 |
MCV20,SXV20..JPP..CE W(*80, SIDE),BLUE GRAY,TRIM1# |
1 | ||
| 71074-33721E0 |
MCV20,SXV20..JPP..CE W(*80, SIDE),MEDIUM OAK,TRIM4# |
1 | ||
| 71073-33881B2 |
MCV20,SXV20..JPP..CE BLUISH GRAY,TRIM1# |
1 | ||
| 71073-33881G2 |
MCV20,SXV20..JPP..CE DK.SAGE,TRIM6# |
1 | ||
| 71073-33881E2 |
MCV20,SXV20..JPP..CE OAK,TRIM4# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-33600B0 |
MCV20,SXV20..JPP..CE ***,BLUE GRAY,TRIM1# |
1 | ||
| 71410-33600G0 |
MCV20,SXV20..JPP..CE ***,SAGE,TRIM6# |
1 | ||
| 71410-33600E0 |
MCV20,SXV20..JPP..CE ***,MEDIUM OAK,TRIM4# |
1 | ||
| 71410-33601G0 |
MCV20,SXV20..JPP..CE ***,SAGE,TRIM6# |
1 | ||
| 71410-33601E0 |
MCV20,SXV20..JPP..CE ***,MEDIUM OAK,TRIM4# |
1 | ||
| 71410-33601B0 |
MCV20,SXV20..JPP..CE ***,BLUE GRAY,TRIM1# |
1 | ||
| 71410-33601G2 |
MCV20,SXV20..JPP..CE ***,DK.SAGE,TRIM6# |
1 | ||
| 71410-33601B2 |
MCV20,SXV20..JPP..CE ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71410-33601E2 |
MCV20,SXV20..JPP..CE ***,OAK,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-33590E0 |
MCV20,SXV20..JPP..CE ***,MEDIUM OAK,TRIM4# |
1 | ||
| 71420-33590G0 |
MCV20,SXV20..JPP..CE ***,SAGE,TRIM6# |
1 | ||
| 71420-33591B0 |
MCV20,SXV20..JPP..CE ***,BLUE GRAY,TRIM1# |
1 | ||
| 71420-33590B0 |
MCV20,SXV20..JPP..CE ***,BLUE GRAY,TRIM1# |
1 | ||
| 71420-33591E0 |
MCV20,SXV20..JPP..CE ***,MEDIUM OAK,TRIM4# |
1 | ||
| 71420-33591G0 |
MCV20,SXV20..JPP..CE ***,SAGE,TRIM6# |
1 | ||
| 71420-33591E2 |
MCV20,SXV20..JPP..CE ***,OAK,TRIM4# |
1 | ||
| 71420-33591G2 |
MCV20,SXV20..JPP..CE ***,DK.SAGE,TRIM6# |
1 | ||
| 71420-33591B2 |
MCV20,SXV20..JPP..CE ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71040-33010G0 |
MCV20,SXV20..JPP..CE ***,SAGE,TRIM6# |
1 | ||
| 71040-33010B0 |
MCV20,SXV20..JPP..CE ***,BLUE GRAY,TRIM1# |
1 | ||
| 71040-33010E0 |
MCV20,SXV20..JPP..CE ***,MEDIUM OAK,TRIM4# |
1 | ||
| 71040-33011G0 |
MCV20,SXV20..JPP..CE ***,SAGE,TRIM6# |
1 | ||
| 71040-33021E0 |
MCV20,SXV20..JPP..CE ***,W(*80, SIDE),MEDIUM OAK,TRIM4# |
1 | ||
| 71040-33011B0 |
MCV20,SXV20..JPP..CE ***,BLUE GRAY,TRIM1# |
1 | ||
| 71040-33021G0 |
MCV20,SXV20..JPP..CE ***,W(*80, SIDE),SAGE,TRIM6# |
1 | ||
| 71040-33021B0 |
MCV20,SXV20..JPP..CE ***,W(*80, SIDE),BLUE GRAY,TRIM1# |
1 | ||
| 71040-33011E0 |
MCV20,SXV20..JPP..CE ***,MEDIUM OAK,TRIM4# |
1 | ||
| 71040-33012E2 |
MCV20,SXV20..JPP..CE ***,OAK,TRIM4# |
1 | ||
| 71040-33012G2 |
MCV20,SXV20..JPP..CE ***,DK.SAGE,TRIM6# |
1 | ||
| 71040-33012B2 |
MCV20,SXV20..JPP..CE ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71040-33010B0 |
MCV20,SXV20..JPP..CE ***,BLUE GRAY,TRIM1# |
1 | ||
| 71040-33010E0 |
MCV20,SXV20..JPP..CE ***,MEDIUM OAK,TRIM4# |
1 | ||
| 71040-33010G0 |
MCV20,SXV20..JPP..CE ***,SAGE,TRIM6# |
1 | ||
| 71040-33011B0 |
MCV20,SXV20..JPP..CE ***,BLUE GRAY,TRIM1# |
1 | ||
| 71440-33781G0 |
MCV20,SXV20..JPP..CE ***,W(*80, SIDE),SAGE,TRIM6# |
1 | ||
| 71440-33781E0 |
MCV20,SXV20..JPP..CE ***,W(*80, SIDE),MEDIUM OAK,TRIM4# |
1 | ||
| 71440-33781B0 |
MCV20,SXV20..JPP..CE ***,W(*80, SIDE),BLUE GRAY,TRIM1# |
1 | ||
| 71040-33011E0 |
MCV20,SXV20..JPP..CE ***,MEDIUM OAK,TRIM4# |
1 | ||
| 71040-33011G0 |
MCV20,SXV20..JPP..CE ***,SAGE,TRIM6# |
1 | ||
| 71040-33012G2 |
MCV20,SXV20..JPP..CE ***,DK.SAGE,TRIM6# |
1 | ||
| 71040-33012E2 |
MCV20,SXV20..JPP..CE ***,OAK,TRIM4# |
1 | ||
| 71040-33012B2 |
MCV20,SXV20..JPP..CE ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-33090 |
MCV20,SXV2#..JPP |
1 | ||
| 71511-33090 |
MCV20,SXV20..JPP |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-33090 |
MCV20,SXV20..JPP |
1 | ||
| 71511-33090 |
MCV20,SXV2#..JPP |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-33050 |
MCV20,SXV2#..JPP |
1 | ||
| 71551-33050 |
MCV20,SXV20..JPP |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-33050 |
MCV20,SXV20..JPP |
1 | ||
| 71551-33050 |
MCV20,SXV2#..JPP |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-33020 |
MCV20,SXV2#..JPP |
2 | ||
| 71831-33021 |
MCV20,SXV2#..JPP |
2 | ||
| 71831-33010 |
MCV20,SXV20..JPP |
2 | ||
| 71831-33020 |
MCV20,SXV20..JPP |
2 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-33020 |
MCV20,SXV20..JPP |
2 | ||
| 71832-33010 |
MCV20,SXV20..JPP |
2 | ||
| 71832-33020 |
MCV20,SXV2#..JPP |
2 | ||
| 71832-33021 |
MCV20,SXV2#..JPP |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-33310G0 |
MCV20,SXV20..JPP..CE SAGE,TRIM6# |
1 | ||
| 71910-33310E0 |
MCV20,SXV20..JPP..CE MEDIUM OAK,TRIM4# |
1 | ||
| 71910-33311B0 |
MCV20,SXV20..JPP..CE BLUE GRAY,TRIM1# |
2 | ||
| 71910-33311E0 |
MCV20,SXV20..JPP..CE MEDIUM OAK,TRIM4# |
2 | ||
| 71910-33311B2 |
MCV20,SXV20..JPP..CE BLUISH GRAY,TRIM1# |
2 | ||
| 71910-33311G0 |
MCV20,SXV20..JPP..CE SAGE,TRIM6# |
2 | ||
| 71910-33310B0 |
MCV20,SXV20..JPP..CE BLUE GRAY,TRIM1# |
1 | ||
| 71910-33311E2 |
MCV20,SXV20..JPP..CE OAK,TRIM4# |
2 | ||
| 71910-33311G2 |
MCV20,SXV20..JPP..CE DK.SAGE,TRIM6# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44010E3 |
MCV20,SXV2#..JPP W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71930-32020G2 |
MCV20,SXV20..JPP W(LOCK),SAGE,TRIM6# |
2 | ||
| 71930-32020B2 |
MCV20,SXV20..JPP W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-32020G2 |
MCV20,SXV20..JPP W/O(LOCK),SAGE,TRIM6# |
2 | ||
| 71931-32020B2 |
MCV20,SXV20..JPP W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-32020E6 |
MCV20,SXV2#..JPP W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71930-32020E6 |
MCV20,SXV20..JPP W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71930-44010G0 |
MCV20,SXV20..JPP W(LOCK),SAGE,TRIM6# |
2 | ||
| 71930-44010B0 |
MCV20,SXV20..JPP W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44010E3 |
MCV20,SXV2#..JPP W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71930-32020G2 |
MCV20,SXV20..JPP W(LOCK),SAGE,TRIM6# |
2 | ||
| 71930-32020B2 |
MCV20,SXV20..JPP W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-32020G2 |
MCV20,SXV20..JPP W/O(LOCK),SAGE,TRIM6# |
2 | ||
| 71931-32020B2 |
MCV20,SXV20..JPP W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-32020E6 |
MCV20,SXV2#..JPP W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71930-32020E6 |
MCV20,SXV20..JPP W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71930-44010G0 |
MCV20,SXV20..JPP W(LOCK),SAGE,TRIM6# |
2 | ||
| 71930-44010B0 |
MCV20,SXV20..JPP W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90080-46007 | ||||
| 90269-03007 | ||||
| 90467-1001601 | ||||
| 90467-10016A0 | ||||
| 90468-18071 | ||||
| 90520-01006 | ||||
| 93560-54010 | ||||
| 94185-60600 | ||||
ILLUST NO. 2 OF 2(9608- )JPP
PASSENGER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

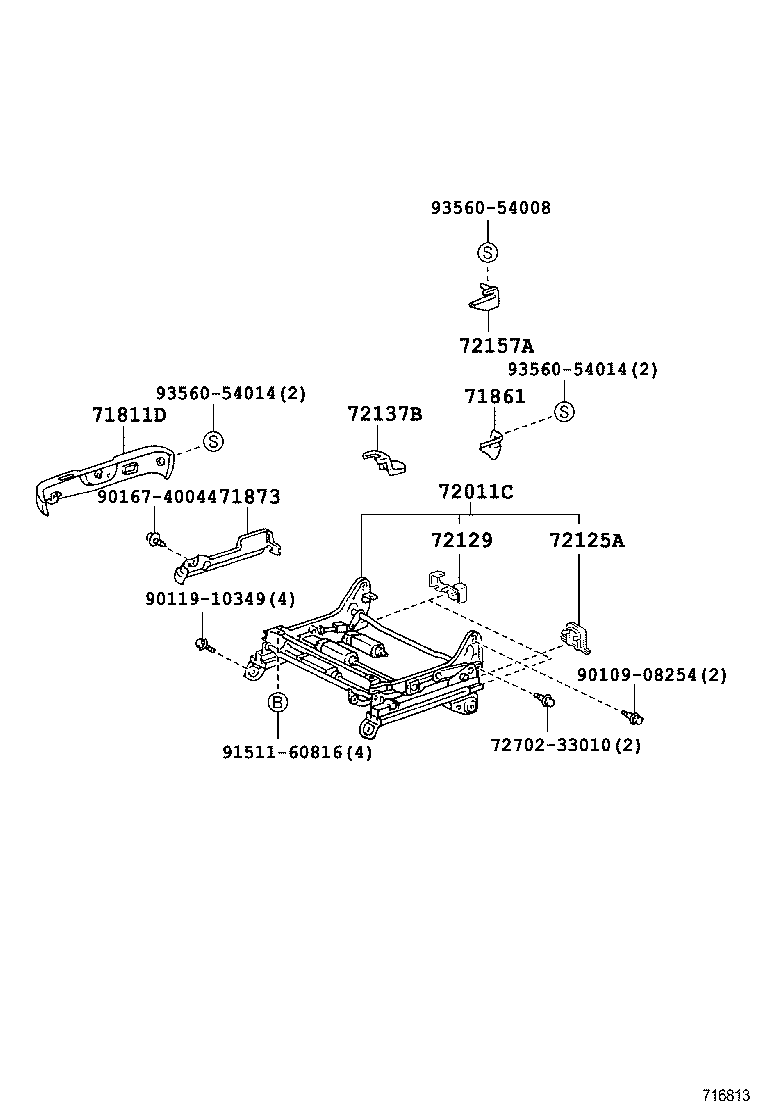

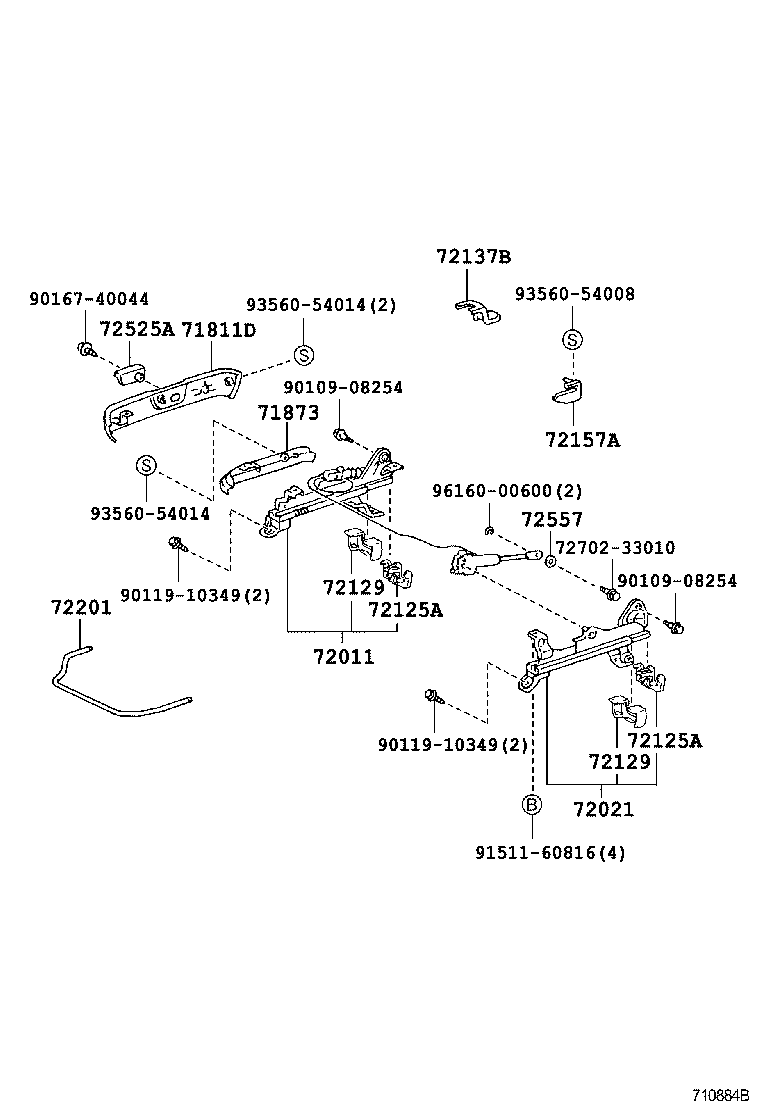

| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-33070 |
MCV20,SXV20..JPP..CE W(*80, SIDE) |
1 | ||
| 71811-33030B0 |
MCV20,SXV20..JPP..(CE,LE) BLUE GRAY,TRIM1# |
1 | ||
| 71811-33070B0 |
MCV20,SXV20..JPP..ATM..(CE,LE) W(*80, SIDE),BLUE GRAY,TRIM1# |
1 | ||
| 71811-33030G0 |
MCV20,SXV20..JPP..(CE,LE) SAGE,TRIM6# |
1 | ||
| 71811-33070G0 |
MCV20,SXV20..JPP..ATM..(CE,LE) W(*80, SIDE),SAGE,TRIM6# |
1 | ||
| 71811-33030E0 |
MCV20,SXV2#..JPP..(CE,LE) MD.OAK,TRIM4# |
1 | ||
| 71811-33070E0 |
MCV20,SXV20..JPP..ATM..(CE,LE) W(*80, SIDE),MD.OAK,TRIM4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-33060B0 |
MCV20,SXV20..JPP..(CE,LE) BLUE GRAY,TRIM1# |
1 | ||
| 71873-33060 |
MCV20,SXV20..JPP..CE |
1 | ||
| 71873-33060G0 |
MCV20,SXV20..JPP..(CE,LE) SAGE,TRIM6# |
1 | ||
| 71873-33060E0 |
MCV20,SXV2#..JPP..(CE,LE) MD.OAK,TRIM4# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-33070 |
MCV20,SXV20..JPP..(CE,LE) |
1 | ||
| 72011-33071 |
MCV20,SXV20..JPP..(CE,LE) |
1 | ||
| 72011-33071 |
MCV20,SXV2#..JPP..(CE,LE) |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-33071 |
MCV20,SXV20..JPP..(CE,LE) |
1 | ||
| 72021-33071 |
MCV20,SXV2#..JPP..(CE,LE) |
1 | ||
| 72021-33070 |
MCV20,SXV20..JPP..(CE,LE) |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-20020 |
MCV20,SXV20..JPP..(CE,LE) |
6 | ||
| 72125-20020 |
MCV20,SXV2#..JPP..(CE,LE) |
6 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-20020 |
MCV20,SXV20..JPP..(CE,LE) |
6 | ||
| 72125-20020 |
MCV20,SXV2#..JPP..(CE,LE) |
6 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-20040 |
MCV20,SXV20..JPP..(CE,LE) |
6 | ||
| 72129-12010 |
MCV20,SXV20..JPP..(CE,LE) |
6 | ||
| 72129-12010 |
MCV20,SXV2#..JPP..(CE,LE) |
6 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-20040 |
MCV20,SXV20..JPP..(CE,LE) |
6 | ||
| 72129-12010 |
MCV20,SXV20..JPP..(CE,LE) |
6 | ||
| 72129-12010 |
MCV20,SXV2#..JPP..(CE,LE) |
6 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-33020E0 |
MCV20,SXV2#..JPP MD.OAK,TRIM4# |
1 | ||
| 72137-33020G0 |
MCV20,SXV20..JPP SAGE,TRIM6# |
1 | ||
| 72137-33020B0 |
MCV20,SXV20..JPP BLUE GRAY,TRIM1# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-33020B0 |
MCV20,SXV20..JPP BLUE GRAY,TRIM1# |
1 | ||
| 72157-33020E0 |
MCV20,SXV2#..JPP MD.OAK,TRIM4# |
1 | ||
| 72157-33020G0 |
MCV20,SXV20..JPP SAGE,TRIM6# |
1 | ||
| 72201 - HANDLE SUB-ASSY, SEAT TRACK | ||||
| 72201-33010 |
MCV20,SXV20..JPP..(CE,LE) |
2 | ||
| 72201-33010 |
MCV20,SXV2#..JPP..(CE,LE) |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-33020G0 |
MCV20,SXV20..JPP..(CE,LE) SAGE,TRIM6# |
1 | ||
| 72525-33020B0 |
MCV20,SXV20..JPP..(CE,LE) BLUE GRAY,TRIM1# |
1 | ||
| 72525-33020E0 |
MCV20,SXV2#..JPP..(CE,LE) MD.OAK,TRIM4# |
1 | ||
| 72557 - SPACER, RECLINING ADJUSTER | ||||
| 72557-33010 |
MCV20,SXV20..JPP |
4 | ||
| 72557-33010 |
MCV20,SXV2#..JPP |
4 | ||
| Common parts | ||||
| 72702-33010 | ||||
| 90109-08254 | ||||
| 90119-10349 | ||||
| 90167-40044 | ||||
| 91511-60816 | ||||
| 93560-54008 | ||||
| 93560-54014 | ||||
| 96160-00600 | ||||
ILLUST NO. 2 OF 2(9608- )JPP
DRIVER SEAT(VERTICAL SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-33100E0 |
MCV20,SXV20..JPP..ATM..CE W(*80, SIDE),MD.OAK,TRIM4# |
1 | ||
| 71812-33100B0 |
MCV20,SXV20..JPP..ATM..CE W(*80, SIDE),BLUE GRAY,TRIM1# |
1 | ||
| 71812-33070B0 |
MCV20,SXV20..JPP..CE BLUE GRAY,TRIM1# |
1 | ||
| 71812-33070G0 |
MCV20,SXV20..JPP..CE SAGE,TRIM6# |
1 | ||
| 71812-33100G0 |
MCV20,SXV20..JPP..ATM..CE W(*80, SIDE),SAGE,TRIM6# |
1 | ||
| 71812-33070E0 |
MCV20,SXV20..JPP..CE MD.OAK,TRIM4# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-33060B0 |
MCV20,SXV20..JPP..CE BLUE GRAY,TRIM1# |
1 | ||
| 71874-33060G0 |
MCV20,SXV20..JPP..CE SAGE,TRIM6# |
1 | ||
| 71874-33060E0 |
MCV20,SXV20..JPP..CE MD.OAK,TRIM4# |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-33061 |
MCV20,SXV20..JPP..CE |
1 | ||
| 72012-33060 |
MCV20,SXV20..JPP..CE |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-33060 |
MCV20,SXV20..JPP..CE |
1 | ||
| 72022-33061 |
MCV20,SXV20..JPP..CE |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-20020 |
MCV20,SXV20..JPP..(CE,LE) |
6 | ||
| 72125-20020 |
MCV20,SXV2#..JPP..(CE,LE) |
6 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-20020 |
MCV20,SXV20..JPP..(CE,LE) |
6 | ||
| 72125-20020 |
MCV20,SXV2#..JPP..(CE,LE) |
6 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-20040 |
MCV20,SXV20..JPP..(CE,LE) |
6 | ||
| 72129-12010 |
MCV20,SXV20..JPP..(CE,LE) |
6 | ||
| 72129-12010 |
MCV20,SXV2#..JPP..(CE,LE) |
6 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-20040 |
MCV20,SXV20..JPP..(CE,LE) |
6 | ||
| 72129-12010 |
MCV20,SXV20..JPP..(CE,LE) |
6 | ||
| 72129-12010 |
MCV20,SXV2#..JPP..(CE,LE) |
6 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-33020G0 |
MCV20,SXV20..JPP SAGE,TRIM6# |
1 | ||
| 72137-33020E0 |
MCV20,SXV2#..JPP MD.OAK,TRIM4# |
1 | ||
| 72137-33020B0 |
MCV20,SXV20..JPP BLUE GRAY,TRIM1# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-33020B0 |
MCV20,SXV20..JPP BLUE GRAY,TRIM1# |
1 | ||
| 72158-33020G0 |
MCV20,SXV20..JPP SAGE,TRIM6# |
1 | ||
| 72158-33020E0 |
MCV20,SXV2#..JPP MD.OAK,TRIM4# |
1 | ||
| 72201 - HANDLE SUB-ASSY, SEAT TRACK | ||||
| 72201-33010 |
MCV20,SXV20..JPP..(CE,LE) |
2 | ||
| 72201-33010 |
MCV20,SXV2#..JPP..(CE,LE) |
2 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-33020E0 |
MCV20,SXV2#..JPP..(CE,LE) MD.OAK,TRIM4# |
1 | ||
| 72526-33020B0 |
MCV20,SXV20..JPP..(CE,LE) BLUE GRAY,TRIM1# |
1 | ||
| 72526-33020G0 |
MCV20,SXV20..JPP..(CE,LE) SAGE,TRIM6# |
1 | ||
| 72557 - SPACER, RECLINING ADJUSTER | ||||
| 72557-33010 |
MCV20,SXV20..JPP |
4 | ||
| 72557-33010 |
MCV20,SXV2#..JPP |
4 | ||
| Common parts | ||||
| 72702-33010 | ||||
| 90109-08093 | ||||
| 90109-08254 | ||||
| 90119-10349 | ||||
| 90167-40044 | ||||
| 90520-01006 | ||||
| 91511-60816 | ||||
| 93560-54008 | ||||
| 93560-54014 | ||||
| 94185-60830 | ||||
| 96160-00600 | ||||
| 96160-00800 | ||||
| 96160-01200 | ||||

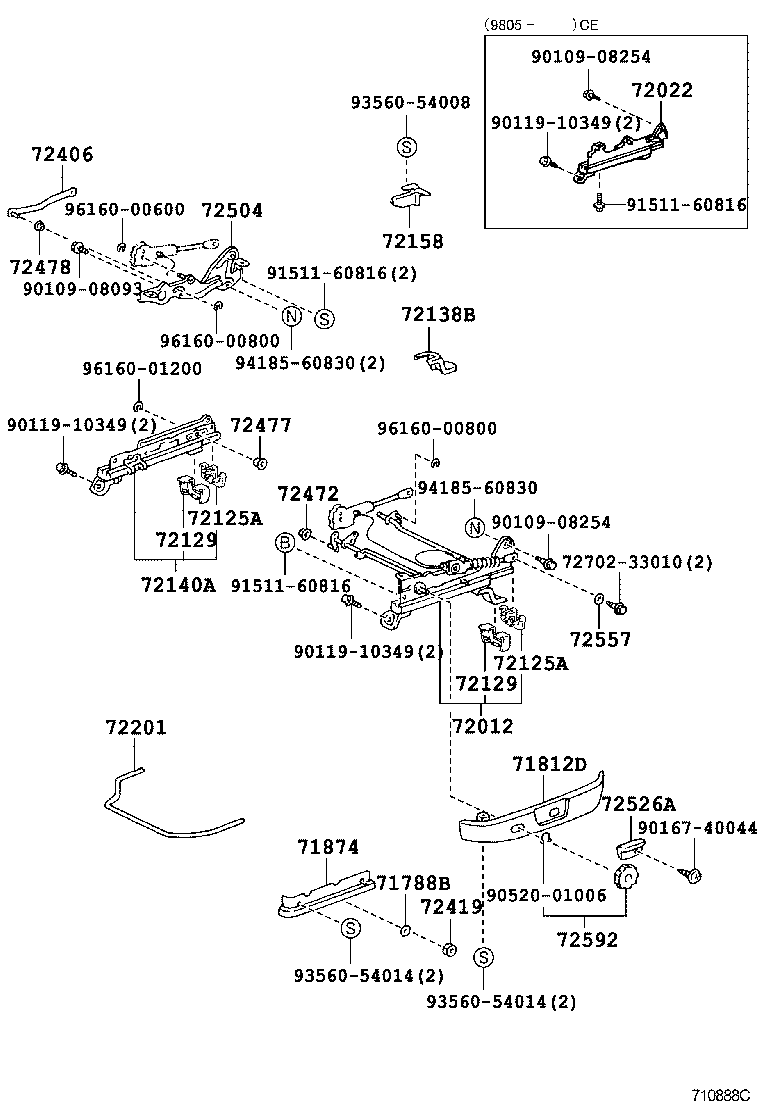

ILLUST NO. 2 OF 2(9608- )JPP
DRIVER SEAT(POWER SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-33100E0 |
MCV20,SXV20..JPP..ATM..CE W(*80, SIDE),MD.OAK,TRIM4# |
1 | ||
| 71812-33100B0 |
MCV20,SXV20..JPP..ATM..CE W(*80, SIDE),BLUE GRAY,TRIM1# |
1 | ||
| 71812-33070B0 |
MCV20,SXV20..JPP..CE BLUE GRAY,TRIM1# |
1 | ||
| 71812-33070G0 |
MCV20,SXV20..JPP..CE SAGE,TRIM6# |
1 | ||
| 71812-33100G0 |
MCV20,SXV20..JPP..ATM..CE W(*80, SIDE),SAGE,TRIM6# |
1 | ||
| 71812-33070E0 |
MCV20,SXV20..JPP..CE MD.OAK,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-33030G0 |
MCV20,SXV20..JPP SAGE,TRIM6# |
1 | ||
| 71862-33030B0 |
MCV20,SXV20..JPP BLUE GRAY,TRIM1# |
1 | ||
| 71862-33030E0 |
MCV20,SXV2#..JPP MD.OAK,TRIM4# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-33060B0 |
MCV20,SXV20..JPP..CE BLUE GRAY,TRIM1# |
1 | ||
| 71874-33060G0 |
MCV20,SXV20..JPP..CE SAGE,TRIM6# |
1 | ||
| 71874-33060E0 |
MCV20,SXV20..JPP..CE MD.OAK,TRIM4# |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-20020 |
MCV20,SXV20..JPP..(CE,LE) |
6 | ||
| 72125-20020 |
MCV20,SXV2#..JPP..(CE,LE) |
6 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-20040 |
MCV20,SXV20..JPP..(CE,LE) |
6 | ||
| 72129-12010 |
MCV20,SXV20..JPP..(CE,LE) |
6 | ||
| 72129-12010 |
MCV20,SXV2#..JPP..(CE,LE) |
6 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-33020G0 |
MCV20,SXV20..JPP SAGE,TRIM6# |
1 | ||
| 72137-33020E0 |
MCV20,SXV2#..JPP MD.OAK,TRIM4# |
1 | ||
| 72137-33020B0 |
MCV20,SXV20..JPP BLUE GRAY,TRIM1# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-33020B0 |
MCV20,SXV20..JPP BLUE GRAY,TRIM1# |
1 | ||
| 72158-33020G0 |
MCV20,SXV20..JPP SAGE,TRIM6# |
1 | ||
| 72158-33020E0 |
MCV20,SXV2#..JPP MD.OAK,TRIM4# |
1 | ||
| Common parts | ||||
| 90109-06301 | ||||
| 90109-08254 | ||||
| 90119-10349 | ||||
| 90167-40044 | ||||
| 91511-60816 | ||||
| 93560-54008 | ||||
| 93560-54014 | ||||

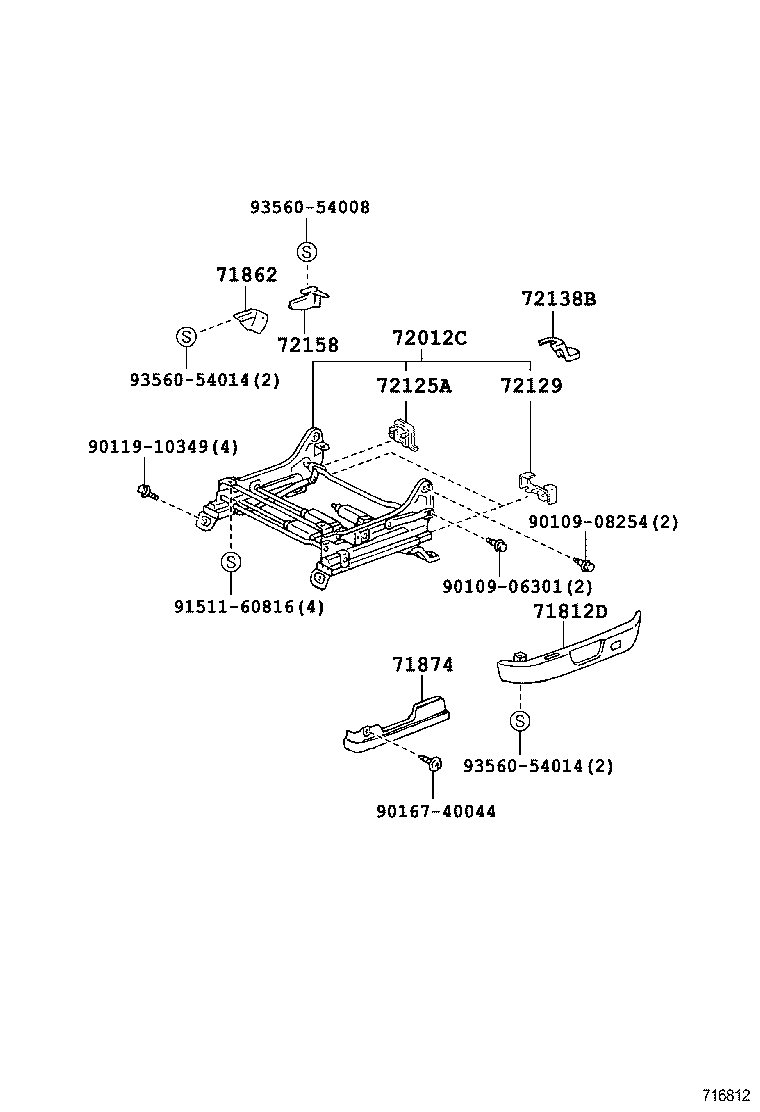

ILLUST NO. 2 OF 2(9608- )JPP
PASSENGER SEAT(POWER SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-33070 |
MCV20,SXV20..JPP..CE W(*80, SIDE) |
1 | ||
| 71811-33030B0 |
MCV20,SXV20..JPP..(CE,LE) BLUE GRAY,TRIM1# |
1 | ||
| 71811-33070B0 |
MCV20,SXV20..JPP..ATM..(CE,LE) W(*80, SIDE),BLUE GRAY,TRIM1# |
1 | ||
| 71811-33030G0 |
MCV20,SXV20..JPP..(CE,LE) SAGE,TRIM6# |
1 | ||
| 71811-33070G0 |
MCV20,SXV20..JPP..ATM..(CE,LE) W(*80, SIDE),SAGE,TRIM6# |
1 | ||
| 71811-33030E0 |
MCV20,SXV2#..JPP..(CE,LE) MD.OAK,TRIM4# |
1 | ||
| 71811-33070E0 |
MCV20,SXV20..JPP..ATM..(CE,LE) W(*80, SIDE),MD.OAK,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-33020B0 |
MCV20,SXV20..JPP BLUE GRAY,TRIM1# |
1 | ||
| 71861-33020E0 |
MCV20,SXV2#..JPP MD.OAK,TRIM4# |
1 | ||
| 71861-33020G0 |
MCV20,SXV20..JPP SAGE,TRIM6# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-33060B0 |
MCV20,SXV20..JPP..(CE,LE) BLUE GRAY,TRIM1# |
1 | ||
| 71873-33060 |
MCV20,SXV20..JPP..CE |
1 | ||
| 71873-33060G0 |
MCV20,SXV20..JPP..(CE,LE) SAGE,TRIM6# |
1 | ||
| 71873-33060E0 |
MCV20,SXV2#..JPP..(CE,LE) MD.OAK,TRIM4# |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-20020 |
MCV20,SXV20..JPP..(CE,LE) |
6 | ||
| 72125-20020 |
MCV20,SXV2#..JPP..(CE,LE) |
6 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-20040 |
MCV20,SXV20..JPP..(CE,LE) |
6 | ||
| 72129-12010 |
MCV20,SXV20..JPP..(CE,LE) |
6 | ||
| 72129-12010 |
MCV20,SXV2#..JPP..(CE,LE) |
6 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-33020E0 |
MCV20,SXV2#..JPP MD.OAK,TRIM4# |
1 | ||
| 72137-33020G0 |
MCV20,SXV20..JPP SAGE,TRIM6# |
1 | ||
| 72137-33020B0 |
MCV20,SXV20..JPP BLUE GRAY,TRIM1# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-33020B0 |
MCV20,SXV20..JPP BLUE GRAY,TRIM1# |
1 | ||
| 72157-33020E0 |
MCV20,SXV2#..JPP MD.OAK,TRIM4# |
1 | ||
| 72157-33020G0 |
MCV20,SXV20..JPP SAGE,TRIM6# |
1 | ||
| Common parts | ||||
| 72702-33010 | ||||
| 90109-08254 | ||||
| 90119-10349 | ||||
| 90167-40044 | ||||
| 91511-60816 | ||||
| 93560-54008 | ||||
| 93560-54014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
