MCV20L-AEPDKK (1998)

Toyota Camry (Jpp)

Production May 1998 - Jul 2001
Engine 1MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )JPP

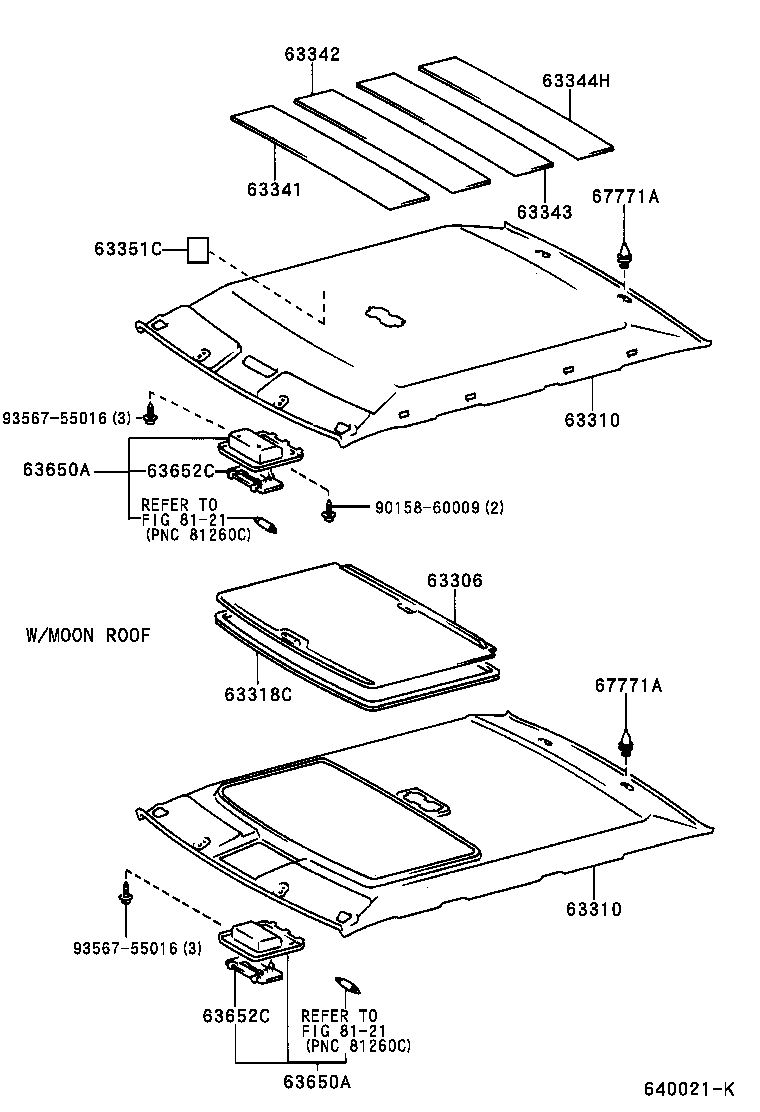

Click highlighted areas on diagram

diagram 63306 63310 63310 63318C 63341 63342 63343 63344H 63351C 63650A 63650A 63652C 63652C 67771A 67771A 8121 8121 9015860009 9356755016 9356755016
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-33070B0

MCV20,SXV20..JPP

W(MOON ROOF),LIGHT GRAY,TRIM1#

 1
63310-33070G0

MCV20,SXV20..JPP

W(MOON ROOF),SAGE,TRIM6#

 1
63310-33060A0

MCV20,SXV20..JPP

IVORY,TRIM4#

 1
63310-33060B0

MCV20,SXV20..JPP

LIGHT GRAY,TRIM1#

 1
63310-33060G0

MCV20,SXV20..JPP

SAGE,TRIM6#

 1
63310-33070A0

MCV20,SXV20..JPP

W(MOON ROOF),IVORY,TRIM4#

 1
63310 - HEADLINING ASSY, ROOF
63310-33070B0

MCV20,SXV20..JPP

W(MOON ROOF),LIGHT GRAY,TRIM1#

 1
63310-33070G0

MCV20,SXV20..JPP

W(MOON ROOF),SAGE,TRIM6#

 1
63310-33060A0

MCV20,SXV20..JPP

IVORY,TRIM4#

 1
63310-33060B0

MCV20,SXV20..JPP

LIGHT GRAY,TRIM1#

 1
63310-33060G0

MCV20,SXV20..JPP

SAGE,TRIM6#

 1
63310-33070A0

MCV20,SXV20..JPP

W(MOON ROOF),IVORY,TRIM4#

 1
63318C - MOULDING, SUN ROOF OPENING TRIM
63318-33010

MCV20,SXV20..JPP

L=2375

 1
63341 - PAD, ROOF SILENCER, NO.1
63343-32070

MCV20,SXV2#..JPP

 1
63342 - PAD, ROOF SILENCER, NO.2
63343-32070

MCV20,SXV2#..JPP

 1
63343 - PAD, ROOF SILENCER, NO.3
63343-32070

MCV20,SXV2#..JPP

 1
63344H - PAD, ROOF SILENCER, NO.4
63343-32070

MCV20,SXV2#..JPP

 1
63351C - PAD, ROOF HEADLINING
63351-33010

MCV20,SXV2#..JPP

 4
63650A - BOX ASSY, ROOF CONSOLE
63650-AA010A0

MCV20,SXV20..JPP

IVORY,TRIM4#

 1
63650-AA010B0

MCV20,SXV20..JPP

LT.GRAY,TRIM1#

 1
63660-AA010G0

MCV20,SXV20..JPP

W(MOON ROOF),SAGE,TRIM6#

 1
63660-AA010B0

MCV20,SXV20..JPP

W(MOON ROOF),LT. GRAY,TRIM1#

 1
63660-AA010A0

MCV20,SXV20..JPP

W(MOON ROOF),IVORY,TRIM4#

 1
63660-AA010B0

MCV20,SXV20..JPP..ATM..CE

W(MOON ROOF),LT. GRAY,TRIM1#

 1
63650-AA010G0

MCV20,SXV20..JPP

SAGE,TRIM6#

 1
63650A - BOX ASSY, ROOF CONSOLE
63650-AA010A0

MCV20,SXV20..JPP

IVORY,TRIM4#

 1
63650-AA010B0

MCV20,SXV20..JPP

LT.GRAY,TRIM1#

 1
63660-AA010G0

MCV20,SXV20..JPP

W(MOON ROOF),SAGE,TRIM6#

 1
63660-AA010B0

MCV20,SXV20..JPP

W(MOON ROOF),LT. GRAY,TRIM1#

 1
63660-AA010A0

MCV20,SXV20..JPP

W(MOON ROOF),IVORY,TRIM4#

 1
63660-AA010B0

MCV20,SXV20..JPP..ATM..CE

W(MOON ROOF),LT. GRAY,TRIM1#

 1
63650-AA010G0

MCV20,SXV20..JPP

SAGE,TRIM6#

 1
63652C - COVER, ROOF CONSOLE BOX
63652-AA020B0

MCV20,SXV20..JPP

W(SUNGLASS HOLDER),LT.GRAY,TRIM1#

 1
63652-AA010G0

MCV20,SXV20..JPP

SAGE,TRIM6#

 1
63652-AA011A0

MCV20,SXV20..JPP..CE

IVORY,TRIM1#

 1
63652-AA020G0

MCV20,SXV20..JPP

W(SUNGLASS HOLDER),SAGE,TRIM6#

 1
63652-AA010A0

MCV20,SXV20..JPP

IVORY,TRIM4#

 1
63652-AA011B0

MCV20,SXV20..JPP..CE

LT.GRAY,TRIM10

 1
63652-AA011A0

MCV20,SXV2#..JPP

IVORY,TRIM4#

 1
63652-AA020A0

MCV20,SXV20..JPP

W(SUNGLASS HOLDER),IVORY,TRIM4#

 1
63652-AA010B0

MCV20,SXV20..JPP

LT.GRAY,TRIM1#

 1
63652-AA011B0

MCV20,SXV20..JPP

LT.GRAY,TRIM1#

 1
63652C - COVER, ROOF CONSOLE BOX
63652-AA020B0

MCV20,SXV20..JPP

W(SUNGLASS HOLDER),LT.GRAY,TRIM1#

 1
63652-AA010G0

MCV20,SXV20..JPP

SAGE,TRIM6#

 1
63652-AA011A0

MCV20,SXV20..JPP..CE

IVORY,TRIM1#

 1
63652-AA020G0

MCV20,SXV20..JPP

W(SUNGLASS HOLDER),SAGE,TRIM6#

 1
63652-AA010A0

MCV20,SXV20..JPP

IVORY,TRIM4#

 1
63652-AA011B0

MCV20,SXV20..JPP..CE

LT.GRAY,TRIM10

 1
63652-AA011A0

MCV20,SXV2#..JPP

IVORY,TRIM4#

 1
63652-AA020A0

MCV20,SXV20..JPP

W(SUNGLASS HOLDER),IVORY,TRIM4#

 1
63652-AA010B0

MCV20,SXV20..JPP

LT.GRAY,TRIM1#

 1
63652-AA011B0

MCV20,SXV20..JPP

LT.GRAY,TRIM1#

 1
67771A - RETAINER, ROOF HEADLINING
67771-12040

MCV20,SXV20..JPP

 2
67771-12040

MCV20,SXV2#..JPP

 2
67771A - RETAINER, ROOF HEADLINING
67771-12040

MCV20,SXV20..JPP

 2
67771-12040

MCV20,SXV2#..JPP

 2
Common parts
90158-60009
93567-55016
Linked diagrams
8121
