MCV20L-AEPDKK (1998)
Toyota Camry (Jpp)

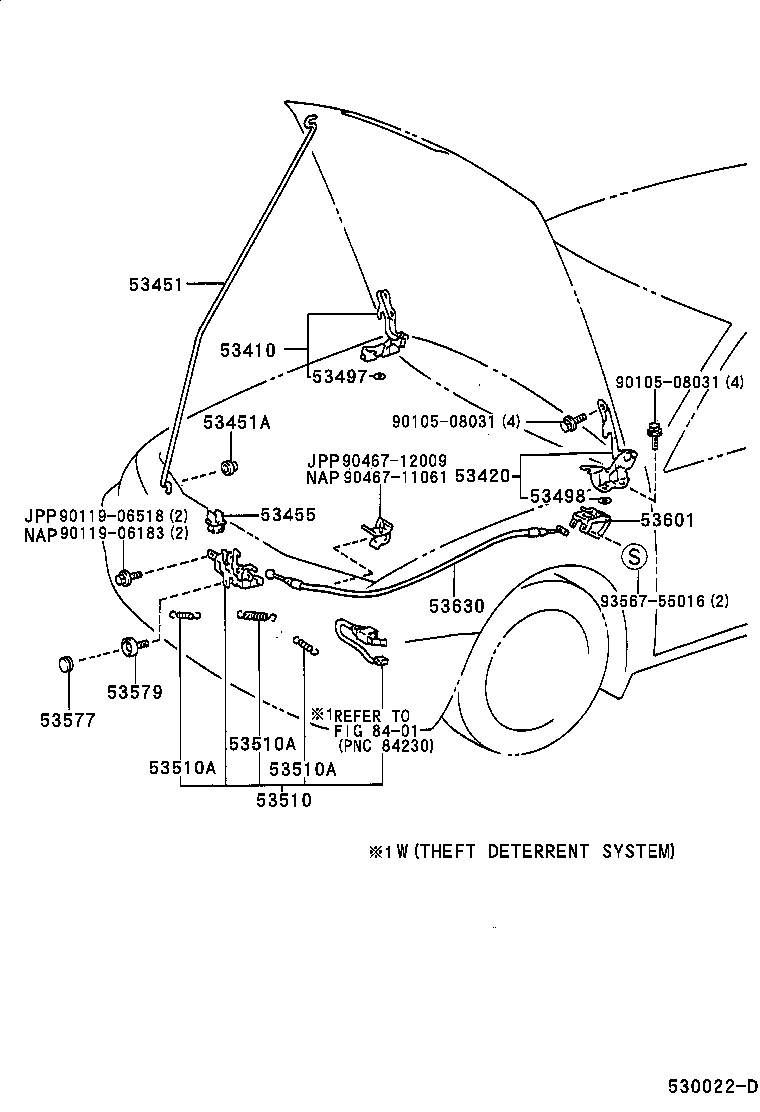

(9608-9908)JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-33070 |
MCV20,SXV2#..JPP |
1 | ||
| 53410-33030 |
MCV20,SXV20..JPP |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-33070 |
MCV20,SXV2#..JPP |
1 | ||
| 53420-33030 |
MCV20,SXV20..JPP |
1 | ||
| 53451 - ROD, HOOD SUPPORT | ||||
| 53451-33010 |
MCV20,SXV20..JPP |
1 | ||
| 53451A - GROMMET(FOR HOOD SUPPORT ROD) | ||||
| 53454-33010 |
MCV20,SXV20..JPP |
1 | ||
| 53455 - CLAMP, HOOD SUPPORT ROD | ||||
| 53455-12080 |
MCV20,SXV20..JPP |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-12070 |
MCV20,SXV20..JPP T=0.5 |
2 | ||
| 53498 - PAD, HOOD HINGE, NO.2 | ||||
| 53497-12070 |
MCV20,SXV20..JPP T=0.5 |
2 | ||
| 53497-20070 |
MCV20,SXV2#..JPP T=2.0 |
4 | ||
| 53497-12050 |
MCV20,SXV2#..JPP T=1.0 |
4 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-33130 |
MCV20,SXV2#..JPP..(CE,LE) |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-12067 |
MCV20,SXV20..JPP WD=1.4,CW=7.25 |
1 | ||
| 90506-20066 |
MCV20,SXV20..JPP WD=2.0,CW=17 |
1 | ||
| 90506-12067 |
MCV20,SXV2#..JPP WD=1.4,CW=7.25 |
1 | ||
| 90506-20066 |
MCV20,SXV2#..JPP WD=2.0,CW=17 |
1 | ||
| 90506-09055 |
MCV20,SXV2#..JPP WD=0.9,CW=21 |
1 | ||
| 90506-09055 |
MCV20,SXV20..JPP WD=0.9,CW=21 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-12067 |
MCV20,SXV20..JPP WD=1.4,CW=7.25 |
1 | ||
| 90506-20066 |
MCV20,SXV20..JPP WD=2.0,CW=17 |
1 | ||
| 90506-12067 |
MCV20,SXV2#..JPP WD=1.4,CW=7.25 |
1 | ||
| 90506-20066 |
MCV20,SXV2#..JPP WD=2.0,CW=17 |
1 | ||
| 90506-09055 |
MCV20,SXV2#..JPP WD=0.9,CW=21 |
1 | ||
| 90506-09055 |
MCV20,SXV20..JPP WD=0.9,CW=21 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-12067 |
MCV20,SXV20..JPP WD=1.4,CW=7.25 |
1 | ||
| 90506-20066 |
MCV20,SXV20..JPP WD=2.0,CW=17 |
1 | ||
| 90506-12067 |
MCV20,SXV2#..JPP WD=1.4,CW=7.25 |
1 | ||
| 90506-20066 |
MCV20,SXV2#..JPP WD=2.0,CW=17 |
1 | ||
| 90506-09055 |
MCV20,SXV2#..JPP WD=0.9,CW=21 |
1 | ||
| 90506-09055 |
MCV20,SXV20..JPP WD=0.9,CW=21 |
1 | ||
| 53577 - BOLT, HOOD LOCK | ||||
| 53577-33010 |
MCV20,SXV20..JPP |
1 | ||
| 53577-33010 |
MCV20,SXV2#..JPP |
1 | ||
| 53579 - CAP, HOOD LOCK NUT | ||||
| 53579-50010 |
MCV20,SXV2#..JPP |
1 | ||
| 53579-50010 |
MCV20,SXV20..JPP |
1 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53601-33020C0 |
MCV20,SXV20..JPP BLACK,TRIM1#,4#,6# |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-33100 |
MCV20,SXV20..JPP |
1 | ||
| 53630-33130 |
MCV20,SXV2#..JPP |
1 | ||
| Common parts | ||||
| 90105-08031 | ||||
| 90119-06183 | ||||
| 90119-06518 | ||||
| 90467-11061 | ||||
| 90467-12009 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||

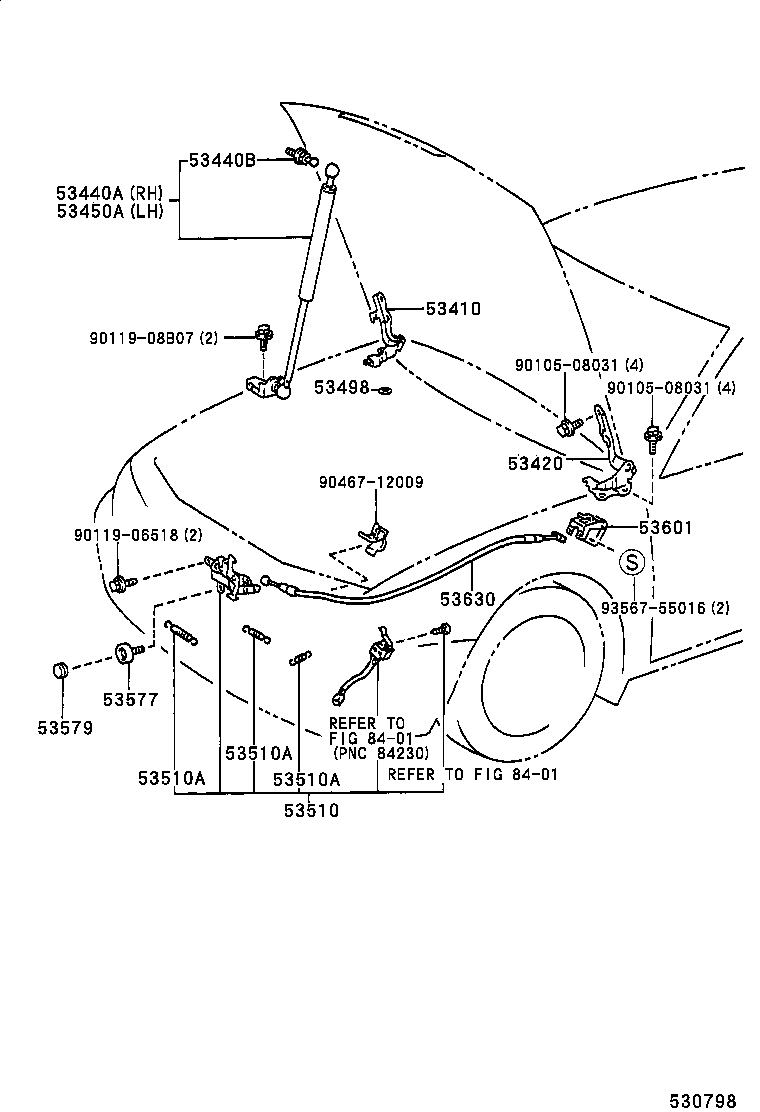

(9908- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-33070 |
MCV20,SXV2#..JPP |
1 | ||
| 53410-33030 |
MCV20,SXV20..JPP |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-33070 |
MCV20,SXV2#..JPP |
1 | ||
| 53420-33030 |
MCV20,SXV20..JPP |
1 | ||
| 53440A - SUPPORT ASSY, HOOD, RH | ||||
| 53440-69045 |
MCV20,SXV2#..JPP |
1 | ||
| 53440B - BOLT, HOOD SUPPORT, NO.1 | ||||
| 68961-23010 |
MCV20,SXV2#..JPP |
2 | ||
| 53450A - SUPPORT ASSY, HOOD, LH | ||||
| 53450-69045 |
MCV20,SXV2#..JPP |
1 | ||
| 53498 - PAD, HOOD HINGE, NO.2 | ||||
| 53497-12070 |
MCV20,SXV20..JPP T=0.5 |
2 | ||
| 53497-20070 |
MCV20,SXV2#..JPP T=2.0 |
4 | ||
| 53497-12050 |
MCV20,SXV2#..JPP T=1.0 |
4 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-33130 |
MCV20,SXV2#..JPP..(CE,LE) |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-12067 |
MCV20,SXV20..JPP WD=1.4,CW=7.25 |
1 | ||
| 90506-20066 |
MCV20,SXV20..JPP WD=2.0,CW=17 |
1 | ||
| 90506-12067 |
MCV20,SXV2#..JPP WD=1.4,CW=7.25 |
1 | ||
| 90506-20066 |
MCV20,SXV2#..JPP WD=2.0,CW=17 |
1 | ||
| 90506-09055 |
MCV20,SXV2#..JPP WD=0.9,CW=21 |
1 | ||
| 90506-09055 |
MCV20,SXV20..JPP WD=0.9,CW=21 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-12067 |
MCV20,SXV20..JPP WD=1.4,CW=7.25 |
1 | ||
| 90506-20066 |
MCV20,SXV20..JPP WD=2.0,CW=17 |
1 | ||
| 90506-12067 |
MCV20,SXV2#..JPP WD=1.4,CW=7.25 |
1 | ||
| 90506-20066 |
MCV20,SXV2#..JPP WD=2.0,CW=17 |
1 | ||
| 90506-09055 |
MCV20,SXV2#..JPP WD=0.9,CW=21 |
1 | ||
| 90506-09055 |
MCV20,SXV20..JPP WD=0.9,CW=21 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-12067 |
MCV20,SXV20..JPP WD=1.4,CW=7.25 |
1 | ||
| 90506-20066 |
MCV20,SXV20..JPP WD=2.0,CW=17 |
1 | ||
| 90506-12067 |
MCV20,SXV2#..JPP WD=1.4,CW=7.25 |
1 | ||
| 90506-20066 |
MCV20,SXV2#..JPP WD=2.0,CW=17 |
1 | ||
| 90506-09055 |
MCV20,SXV2#..JPP WD=0.9,CW=21 |
1 | ||
| 90506-09055 |
MCV20,SXV20..JPP WD=0.9,CW=21 |
1 | ||
| 53577 - BOLT, HOOD LOCK | ||||
| 53577-33010 |
MCV20,SXV20..JPP |
1 | ||
| 53577-33010 |
MCV20,SXV2#..JPP |
1 | ||
| 53579 - CAP, HOOD LOCK NUT | ||||
| 53579-50010 |
MCV20,SXV2#..JPP |
1 | ||
| 53579-50010 |
MCV20,SXV20..JPP |
1 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53601-33020C0 |
MCV20,SXV20..JPP BLACK,TRIM1#,4#,6# |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-33100 |
MCV20,SXV20..JPP |
1 | ||
| 53630-33130 |
MCV20,SXV2#..JPP |
1 | ||
| Common parts | ||||
| 90105-08031 | ||||
| 90119-06518 | ||||
| 90119-08B07 | ||||
| 90467-12009 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
