MCV20L-AEPDKK (1998)
Toyota Camry (Jpp)
Production
May 1998
-
Jul 2001
Engine
1MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9608- )JPP

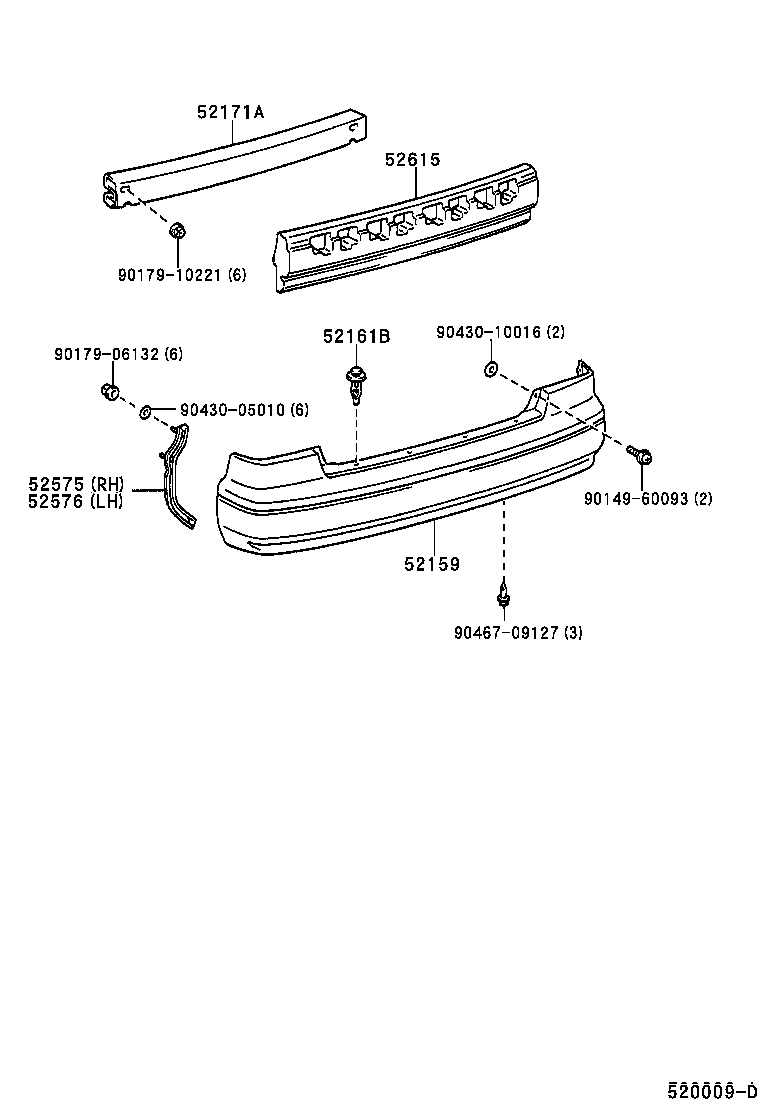

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52159 - COVER, REAR BUMPER | ||||
| 52159-33904 |
MCV20,SXV20..JPP |
1 | ||
| 52159-33907 |
MCV20,SXV2#..JPP |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
MCV20,SXV2#..JPP |
4 | ||
| 52161-16010 |
MCV20,SXV20..JPP |
4 | ||
| 52171A - REINFORCEMENT, REAR BUMPER, NO.1 | ||||
| 52171-33060 |
MCV20,SXV20..JPP..CND |
1 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-AA010 |
MCV20,SXV2#..JPP |
1 | ||
| 52575-AA010 |
MCV20,SXV20..JPP |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-AA010 |
MCV20,SXV20..JPP |
1 | ||
| 52576-AA010 |
MCV20,SXV2#..JPP |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-33050 |
MCV20,SXV20..JPP |
1 | ||
| 52615-33010 |
MCV20,SXV2#..JPP |
1 | ||
| Common parts | ||||
| 90149-60093 | ||||
| 90179-06132 | ||||
| 90179-10221 | ||||
| 90430-05010 | ||||
| 90430-10016 | ||||
| 90467-09127 | ||||
