MCV20L-AEPDKK (1998)
Toyota Camry (Jpp)

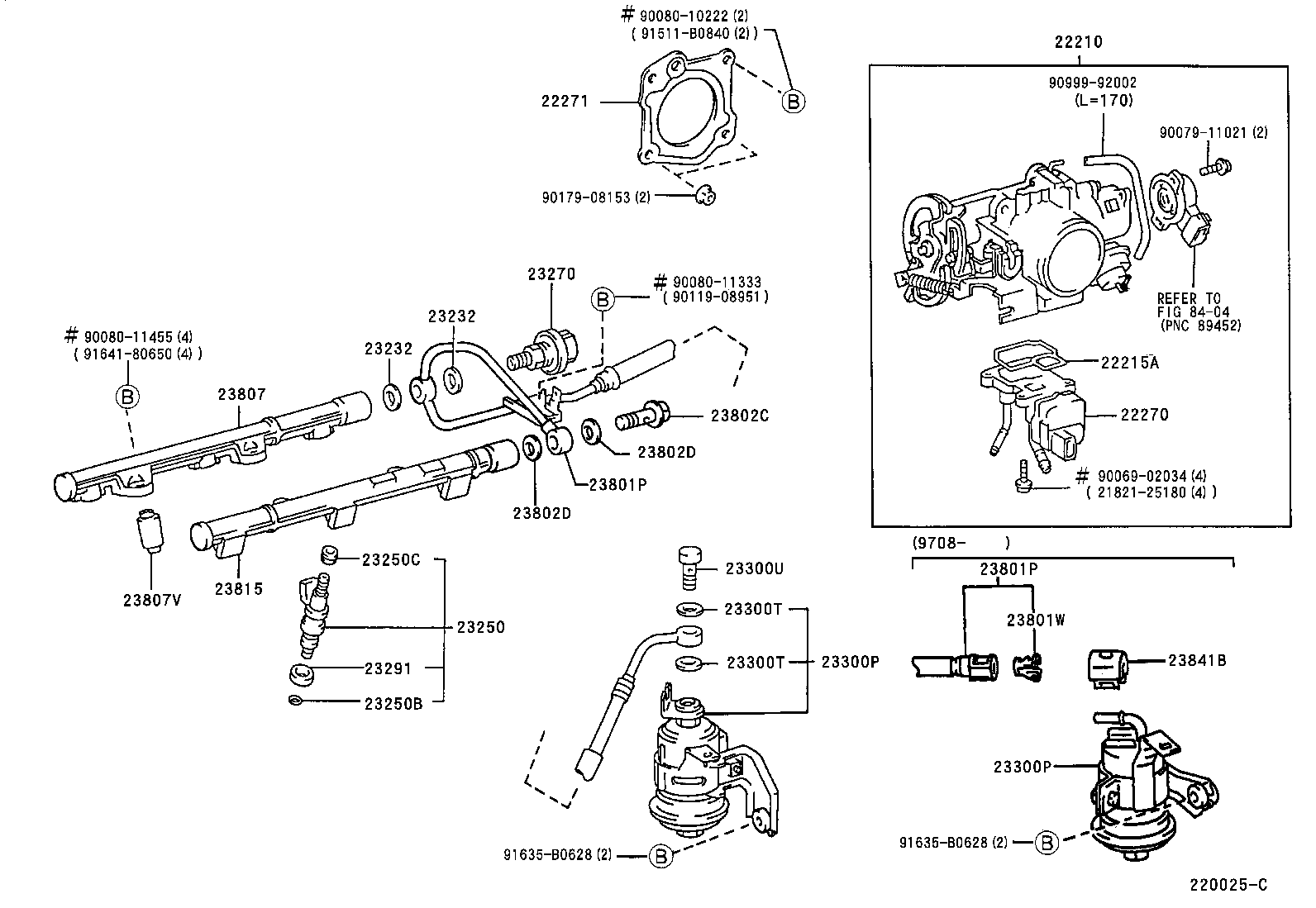

ILLUST NO. 1 OF 2(9608- )1MZFE..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-20050 |
1MZFE..MCV20..JPP |
1 | ||
| 22210-0A090 |
1MZFE..MCV20..JPP (L) |
1 | ||
| 22215A - GASKET, IDLE SPEED CONTROL VALVE | ||||
| 22215-0A010 |
1MZFE..MCV20..JPP (L) |
1 | ||
| 22215-20010 |
1MZFE..MCV20..JPP (J) |
1 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-0A040 |
1MZFE..MCV20..JPP (L) |
1 | ||
| 22270-20020 |
1MZFE..MCV20..JPP |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-20010 |
1MZFE..MCV20..JPP (J) |
1 | ||
| 22271-0A010 |
1MZFE..MCV20..JPP (L) |
1 | ||
| 23232 - GASKET(FOR FUEL PUMP HOSE) | ||||
| 23232-41081 |
1MZFE..MCV20..JPP |
2 | ||
| 23232 - GASKET(FOR FUEL PUMP HOSE) | ||||
| 23232-41081 |
1MZFE..MCV20..JPP |
2 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-20010 |
1MZFE..MCV20..JPP |
6 | ||
| 23209-0A010 |
1MZFE..MCV20..JPP (L) |
6 | ||
| 23209-20020 |
1MZFE..MCV20..JPP (J) |
6 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
1MZFE..MCV20..JPP |
12 | ||
| 90301-07024 |
1MZFE..MCV20..JPP |
12 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
1MZFE..MCV20..JPP |
6 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23270-62010 |
1MZFE..MCV20..JPP |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-62010 |
1MZFE..MCV20..JPP |
6 | ||
| 23291-20010 |
1MZFE..MCV20..JPP |
6 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-79545 |
1MZFE..MCV20..JPP |
1 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-79545 |
1MZFE..MCV20..JPP |
1 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
1MZFE..MCV20..JPP |
2 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
1MZFE..MCV20..JPP |
2 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
1MZFE..MCV20..JPP |
1 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-20030 |
1MZFE..MCV20..JPP |
1 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-20030 |
1MZFE..MCV20..JPP |
1 | ||
| 23802C - BOLT, UNION(FOR FUEL PIPE NO.2) | ||||
| 90401-12015 |
1MZFE..MCV20..JPP |
1 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90430-12026 |
1MZFE..MCV20..JPP |
2 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90430-12026 |
1MZFE..MCV20..JPP |
2 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23814-20020 |
1MZFE..MCV20..JPP |
1 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 90561-08020 |
1MZFE..MCV20..JPP |
4 | ||
| 23815 - PIPE, FUEL DELIVERY, NO.2 | ||||
| 23815-20020 |
1MZFE..MCV20..JPP |
1 | ||
| Common parts | ||||
| 21821-25180 | ||||
| 90069-02034 | ||||
| 90079-11021 | ||||
| 90080-10222 | ||||
| 90080-11333 | ||||
| 90080-11455 | ||||
| 90119-08951 | ||||
| 90179-08153 | ||||
| 90999-92002 | ||||
| 91511-B0840 | ||||
| 91635-B0628 | ||||
| 91641-80650 | ||||
| Linked diagrams | ||||
| 8404 | ||||

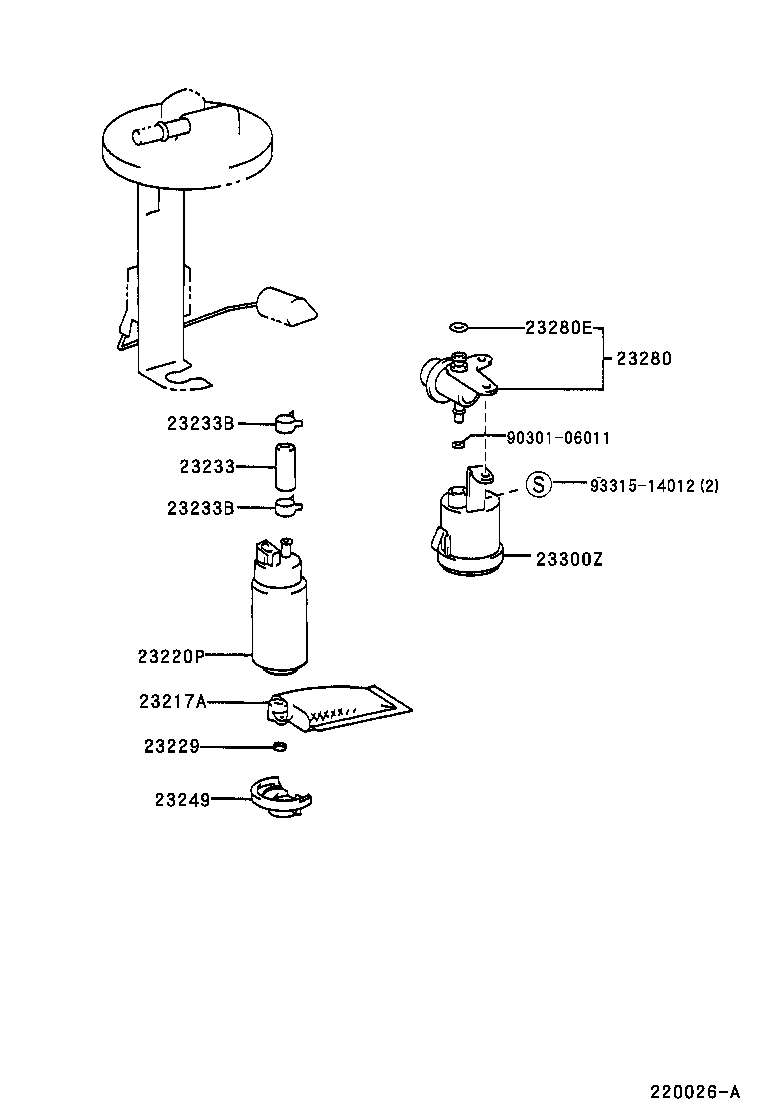

ILLUST NO. 2 OF 2(9608- )1MZFE..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-03030 |
1MZFE..MCV20..JPP |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23221-03030 |
1MZFE..MCV20..JPP |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23219-03010 |
1MZFE..MCV20..JPP |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 23239-74010 |
1MZFE..MCV20..JPP |
1 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-12067 |
1MZFE..MCV20..JPP |
2 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-12067 |
1MZFE..MCV20..JPP |
2 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-74610 |
1MZFE..MCV20..JPP |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-74170 |
1MZFE..MCV20..JPP |
1 | ||
| 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07020 |
1MZFE..MCV20..JPP |
1 | ||
| 23300Z - FILTER, FUEL(FOR FUEL TANK) | ||||
| 23300-74280 |
1MZFE..MCV20..JPP |
1 | ||
| Common parts | ||||
| 90301-06011 | ||||
| 93315-14012 | ||||
