MCV20L-AEPDKK (1998)
Toyota Camry (Jpp)
(9908- )1MZFE..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17346C - HOSE, NO.6 | ||||
| 17346-20050 |
1MZFE..MCV20..JPP |
1 | ||
| 17346C - HOSE, NO.6 | ||||
| 17346-20050 |
1MZFE..MCV20..JPP |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-20050 |
1MZFE..MCV20..JPP |
1 | ||
| 17700-20051 |
1MZFE..MCV20..JPP |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-20050 |
1MZFE..MCV20..JPP |
1 | ||
| 17700-20051 |
1MZFE..MCV20..JPP |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-20041 |
1MZFE..MCV20..JPP |
1 | ||
| 17705-20040 |
1MZFE..MCV20..JPP |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-20041 |
1MZFE..MCV20..JPP |
1 | ||
| 17705-20040 |
1MZFE..MCV20..JPP |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-20041 |
1MZFE..MCV20..JPP |
1 | ||
| 17705-20040 |
1MZFE..MCV20..JPP |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-20041 |
1MZFE..MCV20..JPP |
1 | ||
| 17705-20040 |
1MZFE..MCV20..JPP |
1 | ||
| 17750A - INLET ASSY, AIR CLEANER | ||||
| 17750-20010 |
1MZFE..MCV20..JPP |
1 | ||
| 17750-20100 |
1MZFE..MCV20..JPP TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 17750A - INLET ASSY, AIR CLEANER | ||||
| 17750-20010 |
1MZFE..MCV20..JPP |
1 | ||
| 17750-20100 |
1MZFE..MCV20..JPP TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-74060 |
1MZFE..MCV20..JPP (J) |
1 | ||
| 17801-03010 |
1MZFE..MCV20..JPP (L) |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-74060 |
1MZFE..MCV20..JPP (J) |
1 | ||
| 17801-03010 |
1MZFE..MCV20..JPP (L) |
1 | ||
| 17805F - RESONATOR SUB-ASSY, INTAKE AIR | ||||
| 17805-20020 |
1MZFE..MCV20..JPP |
1 | ||
| 17805F - RESONATOR SUB-ASSY, INTAKE AIR | ||||
| 17805-20020 |
1MZFE..MCV20..JPP |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-20090 |
1MZFE..MCV20..JPP |
2 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-20090 |
1MZFE..MCV20..JPP |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10830 |
1MZFE..MCV20..JPP |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10830 |
1MZFE..MCV20..JPP |
2 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-20030 |
1MZFE..MCV20..JPP |
1 | ||
| 17893A - CLAMP, HOSE | ||||
| 96111-10830 |
1MZFE..MCV20..JPP |
2 | ||
| 17893A - CLAMP, HOSE | ||||
| 96111-10830 |
1MZFE..MCV20..JPP |
2 | ||
| 22020 - METER ASSY, AIR FLOW W/AIR CLEANER | ||||
| 22020-20041 |
1MZFE..MCV20..JPP |
1 | ||
| 22020-20040 |
1MZFE..MCV20..JPP |
1 | ||
| 22020 - METER ASSY, AIR FLOW W/AIR CLEANER | ||||
| 22020-20041 |
1MZFE..MCV20..JPP |
1 | ||
| 22020-20040 |
1MZFE..MCV20..JPP |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-20010 |
1MZFE..MCV20..JPP |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-20010 |
1MZFE..MCV20..JPP |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06123 | ||||
| 90119-06245 | ||||
| 90385-07002 | ||||
| 90467-06170 | ||||
| 90910-12206 | ||||
| 93560-14012 | ||||
| Linked diagrams | ||||
| 1201 | ||||

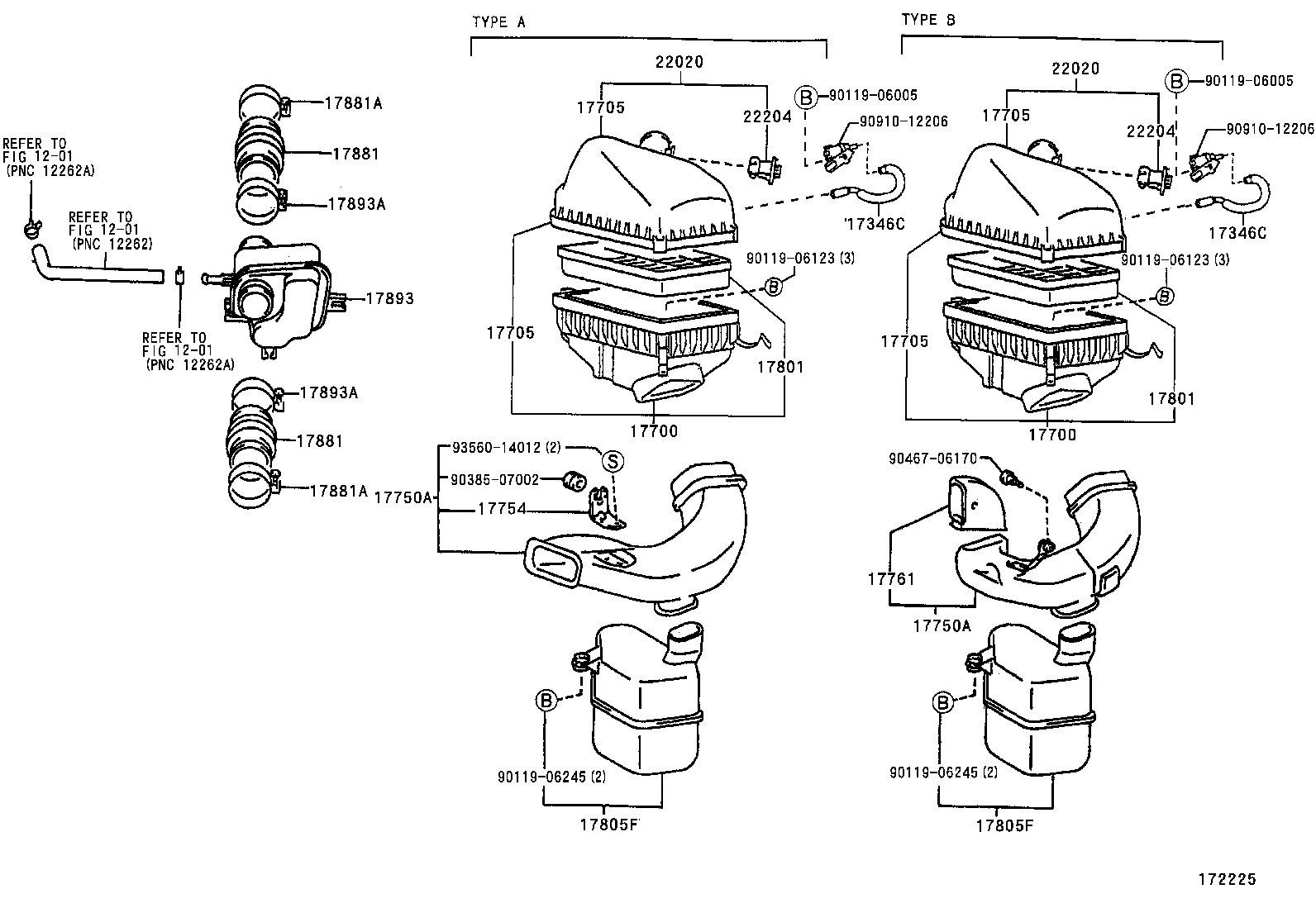

(9608-9908)1MZFE..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-20050 |
1MZFE..MCV20..JPP |
1 | ||
| 17700-20051 |
1MZFE..MCV20..JPP |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-20041 |
1MZFE..MCV20..JPP |
1 | ||
| 17705-20040 |
1MZFE..MCV20..JPP |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-20041 |
1MZFE..MCV20..JPP |
1 | ||
| 17705-20040 |
1MZFE..MCV20..JPP |
1 | ||
| 17750A - INLET ASSY, AIR CLEANER | ||||
| 17750-20010 |
1MZFE..MCV20..JPP |
1 | ||
| 17750-20100 |
1MZFE..MCV20..JPP TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 17750A - INLET ASSY, AIR CLEANER | ||||
| 17750-20010 |
1MZFE..MCV20..JPP |
1 | ||
| 17750-20100 |
1MZFE..MCV20..JPP TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-74060 |
1MZFE..MCV20..JPP (J) |
1 | ||
| 17801-03010 |
1MZFE..MCV20..JPP (L) |
1 | ||
| 17805F - RESONATOR SUB-ASSY, INTAKE AIR | ||||
| 17805-20020 |
1MZFE..MCV20..JPP |
1 | ||
| 17879 - PAD, AIR CLEANER INLET | ||||
| 17879-74010 |
1MZFE..MCV20..JPP |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-20090 |
1MZFE..MCV20..JPP |
2 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-20090 |
1MZFE..MCV20..JPP |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10830 |
1MZFE..MCV20..JPP |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10830 |
1MZFE..MCV20..JPP |
2 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-20030 |
1MZFE..MCV20..JPP |
1 | ||
| 17893A - CLAMP, HOSE | ||||
| 96111-10830 |
1MZFE..MCV20..JPP |
2 | ||
| 17893A - CLAMP, HOSE | ||||
| 96111-10830 |
1MZFE..MCV20..JPP |
2 | ||
| 22020 - METER ASSY, AIR FLOW W/AIR CLEANER | ||||
| 22020-20041 |
1MZFE..MCV20..JPP |
1 | ||
| 22020-20040 |
1MZFE..MCV20..JPP |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-20010 |
1MZFE..MCV20..JPP |
1 | ||
| Common parts | ||||
| 90119-06123 | ||||
| 90119-06245 | ||||
| 90385-07002 | ||||
| 90467-06170 | ||||
| 93560-14012 | ||||
