MCV20L-AEPDKK (1998)

Toyota Camry (Jpp)

Production May 1998 - Jul 2001
Engine 1MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )1MZFE..JPP

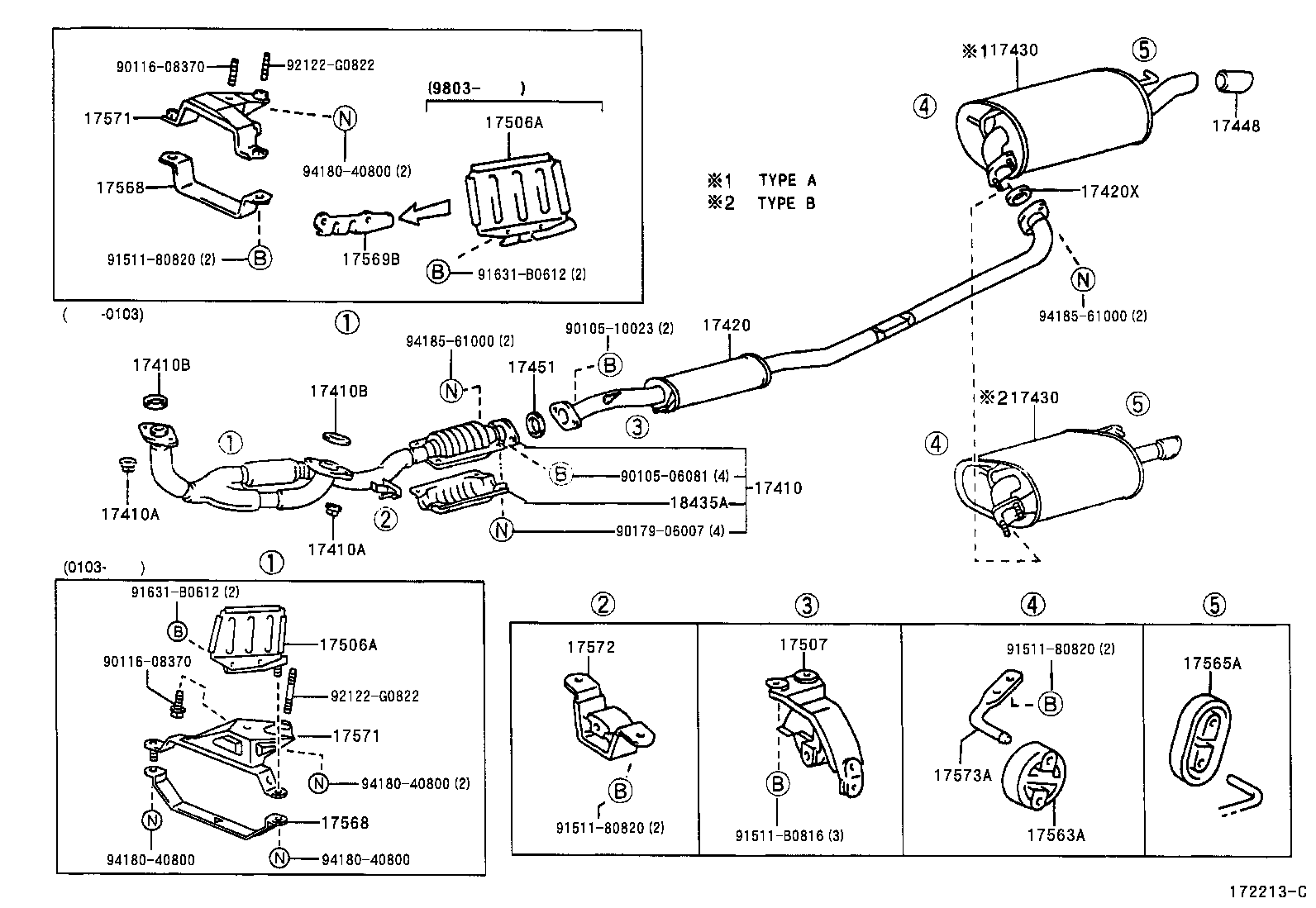

Click highlighted areas on diagram

diagram 17410 17410A 17410A 17410B 17410B 17420 17420X 17430 17430 17448 17451 17506A 17506A 17507 17563A 17565A 17568 17568 17569B 17571 17571 17572 17573A 18435A 9010506081 9010510023 9011608370 9011608370 9017906007 9151180820 9151180820 9151180820 91511B0816 91631B0612 91631B0612 92122G0822 92122G0822 9418040800 9418040800 9418040800 9418040800 9418561000 9418561000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-20360

1MZFE..MCV20..JPP

 1
17410-20050

1MZFE..MCV20..JPP

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1MZFE..MCV20..JPP

 4
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1MZFE..MCV20..JPP

 4
17410B - GASKET, EXHAUST PIPE
90917-06065

1MZFE..MCV20..JPP

 2
17410B - GASKET, EXHAUST PIPE
90917-06065

1MZFE..MCV20..JPP

 2
17420 - PIPE ASSY, EXHAUST, CENTER
17420-20040

1MZFE..MCV20..JPP

 1
17420-20180

1MZFE..MCV20..JPP

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06073

1MZFE..MCV20..JPP

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-20040

1MZFE..MCV20..JPP

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-20040

1MZFE..MCV20..JPP

 1
17451 - GASKET, EXHAUST PIPE
90917-06073

1MZFE,5SFE..MCV20,SXV20..JPP

 1
90917-06073

1MZFE,5SF#..MCV20,SXV2#..JPP

 1
17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17506-20061

1MZFE..MCV20..JPP

 1
17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17506-20061

1MZFE..MCV20..JPP

 1
17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17507-20030

1MZFE,5SF#..MCV20,SXV2#..JPP

 1
17507-20030

1MZFE,5SFE..MCV20,SXV20..JPP

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-20060

1MZFE,5SFE..MCV20,SXV20..JPP

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-20050

1MZFE,5SFE..MCV20,SXV20..JPP

 1
17568 - STAY, EXHAUST PIPE SUPPORT
17568-20080

1MZFE..MCV20..JPP

 1
17568 - STAY, EXHAUST PIPE SUPPORT
17568-20080

1MZFE..MCV20..JPP

 1
17569B - STAY, EXHAUST PIPE SUPPORT, NO.2
17569-20040

1MZFE..MCV20..JPP

 1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-20070

1MZFE..MCV20..JPP

 1
17571-20071

1MZFE..MCV20..JPP

 1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-20070

1MZFE..MCV20..JPP

 1
17571-20071

1MZFE..MCV20..JPP

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572-20040

1MZFE..MCV20..JPP

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-74210

1MZFE,5SFE..MCV20,SXV20..JPP

 1
18435A - PROTECTOR, MONOLITHIC CONVERTER
18435-20020

1MZFE..MCV20..JPP

 1
18435-16170

1MZFE..MCV20..JPP

 1
Common parts
90105-06081
90105-10023
90116-08370
90179-06007
91511-80820
91511-B0816
91631-B0612
92122-G0822
94180-40800
94185-61000
