MCV20L-AEPDKK (1998)
Toyota Camry (Jpp)
Production
May 1998
-
Jul 2001
Engine
1MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9608- )1MZFE..JPP

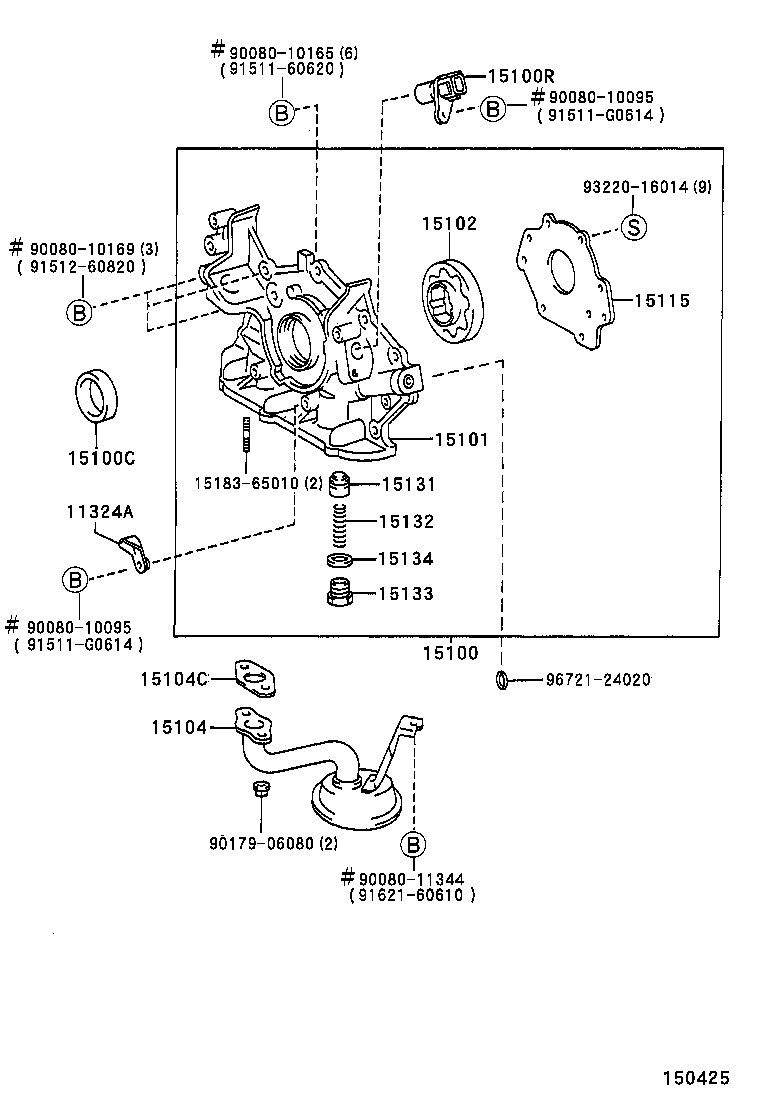

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11324A - PLATE, TIMING BELT | ||||
| 11324-20010 |
1MZFE..MCV20..JPP |
1 | ||
| 15100 - PUMP ASSY, OIL | ||||
| 15100-0A010 |
1MZFE..MCV20..JPP (L) |
1 | ||
| 15100-20020 |
1MZFE..MCV20..JPP (J) |
1 | ||
| 15100C - SEAL(FOR OIL PUMP) | ||||
| 90080-31034 |
1MZFE..MCV20..JPP (L) |
1 | ||
| 90311-40022 |
1MZFE..MCV20..JPP (J) |
1 | ||
| 15100R - SENSOR, CRANK POSITION | ||||
| 90919-05012 |
1MZFE..MCV20..JPP |
1 | ||
| 90080-19009 |
1MZFE..MCV20..JPP (L) |
1 | ||
| 90919-05012 |
1MZFE..MCV20..JPP (J) |
1 | ||
| 15101 - BODY SUB-ASSY, OIL PUMP | ||||
| 15101-20020 |
1MZFE..MCV20..JPP (J) |
1 | ||
| 15101-0A010 |
1MZFE..MCV20..JPP (L) |
1 | ||
| 15102 - ROTOR SET, OIL PUMP | ||||
| 15103-62030 |
1MZFE..MCV20..JPP (J) |
1 | ||
| 15103-0A010 |
1MZFE..MCV20..JPP (L) |
1 | ||
| 15104 - STRAINER SUB-ASSY, OIL | ||||
| 15104-20020 |
1MZFE..MCV20..JPP (J) |
1 | ||
| 15104-0A010 |
1MZFE..MCV20..JPP (L) |
1 | ||
| 15104C - GASKET(FOR OIL STRAINER) | ||||
| 15147-20010 |
1MZFE..MCV20..JPP (J) |
1 | ||
| 15147-0A010 |
1MZFE..MCV20..JPP (L) |
1 | ||
| 15115 - COVER, OIL PUMP | ||||
| 15115-20020 |
1MZFE..MCV20..JPP (J) |
1 | ||
| 15115-0A010 |
1MZFE..MCV20..JPP (L) |
1 | ||
| 15131 - VALVE, OIL PUMP RELIEF | ||||
| 15131-42021 |
1MZFE..MCV20..JPP |
1 | ||
| 15132 - SPRING, OIL PUMP RELIEF VALVE | ||||
| 15132-20020 |
1MZFE..MCV20..JPP (J) |
1 | ||
| 15132-0A010 |
1MZFE..MCV20..JPP (L) |
1 | ||
| 15133 - PLUG, OIL PUMP RELIEF VALVE | ||||
| 15133-20010 |
1MZFE..MCV20..JPP |
1 | ||
| 15134 - GASKET, OIL PUMP RELIEF VALVE | ||||
| 15134-67010 |
1MZFE..MCV20..JPP |
1 | ||
| Common parts | ||||
| 15183-65010 | ||||
| 90080-10095 | ||||
| 90080-10165 | ||||
| 90080-10169 | ||||
| 90080-11344 | ||||
| 90179-06080 | ||||
| 91511-60620 | ||||
| 91511-G0614 | ||||
| 91512-60820 | ||||
| 91621-60610 | ||||
| 93220-16014 | ||||
| 96721-24020 | ||||
