MCV10L-AEPSKA (1993)

Toyota Camry (Jpp)

Production Aug 1993 - Aug 1996
Engine 1MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

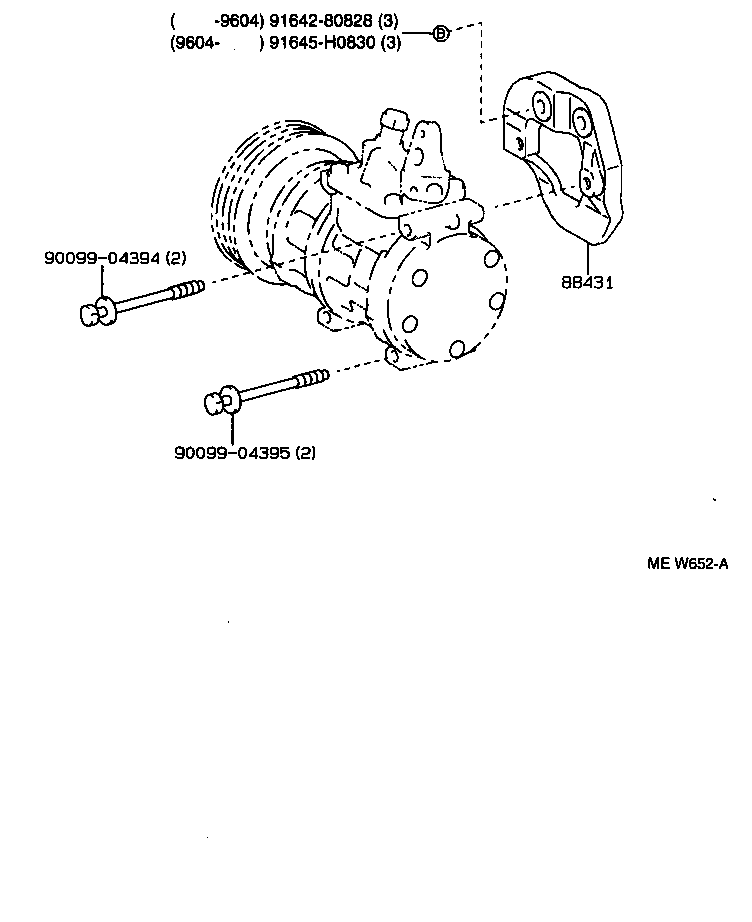

ILLUST NO. 1 OF 3(9106-9608)JPP

Click highlighted areas on diagram

diagram 1638462050 1638564011 1638564011 88431 8844303010 88444 88545 88891L 9009904356 9009904356 9009904588 9009904588 9011908299 9011908419 9011908678 9151161020 9151161060 9161160820 9161160850 9161161020 9161161060
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-33020

MCV10..JPP

 1
Common parts
16384-62050
16385-64011
88443-03010
90099-04356
90099-04588
90119-08299
90119-08419
90119-08678
91511-61020
91511-61060
91611-60820
91611-60850
91611-61020
91611-61060

ILLUST NO. 2 OF 3(9106-9608)JPP

Click highlighted areas on diagram

diagram 88301 88302 88320 88330A 88403 88410 9009904349 9009907114 9009907125
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-33010

MCV10..JPP

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-33030

MCV10..JPP

 1
88320 - COMPRESSOR ASSY, COOLER
88320-33030

MCV10..JPP

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

MCV10,SXV10,VCV10..JPP

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-30290

MCV10,SXV10..JPP

 1
88410 - CLUTCH ASSY, MAGNET
88410-33040

MCV10..JPP

 1
Common parts
90099-04349
90099-07114
90099-07125

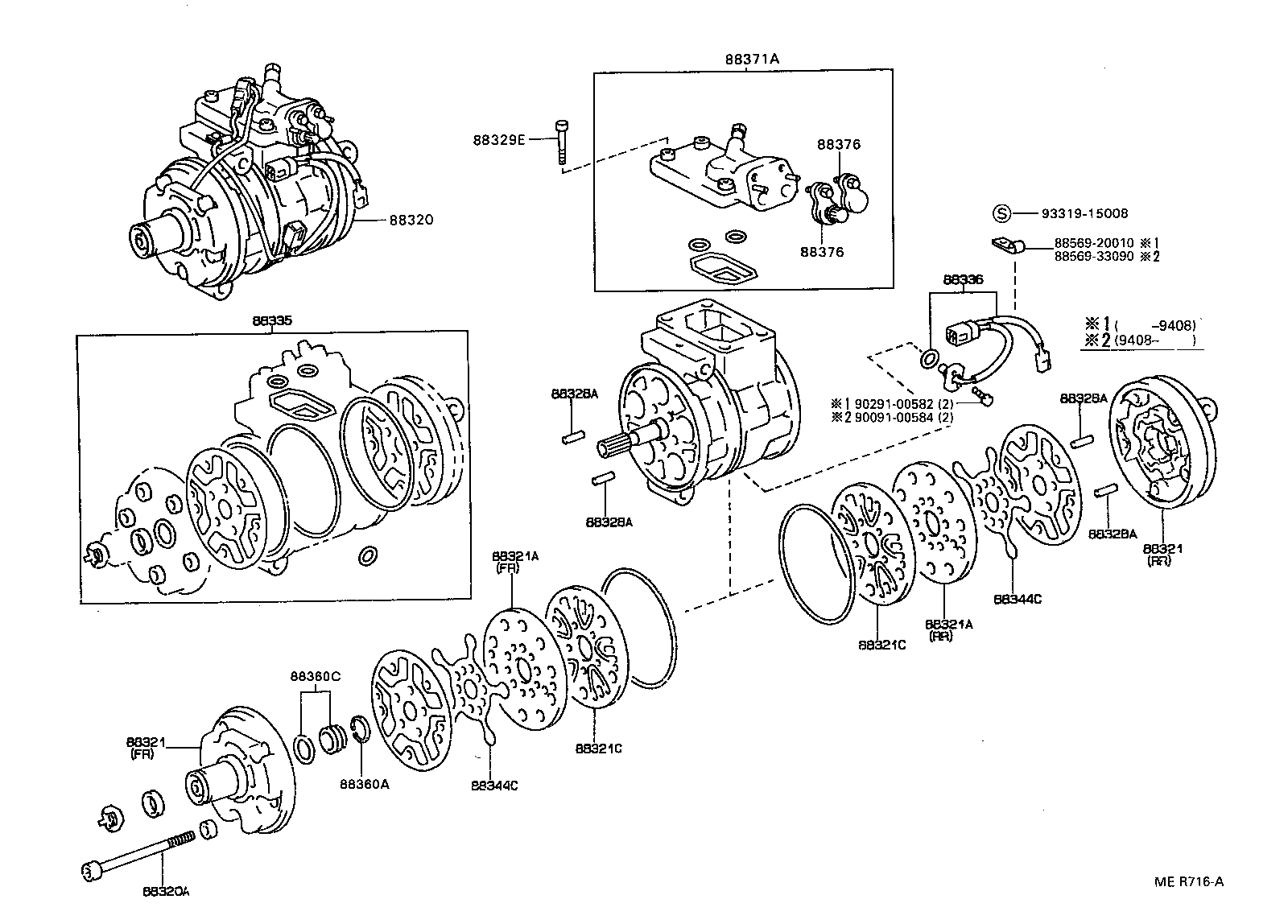

ILLUST NO. 3 OF 3(9106-9608)JPP

Click highlighted areas on diagram

diagram 88320 88320A 88321 88321 88321A 88321A 88321C 88321C 88328A 88328A 88328A 88328A 88329E 88335 88336 88344C 88344C 88360A 88360C 88371A 88376 88376 8856920010 8856933090 9009100584 9029100582 9331915008
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-33030

MCV10..JPP

 1
88320A - BOLT, THROUGH
90099-04958

MCV10,SXV10..JPP

 5
90099-04108

MCV10..JPP

 5
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88322-32050

MCV10..JPP

REAR

 1
88321-32010

MCV10,SXV10,VCV10..JPP

FRONT

 1
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88322-32050

MCV10..JPP

REAR

 1
88321-32010

MCV10,SXV10,VCV10..JPP

FRONT

 1
88321A - PLATE SUB-ASSY, VALVE
88342-22010

MCV10,SXV10,VCV10..JPP

REAR

 1
88341-22010

MCV10,SXV10,VCV10..JPP

FRONT

 1
88321A - PLATE SUB-ASSY, VALVE
88342-22010

MCV10,SXV10,VCV10..JPP

REAR

 1
88341-22010

MCV10,SXV10,VCV10..JPP

FRONT

 1
88321C - REED, SUCTION VALVE
88343-14020

MCV10,SXV10,VCV10..JPP

 2
88321C - REED, SUCTION VALVE
88343-14020

MCV10,SXV10,VCV10..JPP

 2
88328A - PIN, COMPRESSOR
90099-08058

MCV10,SXV10,VCV10..JPP

 4
88328A - PIN, COMPRESSOR
90099-08058

MCV10,SXV10,VCV10..JPP

 4
88328A - PIN, COMPRESSOR
90099-08058

MCV10,SXV10,VCV10..JPP

 4
88328A - PIN, COMPRESSOR
90099-08058

MCV10,SXV10,VCV10..JPP

 4
88329E - BOLT, COMPRESSOR, NO.1
90099-04924

MCV10,SXV10,VCV10..JPP

 4
88335 - GASKET KIT, OVERHAUL
88335-2B010

MCV10,SXV10..JPP

 1
88335-2B030

MCV10..JPP

 1
88336 - SENSOR, COMPRESSOR
88336-33040

MCV10..JPP

 1
88344C - REED, DISCHARGE VALVE
88344-22010

MCV10,SXV10,VCV10..JPP

 2
88344C - REED, DISCHARGE VALVE
88344-22010

MCV10,SXV10,VCV10..JPP

 2
88360A - RING, COMPRESSOR SEAL PLATE SNAP
90096-90022

MCV10,SXV10,VCV10..JPP

 1
88360C - SEAL ASSY, SHAFT
88360-2B010

MCV10,SXV10..JPP

 1
88360-2B010

MCV10..JPP

 1
88360-2B020

MCV10,SXV10..JPP

 1
88371A - VALVE, SUCTION
88371-33040

MCV10..JPP

 1
Common parts
88569-20010
88569-33090
90091-00584
90291-00582
93319-15008

ILLUST NO. 1 OF 3(9308-9608)MCV10..JPP

Click highlighted areas on diagram

diagram 88431 9009904394 9009904395 9164280828 91645H0830
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-33020

MCV10..JPP

 1
Common parts
90099-04394
90099-04395
91642-80828
91645-H0830
