MCV10L-AEPSKA (1993)
Toyota Camry (Jpp)

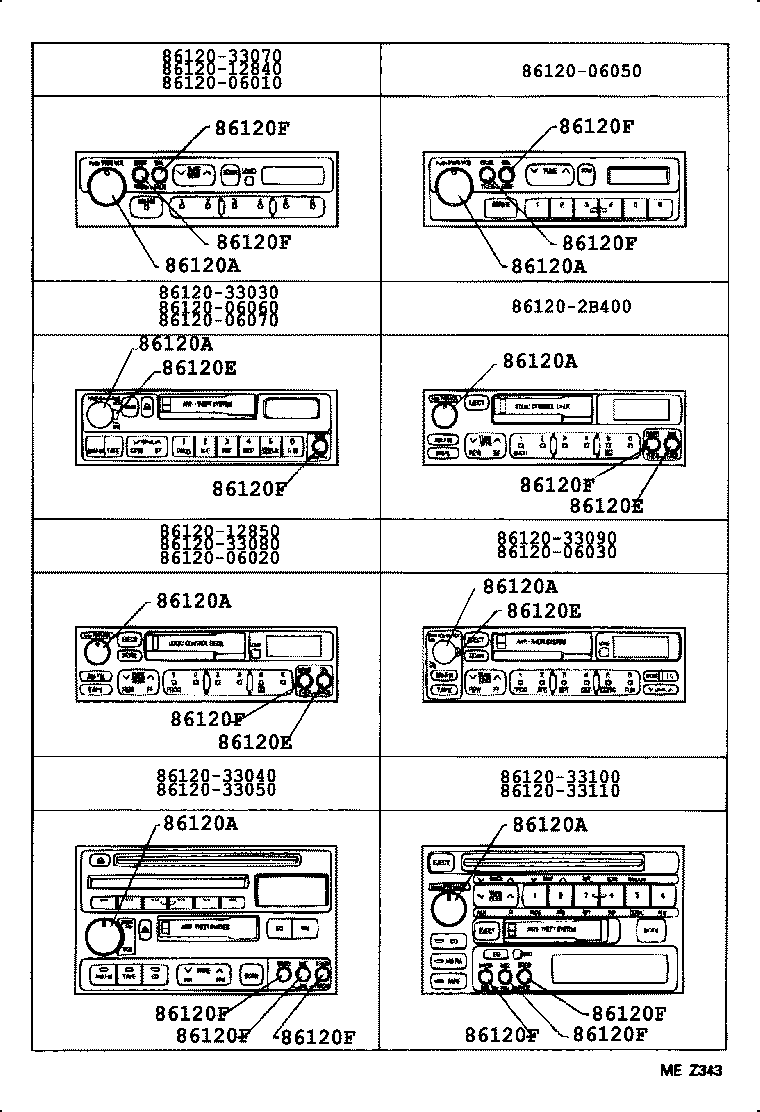

ILLUST NO. 2 OF 2(9106-9608)JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 86128-17350 |
VCV10..JPP..(LE,XLE);MCV10,SXV10..JPP..(LE,SE,XLE) W(6 SPEAKER---1DIN) |
1 | ||
| 86128-17390 |
VCV10..JPP..(LE,XLE);MCV10,SXV10..JPP..(LE,SE,XLE) W(AM/FM MPX CST *AF CD 6 SPEAKER) |
1 | ||
| 86128-33010 |
MCV10,SXV10..JPP..(LE,SE,XLE) W(6 SPEAKER---1DIN) |
1 | ||
| 86128-33050 |
MCV10,SXV10..JPP..(LE,SE,XLE) W(2 SPEAKER) |
1 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 86128-17350 |
VCV10..JPP..(LE,XLE);MCV10,SXV10..JPP..(LE,SE,XLE) W(6 SPEAKER---1DIN) |
1 | ||
| 86128-17390 |
VCV10..JPP..(LE,XLE);MCV10,SXV10..JPP..(LE,SE,XLE) W(AM/FM MPX CST *AF CD 6 SPEAKER) |
1 | ||
| 86128-33010 |
MCV10,SXV10..JPP..(LE,SE,XLE) W(6 SPEAKER---1DIN) |
1 | ||
| 86128-33050 |
MCV10,SXV10..JPP..(LE,SE,XLE) W(2 SPEAKER) |
1 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 86128-17350 |
VCV10..JPP..(LE,XLE);MCV10,SXV10..JPP..(LE,SE,XLE) W(6 SPEAKER---1DIN) |
1 | ||
| 86128-17390 |
VCV10..JPP..(LE,XLE);MCV10,SXV10..JPP..(LE,SE,XLE) W(AM/FM MPX CST *AF CD 6 SPEAKER) |
1 | ||
| 86128-33010 |
MCV10,SXV10..JPP..(LE,SE,XLE) W(6 SPEAKER---1DIN) |
1 | ||
| 86128-33050 |
MCV10,SXV10..JPP..(LE,SE,XLE) W(2 SPEAKER) |
1 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 86128-17350 |
VCV10..JPP..(LE,XLE);MCV10,SXV10..JPP..(LE,SE,XLE) W(6 SPEAKER---1DIN) |
1 | ||
| 86128-17390 |
VCV10..JPP..(LE,XLE);MCV10,SXV10..JPP..(LE,SE,XLE) W(AM/FM MPX CST *AF CD 6 SPEAKER) |
1 | ||
| 86128-33010 |
MCV10,SXV10..JPP..(LE,SE,XLE) W(6 SPEAKER---1DIN) |
1 | ||
| 86128-33050 |
MCV10,SXV10..JPP..(LE,SE,XLE) W(2 SPEAKER) |
1 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 86128-17350 |
VCV10..JPP..(LE,XLE);MCV10,SXV10..JPP..(LE,SE,XLE) W(6 SPEAKER---1DIN) |
1 | ||
| 86128-17390 |
VCV10..JPP..(LE,XLE);MCV10,SXV10..JPP..(LE,SE,XLE) W(AM/FM MPX CST *AF CD 6 SPEAKER) |
1 | ||
| 86128-33010 |
MCV10,SXV10..JPP..(LE,SE,XLE) W(6 SPEAKER---1DIN) |
1 | ||
| 86128-33050 |
MCV10,SXV10..JPP..(LE,SE,XLE) W(2 SPEAKER) |
1 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 86128-17350 |
VCV10..JPP..(LE,XLE);MCV10,SXV10..JPP..(LE,SE,XLE) W(6 SPEAKER---1DIN) |
1 | ||
| 86128-17390 |
VCV10..JPP..(LE,XLE);MCV10,SXV10..JPP..(LE,SE,XLE) W(AM/FM MPX CST *AF CD 6 SPEAKER) |
1 | ||
| 86128-33010 |
MCV10,SXV10..JPP..(LE,SE,XLE) W(6 SPEAKER---1DIN) |
1 | ||
| 86128-33050 |
MCV10,SXV10..JPP..(LE,SE,XLE) W(2 SPEAKER) |
1 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 86128-17350 |
VCV10..JPP..(LE,XLE);MCV10,SXV10..JPP..(LE,SE,XLE) W(6 SPEAKER---1DIN) |
1 | ||
| 86128-17390 |
VCV10..JPP..(LE,XLE);MCV10,SXV10..JPP..(LE,SE,XLE) W(AM/FM MPX CST *AF CD 6 SPEAKER) |
1 | ||
| 86128-33010 |
MCV10,SXV10..JPP..(LE,SE,XLE) W(6 SPEAKER---1DIN) |
1 | ||
| 86128-33050 |
MCV10,SXV10..JPP..(LE,SE,XLE) W(2 SPEAKER) |
1 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 86128-17350 |
VCV10..JPP..(LE,XLE);MCV10,SXV10..JPP..(LE,SE,XLE) W(6 SPEAKER---1DIN) |
1 | ||
| 86128-17390 |
VCV10..JPP..(LE,XLE);MCV10,SXV10..JPP..(LE,SE,XLE) W(AM/FM MPX CST *AF CD 6 SPEAKER) |
1 | ||
| 86128-33010 |
MCV10,SXV10..JPP..(LE,SE,XLE) W(6 SPEAKER---1DIN) |
1 | ||
| 86128-33050 |
MCV10,SXV10..JPP..(LE,SE,XLE) W(2 SPEAKER) |
1 | ||
| 86120E - KNOB, RADIO RECEIVER BALANCE | ||||
| 86128-33030 |
MCV10,SXV10..JPP..(LE,SE,XLE) |
1 | ||
| 86128-17370 |
VCV10..JPP..(LE,XLE);MCV10,SXV10..JPP..(LE,SE,XLE) |
1 | ||
| 86120E - KNOB, RADIO RECEIVER BALANCE | ||||
| 86128-33030 |
MCV10,SXV10..JPP..(LE,SE,XLE) |
1 | ||
| 86128-17370 |
VCV10..JPP..(LE,XLE);MCV10,SXV10..JPP..(LE,SE,XLE) |
1 | ||
| 86120E - KNOB, RADIO RECEIVER BALANCE | ||||
| 86128-33030 |
MCV10,SXV10..JPP..(LE,SE,XLE) |
1 | ||
| 86128-17370 |
VCV10..JPP..(LE,XLE);MCV10,SXV10..JPP..(LE,SE,XLE) |
1 | ||
| 86120E - KNOB, RADIO RECEIVER BALANCE | ||||
| 86128-33030 |
MCV10,SXV10..JPP..(LE,SE,XLE) |
1 | ||
| 86128-17370 |
VCV10..JPP..(LE,XLE);MCV10,SXV10..JPP..(LE,SE,XLE) |
1 | ||
| 86120F - KNOB, RADIO RECEIVER SUB VOLUME | ||||
| 86128-17190 |
VCV10..JPP..(LE,XLE);MCV10,SXV10..JPP..(LE,SE,XLE) W(AM/FM MPX CST *AF CD 6 SPEAKER) |
3 | ||
| 86128-17190 |
MCV10,SXV10..JPP..(LE,SE,XLE) W(AM/FM MPX CST *AF CD 6 SPEAKER) |
3 | ||
| 86128-17190 |
MCV10,SXV10..JPP..(LE,SE,XLE) |
1 | ||
| 86120F - KNOB, RADIO RECEIVER SUB VOLUME | ||||
| 86128-17190 |
VCV10..JPP..(LE,XLE);MCV10,SXV10..JPP..(LE,SE,XLE) W(AM/FM MPX CST *AF CD 6 SPEAKER) |
3 | ||
| 86128-17190 |
MCV10,SXV10..JPP..(LE,SE,XLE) W(AM/FM MPX CST *AF CD 6 SPEAKER) |
3 | ||
| 86128-17190 |
MCV10,SXV10..JPP..(LE,SE,XLE) |
1 | ||
| 86120F - KNOB, RADIO RECEIVER SUB VOLUME | ||||
| 86128-17190 |
VCV10..JPP..(LE,XLE);MCV10,SXV10..JPP..(LE,SE,XLE) W(AM/FM MPX CST *AF CD 6 SPEAKER) |
3 | ||
| 86128-17190 |
MCV10,SXV10..JPP..(LE,SE,XLE) W(AM/FM MPX CST *AF CD 6 SPEAKER) |
3 | ||
| 86128-17190 |
MCV10,SXV10..JPP..(LE,SE,XLE) |
1 | ||
| 86120F - KNOB, RADIO RECEIVER SUB VOLUME | ||||
| 86128-17190 |
VCV10..JPP..(LE,XLE);MCV10,SXV10..JPP..(LE,SE,XLE) W(AM/FM MPX CST *AF CD 6 SPEAKER) |
3 | ||
| 86128-17190 |
MCV10,SXV10..JPP..(LE,SE,XLE) W(AM/FM MPX CST *AF CD 6 SPEAKER) |
3 | ||
| 86128-17190 |
MCV10,SXV10..JPP..(LE,SE,XLE) |
1 | ||
| 86120F - KNOB, RADIO RECEIVER SUB VOLUME | ||||
| 86128-17190 |
VCV10..JPP..(LE,XLE);MCV10,SXV10..JPP..(LE,SE,XLE) W(AM/FM MPX CST *AF CD 6 SPEAKER) |
3 | ||
| 86128-17190 |
MCV10,SXV10..JPP..(LE,SE,XLE) W(AM/FM MPX CST *AF CD 6 SPEAKER) |
3 | ||
| 86128-17190 |
MCV10,SXV10..JPP..(LE,SE,XLE) |
1 | ||
| 86120F - KNOB, RADIO RECEIVER SUB VOLUME | ||||
| 86128-17190 |
VCV10..JPP..(LE,XLE);MCV10,SXV10..JPP..(LE,SE,XLE) W(AM/FM MPX CST *AF CD 6 SPEAKER) |
3 | ||
| 86128-17190 |
MCV10,SXV10..JPP..(LE,SE,XLE) W(AM/FM MPX CST *AF CD 6 SPEAKER) |
3 | ||
| 86128-17190 |
MCV10,SXV10..JPP..(LE,SE,XLE) |
1 | ||
| 86120F - KNOB, RADIO RECEIVER SUB VOLUME | ||||
| 86128-17190 |
VCV10..JPP..(LE,XLE);MCV10,SXV10..JPP..(LE,SE,XLE) W(AM/FM MPX CST *AF CD 6 SPEAKER) |
3 | ||
| 86128-17190 |
MCV10,SXV10..JPP..(LE,SE,XLE) W(AM/FM MPX CST *AF CD 6 SPEAKER) |
3 | ||
| 86128-17190 |
MCV10,SXV10..JPP..(LE,SE,XLE) |
1 | ||
| 86120F - KNOB, RADIO RECEIVER SUB VOLUME | ||||
| 86128-17190 |
VCV10..JPP..(LE,XLE);MCV10,SXV10..JPP..(LE,SE,XLE) W(AM/FM MPX CST *AF CD 6 SPEAKER) |
3 | ||
| 86128-17190 |
MCV10,SXV10..JPP..(LE,SE,XLE) W(AM/FM MPX CST *AF CD 6 SPEAKER) |
3 | ||
| 86128-17190 |
MCV10,SXV10..JPP..(LE,SE,XLE) |
1 | ||
| 86120F - KNOB, RADIO RECEIVER SUB VOLUME | ||||
| 86128-17190 |
VCV10..JPP..(LE,XLE);MCV10,SXV10..JPP..(LE,SE,XLE) W(AM/FM MPX CST *AF CD 6 SPEAKER) |
3 | ||
| 86128-17190 |
MCV10,SXV10..JPP..(LE,SE,XLE) W(AM/FM MPX CST *AF CD 6 SPEAKER) |
3 | ||
| 86128-17190 |
MCV10,SXV10..JPP..(LE,SE,XLE) |
1 | ||
| 86120F - KNOB, RADIO RECEIVER SUB VOLUME | ||||
| 86128-17190 |
VCV10..JPP..(LE,XLE);MCV10,SXV10..JPP..(LE,SE,XLE) W(AM/FM MPX CST *AF CD 6 SPEAKER) |
3 | ||
| 86128-17190 |
MCV10,SXV10..JPP..(LE,SE,XLE) W(AM/FM MPX CST *AF CD 6 SPEAKER) |
3 | ||
| 86128-17190 |
MCV10,SXV10..JPP..(LE,SE,XLE) |
1 | ||
| 86120F - KNOB, RADIO RECEIVER SUB VOLUME | ||||
| 86128-17190 |
VCV10..JPP..(LE,XLE);MCV10,SXV10..JPP..(LE,SE,XLE) W(AM/FM MPX CST *AF CD 6 SPEAKER) |
3 | ||
| 86128-17190 |
MCV10,SXV10..JPP..(LE,SE,XLE) W(AM/FM MPX CST *AF CD 6 SPEAKER) |
3 | ||
| 86128-17190 |
MCV10,SXV10..JPP..(LE,SE,XLE) |
1 | ||
| 86120F - KNOB, RADIO RECEIVER SUB VOLUME | ||||
| 86128-17190 |
VCV10..JPP..(LE,XLE);MCV10,SXV10..JPP..(LE,SE,XLE) W(AM/FM MPX CST *AF CD 6 SPEAKER) |
3 | ||
| 86128-17190 |
MCV10,SXV10..JPP..(LE,SE,XLE) W(AM/FM MPX CST *AF CD 6 SPEAKER) |
3 | ||
| 86128-17190 |
MCV10,SXV10..JPP..(LE,SE,XLE) |
1 | ||
| 86120F - KNOB, RADIO RECEIVER SUB VOLUME | ||||
| 86128-17190 |
VCV10..JPP..(LE,XLE);MCV10,SXV10..JPP..(LE,SE,XLE) W(AM/FM MPX CST *AF CD 6 SPEAKER) |
3 | ||
| 86128-17190 |
MCV10,SXV10..JPP..(LE,SE,XLE) W(AM/FM MPX CST *AF CD 6 SPEAKER) |
3 | ||
| 86128-17190 |
MCV10,SXV10..JPP..(LE,SE,XLE) |
1 | ||
| Common parts | ||||
| 86120-06010 | ||||
| 86120-06020 | ||||
| 86120-06030 | ||||
| 86120-06050 | ||||
| 86120-06060 | ||||
| 86120-06070 | ||||
| 86120-12840 | ||||
| 86120-12850 | ||||
| 86120-2B400 | ||||
| 86120-33030 | ||||
| 86120-33040 | ||||
| 86120-33050 | ||||
| 86120-33070 | ||||
| 86120-33080 | ||||
| 86120-33090 | ||||
| 86120-33100 | ||||
| 86120-33110 | ||||

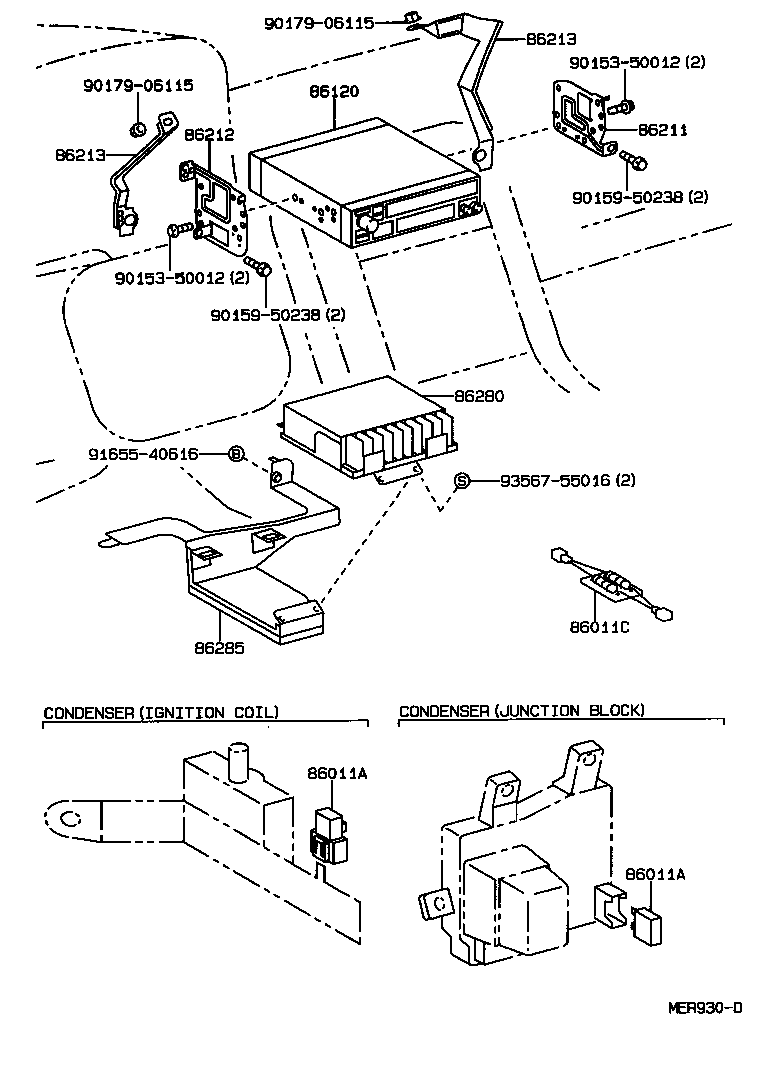

ILLUST NO. 1 OF 2(9106-9608)JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04083 |
MCV10,SXV10,VCV10..JPP IGNITER |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04083 |
MCV10,SXV10,VCV10..JPP IGNITER |
1 | ||
| 86011C - FILTER, NOISE | ||||
| 90980-05190 |
MCV10,SXV10..JPP |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-33100 |
VCV10..JPP..(LE,XLE);MCV10,SXV10..JPP..(LE,SE,XLE) PANASONIC,AM/FM MPX ETR CST *AF CD 2DIN |
1 | ||
| 86120-33090 |
VCV10..JPP..(LE,XLE);MCV10,SXV10..JPP..(LE,SE,XLE) PANASONIC,AM/FM MPX ETR CST *AF 1DIN |
1 | ||
| 86120-2B400 |
MCV10,SXV10,VCV10..JPP..USA FUJITSU TEN,AM/FM MPX ETR CST 1DIN,GENERAL |
1 | ||
| 86120-06060 |
MCV10,SXV10..JPP..(LE,SE,XLE) FUJITSU,ID=A16406 |
1 | ||
| 86120-33030 |
MCV10,SXV10..JPP..(LE,SE,XLE) MATSUSHITA,ID=51706,AM/FM MPX ETR CST *AF 1DIN |
1 | ||
| 86120-33040 |
MCV10,SXV10..JPP..(LE,SE,XLE) MATSUSHITA,ID=56807,W(2 SPEAKER) |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-33010 |
MCV10,SXV10,VCV10..JPP |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-33010 |
MCV10,SXV10,VCV10..JPP |
1 | ||
| 86213 - BRACKET, RADIO, NO.3 | ||||
| 86213-33021 |
MCV10,SXV10..JPP LH |
1 | ||
| 86213-33010 |
MCV10,SXV10,VCV10..JPP RH |
1 | ||
| 86213 - BRACKET, RADIO, NO.3 | ||||
| 86213-33021 |
MCV10,SXV10..JPP LH |
1 | ||
| 86213-33010 |
MCV10,SXV10,VCV10..JPP RH |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-33010 |
VCV10..JPP..(LE,XLE);MCV10,SXV10..JPP..(LE,SE,XLE) |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-33011 |
MCV10,SXV10..JPP..(LE,SE,XLE) |
1 | ||
| Common parts | ||||
| 90153-50012 | ||||
| 90159-50238 | ||||
| 90179-06115 | ||||
| 91655-40616 | ||||
| 93567-55016 | ||||
