MCV10L-AEPSKA (1993)
Toyota Camry (Jpp)
(9106- )JPP

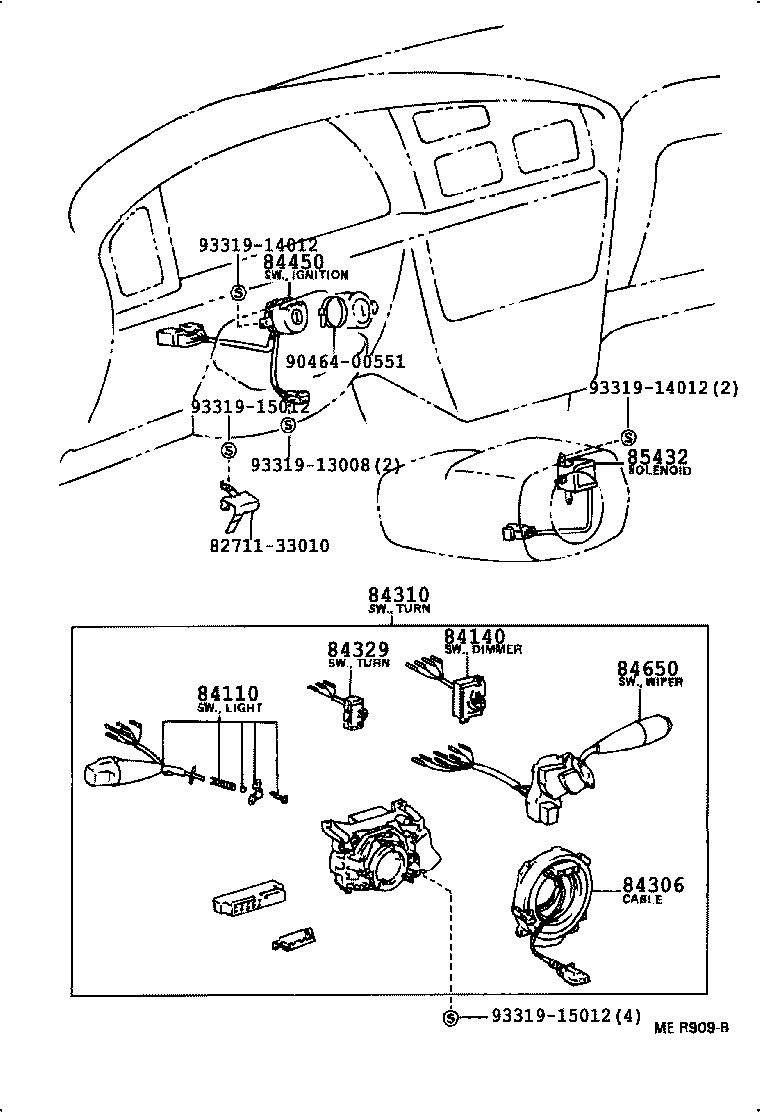

COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80072 |
VCV10..JPP..DX..CND;MCV10,SXV10..JPP..DX;VCV10..JPP..(DX,LE,SE)..USA;MCV10,SXV10..JPP..(LE,SE)..USA |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-32140 |
VCV10..JPP..DX..CND;MCV10,SXV10..JPP..DX;VCV10..JPP..(DX,LE,SE)..USA;MCV10,SXV10..JPP..(LE,SE)..USA |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-33020 |
VCV10..JPP..DX..CND;MCV10,SXV10..JPP..DX;VCV10..JPP..(DX,LE,SE)..USA;MCV10,SXV10..JPP..(LE,SE)..USA |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-33010 |
VCV10..JPP..DX..CND;MCV10,SXV10..JPP..DX;VCV10..JPP..(DX,LE,SE)..USA;MCV10,SXV10..JPP..(LE,SE)..USA |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-33020 |
MCV10,SXV10,VCV10..JPP |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-33060 |
VCV10..JPP..DX..CND;MCV10,SXV10..JPP..DX;VCV10..JPP..(DX,LE,SE)..USA;MCV10,SXV10..JPP..(LE,SE)..USA |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-32030 |
MCV10,SXV10,VCV10..JPP..ATM |
1 | ||
| Common parts | ||||
| 82711-33010 | ||||
| 90464-00551 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
(9106- )JPP
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-04002 |
1MZFE,5SFE..MCV10,SXV10..JPP |
1 | ||
| 85925-17010 |
1MZFE,5SFE..MCV10,SXV10..JPP |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09013 |
MCV10,SXV10..JPP 30A,MINI FUSE,GRN,NO.2 RELAY BLOCK |
2 | ||
| 90982-09009 |
MCV10,SXV10..JPP 10A,MINI FUSE,RED,NO.2 RELAY BLOCK |
2 | ||
| 90982-09002 |
MCV10,SXV10..JPP..USA 10A,NO.4 RELAY BLOCK |
1 | ||
| 90982-09011 |
MCV10,SXV10..JPP 20A,MINI FUSE,YELLOW,NO.2 RELAY BLOCK |
1 | ||
| 90080-82015 |
MCV10,SXV10..JPP 7.5A,BROWN |
3 | ||
| 90982-09003 |
MCV10,SXV10..JPP 15A,NO.2 RELAY BLOCK |
1 | ||
| 90982-09010 |
MCV10,SXV10..JPP 15A,MINI FUSE,BLUE |
6 | ||
| 90982-09013 |
MCV10,SXV10..JPP 30A,MINI FUSE,GRN |
2 | ||
| 90982-09003 |
MCV10,SXV10..JPP 15A |
1 | ||
| 90982-09004 |
MCV10,SXV10..JPP 20A,YELLOW |
1 | ||
| 90982-09009 |
MCV10,SXV10..JPP 10A,MINI FUSE,RED |
2 | ||
| 90982-09002 |
MCV10,SXV10..JPP 10A |
1 | ||
| 90982-09005 |
MCV10,SXV10..JPP 7.5A,NO.1 JUNCTION BLOCK |
3 | ||
| 90982-09008 |
MCV10,SXV10..JPP 7.5A,MINI FUSE,BRN |
3 | ||
| 90982-09010 |
MCV10..JPP 15A,MINI FUSE,BLUE,NO.2 RELAY BLOCK |
6 | ||
| 90982-09008 |
MCV10,SXV10..JPP 7.5A,MINI FUSE,BRN,NO.2 RELAY BLOCK |
3 | ||
| 90982-09011 |
MCV10,SXV10..JPP 20A,MINI FUSE,YELLOW |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09013 |
MCV10,SXV10..JPP 30A,MINI FUSE,GRN,NO.2 RELAY BLOCK |
2 | ||
| 90982-09009 |
MCV10,SXV10..JPP 10A,MINI FUSE,RED,NO.2 RELAY BLOCK |
2 | ||
| 90982-09002 |
MCV10,SXV10..JPP..USA 10A,NO.4 RELAY BLOCK |
1 | ||
| 90982-09011 |
MCV10,SXV10..JPP 20A,MINI FUSE,YELLOW,NO.2 RELAY BLOCK |
1 | ||
| 90080-82015 |
MCV10,SXV10..JPP 7.5A,BROWN |
3 | ||
| 90982-09003 |
MCV10,SXV10..JPP 15A,NO.2 RELAY BLOCK |
1 | ||
| 90982-09010 |
MCV10,SXV10..JPP 15A,MINI FUSE,BLUE |
6 | ||
| 90982-09013 |
MCV10,SXV10..JPP 30A,MINI FUSE,GRN |
2 | ||
| 90982-09003 |
MCV10,SXV10..JPP 15A |
1 | ||
| 90982-09004 |
MCV10,SXV10..JPP 20A,YELLOW |
1 | ||
| 90982-09009 |
MCV10,SXV10..JPP 10A,MINI FUSE,RED |
2 | ||
| 90982-09002 |
MCV10,SXV10..JPP 10A |
1 | ||
| 90982-09005 |
MCV10,SXV10..JPP 7.5A,NO.1 JUNCTION BLOCK |
3 | ||
| 90982-09008 |
MCV10,SXV10..JPP 7.5A,MINI FUSE,BRN |
3 | ||
| 90982-09010 |
MCV10..JPP 15A,MINI FUSE,BLUE,NO.2 RELAY BLOCK |
6 | ||
| 90982-09008 |
MCV10,SXV10..JPP 7.5A,MINI FUSE,BRN,NO.2 RELAY BLOCK |
3 | ||
| 90982-09011 |
MCV10,SXV10..JPP 20A,MINI FUSE,YELLOW |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09013 |
MCV10,SXV10..JPP 30A,MINI FUSE,GRN,NO.2 RELAY BLOCK |
2 | ||
| 90982-09009 |
MCV10,SXV10..JPP 10A,MINI FUSE,RED,NO.2 RELAY BLOCK |
2 | ||
| 90982-09002 |
MCV10,SXV10..JPP..USA 10A,NO.4 RELAY BLOCK |
1 | ||
| 90982-09011 |
MCV10,SXV10..JPP 20A,MINI FUSE,YELLOW,NO.2 RELAY BLOCK |
1 | ||
| 90080-82015 |
MCV10,SXV10..JPP 7.5A,BROWN |
3 | ||
| 90982-09003 |
MCV10,SXV10..JPP 15A,NO.2 RELAY BLOCK |
1 | ||
| 90982-09010 |
MCV10,SXV10..JPP 15A,MINI FUSE,BLUE |
6 | ||
| 90982-09013 |
MCV10,SXV10..JPP 30A,MINI FUSE,GRN |
2 | ||
| 90982-09003 |
MCV10,SXV10..JPP 15A |
1 | ||
| 90982-09004 |
MCV10,SXV10..JPP 20A,YELLOW |
1 | ||
| 90982-09009 |
MCV10,SXV10..JPP 10A,MINI FUSE,RED |
2 | ||
| 90982-09002 |
MCV10,SXV10..JPP 10A |
1 | ||
| 90982-09005 |
MCV10,SXV10..JPP 7.5A,NO.1 JUNCTION BLOCK |
3 | ||
| 90982-09008 |
MCV10,SXV10..JPP 7.5A,MINI FUSE,BRN |
3 | ||
| 90982-09010 |
MCV10..JPP 15A,MINI FUSE,BLUE,NO.2 RELAY BLOCK |
6 | ||
| 90982-09008 |
MCV10,SXV10..JPP 7.5A,MINI FUSE,BRN,NO.2 RELAY BLOCK |
3 | ||
| 90982-09011 |
MCV10,SXV10..JPP 20A,MINI FUSE,YELLOW |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09013 |
MCV10,SXV10..JPP 30A,MINI FUSE,GRN,NO.2 RELAY BLOCK |
2 | ||
| 90982-09009 |
MCV10,SXV10..JPP 10A,MINI FUSE,RED,NO.2 RELAY BLOCK |
2 | ||
| 90982-09002 |
MCV10,SXV10..JPP..USA 10A,NO.4 RELAY BLOCK |
1 | ||
| 90982-09011 |
MCV10,SXV10..JPP 20A,MINI FUSE,YELLOW,NO.2 RELAY BLOCK |
1 | ||
| 90080-82015 |
MCV10,SXV10..JPP 7.5A,BROWN |
3 | ||
| 90982-09003 |
MCV10,SXV10..JPP 15A,NO.2 RELAY BLOCK |
1 | ||
| 90982-09010 |
MCV10,SXV10..JPP 15A,MINI FUSE,BLUE |
6 | ||
| 90982-09013 |
MCV10,SXV10..JPP 30A,MINI FUSE,GRN |
2 | ||
| 90982-09003 |
MCV10,SXV10..JPP 15A |
1 | ||
| 90982-09004 |
MCV10,SXV10..JPP 20A,YELLOW |
1 | ||
| 90982-09009 |
MCV10,SXV10..JPP 10A,MINI FUSE,RED |
2 | ||
| 90982-09002 |
MCV10,SXV10..JPP 10A |
1 | ||
| 90982-09005 |
MCV10,SXV10..JPP 7.5A,NO.1 JUNCTION BLOCK |
3 | ||
| 90982-09008 |
MCV10,SXV10..JPP 7.5A,MINI FUSE,BRN |
3 | ||
| 90982-09010 |
MCV10..JPP 15A,MINI FUSE,BLUE,NO.2 RELAY BLOCK |
6 | ||
| 90982-09008 |
MCV10,SXV10..JPP 7.5A,MINI FUSE,BRN,NO.2 RELAY BLOCK |
3 | ||
| 90982-09011 |
MCV10,SXV10..JPP 20A,MINI FUSE,YELLOW |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
MCV10,SXV10..JPP 30A,PINK |
1 | ||
| 90982-10002 |
MCV10,SXV10..JPP 40A,GREEN |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
MCV10,SXV10..JPP 30A,PINK |
1 | ||
| 90982-10002 |
MCV10,SXV10..JPP 40A,GREEN |
1 | ||
| 82616A - PULLER, FUSE, NO.2 | ||||
| 82616-20010 |
MCV10,SXV10..JPP |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82663-33010 |
MCV10,SXV10..JPP..USA NO.5,LOWER |
1 | ||
| 82662-33080 |
MCV10,SXV10..JPP NO.5 UPPER |
1 | ||
| 82663-33010 |
MCV10,SXV10..JPP NO.5 LOWER |
1 | ||
| 82662-33090 |
MCV10..JPP..USA NO.5,UPPER |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82663-33010 |
MCV10,SXV10..JPP..USA NO.5,LOWER |
1 | ||
| 82662-33080 |
MCV10,SXV10..JPP NO.5 UPPER |
1 | ||
| 82663-33010 |
MCV10,SXV10..JPP NO.5 LOWER |
1 | ||
| 82662-33090 |
MCV10..JPP..USA NO.5,UPPER |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82663-33010 |
MCV10,SXV10..JPP..USA NO.5,LOWER |
1 | ||
| 82662-33080 |
MCV10,SXV10..JPP NO.5 UPPER |
1 | ||
| 82663-33010 |
MCV10,SXV10..JPP NO.5 LOWER |
1 | ||
| 82662-33090 |
MCV10..JPP..USA NO.5,UPPER |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82663-33010 |
MCV10,SXV10..JPP..USA NO.5,LOWER |
1 | ||
| 82662-33080 |
MCV10,SXV10..JPP NO.5 UPPER |
1 | ||
| 82663-33010 |
MCV10,SXV10..JPP NO.5 LOWER |
1 | ||
| 82662-33090 |
MCV10..JPP..USA NO.5,UPPER |
1 | ||
| 82670A - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82720-33010 |
MCV10,SXV10..JPP NO.2 |
1 | ||
| 82720-33020 |
MCV10..JPP NO.2 |
1 | ||
| 82670-33081 |
MCV10,SXV10..JPP..USA NO.1 |
1 | ||
| 82670-33091 |
MCV10,SXV10..JPP CALIFORNIA SPEC,NO.1 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82674-33020 |
MCV10,SXV10..JPP NO.2 LOWER |
1 | ||
| 82672-33080 |
MCV10,SXV10..JPP..USA NO.2 UPPER |
1 | ||
| 82672-33120 |
MCV10..JPP NO.2 UPPER |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82674-33020 |
MCV10,SXV10..JPP NO.2 LOWER |
1 | ||
| 82672-33080 |
MCV10,SXV10..JPP..USA NO.2 UPPER |
1 | ||
| 82672-33120 |
MCV10..JPP NO.2 UPPER |
1 | ||
| 82685A - PLATE, CAUTION | ||||
| 82685-33030 |
MCV10,SXV10..JPP |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-20140 |
MCV10,SXV10..JPP |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03003 |
MCV10,SXV10..JPP |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-02009 |
MCV10..JPP |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-04003 |
MCV10..JPP |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
MCV10,SXV10,VCV10..JPP |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02009 |
MCV10,SXV10..JPP |
1 | ||
| 90987-02009 |
MCV10,SXV10,VCV10..JPP |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89621-33020 |
MCV10..JPP |
1 | ||
| 89621-35011 |
MCV10..JPP |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89621-33020 |
MCV10..JPP |
1 | ||
| 89621-35011 |
MCV10..JPP |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-33050 |
MCV10..JPP |
1 | ||
| 89629-33070 |
MCV10..JPP |
1 | ||
| 89629-33060 |
MCV10..JPP |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-33050 |
MCV10..JPP |
1 | ||
| 89629-33070 |
MCV10..JPP |
1 | ||
| 89629-33060 |
MCV10..JPP |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06508 | ||||
| 90119-06531 | ||||
| 90119-06538 | ||||
| 90119-06674 | ||||
| 90119-06771 | ||||
| Linked diagrams | ||||
| 8401 | ||||

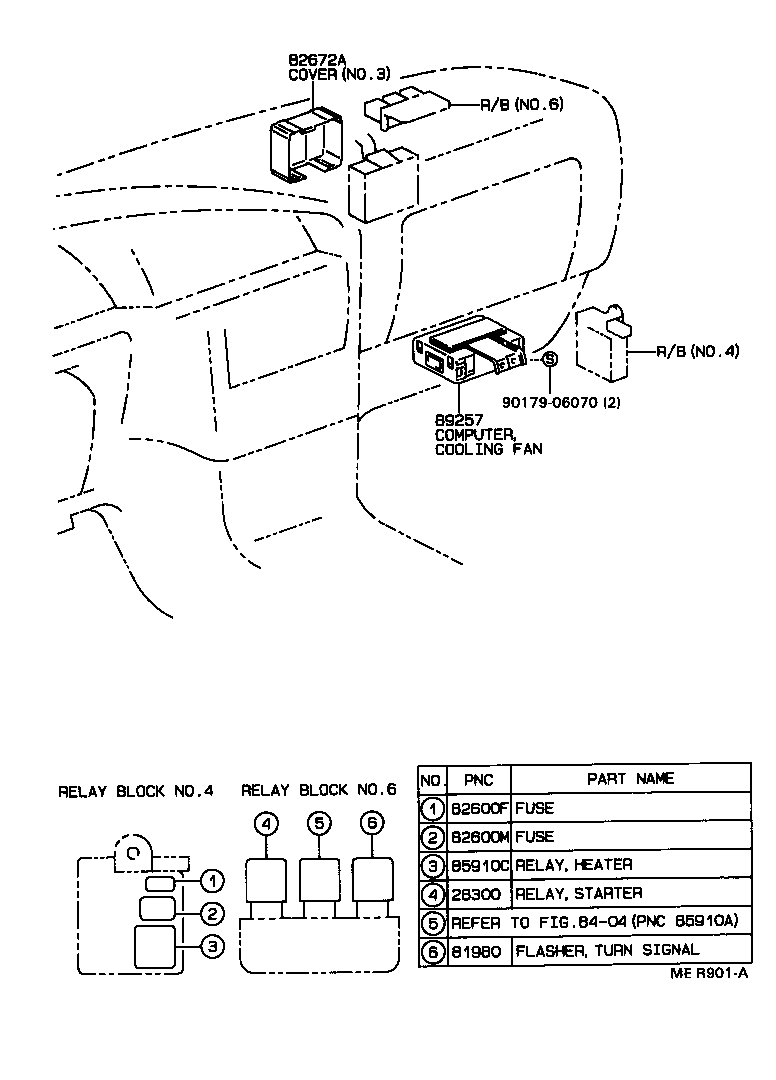

(9106- )JPP
COWL RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
1MZFE,5SFE..MCV10,SXV10..JPP |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
MCV10,SXV10..JPP |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09013 |
MCV10,SXV10..JPP 30A,MINI FUSE,GRN,NO.2 RELAY BLOCK |
2 | ||
| 90982-09009 |
MCV10,SXV10..JPP 10A,MINI FUSE,RED,NO.2 RELAY BLOCK |
2 | ||
| 90982-09002 |
MCV10,SXV10..JPP..USA 10A,NO.4 RELAY BLOCK |
1 | ||
| 90982-09011 |
MCV10,SXV10..JPP 20A,MINI FUSE,YELLOW,NO.2 RELAY BLOCK |
1 | ||
| 90080-82015 |
MCV10,SXV10..JPP 7.5A,BROWN |
3 | ||
| 90982-09003 |
MCV10,SXV10..JPP 15A,NO.2 RELAY BLOCK |
1 | ||
| 90982-09010 |
MCV10,SXV10..JPP 15A,MINI FUSE,BLUE |
6 | ||
| 90982-09013 |
MCV10,SXV10..JPP 30A,MINI FUSE,GRN |
2 | ||
| 90982-09003 |
MCV10,SXV10..JPP 15A |
1 | ||
| 90982-09004 |
MCV10,SXV10..JPP 20A,YELLOW |
1 | ||
| 90982-09009 |
MCV10,SXV10..JPP 10A,MINI FUSE,RED |
2 | ||
| 90982-09002 |
MCV10,SXV10..JPP 10A |
1 | ||
| 90982-09005 |
MCV10,SXV10..JPP 7.5A,NO.1 JUNCTION BLOCK |
3 | ||
| 90982-09008 |
MCV10,SXV10..JPP 7.5A,MINI FUSE,BRN |
3 | ||
| 90982-09010 |
MCV10..JPP 15A,MINI FUSE,BLUE,NO.2 RELAY BLOCK |
6 | ||
| 90982-09008 |
MCV10,SXV10..JPP 7.5A,MINI FUSE,BRN,NO.2 RELAY BLOCK |
3 | ||
| 90982-09011 |
MCV10,SXV10..JPP 20A,MINI FUSE,YELLOW |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
MCV10,SXV10..JPP 30A,PINK |
1 | ||
| 90982-10002 |
MCV10,SXV10..JPP 40A,GREEN |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82674-33020 |
MCV10,SXV10..JPP NO.2 LOWER |
1 | ||
| 82672-33080 |
MCV10,SXV10..JPP..USA NO.2 UPPER |
1 | ||
| 82672-33120 |
MCV10..JPP NO.2 UPPER |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-33030 |
MCV10..JPP |
1 | ||
| Common parts | ||||
| 90179-06070 | ||||
| Linked diagrams | ||||
| 8404 | ||||
(9106- )JPP
COWL LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09013 |
MCV10,SXV10..JPP 30A,MINI FUSE,GRN,NO.2 RELAY BLOCK |
2 | ||
| 90982-09009 |
MCV10,SXV10..JPP 10A,MINI FUSE,RED,NO.2 RELAY BLOCK |
2 | ||
| 90982-09002 |
MCV10,SXV10..JPP..USA 10A,NO.4 RELAY BLOCK |
1 | ||
| 90982-09011 |
MCV10,SXV10..JPP 20A,MINI FUSE,YELLOW,NO.2 RELAY BLOCK |
1 | ||
| 90080-82015 |
MCV10,SXV10..JPP 7.5A,BROWN |
3 | ||
| 90982-09003 |
MCV10,SXV10..JPP 15A,NO.2 RELAY BLOCK |
1 | ||
| 90982-09010 |
MCV10,SXV10..JPP 15A,MINI FUSE,BLUE |
6 | ||
| 90982-09013 |
MCV10,SXV10..JPP 30A,MINI FUSE,GRN |
2 | ||
| 90982-09003 |
MCV10,SXV10..JPP 15A |
1 | ||
| 90982-09004 |
MCV10,SXV10..JPP 20A,YELLOW |
1 | ||
| 90982-09009 |
MCV10,SXV10..JPP 10A,MINI FUSE,RED |
2 | ||
| 90982-09002 |
MCV10,SXV10..JPP 10A |
1 | ||
| 90982-09005 |
MCV10,SXV10..JPP 7.5A,NO.1 JUNCTION BLOCK |
3 | ||
| 90982-09008 |
MCV10,SXV10..JPP 7.5A,MINI FUSE,BRN |
3 | ||
| 90982-09010 |
MCV10..JPP 15A,MINI FUSE,BLUE,NO.2 RELAY BLOCK |
6 | ||
| 90982-09008 |
MCV10,SXV10..JPP 7.5A,MINI FUSE,BRN,NO.2 RELAY BLOCK |
3 | ||
| 90982-09011 |
MCV10,SXV10..JPP 20A,MINI FUSE,YELLOW |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09013 |
MCV10,SXV10..JPP 30A,MINI FUSE,GRN,NO.2 RELAY BLOCK |
2 | ||
| 90982-09009 |
MCV10,SXV10..JPP 10A,MINI FUSE,RED,NO.2 RELAY BLOCK |
2 | ||
| 90982-09002 |
MCV10,SXV10..JPP..USA 10A,NO.4 RELAY BLOCK |
1 | ||
| 90982-09011 |
MCV10,SXV10..JPP 20A,MINI FUSE,YELLOW,NO.2 RELAY BLOCK |
1 | ||
| 90080-82015 |
MCV10,SXV10..JPP 7.5A,BROWN |
3 | ||
| 90982-09003 |
MCV10,SXV10..JPP 15A,NO.2 RELAY BLOCK |
1 | ||
| 90982-09010 |
MCV10,SXV10..JPP 15A,MINI FUSE,BLUE |
6 | ||
| 90982-09013 |
MCV10,SXV10..JPP 30A,MINI FUSE,GRN |
2 | ||
| 90982-09003 |
MCV10,SXV10..JPP 15A |
1 | ||
| 90982-09004 |
MCV10,SXV10..JPP 20A,YELLOW |
1 | ||
| 90982-09009 |
MCV10,SXV10..JPP 10A,MINI FUSE,RED |
2 | ||
| 90982-09002 |
MCV10,SXV10..JPP 10A |
1 | ||
| 90982-09005 |
MCV10,SXV10..JPP 7.5A,NO.1 JUNCTION BLOCK |
3 | ||
| 90982-09008 |
MCV10,SXV10..JPP 7.5A,MINI FUSE,BRN |
3 | ||
| 90982-09010 |
MCV10..JPP 15A,MINI FUSE,BLUE,NO.2 RELAY BLOCK |
6 | ||
| 90982-09008 |
MCV10,SXV10..JPP 7.5A,MINI FUSE,BRN,NO.2 RELAY BLOCK |
3 | ||
| 90982-09011 |
MCV10,SXV10..JPP 20A,MINI FUSE,YELLOW |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-33050 |
MCV10,SXV10..JPP |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
MCV10,SXV10..JPP 30A,PINK |
1 | ||
| 90982-10002 |
MCV10,SXV10..JPP 40A,GREEN |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
MCV10,SXV10..JPP 30A,PINK |
1 | ||
| 90982-10002 |
MCV10,SXV10..JPP 40A,GREEN |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-33041 |
MCV10,SXV10..JPP..DX;MCV10,SXV10..JPP..(LE,SE)..USA |
1 | ||
| 82670A - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82720-33010 |
MCV10,SXV10..JPP NO.2 |
1 | ||
| 82720-33020 |
MCV10..JPP NO.2 |
1 | ||
| 82670-33081 |
MCV10,SXV10..JPP..USA NO.1 |
1 | ||
| 82670-33091 |
MCV10,SXV10..JPP CALIFORNIA SPEC,NO.1 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82674-33020 |
MCV10,SXV10..JPP NO.2 LOWER |
1 | ||
| 82672-33080 |
MCV10,SXV10..JPP..USA NO.2 UPPER |
1 | ||
| 82672-33120 |
MCV10..JPP NO.2 UPPER |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32090 |
MCV10,SXV10,VCV10..JPP..(DX,SE) |
1 | ||
| 84340-32110 |
MCV10,SXV10,VCV10..JPP..(DX,SE) W(CRUISE CONTROL) |
1 | ||
| 84340-32110 |
MCV10,SXV10..JPP..(LE,SE,XLE) |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
SXV10..JPP;MCV10,VCV10..JPP..SE;VCV10..JPP..MTM..CND |
1 | ||
| 84727 - SWITCH, SHIFT LOCK CONTROL | ||||
| 84727-33010 |
MCV10,SXV10,VCV10..JPP..ATM |
1 | ||
| 85431 - SOLENOID, SHIFT LOCK | ||||
| 85431-33010 |
MCV10,SXV10,VCV10..JPP..ATM |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02009 |
MCV10..JPP..SE |
1 | ||
| 90987-02009 |
MCV10,SXV10..JPP |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-33080 |
MCV10,SXV10..JPP |
1 | ||
| 85999H - BRACKET, RELAY | ||||
| 85999-33130 |
MCV10,SXV10..JPP |
1 | ||
| Common parts | ||||
| 82711-14080 | ||||
| 90167-50002 | ||||
| 90179-06032 | ||||
| 91651-40612 | ||||
| 91651-40620 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 8601 | ||||
(9106- )JPP
ROOF,FRONT DOOR & SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
SXV10..JPP;MCV10,VCV10..JPP..SE;VCV10..JPP..MTM..CND |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-32070 |
MCV10,SXV10..JPP RH |
1 | ||
| 84931-33010 |
MCV10,SXV10..JPP LH |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-32070 |
MCV10,SXV10..JPP RH |
1 | ||
| 84931-33010 |
MCV10,SXV10..JPP LH |
1 | ||
| 85921 - RELAY, SLIDING ROOF CONTROL | ||||
| 85921-33010 |
MCV10,SXV10..JPP..(LE,SE,XLE) |
1 | ||
| 85921-32040 |
MCV10,SXV10,VCV10..JPP..(LE,SE,XLE) |
1 | ||
| Common parts | ||||
| 90119-06563 | ||||
| 90119-06601 | ||||
| 93315-14012 | ||||
| 93385-16018 | ||||
| 93567-55014 | ||||
(9106- )JPP

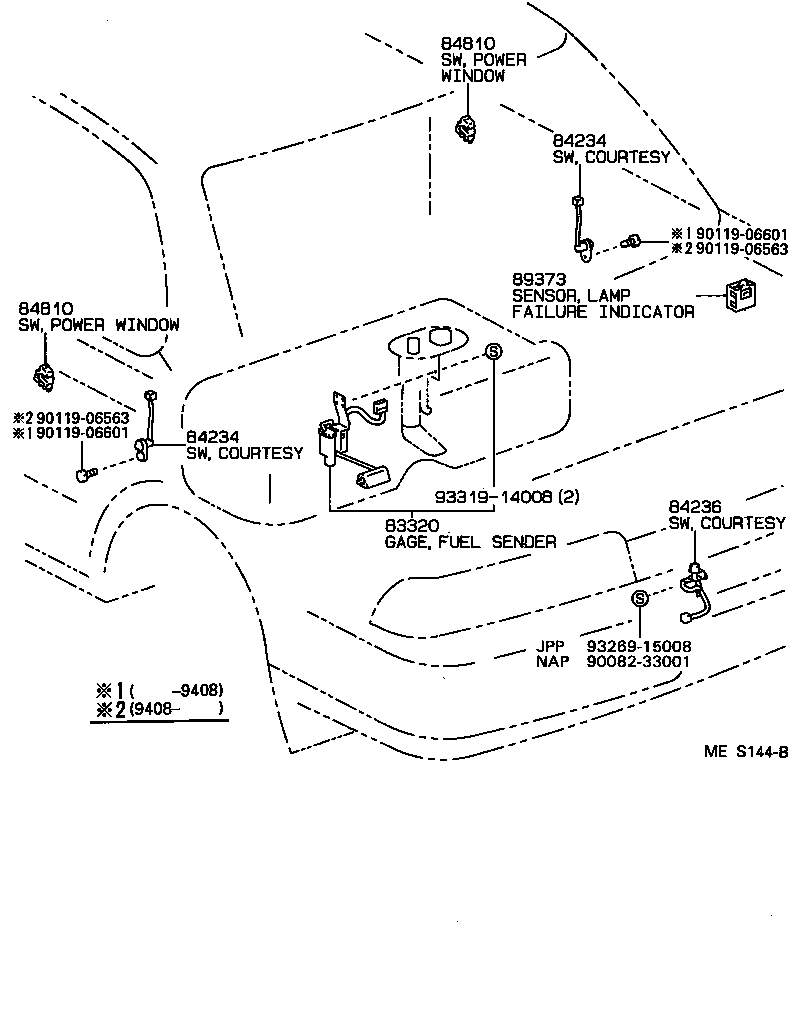

FLOOR,REAR DOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80204 |
MCV10,SXV10,VCV10..JPP |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32070 |
MCV10..JPP;SXV10,VCV10..JPP..DX..CND;SXV10,VCV10..JPP..(LE,SE,XLE) |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32070 |
MCV10..JPP;SXV10,VCV10..JPP..DX..CND;SXV10,VCV10..JPP..(LE,SE,XLE) |
3 | ||
| Common parts | ||||
| 90082-33001 | ||||
| 90119-06563 | ||||
| 90119-06601 | ||||
| 93269-15008 | ||||
| 93319-14008 | ||||
(9106- )JPP

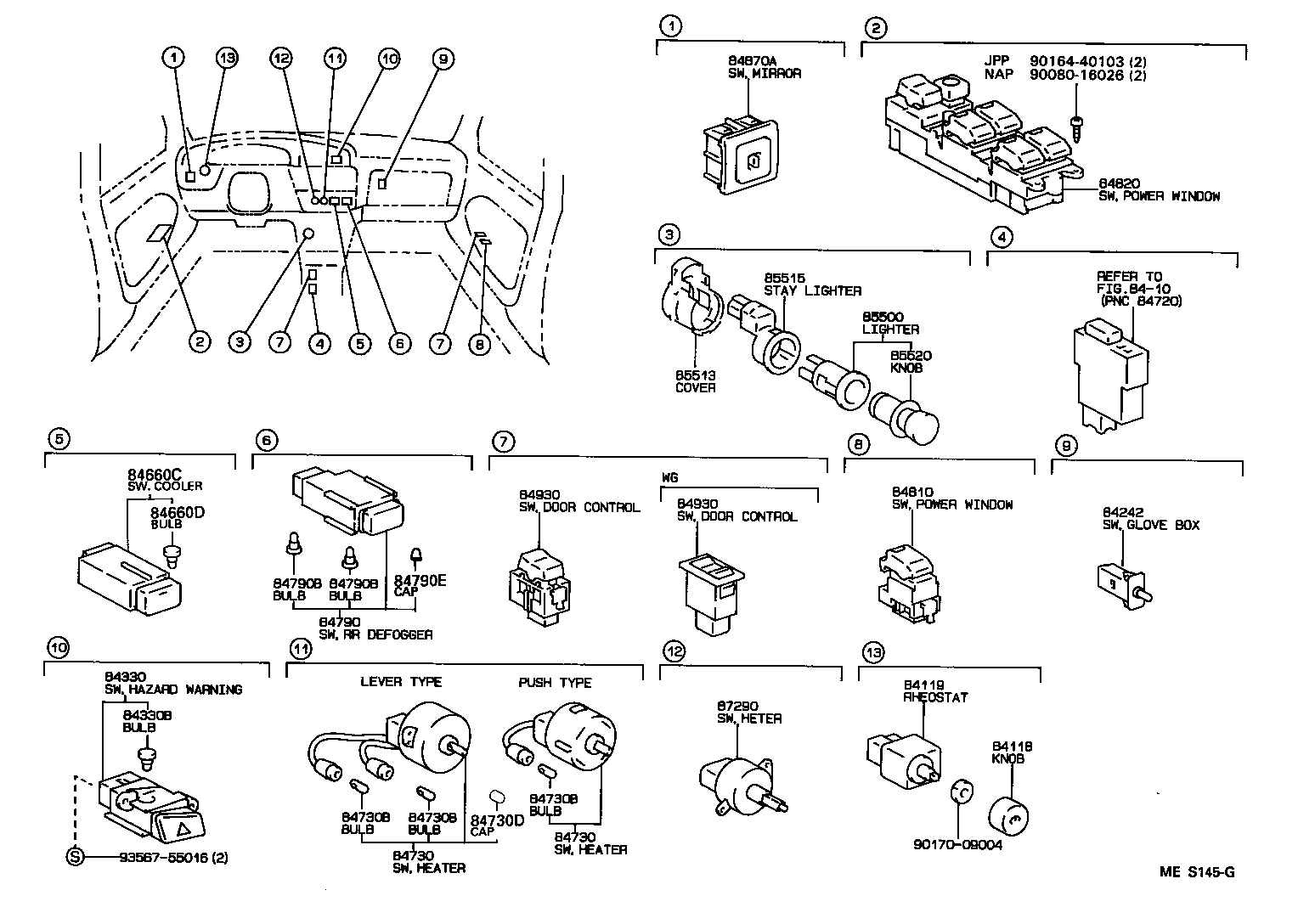

INSTRUMENT PANEL SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-20030 |
MCV10,SXV10,VCV10..JPP |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-33050 |
MCV10,SXV10,VCV10..JPP |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-33030 |
MCV10,SXV10,VCV10..JPP |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10320 |
MCV10,SXV10,VCV10..JPP 14V 0.84W |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-33010 |
VCV10..JPP..DX..CND;MCV10,SXV10..JPP..DX;VCV10..JPP..(DX,LE,SE)..USA;MCV10,SXV10..JPP..(LE,SE)..USA |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-33010 |
VCV10..JPP..DX..CND;MCV10,SXV10..JPP..DX;VCV10..JPP..(DX,LE,SE)..USA;MCV10,SXV10..JPP..(LE,SE)..USA 14V 0.84W |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-06010 |
MCV10,SXV10..JPP..(DX,LE,SE) LCI |
1 | ||
| 84732-33040 |
VCV10..JPP..DX..CND;MCV10,SXV10..JPP..DX;VCV10..JPP..(DX,LE,SE)..USA;MCV10,SXV10..JPP..(LE,SE)..USA |
1 | ||
| 84732-33040 |
MCV10,SXV10..JPP..(DX,LE,SE) TOKAIRIKA |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-06010 |
MCV10,SXV10..JPP..(DX,LE,SE) LCI |
1 | ||
| 84732-33040 |
VCV10..JPP..DX..CND;MCV10,SXV10..JPP..DX;VCV10..JPP..(DX,LE,SE)..USA;MCV10,SXV10..JPP..(LE,SE)..USA |
1 | ||
| 84732-33040 |
MCV10,SXV10..JPP..(DX,LE,SE) TOKAIRIKA |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
VCV10..JPP..DX..CND;MCV10,SXV10..JPP..DX;VCV10..JPP..(DX,LE,SE)..USA;MCV10,SXV10..JPP..(LE,SE)..USA 14V 1.4W |
2 | ||
| 90069-98004 |
MCV10,SXV10..JPP..(DX,LE,SE) 14V 1.4W,LCI |
2 | ||
| 90981-11014 |
MCV10,SXV10..JPP..(DX,LE,SE) 14V 1.4W,STANLEY |
2 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
VCV10..JPP..DX..CND;MCV10,SXV10..JPP..DX;VCV10..JPP..(DX,LE,SE)..USA;MCV10,SXV10..JPP..(LE,SE)..USA 14V 1.4W |
2 | ||
| 90069-98004 |
MCV10,SXV10..JPP..(DX,LE,SE) 14V 1.4W,LCI |
2 | ||
| 90981-11014 |
MCV10,SXV10..JPP..(DX,LE,SE) 14V 1.4W,STANLEY |
2 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
VCV10..JPP..DX..CND;MCV10,SXV10..JPP..DX;VCV10..JPP..(DX,LE,SE)..USA;MCV10,SXV10..JPP..(LE,SE)..USA 14V 1.4W |
2 | ||
| 90069-98004 |
MCV10,SXV10..JPP..(DX,LE,SE) 14V 1.4W,LCI |
2 | ||
| 90981-11014 |
MCV10,SXV10..JPP..(DX,LE,SE) 14V 1.4W,STANLEY |
2 | ||
| 84730D - CAP, HEATER BLOWER SWITCH BULB | ||||
| 84998-10050 |
VCV10..JPP..DX..CND;MCV10,SXV10..JPP..DX;VCV10..JPP..(DX,LE,SE)..USA;MCV10,SXV10..JPP..(LE,SE)..USA |
2 | ||
| 84998-10050 |
MCV10,SXV10..JPP..(DX,LE,SE) STANLEY |
2 | ||
| 90069-09006 |
MCV10,SXV10..JPP..(DX,LE,SE) LCI |
2 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-33020 |
MCV10,SXV10,VCV10..JPP |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10450 |
MCV10,SXV10,VCV10..JPP 14V 1.4W,BLUE |
1 | ||
| 84999-10410 |
MCV10,SXV10,VCV10..JPP 14V 0.84W,BLACK |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10450 |
MCV10,SXV10,VCV10..JPP 14V 1.4W,BLUE |
1 | ||
| 84999-10410 |
MCV10,SXV10,VCV10..JPP 14V 0.84W,BLACK |
1 | ||
| 84790E - CAP, BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84998-10060 |
MCV10,SXV10,VCV10..JPP |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32070 |
MCV10..JPP;SXV10,VCV10..JPP..DX..CND;SXV10,VCV10..JPP..(LE,SE,XLE) |
3 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-32150 |
MCV10..JPP;SXV10,VCV10..JPP..DX..CND;SXV10,VCV10..JPP..(LE,SE,XLE) |
1 | ||
| 84820-33060 |
MCV10,SXV10..JPP..(LE,SE,XLE) |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-33050 |
MCV10,SXV10..JPP |
1 | ||
| 84870-33050 |
MCV10,SXV10..JPP..(LE,SE,XLE) |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-32040 |
MCV10..JPP;SXV10,VCV10..JPP..DX..CND;SXV10,VCV10..JPP..(LE,SE,XLE) |
1 | ||
| 84930-33050 |
MCV10,SXV10..JPP..(LE,SE,XLE) |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-32040 |
MCV10..JPP;SXV10,VCV10..JPP..DX..CND;SXV10,VCV10..JPP..(LE,SE,XLE) |
1 | ||
| 84930-33050 |
MCV10,SXV10..JPP..(LE,SE,XLE) |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-17060 |
MCV10,SXV10..JPP |
1 | ||
| 85500-17040 |
MCV10,SXV10,VCV10..JPP |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
MCV10,SXV10,VCV10..JPP |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-33010 |
MCV10,SXV10,VCV10..JPP |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-20080 |
MCV10,SXV10,VCV10..JPP |
1 | ||
| 85520-17020 |
MCV10,SXV10..JPP |
1 | ||
| 87290 - SWITCH ASSY, HEATER | ||||
| 87290-33010 |
MCV10,SXV10..JPP..(DX,LE,SE) KOJIMA |
1 | ||
| 87290-33010 |
VCV10..JPP..DX..CND;MCV10,SXV10..JPP..DX;VCV10..JPP..(DX,LE,SE)..USA;MCV10,SXV10..JPP..(LE,SE)..USA |
1 | ||
| 87290-06010 |
MCV10,SXV10..JPP..(DX,LE,SE) NIPPONDENSO USA |
1 | ||
| 87290-33010 |
MCV10,SXV10..JPP..(DX,LE,SE) NIPPONDENSO |
1 | ||
| 87290-06010 |
MCV10,SXV10..JPP..(DX,LE,SE) LCI |
1 | ||
| Common parts | ||||
| 90080-16026 | ||||
| 90164-40103 | ||||
| 90170-09004 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8410 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
