MCV10L-AEPSKA (1993)
Toyota Camry (Jpp)

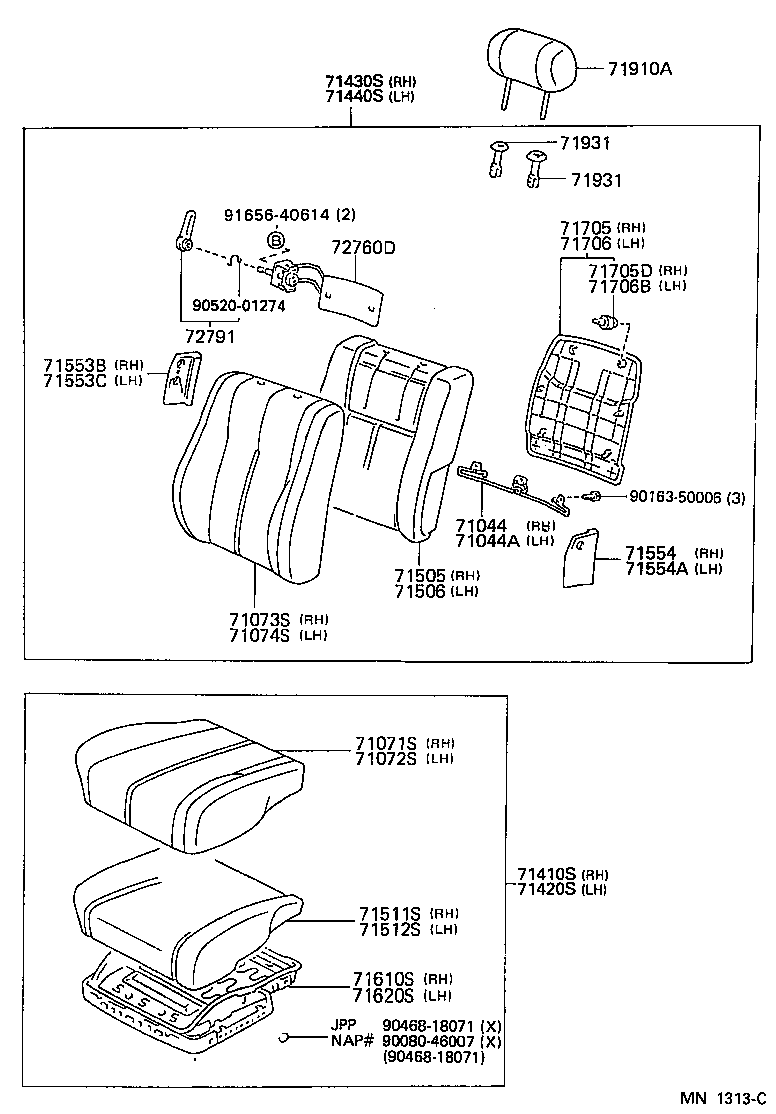

ILLUST NO. 1 OF 3(9106- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71044 - WIRE SUB-ASSY, FRONT SEAT BACK, LOWER RH | ||||
| 71044-32010 |
MCV10,SXV10,VCV10..JPP |
1 | ||
| 71044-32010 |
MCV10,SXV10..JPP..(SE,XLE) |
1 | ||
| 71044A - WIRE SUB-ASSY, FRONT SEAT BACK, LOWER LH | ||||
| 71044-32010 |
MCV10,SXV10,VCV10..JPP |
1 | ||
| 71044-32010 |
MCV10,SXV10..JPP..(SE,XLE) |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-33310B0 |
MCV10..JPP..SE W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1# |
1 | ||
| 71071-33310E0 |
MCV10..JPP..SE W(LEATHER SEAT)-*99,OAK,TRIM4# |
1 | ||
| 71071-33311B1 |
MCV10..JPP..SE W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1# |
1 | ||
| 71071-33311E1 |
MCV10..JPP..SE W(LEATHER SEAT)-*99,LIGHT OAK,TRIM4# |
1 | ||
| 71071-33311B3 |
MCV10..JPP..SE W(LEATHER SEAT),MEDIUM GRAY,TRIM1# |
1 | ||
| 71071-33151K1 |
MCV10..JPP..SE TAUPE,TRIM9# |
1 | ||
| 71071-33151B1 |
MCV10..JPP..SE MEDIUM GRAY,TRIM1# |
1 | ||
| 71071-33311E3 |
MCV10..JPP..SE W(LEATHER SEAT),LIGHT OAK,TRIM4# |
1 | ||
| 71071-33360E1 |
MCV10..JPP..SE MEDIUM OAK,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-33340E0 |
MCV10..JPP..SE W(LEATHER SEAT)-*99,OAK,TRIM4# |
1 | ||
| 71072-33340B0 |
MCV10..JPP..SE W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1# |
1 | ||
| 71072-33341E1 |
MCV10..JPP..SE W(LEATHER SEAT)-*99,LIGHT OAK,TRIM4# |
1 | ||
| 71072-33341B1 |
MCV10..JPP..SE W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1# |
1 | ||
| 71072-33181K1 |
MCV10..JPP..SE TAUPE,TRIM9# |
1 | ||
| 71072-33181B1 |
MCV10..JPP..SE MEDIUM GRAY,TRIM1# |
1 | ||
| 71072-33400E1 |
MCV10..JPP..SE MEDIUM OAK,TRIM4# |
1 | ||
| 71072-33341E3 |
MCV10..JPP..SE W(LEATHER SEAT)-*99,LIGHT OAK,TRIM4# |
1 | ||
| 71072-33341B3 |
MCV10..JPP..SE W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-33310B0 |
MCV10..JPP..SE W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-33310E0 |
MCV10..JPP..SE W(LEATHER SEAT)-*99,OAK,TRIM4# |
1 | ||
| 71073-33311E1 |
MCV10..JPP..SE W(LEATHER SEAT)-*99,LIGHT OAK,TRIM4# |
1 | ||
| 71073-33141B1 |
MCV10..JPP..SE MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-33311B3 |
MCV10..JPP..SE W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-33311B1 |
MCV10..JPP..SE W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-33380E1 |
MCV10..JPP..SE MEDIUM OAK,TRIM4# |
1 | ||
| 71073-33311E3 |
MCV10..JPP..SE W(LEATHER SEAT)-*99,LIGHT OAK,TRIM4# |
1 | ||
| 71073-33141K1 |
MCV10..JPP..SE TAUPE,TRIM9# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-33240E0 |
MCV10..JPP..SE W(LEATHER SEAT)-*99,OAK,TRIM4# |
1 | ||
| 71074-33240B0 |
MCV10..JPP..SE W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1# |
1 | ||
| 71074-33220B0 |
MCV10..JPP..SE MEDIUM GRAY,TRIM1# |
1 | ||
| 71074-33220K0 |
MCV10..JPP..SE TAUPE,TRIM9# |
1 | ||
| 71074-33241B1 |
MCV10..JPP..SE W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1# |
1 | ||
| 71074-33220E0 |
MCV10..JPP..SE OAK,TRIM4# |
1 | ||
| 71074-33241E1 |
MCV10..JPP..SE W(LEATHER SEAT)-*99,LIGHT OAK,TRIM4# |
1 | ||
| 71074-33330E1 |
MCV10..JPP..SE MEDIUM OAK,TRIM4# |
1 | ||
| 71074-33241E3 |
MCV10..JPP..SE W(LEATHER SEAT)-*99,LIGHT OAK,TRIM4# |
1 | ||
| 71074-33221B2 |
MCV10..JPP..SE MEDIUM GRAY,TRIM1# |
1 | ||
| 71074-33221K2 |
MCV10..JPP..SE TAUPE,TRIM9# |
1 | ||
| 71074-33241B3 |
MCV10..JPP..SE W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-33041B0 |
MCV10..JPP..SE ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71410-33041K0 |
MCV10..JPP..SE ***,TAUPE,TRIM9# |
1 | ||
| 71410-33041E1 |
MCV10..JPP..SE ***,OAK,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-33061E1 |
MCV10..JPP..SE ***,OAK,TRIM4# |
1 | ||
| 71420-33061B0 |
MCV10..JPP..SE ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71420-33061K0 |
MCV10..JPP..SE ***,TAUPE,TRIM9# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-33111B1 |
MCV10..JPP..SE ***,MD.GRAY,TRIM1# |
1 | ||
| 71430-33111E1 |
MCV10..JPP..SE ***,OAK,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-33071E1 |
MCV10..JPP..SE ***,OAK,TRIM4# |
1 | ||
| 71440-33071B1 |
MCV10..JPP..SE ***,MD.GRAY,TRIM1# |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71506-33020 |
MCV10..JPP..SE |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-32090 |
MCV10,SXV10,VCV10..JPP |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-33010 |
MCV10,SXV10,VCV10..JPP..(LE,SE) |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-33020E0 |
MCV10..JPP..SE W(LEATHER SEAT)-*99,LIGHT OAK,TRIM4# |
1 | ||
| 71705-33150K0 |
MCV10..JPP..SE TAUPE,TRIM9# |
1 | ||
| 71705-33020B0 |
MCV10..JPP..SE W(LEATHER SEAT)-*99,MD.GRAY,TRIM1# |
1 | ||
| 71705-3302003 |
MCV10..JPP..SE W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1# |
1 | ||
| 71705-33150B0 |
MCV10..JPP..SE MD.GRAY,TRIM1# |
1 | ||
| 71705-33020E0 |
MCV10..JPP..SE W(LEATHER SEAT)-*99,LIGHT OAK,TRIM4# |
1 | ||
| 71705-33150E0 |
MCV10..JPP..SE OAK,TRIM4# |
1 | ||
| 71705D - CLIP, FRONT SEAT BACK BOARD | ||||
| 71769-33010 |
MCV10,SXV10..JPP..LE..CND;MCV10,SXV10..JPP..(SE,XLE) |
2 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-3302003 |
MCV10..JPP..SE W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1# |
1 | ||
| 71705-33020E0 |
MCV10..JPP..SE W(LEATHER SEAT)-*99,LIGHT OAK,TRIM4# |
1 | ||
| 71705-33020E0 |
MCV10..JPP..SE W(LEATHER SEAT)-*99,LIGHT OAK,TRIM4# |
1 | ||
| 71705-33150B0 |
MCV10..JPP..SE MD.GRAY,TRIM1# |
1 | ||
| 71705-33150K0 |
MCV10..JPP..SE TAUPE,TRIM9# |
1 | ||
| 71705-33020B0 |
MCV10..JPP..SE W(LEATHER SEAT)-*99,MD.GRAY,TRIM1# |
1 | ||
| 71705-33150E0 |
MCV10..JPP..SE OAK,TRIM4# |
1 | ||
| 71706B - CLIP, FRONT SEAT BACK BOARD | ||||
| 71769-33010 |
MCV10,SXV10..JPP..LE..CND;MCV10,SXV10..JPP..(SE,XLE) |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-3306003 |
MCV10..JPP..SE W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1# |
2 | ||
| 71910-33060E0 |
MCV10..JPP..SE W(LEATHER SEAT)-*99,LIGHT OAK,TRIM4# |
2 | ||
| 71910-32523B0 |
MCV10..JPP..SE MEDIUM GRAY,TRIM1# |
2 | ||
| 71910-32523K0 |
MCV10..JPP..SE TAUPE,TRIM9# |
2 | ||
| 71910-33061S4 |
MCV10..JPP..SE W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1# |
2 | ||
| 71910-33061E0 |
MCV10..JPP..SE W(LEATHER SEAT)-*99,LIGHT OAK,TRIM4# |
2 | ||
| 71910-32523E1 |
MCV10..JPP..SE MEDIUM OAK,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-10020E1 |
MCV10,SXV10..JPP W/O(LOCK),ROSEWOOD,TRIM4# |
1 | ||
| 71931-10020K0 |
MCV10,SXV10..JPP W/O(LOCK),TAUPE,TRIM9# |
1 | ||
| 71931-10020B0 |
MCV10,SXV10..JPP W/O(LOCK),MEDIUM GRAY,TRIM1# |
1 | ||
| 71930-10070K0 |
MCV10,SXV10..JPP W(LOCK),TAUPE,TRIM9# |
1 | ||
| 71930-10070E1 |
MCV10,SXV10..JPP W(LOCK),ROSEWOOD,TRIM4# |
1 | ||
| 71930-10070B0 |
MCV10,SXV10..JPP W(LOCK),MEDIUM GRAY,TRIM1# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-10020E1 |
MCV10,SXV10..JPP W/O(LOCK),ROSEWOOD,TRIM4# |
1 | ||
| 71931-10020K0 |
MCV10,SXV10..JPP W/O(LOCK),TAUPE,TRIM9# |
1 | ||
| 71931-10020B0 |
MCV10,SXV10..JPP W/O(LOCK),MEDIUM GRAY,TRIM1# |
1 | ||
| 71930-10070K0 |
MCV10,SXV10..JPP W(LOCK),TAUPE,TRIM9# |
1 | ||
| 71930-10070E1 |
MCV10,SXV10..JPP W(LOCK),ROSEWOOD,TRIM4# |
1 | ||
| 71930-10070B0 |
MCV10,SXV10..JPP W(LOCK),MEDIUM GRAY,TRIM1# |
1 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-33010 |
VCV10..JPP..XLE;MCV10,SXV10..JPP..(SE,XLE);MCV10,SXV10,VCV10..JPP..LE..CND |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-22020K0 |
VCV10..JPP..XLE;MCV10,SXV10..JPP..(SE,XLE);MCV10,SXV10,VCV10..JPP..LE..CND TAUPE,TRIM9# |
1 | ||
| 72791-22020B0 |
VCV10..JPP..XLE;MCV10,SXV10..JPP..(SE,XLE);MCV10,SXV10,VCV10..JPP..LE..CND MEDIUM GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90080-46007 | ||||
| 90163-50006 | ||||
| 90468-18071 | ||||
| 90520-01274 | ||||
| 91656-40614 | ||||

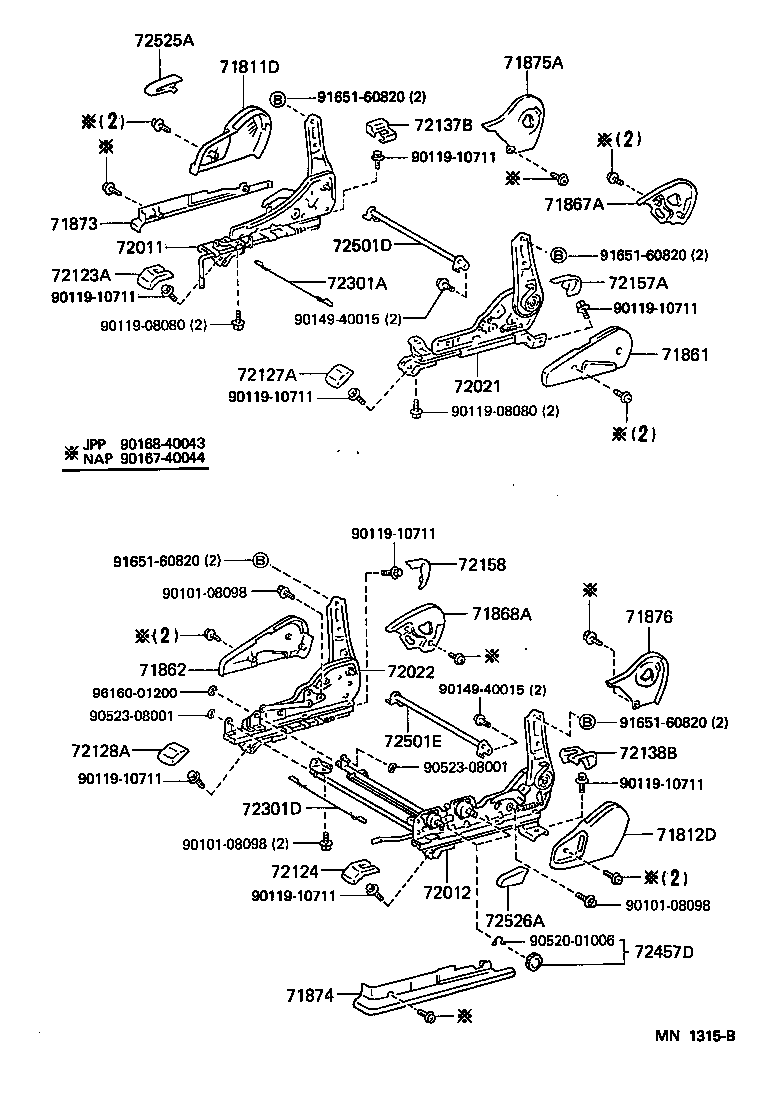

ILLUST NO. 2 OF 3(9106- )JPP..LE,SE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-33020K0 |
MCV10,SXV10..JPP TAUPE,TRIM9# |
1 | ||
| 71811-3302003 |
MCV10,SXV10,VCV10..JPP MEDIUM GRAY,TRIM1# |
1 | ||
| 71811-33020S4 |
MCV10,SXV10..JPP MD.GRAY,TRIM1# |
1 | ||
| 71811-3302002 |
MCV10,SXV10,VCV10..JPP TAUPE,TRIM9# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-33020S4 |
MCV10,SXV10..JPP..(DX,LE,SE) MD.GRAY,TRIM1# |
1 | ||
| 71812-3302003 |
MCV10,SXV10,VCV10..JPP..(DX,LE,SE) MEDIUM GRAY,TRIM1# |
1 | ||
| 71812-33020K0 |
MCV10,SXV10..JPP..(DX,LE,SE) TAUPE,TRIM9# |
1 | ||
| 71812-3302002 |
MCV10,SXV10,VCV10..JPP..(DX,LE,SE) TAUPE,TRIM9# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-33010K0 |
MCV10,SXV10,VCV10..JPP TAUPE,TRIM9# |
1 | ||
| 71861-33010B0 |
MCV10,SXV10,VCV10..JPP MEDIUM GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-33010K0 |
MCV10,SXV10,VCV10..JPP..(DX,LE,SE) TAUPE,TRIM9# |
1 | ||
| 71862-33010B0 |
MCV10,SXV10,VCV10..JPP..(DX,LE,SE) MEDIUM GRAY,TRIM1# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-3302003 |
MCV10,SXV10,VCV10..JPP MEDIUM GRAY,TRIM1# |
1 | ||
| 71867-33020S4 |
MCV10,SXV10..JPP MD.GRAY,TRIM1# |
1 | ||
| 71867-33020K0 |
MCV10,SXV10..JPP TAUPE,TRIM9# |
1 | ||
| 71867-3302002 |
MCV10,SXV10..JPP..LE..CND;MCV10,SXV10..JPP..(SE,XLE) TAUPE,TRIM9# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-3302002 |
MCV10,SXV10,VCV10..JPP..(DX,LE,SE) TAUPE,TRIM9# |
1 | ||
| 71868-33020K0 |
MCV10,SXV10..JPP..(DX,LE,SE) TAUPE,TRIM9# |
1 | ||
| 71868-3302003 |
MCV10,SXV10,VCV10..JPP..(DX,LE,SE) MEDIUM GRAY,TRIM1# |
1 | ||
| 71868-33020S4 |
MCV10,SXV10..JPP..(DX,LE,SE) MD.GRAY,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-3302003 |
MCV10,SXV10,VCV10..JPP MEDIUM GRAY,TRIM1# |
1 | ||
| 71873-3302002 |
MCV10,SXV10,VCV10..JPP TAUPE,TRIM9# |
1 | ||
| 71873-33020K0 |
MCV10,SXV10..JPP TAUPE,TRIM9# |
1 | ||
| 71873-33020S4 |
MCV10,SXV10..JPP MD.GRAY,TRIM1# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-33020S4 |
MCV10,SXV10..JPP..(DX,LE,SE) MD.GRAY,TRIM1# |
1 | ||
| 71874-3302003 |
MCV10,SXV10,VCV10..JPP..(DX,LE,SE) MEDIUM GRAY,TRIM1# |
1 | ||
| 71874-33020K0 |
MCV10,SXV10..JPP..(DX,LE,SE) TAUPE,TRIM9# |
1 | ||
| 71874-3302002 |
MCV10,SXV10,VCV10..JPP..(DX,LE,SE) TAUPE,TRIM9# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-33020S4 |
MCV10,SXV10..JPP MD.GRAY,TRIM1# |
1 | ||
| 71875-3302003 |
MCV10,SXV10,VCV10..JPP MEDIUM GRAY,TRIM1# |
1 | ||
| 71875-33020K0 |
MCV10,SXV10..JPP TAUPE,TRIM9# |
1 | ||
| 71875-3302002 |
MCV10,SXV10,VCV10..JPP TAUPE,TRIM9# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-3302003 |
MCV10,SXV10,VCV10..JPP..(DX,LE,SE) MEDIUM GRAY,TRIM1# |
1 | ||
| 71876-33020S4 |
MCV10,SXV10..JPP..(DX,LE,SE) MD.GRAY,TRIM1# |
1 | ||
| 71876-3302002 |
MCV10,SXV10,VCV10..JPP..(DX,LE,SE) TAUPE,TRIM9# |
1 | ||
| 71876-33020K0 |
MCV10,SXV10..JPP..(DX,LE,SE) TAUPE,TRIM9# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-33100 |
MCV10,SXV10..JPP |
1 | ||
| 72011-33031 |
MCV10,SXV10..JPP |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-33041 |
MCV10,SXV10..JPP..(LE,SE) |
1 | ||
| 72012-33110 |
MCV10,SXV10..JPP..(LE,SE) |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-33100 |
MCV10,SXV10..JPP |
1 | ||
| 72021-33031 |
MCV10,SXV10..JPP |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-33041 |
MCV10,SXV10..JPP..(LE,SE) |
1 | ||
| 72022-33110 |
MCV10,SXV10..JPP..(LE,SE) |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-32040B0 |
MCV10,SXV10,VCV10..JPP MEDIUM GRAY,TRIM1# |
1 | ||
| 72123-32040K0 |
MCV10,SXV10,VCV10..JPP TAUPE,TRIM9# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-32040K0 |
MCV10,SXV10,VCV10..JPP TAUPE,TRIM9# |
1 | ||
| 72123-32040B0 |
MCV10,SXV10,VCV10..JPP MEDIUM GRAY,TRIM1# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-32020B0 |
MCV10,SXV10,VCV10..JPP MEDIUM GRAY,TRIM1# |
1 | ||
| 72127-32020K0 |
MCV10,SXV10,VCV10..JPP TAUPE,TRIM9# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72127-32020B0 |
MCV10,SXV10,VCV10..JPP MEDIUM GRAY,TRIM1# |
1 | ||
| 72127-32020K0 |
MCV10,SXV10,VCV10..JPP TAUPE,TRIM9# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-33010K0 |
MCV10,SXV10,VCV10..JPP TAUPE,TRIM9# |
1 | ||
| 72137-33010B0 |
MCV10,SXV10,VCV10..JPP MEDIUM GRAY,TRIM1# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-33010K0 |
MCV10,SXV10,VCV10..JPP TAUPE,TRIM9# |
1 | ||
| 72138-33010B0 |
MCV10,SXV10,VCV10..JPP MEDIUM GRAY,TRIM1# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-33010K0 |
MCV10,SXV10,VCV10..JPP TAUPE,TRIM9# |
1 | ||
| 72157-33010B0 |
MCV10,SXV10,VCV10..JPP MEDIUM GRAY,TRIM1# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-33010K0 |
MCV10,SXV10,VCV10..JPP TAUPE,TRIM9# |
1 | ||
| 72158-33010B0 |
MCV10,SXV10,VCV10..JPP MEDIUM GRAY,TRIM1# |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-33010 |
MCV10,SXV10,VCV10..JPP |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-33010 |
MCV10,SXV10,VCV10..JPP..(DX,LE,SE) |
1 | ||
| 72457D - KNOB, VERTICAL SEAT ADJUSTER, LH | ||||
| 72457-22020K0 |
MCV10,SXV10,VCV10..JPP..(LE,SE) TAUPE,TRIM9# |
2 | ||
| 72457-22020B0 |
MCV10,SXV10,VCV10..JPP..(LE,SE) MEDIUM GRAY,TRIM1# |
2 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72345-33020 |
MCV10,SXV10,VCV10..JPP |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72345-33020 |
MCV10,SXV10,VCV10..JPP..(DX,LE,SE) |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-3301002 |
MCV10,SXV10,VCV10..JPP TAUPE,TRIM9# |
1 | ||
| 72525-33010K0 |
MCV10,SXV10..JPP TAUPE,TRIM9# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-33010K0 |
MCV10,SXV10..JPP..(DX,LE,SE) TAUPE,TRIM9# |
1 | ||
| 72526-3301002 |
MCV10,SXV10,VCV10..JPP..(DX,LE,SE) TAUPE,TRIM9# |
1 | ||
| Common parts | ||||
| 90101-08098 | ||||
| 90119-08080 | ||||
| 90119-10711 | ||||
| 90149-40015 | ||||
| 90167-40044 | ||||
| 90168-40043 | ||||
| 90520-01006 | ||||
| 90523-08001 | ||||
| 91651-60820 | ||||
| 96160-01200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
