MCV10L-AEPSKA (1993)
Toyota Camry (Jpp)
(9106- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-33041 |
MCV10..JPP..SE |
1 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-06059 |
MCV10,SXV10..JPP FRONT |
2 | ||
| 90541-19002 |
MCV10,SXV10,VCV10..JPP REAR |
2 | ||
| 90541-06041 |
MCV10,SXV10,VCV10..JPP FRONT |
2 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-06059 |
MCV10,SXV10..JPP FRONT |
2 | ||
| 90541-19002 |
MCV10,SXV10,VCV10..JPP REAR |
2 | ||
| 90541-06041 |
MCV10,SXV10,VCV10..JPP FRONT |
2 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-33010 |
MCV10,SXV10,VCV10..JPP |
1 | ||
| 64510A - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH | ||||
| 64510-33010 |
MCV10,SXV10,VCV10..JPP |
1 | ||
| 64520A - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH | ||||
| 64520-33010 |
MCV10,SXV10,VCV10..JPP |
1 | ||
| 64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL | ||||
| 64607-33010 |
MCV10,SXV10,VCV10..JPP |
1 | ||
| 64607A - CLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE) | ||||
| 69749-18020 |
MCV10,SXV10,VCV10..JPP |
1 | ||
| 64610B - SPRING, TENSION(FOR LOCK) | ||||
| 90506-05002 |
MCV10,SXV10,VCV10..JPP WD=0.55,CW=17.25,WD=0.55,CW=17.25 |
1 | ||
| 90506-06010 |
MCV10,SXV10,VCV10..JPP WD=0.55,CW=16.75,WD=0.55,CW=16.75 |
1 | ||
| 64610B - SPRING, TENSION(FOR LOCK) | ||||
| 90506-05002 |
MCV10,SXV10,VCV10..JPP WD=0.55,CW=17.25,WD=0.55,CW=17.25 |
1 | ||
| 90506-06010 |
MCV10,SXV10,VCV10..JPP WD=0.55,CW=16.75,WD=0.55,CW=16.75 |
1 | ||
| 64617 - LINK, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 64617-33010 |
MCV10,SXV10,VCV10..JPP |
1 | ||
| 64620E - STRIKER ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64620-32030 |
MCV10,SXV10,VCV10..JPP |
1 | ||
| 64631 - PROTECTOR, LUGGAGE DOOR LOCK | ||||
| 64631-32020 |
MCV10,SXV10,VCV10..JPP |
1 | ||
| 64640 - OPENER ASSY, LUGGAGE DOOR LOCK | ||||
| 64640-33010B0 |
MCV10,SXV10..JPP MD. GRAY,TRIM1# |
1 | ||
| 64640-3301003 |
MCV10,SXV10,VCV10..JPP MEDIUM GRAY,TRIM1# |
1 | ||
| 64640-33010K1 |
MCV10,SXV10..JPP TAUPE,TRIM9# |
1 | ||
| 64640-33010E3 |
MCV10,SXV10..JPP OAK,TRIM4# |
1 | ||
| 64640-33010S4 |
MCV10,SXV10..JPP MD.GRAY,TRIM1# |
1 | ||
| 64640-33010E0 |
MCV10,SXV10..JPP OAK,TRIM4# |
1 | ||
| 64640-3301002 |
MCV10,SXV10,VCV10..JPP TAUPE,TRIM9# |
1 | ||
| 64640-33010K0 |
MCV10,SXV10..JPP TAUPE,TRIM9# |
1 | ||
| 64648 - GROMMET, LUGGAGE DOOR LOCK OPENER | ||||
| 64648-32010 |
MCV10,SXV10,VCV10..JPP |
2 | ||
| 64648-32020 |
MCV10,SXV10..JPP |
2 | ||
| 64648 - GROMMET, LUGGAGE DOOR LOCK OPENER | ||||
| 64648-32010 |
MCV10,SXV10,VCV10..JPP |
2 | ||
| 64648-32020 |
MCV10,SXV10..JPP |
2 | ||
| 69759P - SNAP, DOOR LOCK CONTROL LINK | ||||
| 69759-16040 |
MCV10,SXV10,VCV10..JPP |
1 | ||
| Common parts | ||||
| 90082-33001 | ||||
| 90105-06051 | ||||
| 90105-06083 | ||||
| 90119-06627 | ||||
| 90119-06630 | ||||
| 90164-60028 | ||||
| 90467-0705922 | ||||
| 90950-01545 | ||||
| 90959-01427 | ||||
| 93315-16010 | ||||

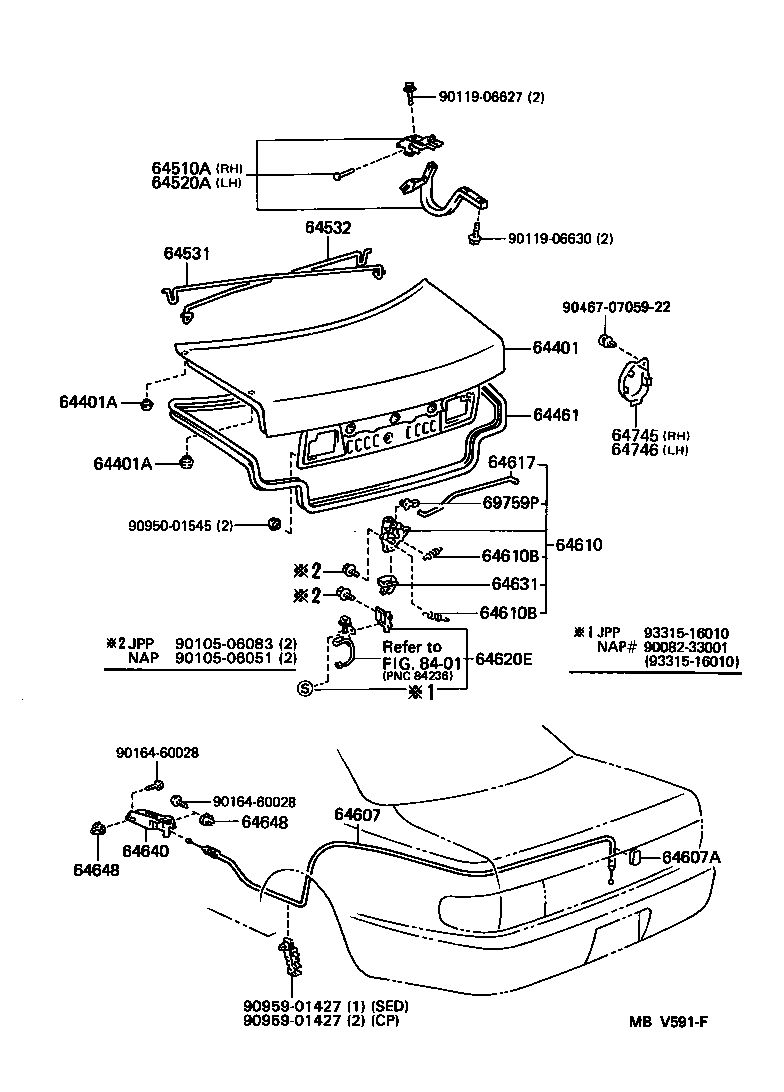

| Linked diagrams | ||||
| 8401 | ||||
