MCV10L-AEPSKA (1993)

Toyota Camry (Jpp)

Production Aug 1993 - Aug 1996
Engine 1MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9106- )JPP

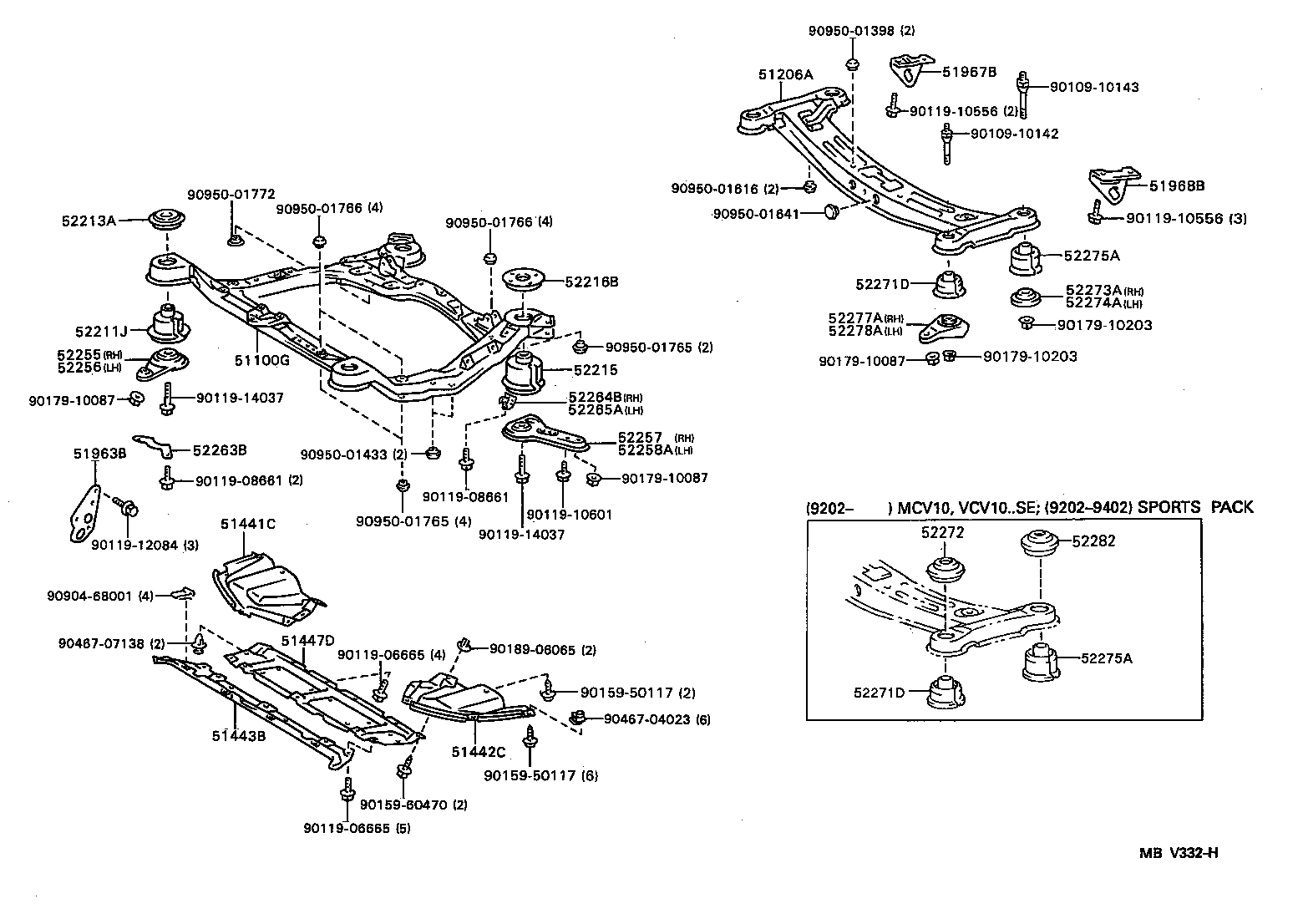

Click highlighted areas on diagram

diagram 51100G 51206A 51441C 51442C 51443B 51447D 51963B 51967B 51968B 52211J 52213A 52215 52216B 52255 52256 52257 52258A 52263B 52264B 52265A 52271D 52271D 52272 52273A 52274A 52275A 52275A 52277A 52278A 52282 9010910142 9010910143 9011906665 9011906665 9011908661 9011908661 9011910556 9011910556 9011910601 9011912084 9011914037 9011914037 9015950117 9015950117 9015960470 9017910087 9017910087 9017910087 9017910203 9017910203 9018906065 9046704023 9046707138 9090468001 9095001398 9095001433 9095001616 9095001641 9095001765 9095001765 9095001766 9095001766 9095001772
Part # Description Qty Price
51100G - FRAME ASSY, FRONT
51100-33010

MCV10,SXV10,VCV10..JPP

 1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-33010

MCV10,SXV10,VCV10..JPP

 1
51206-33011

MCV10,SXV10..JPP

 1
51441C - COVER, ENGINE UNDER, RH
51441-33010

MCV10,SXV10,VCV10..JPP

 1
51442C - COVER, ENGINE UNDER, LH
51442-33010

MCV10,SXV10,VCV10..JPP

 1
51443B - COVER, ENGINE UNDER, NO.3
51443-33010

MCV10,SXV10,VCV10..JPP

 1
51447D - COVER, ENGINE UNDER, NO.4 CENTER
51447-33010

MCV10,SXV10,VCV10..JPP

 1
51963B - HOOK, TRANSPORT, FRONT RH
51963-33010

MCV10,SXV10,VCV10..JPP

 2
51967B - HOOK, TRANSPORT, REAR RH
51967-33020

MCV10..JPP

 1
51967-33010

MCV10,SXV10,VCV10..JPP

 1
51968B - HOOK, TRANSPORT, REAR LH
51968-33010

MCV10,SXV10,VCV10..JPP

 1
52211J - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52211-33030

MCV10,VCV10..JPP..SE;SXV10,VCV10..JPP..MTM..(DX,LE)

 2
52213A - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52213-33030

MCV10,VCV10..JPP..SE;SXV10,VCV10..JPP..MTM..(DX,LE)

 2
52215 - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52215-33030

MCV10,VCV10..JPP..SE;SXV10,VCV10..JPP..MTM..(DX,LE)

 2
52216B - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52216-33020

MCV10,SXV10..JPP

 2
52216-33020

MCV10,VCV10..JPP..SE;SXV10,VCV10..JPP..MTM..(DX,LE)

 2
52255 - BRACE, FRONT SUSPENSION MEMBER, FRONT RH
52255-33010

MCV10,SXV10,VCV10..JPP

 1
52256 - BRACE, FRONT SUSPENSION MEMBER, FRONT LH
52256-33010

MCV10,SXV10,VCV10..JPP

 1
52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH
51023-33010

MCV10,SXV10..JPP

 1
52257-33010

MCV10,SXV10,VCV10..JPP

 1
52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH
51024-33010

MCV10,SXV10..JPP

 1
52258-33010

MCV10,SXV10,VCV10..JPP

 1
52273A - STOPPER, REAR SUSPENSION MEMBER, LOWER RH
52273-32010

MCV10,SXV10,VCV10..JPP

 1
52274A - STOPPER, REAR SUSPENSION MEMBER, LOWER LH
52273-32010

MCV10,SXV10,VCV10..JPP

 1
52277A - RETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH
52203-33010

MCV10,SXV10,VCV10..JPP

 1
52278A - RETAINER, REAR SUSPENSION MENBER LOWER STOPPER, LH
52204-33010

MCV10,SXV10,VCV10..JPP

 1
Common parts
90109-10142
90109-10143
90119-06665
90119-08661
90119-10556
90119-10601
90119-12084
90119-14037
90159-50117
90159-60470
90179-10087
90179-10203
90189-06065
90467-04023
90467-07138
90904-68001
90950-01398
90950-01433
90950-01616
90950-01641
90950-01765
90950-01766
90950-01772
