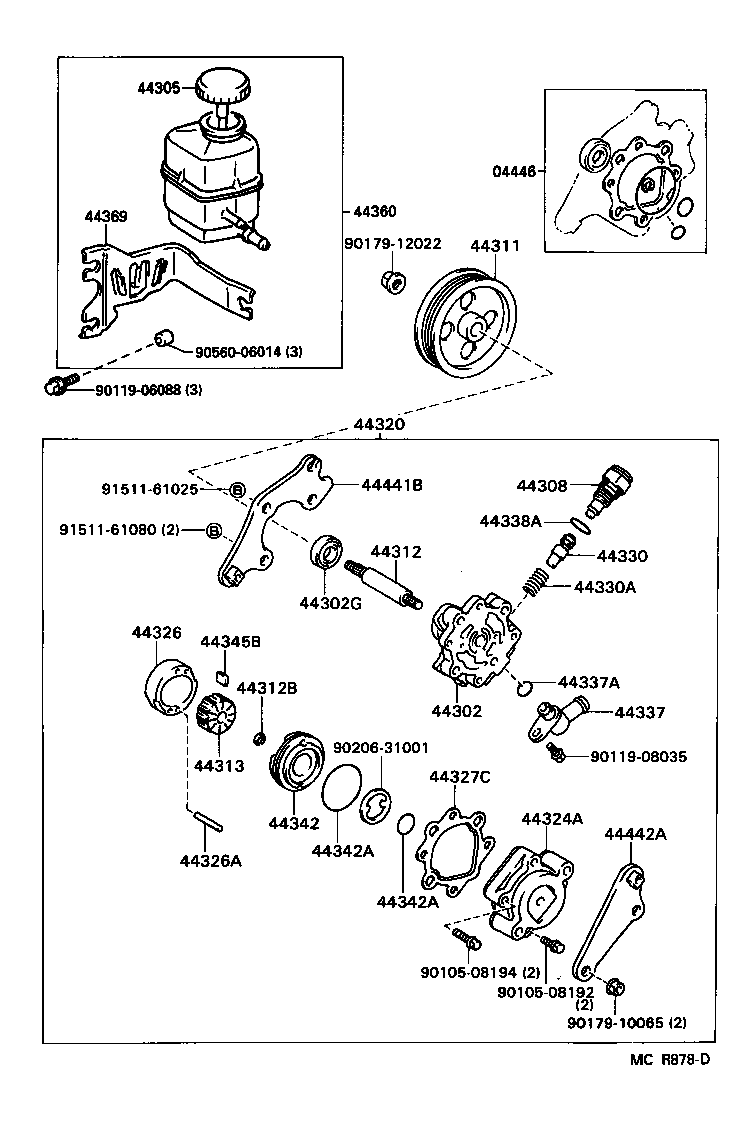

MCV10L-AEPSKA (1993)
Toyota Camry (Jpp)
(9408- )MCV10..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-33011 |
MCV10,VCV10..JPP |
1 | ||
| 04446-32021 |
MCV10..JPP |
1 | ||
| 04446-04010 |
MCV10..JPP |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-06020 |
MCV10,SXV10..JPP |
1 | ||
| 44302-07010 |
MCV10..JPP |
1 | ||
| 44302-33010 |
MCV10..JPP |
1 | ||
| 44302-07011 |
MCV10..JPP |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-17007 |
MCV10,VCV10..JPP |
1 | ||
| 90080-31020 |
MCV10,SXV10..JPP |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-32020 |
MCV10,SXV10..JPP |
1 | ||
| 44305-32030 |
MCV10,SXV10,VCV10..JPP |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-33060 |
MCV10,SXV10..JPP |
1 | ||
| 44308-33010 |
MCV10,VCV10..JPP FR |
1 | ||
| 44308-32060 |
MCV10,VCV10..JPP RR |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-33010 |
MCV10..JPP |
1 | ||
| 44311-07010 |
MCV10..JPP |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-06010 |
MCV10,SXV10..JPP |
1 | ||
| 44312-32020 |
MCV10,SXV10..JPP |
1 | ||
| 44312-32030 |
MCV10,VCV10..JPP OD=17.999-18.004 |
1 | ||
| 44312-32040 |
MCV10,VCV10..JPP OD=17.994-17.999 |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90080-52033 |
MCV10,SXV10..JPP |
1 | ||
| 90520-15001 |
MCV10,VCV10..JPP |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-32040 |
MCV10,VCV10..JPP MARK 3 |
1 | ||
| 44313-32020 |
MCV10,VCV10..JPP MARK 1 |
1 | ||
| 44313-32030 |
MCV10,VCV10..JPP MARK 2 |
1 | ||
| 44313-06010 |
MCV10,SXV10..JPP NO MARK |
1 | ||
| 44313-32050 |
MCV10,VCV10..JPP MARK 4 |
1 | ||
| 44313-06020 |
MCV10,SXV10..JPP MARK 1 |
1 | ||
| 44313-06030 |
MCV10,SXV10..JPP MARK 2 |
1 | ||
| 44313-06050 |
MCV10,SXV10..JPP MARK 4 |
1 | ||
| 44313-06040 |
MCV10,SXV10..JPP MARK 3 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-07010 |
MCV10..JPP |
1 | ||
| 44320-07011 |
MCV10..JPP |
1 | ||
| 44320-33080 |
MCV10..JPP |
1 | ||
| 44324A - HOUSING, PUMP, REAR | ||||
| 44324-07010 |
MCV10..JPP |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-32120 |
MCV10..JPP MARK 1,MARK 1,RR |
1 | ||
| 44325-32110 |
MCV10..JPP NO MARK,NO MARK,RR |
1 | ||
| 44325-32140 |
MCV10..JPP MARK 3,MARK 3,RR |
1 | ||
| 44325-33030 |
MCV10..JPP MARK 2,MARK 2,FR |
1 | ||
| 44325-32150 |
MCV10..JPP MARK 4,MARK 4,RR |
1 | ||
| 44325-32130 |
MCV10..JPP MARK 2,MARK 2,RR |
1 | ||
| 44325-33070 |
MCV10..JPP MARK 6,MARK 6,FR |
1 | ||
| 44325-33050 |
MCV10..JPP MARK 4,MARK 4,FR |
1 | ||
| 44325-33060 |
MCV10..JPP MARK 5,MARK 5,FR |
1 | ||
| 44325-32270 |
MCV10,SXV10..JPP NO MARK |
1 | ||
| 44325-33040 |
MCV10..JPP MARK 3,MARK 3,FR |
1 | ||
| 44325-32280 |
MCV10,SXV10..JPP MARK 1 |
1 | ||
| 44325-06010 |
MCV10,SXV10..JPP NO MARK |
1 | ||
| 44325-06030 |
MCV10,SXV10..JPP MARK 2 |
1 | ||
| 44325-32290 |
MCV10,SXV10..JPP MARK 2 |
1 | ||
| 44325-32310 |
MCV10,SXV10..JPP MARK 4 |
1 | ||
| 44325-06050 |
MCV10,SXV10..JPP MARK 4 |
1 | ||
| 44325-06040 |
MCV10,SXV10..JPP MARK 3 |
1 | ||
| 44325-06020 |
MCV10,SXV10..JPP MARK 1 |
1 | ||
| 44325-32300 |
MCV10,SXV10..JPP MARK 3 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04071 |
MCV10,SXV10..JPP L=23.3,OD=4.0 |
2 | ||
| 90250-04083 |
MCV10,VCV10..JPP L=59.5,OD=4 |
1 | ||
| 44327C - GASKET, VANE PUMP HOUSING | ||||
| 44327-26010 |
MCV10,SXV10..JPP |
1 | ||
| 44327-32010 |
MCV10,VCV10..JPP |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-33010 |
MCV10..JPP MARK A |
1 | ||
| 44330-33020 |
MCV10..JPP MARK B |
1 | ||
| 44330-33040 |
MCV10..JPP MARK D |
1 | ||
| 44330-33050 |
MCV10..JPP MARK E |
1 | ||
| 44330-33130 |
MCV10..JPP MARK A |
1 | ||
| 44330-33150 |
MCV10..JPP MARK C |
1 | ||
| 44330-33060 |
MCV10..JPP MARK F |
1 | ||
| 44330-33140 |
MCV10..JPP MARK B |
1 | ||
| 44330-33160 |
MCV10..JPP MARK D |
1 | ||
| 44330-33180 |
MCV10..JPP MARK F |
1 | ||
| 44330-33030 |
MCV10..JPP MARK C |
1 | ||
| 44330-33170 |
MCV10..JPP MARK E |
1 | ||
| 44330-26041 |
MCV10..JPP MARK D |
1 | ||
| 44330-26011 |
MCV10..JPP MARK A |
1 | ||
| 44330-26051 |
MCV10..JPP MARK E |
1 | ||
| 44330-26031 |
MCV10..JPP MARK C |
1 | ||
| 44330-26061 |
MCV10..JPP MARK F |
1 | ||
| 44330-26021 |
MCV10..JPP MARK B |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-13034 |
MCV10,SXV10..JPP |
1 | ||
| 90501-12103 |
MCV10,VCV10..JPP |
2 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-32070 |
MCV10..JPP RR |
1 | ||
| 44337-33010 |
MCV10..JPP FR |
1 | ||
| 44337-28030 |
MCV10,SXV10..JPP |
1 | ||
| 44337-07010 |
MCV10..JPP |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90301-11010 |
MCV10,VCV10..JPP FR |
1 | ||
| 90080-30034 |
MCV10,SXV10..JPP |
1 | ||
| 96711-19016 |
MCV10,VCV10..JPP RR |
1 | ||
| 90301-11010 |
MCV10,SXV10..JPP |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-19003 |
MCV10,VCV10..JPP ID=19.5,OD=22.5 |
2 | ||
| 90301-19003 |
MCV10,SXV10..JPP ID=19.5,OD=22.5 |
1 | ||
| 90080-30035 |
MCV10,SXV10..JPP |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-06010 |
MCV10,SXV10..JPP |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90080-30032 |
MCV10,SXV10..JPP OUTER |
1 | ||
| 90301-18007 |
MCV10,SXV10..JPP INNER |
1 | ||
| 90301-47001 |
MCV10,SXV10..JPP OUTER |
1 | ||
| 90080-30031 |
MCV10,SXV10..JPP INNER |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90080-30032 |
MCV10,SXV10..JPP OUTER |
1 | ||
| 90301-18007 |
MCV10,SXV10..JPP INNER |
1 | ||
| 90301-47001 |
MCV10,SXV10..JPP OUTER |
1 | ||
| 90080-30031 |
MCV10,SXV10..JPP INNER |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-32060 |
MCV10..JPP ROTOR NO MARK,ROTOR MARK 3,FR |
10 | ||
| 44345-32070 |
MCV10..JPP ROTOR MARK 1,ROTOR MARK 5,FR |
10 | ||
| 44345-12050 |
MCV10..JPP L=14.989,ROTOR MARK 4,RR |
1 | ||
| 44345-26040 |
MCV10,SXV10..JPP L=14.994 |
10 | ||
| 44345-26050 |
MCV10,SXV10..JPP L=14.992 |
10 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-33010 |
MCV10,VCV10..JPP |
1 | ||
| 44360-33020 |
MCV10,SXV10..JPP |
1 | ||
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-33010 |
MCV10,VCV10..JPP |
1 | ||
| 44369-33020 |
MCV10,SXV10..JPP |
1 | ||
| 44442A - BRACKET, VANE PUMP, REAR | ||||
| 44442-07010 |
MCV10..JPP |
1 | ||
| Common parts | ||||
| 90105-08192 | ||||
| 90105-08194 | ||||
| 90119-06088 | ||||
| 90119-08035 | ||||
| 90179-10065 | ||||
| 90179-12022 | ||||
| 90206-31001 | ||||
| 90560-06014 | ||||
| 91511-61025 | ||||
| 91511-61080 | ||||
