MCV10L-AEPSKA (1993)

Toyota Camry (Jpp)

Production Aug 1993 - Aug 1996
Engine 1MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9106- )JPP

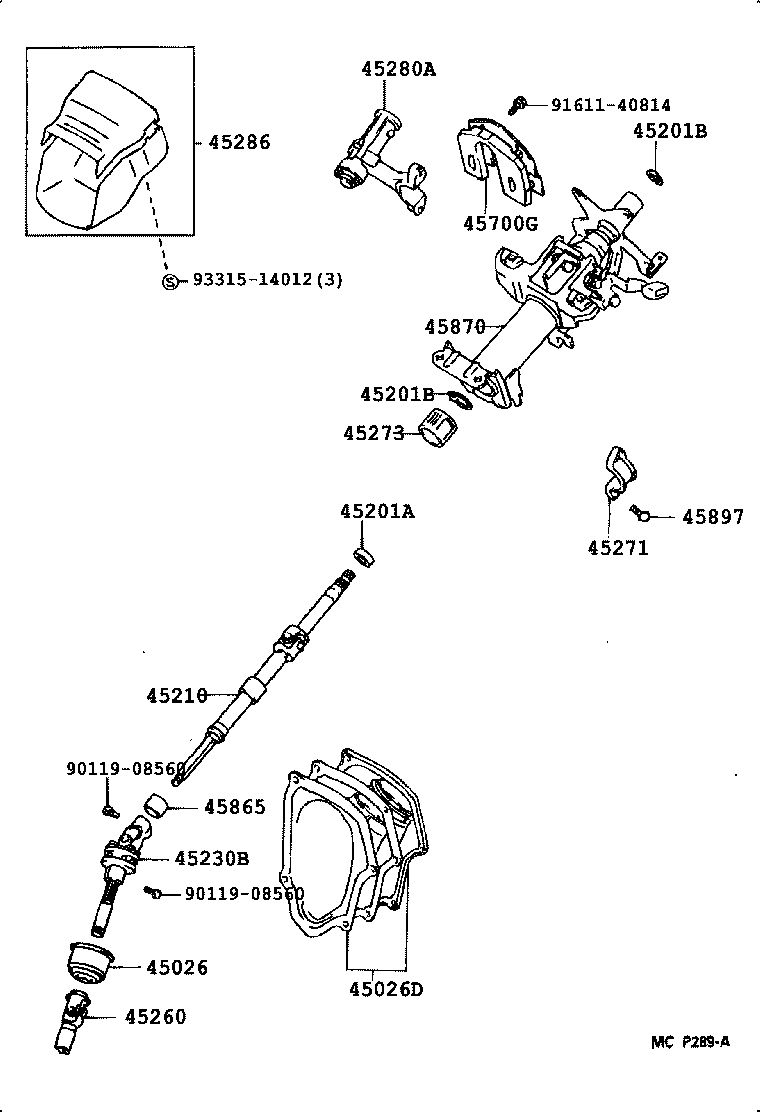

Click highlighted areas on diagram

diagram 45026 45026D 45201A 45201B 45201B 45210 45230B 45260 45271 45273 45280A 45286 45700G 45865 45870 45897 9011908560 9011908560 9161140814 9331514012
Part # Description Qty Price
45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45026-33010

MCV10,SXV10,VCV10..JPP

 1
45026D - COVER SUB-ASSY, STEERING COLUMN HOLE
45025-33010

MCV10,SXV10,VCV10..JPP

 1
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-18005

MCV10,SXV10..JPP

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17004

MCV10,SXV10..JPP

T=1.20,T=1.20,ID=21.4,UPR

 1
90520-23055

MCV10,SXV10..JPP

T=1.20,T=1.20,LWR

 1
90520-17004

MCV10,SXV10..JPP

T=1.20,T=1.20,UPR

 1
90520-23055

MCV10,SXV10..JPP

T=1.20,T=1.20,ID=23.2,LWR

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17004

MCV10,SXV10..JPP

T=1.20,T=1.20,ID=21.4,UPR

 1
90520-23055

MCV10,SXV10..JPP

T=1.20,T=1.20,LWR

 1
90520-17004

MCV10,SXV10..JPP

T=1.20,T=1.20,UPR

 1
90520-23055

MCV10,SXV10..JPP

T=1.20,T=1.20,ID=23.2,LWR

 1
45210 - SHAFT ASSY, STEERING MAIN
45210-33010

MCV10,SXV10,VCV10..JPP

 1
45230B - JOINT ASSY, STEERING SHAFT UNIVERSAL
45230-33010

MCV10,SXV10,VCV10..JPP

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-33010

MCV10,SXV10,VCV10..JPP

 1
45260-33030

MCV10,SXV10..JPP

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-33010

MCV10,SXV10,VCV10..JPP

 1
45273 - BUSH, STEERING MAIN SHAFT
45273-33010

MCV10,SXV10,VCV10..JPP

 1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-33050

MCV10,SXV10,VCV10..JPP

 1
45700G - DAMPER ASSY, STEERING
45700-33020

MCV10,VCV10..JPP

 1
45865 - COLLAR, STEERING MAIN SHAFT
45865-33010

MCV10,SXV10,VCV10..JPP

 1
45870 - TUBE ASSY, STEERING COLUMN
45870-33050

MCV10,SXV10,VCV10..JPP

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

MCV10,SXV10,VCV10..JPP

 2
Common parts
90119-08560
91611-40814
93315-14012
