MCV10L-AEPSKA (1993)

Toyota Camry (Jpp)

Production Aug 1993 - Aug 1996
Engine 1MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

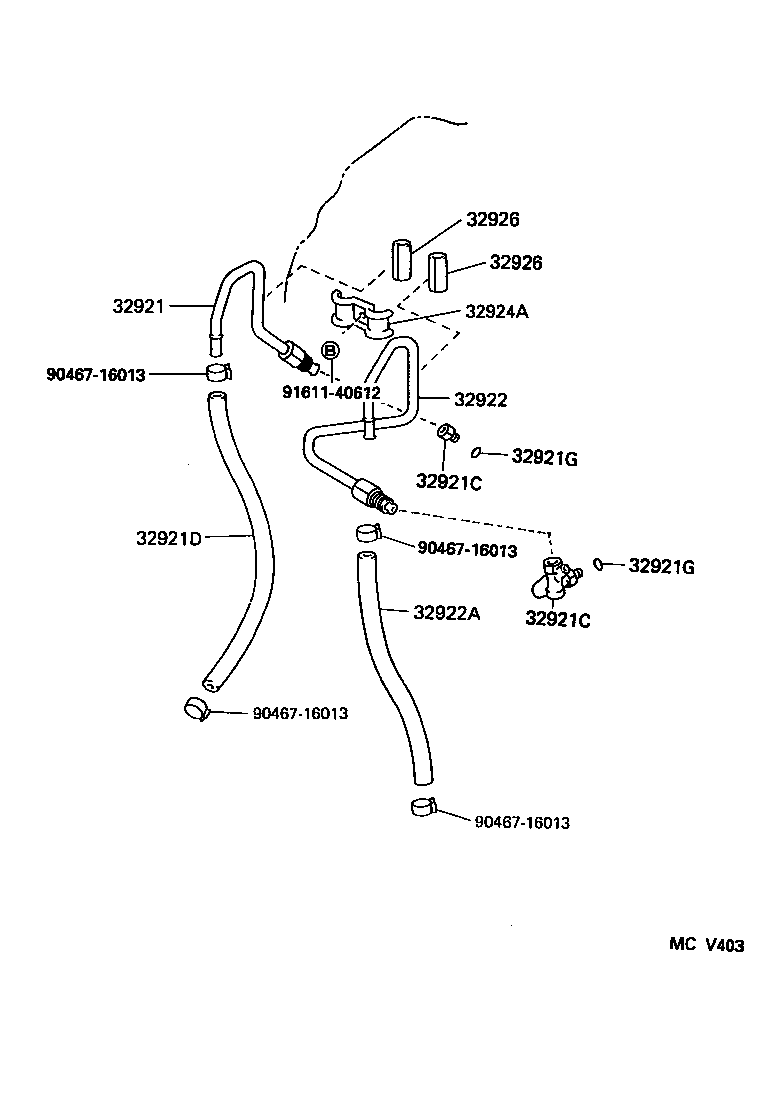

(9308- )MCV10..JPP

Click highlighted areas on diagram

diagram 32921 32921C 32921C 32921D 32921G 32921G 32922 32922A 32924A 32926 32926 9046716013 9046716013 9046716013 9046716013 9161140612
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-33050

MCV10..JPP

 1
32921-33050

MCV10..JPP..USA

 1
32921C - UNION(FOR OIL COOLER TUBE)
32901-32060

MCV10,SXV10..JPP..ATM..USA

OUTLET

 1
32901-32060

MCV10,SXV10,VCV10..JPP..ATM

OUTLET

 1
90404-16031

MCV10,SXV10..JPP..ATM..USA

INLET

 1
32921C - UNION(FOR OIL COOLER TUBE)
32901-32060

MCV10,SXV10..JPP..ATM..USA

OUTLET

 1
32901-32060

MCV10,SXV10,VCV10..JPP..ATM

OUTLET

 1
90404-16031

MCV10,SXV10..JPP..ATM..USA

INLET

 1
32921D - HOSE(FOR OIL COOLER INLET)
32941-33030

MCV10..JPP

 1
32941-33030

MCV10..JPP..USA

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

MCV10,SXV10,VCV10..JPP..ATM

 2
90301-10189

MCV10,SXV10..JPP..ATM..USA

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

MCV10,SXV10,VCV10..JPP..ATM

 2
90301-10189

MCV10,SXV10..JPP..ATM..USA

 2
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-33040

MCV10..JPP

 1
32922-33040

MCV10..JPP..USA

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
90445-17136

MCV10..JPP..USA

 1
90445-17136

MCV10..JPP

 1
32924A - CLAMP(FOR OIL COOLER TUBE, NO.2)
90462-12074

MCV10,SXV10..JPP..ATM..USA

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

MCV10,SXV10,VCV10..JPP..ATM

L=35,ID=10

 2
32926-30020

MCV10,SXV10..JPP..ATM..USA

L=35,ID=10

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

MCV10,SXV10,VCV10..JPP..ATM

L=35,ID=10

 2
32926-30020

MCV10,SXV10..JPP..ATM..USA

L=35,ID=10

 2
Common parts
90467-16013
91611-40612

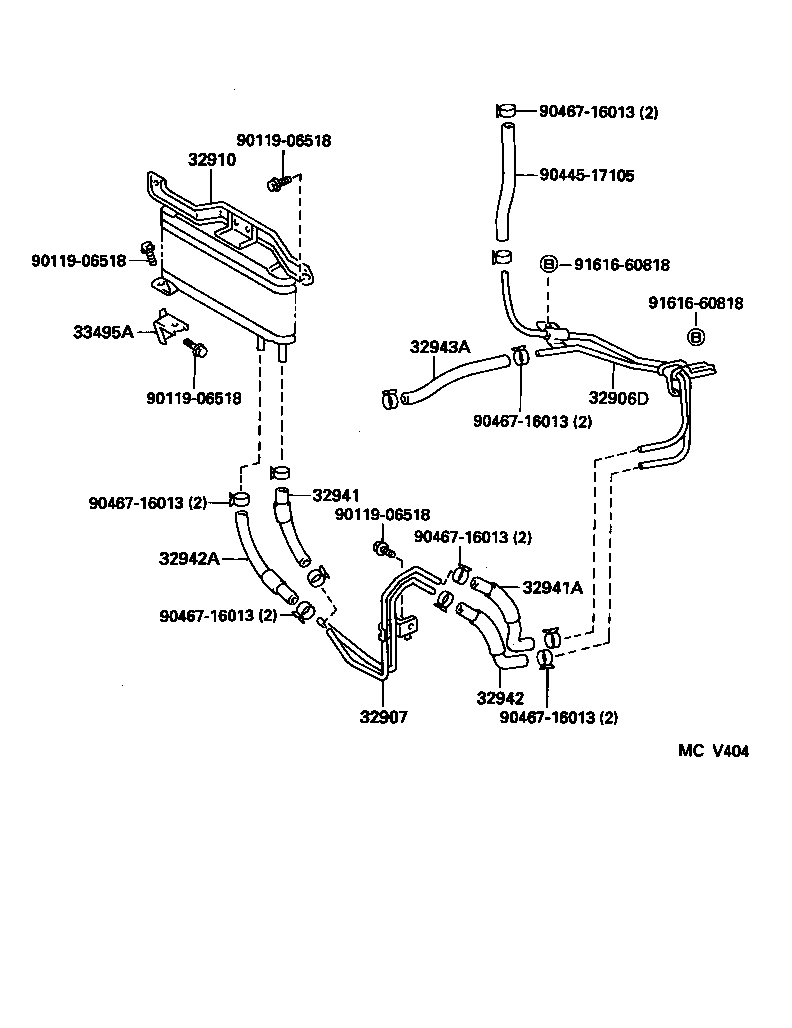

(9308-9309)MCV10..JPP ; (9309- )MCV10..JPP

Click highlighted areas on diagram

AIR COOLED OIL COOLER

diagram 32906D 32907 32910 32941 32941A 32942 32942A 32943A 33495A 9011906518 9011906518 9011906518 9011906518 9044517105 9046716013 9046716013 9046716013 9046716013 9046716013 9046716013 9161660818 9161660818
Part # Description Qty Price
32906D - TUBE SUB-ASSY, OIL COOLER, NO.2
32907-33080

MCV10..JPP..USA

 1
32907 - TUBE SUB-ASSY, OIL COOLER OUTLET, NO.2
32907-33011

MCV10..JPP..USA

 1
32910 - COOLER ASSY, OIL
32910-33010

MCV10..JPP..USA

 1
32910-33030

MCV10..JPP

 1
32941 - HOSE, OIL COOLER INLET, NO.1
90445-17069

MCV10..JPP..USA

 1
32941A - HOSE, OIL COOLER INLET, NO.2
32943-33031

MCV10..JPP..USA

 1
32942 - HOSE, OIL COOLER OUTLET, NO.1
32943-33041

MCV10..JPP..USA

 1
32942A - HOSE, OIL COOLER OUTLET, NO.2
90445-17110

MCV10..JPP..USA

 1
32943A - HOSE, TRANSMISSION OIL COOLER, NO.2
90445-17139

MCV10..JPP..USA

 1
33495A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
33495-33020

MCV10..JPP..USA

 1
Common parts
90119-06518
90445-17105
90467-16013
91616-60818
