MCV10L-AEPSKA (1993)
Toyota Camry (Jpp)
ILLUST NO. 2 OF 2(9308- )1MZFE..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23091 - TUBE SUB-ASSY, FUEL PUMP | ||||
| 23091-62010 |
1MZFE..MCV10..JPP |
1 | ||
| 23204 - TUBE SUB-ASSY, FUEL PUMP RETURN | ||||
| 23204-62010 |
1MZFE..MCV10..JPP |
1 | ||
| 23206A - BRACKET, FUEL PUMP | ||||
| 23206-62010 |
1MZFE..MCV10..JPP |
1 | ||
| 23206B - GASKET, FUEL PUMP BRACKET | ||||
| 77169-60010 |
1MZFE..MCV10..JPP |
1 | ||
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-62020 |
1MZFE..MCV10..JPP |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23220-03020 |
1MZFE..MCV10..JPP |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
1MZFE..MCV10..JPP |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 23239-11010 |
1MZFE..MCV10..JPP |
1 | ||
| 23239-63010 |
1MZFE..MCV10..JPP |
1 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13054 |
1MZFE..MCV10..JPP |
2 | ||
| 90467-12067 |
1MZFE..MCV10..JPP |
2 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13054 |
1MZFE..MCV10..JPP |
2 | ||
| 90467-12067 |
1MZFE..MCV10..JPP |
2 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-74610 |
1MZFE..MCV10..JPP |
1 | ||
| Common parts | ||||
| 90099-90001 | ||||
| 90119-06351 | ||||
| 90159-50219 | ||||
| 90467-12056 | ||||
| 90980-11078 | ||||
| 93319-14008 | ||||
| 95333-06020 | ||||
| Linked diagrams | ||||
| 8401 | ||||

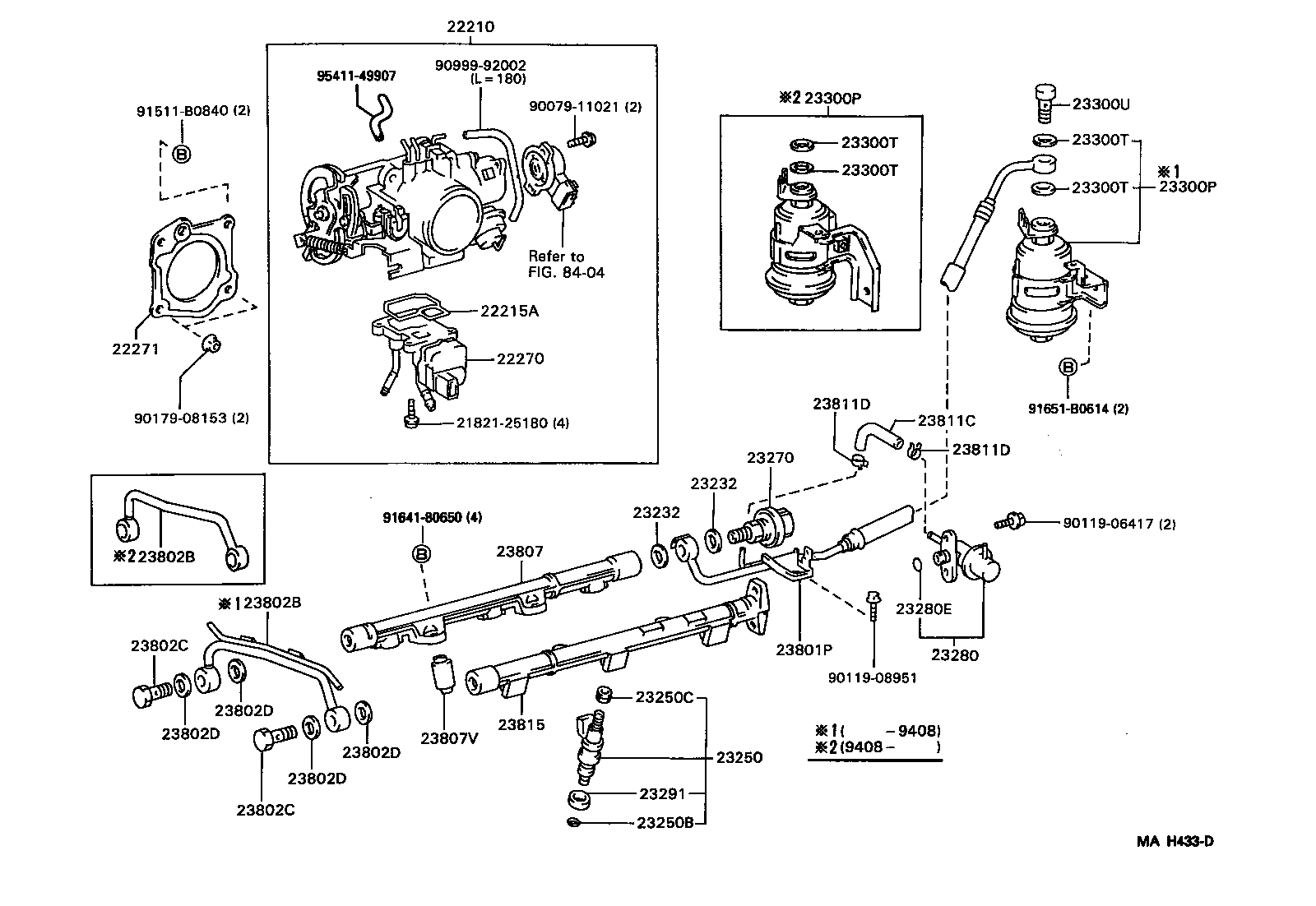

ILLUST NO. 1 OF 2(9308- )1MZFE..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-20011 |
1MZFE..MCV10..JPP |
1 | ||
| 22210-20010 |
1MZFE..MCV10..JPP |
1 | ||
| 22210-20030 |
1MZFE..MCV10..JPP |
1 | ||
| 22210-20012 |
1MZFE..MCV10..JPP |
1 | ||
| 22215A - GASKET, IDLE SPEED CONTROL VALVE | ||||
| 22215-20010 |
1MZFE..MCV10..JPP |
1 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-20010 |
1MZFE..MCV10..JPP |
1 | ||
| 22270-20020 |
1MZFE..MCV10..JPP |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-20010 |
1MZFE..MCV10..JPP |
1 | ||
| 23232 - GASKET(FOR FUEL PUMP HOSE) | ||||
| 23232-41081 |
1MZFE..MCV10..JPP |
2 | ||
| 23232 - GASKET(FOR FUEL PUMP HOSE) | ||||
| 23232-41081 |
1MZFE..MCV10..JPP |
2 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-20010 |
1MZFE..MCV10..JPP |
6 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
1MZFE..MCV10..JPP |
12 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
1MZFE..MCV10..JPP |
6 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23270-62010 |
1MZFE..MCV10..JPP |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-20010 |
1MZFE..MCV10..JPP |
1 | ||
| 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07001 |
1MZFE..MCV10..JPP |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-62010 |
1MZFE..MCV10..JPP |
6 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-29045 |
1MZFE..MCV10..JPP |
1 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-29045 |
1MZFE..MCV10..JPP |
1 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
1MZFE..MCV10..JPP |
1 | ||
| 96341-11200 |
1MZFE..MCV10..JPP |
1 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-20021 |
1MZFE..MCV10..JPP |
1 | ||
| 23801-20020 |
1MZFE..MCV10..JPP |
1 | ||
| 23802B - PIPE SUB-ASSY, FUEL, NO.2 | ||||
| 23802-20011 |
1MZFE..MCV10..JPP |
1 | ||
| 23802-20010 |
1MZFE..MCV10..JPP |
1 | ||
| 23802B - PIPE SUB-ASSY, FUEL, NO.2 | ||||
| 23802-20011 |
1MZFE..MCV10..JPP |
1 | ||
| 23802-20010 |
1MZFE..MCV10..JPP |
1 | ||
| 23802C - BOLT, UNION(FOR FUEL PIPE NO.2) | ||||
| 90401-12015 |
1MZFE..MCV10..JPP |
2 | ||
| 23802C - BOLT, UNION(FOR FUEL PIPE NO.2) | ||||
| 90401-12015 |
1MZFE..MCV10..JPP |
2 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90430-12026 |
1MZFE..MCV10..JPP |
4 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90430-12026 |
1MZFE..MCV10..JPP |
4 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90430-12026 |
1MZFE..MCV10..JPP |
4 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90430-12026 |
1MZFE..MCV10..JPP |
4 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23814-20010 |
1MZFE..MCV10..JPP |
1 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 90561-08020 |
1MZFE..MCV10..JPP |
4 | ||
| 23811C - HOSE, FUEL(FOR FUEL PIPE TO PRESSURE REGULATOR) | ||||
| 95333-06020 |
1MZFE..MCV10..JPP *H,L=200 |
1 | ||
| 95334-06011 |
1MZFE..MCV10..JPP *H,L=110 |
1 | ||
| 23811D - CLIP, HOSE(FOR FUEL HOSE) | ||||
| 96135-41100 |
1MZFE..MCV10..JPP |
2 | ||
| 23811D - CLIP, HOSE(FOR FUEL HOSE) | ||||
| 96135-41100 |
1MZFE..MCV10..JPP |
2 | ||
| 23815 - PIPE, FUEL DELIVERY, NO.2 | ||||
| 23815-20010 |
1MZFE..MCV10..JPP |
1 | ||
| Common parts | ||||
| 21821-25180 | ||||
| 90079-11021 | ||||
| 90119-06417 | ||||
| 90119-08951 | ||||
| 90179-08153 | ||||
| 90999-92002 | ||||
| 91511-B0840 | ||||
| 91641-80650 | ||||
| 91651-B0614 | ||||
| 95411-49907 | ||||
| Linked diagrams | ||||
| 8404 | ||||
