MCV10L-AEPSKA (1993)

Toyota Camry (Jpp)

Production Aug 1993 - Aug 1996
Engine 1MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9308-9608)1MZFE..JPP

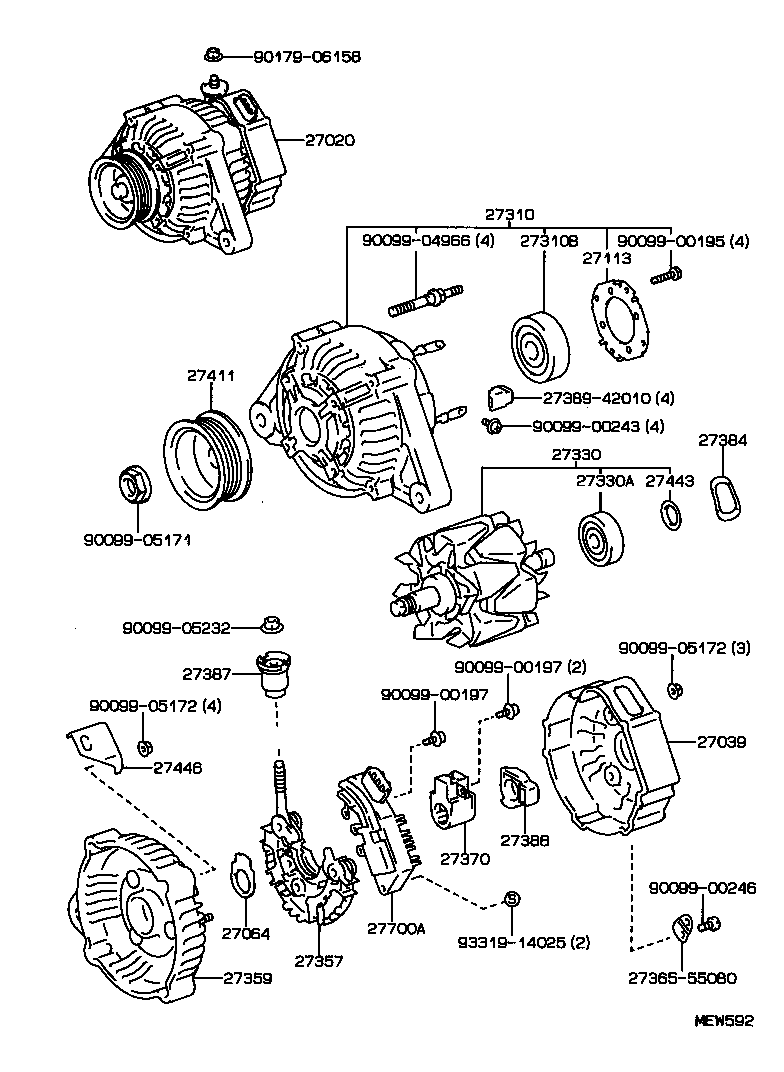

Click highlighted areas on diagram

12V 80A

diagram 27020 27039 27064 27113 27310 27310B 27330 27330A 27357 27359 2736555080 27370 27384 27387 27388 2738942010 27411 27443 27446 27700A 9009900195 9009900197 9009900197 9009900243 9009900246 9009904966 9009905171 9009905172 9009905172 9009905232 9017906158 9331914025
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-20010

1MZFE..MCV10..JPP

12V 80A

 1
27060-20020

1MZFE..MCV10..JPP

12V 80A

 1
27039 - COVER, ALTERNATOR REAR END
27039-46190

1MZFE..MCV10..JPP

 1
27039-20020

1MZFE..MCV10..JPP

 1
27064 - SEAL, ALTERNATOR PLATE
27064-42010

1MZFE,3VZFE..MCV10,VCV10..JPP

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-42010

1MZFE,3VZFE..MCV10,VCV10..JPP

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-20020

1MZFE..MCV10..JPP

 1
27310-20030

1MZFE..MCV10..JPP

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10192

1MZFE,3VZFE..MCV10,VCV10..JPP

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-72280

1MZFE..MCV10..JPP

 1
27330-76030

1MZFE,3VZFE..MCV10,VCV10..JPP

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140

1MZFE,5SFE,3VZFE..MCV10,SXV10,VCV10..JPP

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-20020

1MZFE..MCV10..JPP

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060

1MZFE,3VZFE..MCV10,VCV10..JPP

 1
27384 - WASHER
27384-50030

1MZFE,3VZFE..MCV10,VCV10..JPP

 1
27387 - INSULATOR, TERMINAL
27387-42020

1MZFE,3VZFE..MCV10,VCV10..JPP

 1
27388 - COVER, ALTERNATOR BRUSH
27388-42010

1MZFE,3VZFE..MCV10,VCV10..JPP

 1
27411 - PULLEY, ALTERNATOR
27411-20020

1MZFE..MCV10..JPP

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

1MZFE,5SFE,3VZFE..MCV10,SXV10,VCV10..JPP

 1
27446 - CLIP, ALTERNATOR CORD
27446-20020

1MZFE..MCV10..JPP

 1
27700A - REGULATOR ASSY, GENERATOR
27700-46060

1MZFE..MCV10..JPP

 1
27700-62010

1MZFE..MCV10..JPP

 1
Common parts
27365-55080
27389-42010
90099-00195
90099-00197
90099-00243
90099-00246
90099-04966
90099-05171
90099-05172
90099-05232
90179-06158
93319-14025
