MCV10L-AEPSKA (1993)

Toyota Camry (Jpp)

Production Aug 1993 - Aug 1996
Engine 1MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9308- )1MZFE..JPP

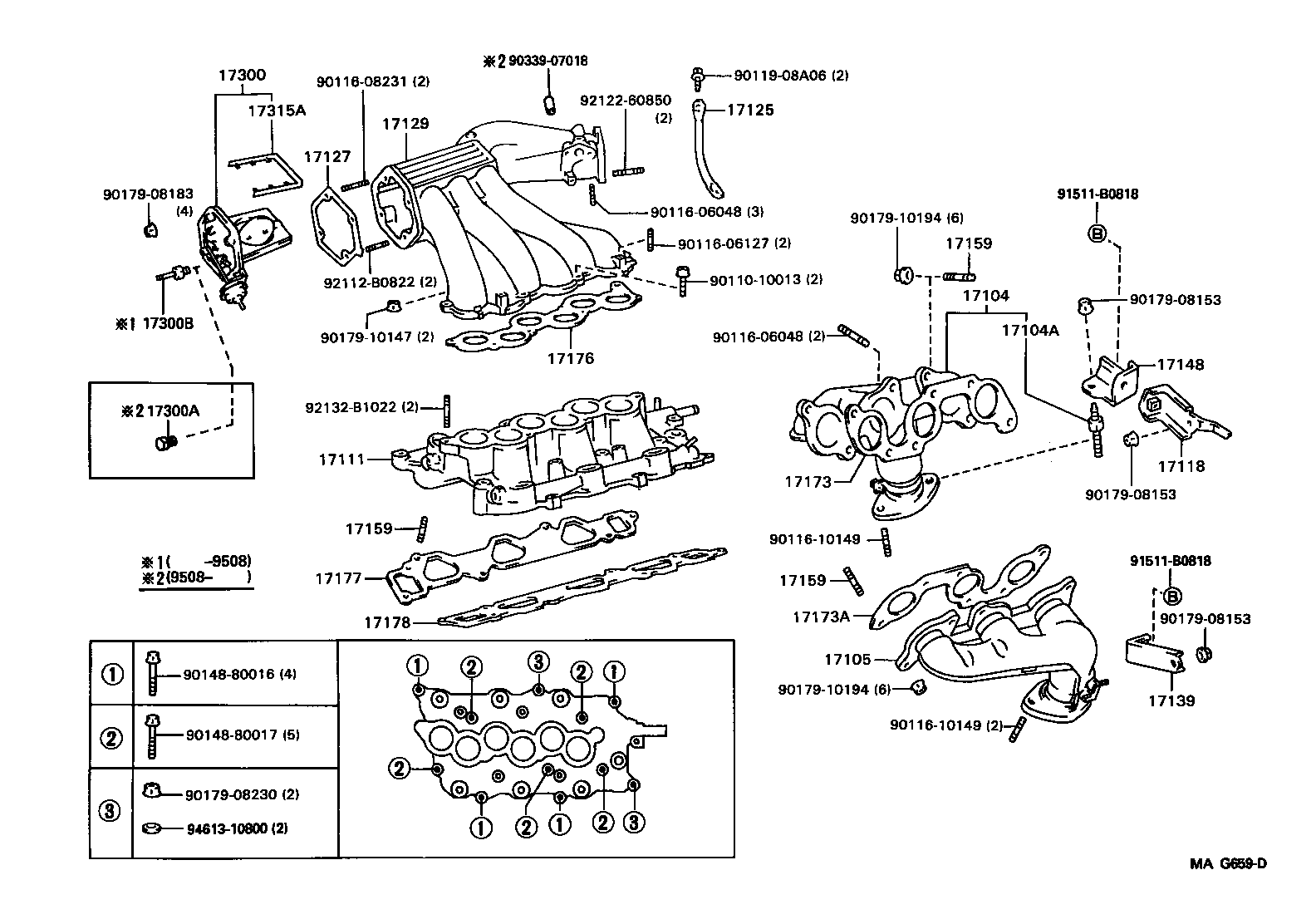

Click highlighted areas on diagram

diagram 17104 17104A 17105 17111 17118 17125 17127 17129 17139 17148 17159 17159 17159 17173 17173A 17176 17177 17178 17300 17300A 17300B 17315A 9011010013 9011606048 9011606048 9011606127 9011608231 9011610149 9011610149 9011908A06 9014880016 9014880017 9017908153 9017908153 9017908153 9017908183 9017908230 9017910147 9017910194 9017910194 9033907018 91511B0818 91511B0818 92112B0822 9212260850 92132B1022 9461310800
Part # Description Qty Price
17104 - MANIFOLD SUB-ASSY, EXHAUST, RH
17140-20010

1MZFE..MCV10..JPP

 1
17104A - BOLT(FOR FRONT PIPE & STAY)
90109-08239

1MZFE..MCV10..JPP

 1
17105 - MANIFOLD SUB-ASSY, EXHAUST, LH
17150-20010

1MZFE..MCV10..JPP

 1
17111 - MANIFOLD, INTAKE
17101-20010

1MZFE..MCV10..JPP

 1
17118 - STAY, MANIFOLD
17118-20010

1MZFE..MCV10..JPP

 1
17125 - STAY, SURGE TANK, NO.1
17125-20010

1MZFE..MCV10..JPP

 1
17127 - GASKET, SURGE TANK COVER
17127-62030

1MZFE..MCV10..JPP

 1
17129 - TANK, INTAKE AIR SURGE
17109-20010

1MZFE..MCV10..JPP

 1
17139 - STAY, MANIFOLD, NO.2
17139-20010

1MZFE..MCV10..JPP

 1
17148 - PLATE, EXHAUST MANIFOLD(FOR EGR INLET)
17148-20010

1MZFE..MCV10..JPP

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08013

1MZFE..MCV10..JPP

INTAKE SIDE

 4
90116-10169

1MZFE..MCV10..JPP

EXHAUST SIDE

 12
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08013

1MZFE..MCV10..JPP

INTAKE SIDE

 4
90116-10169

1MZFE..MCV10..JPP

EXHAUST SIDE

 12
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08013

1MZFE..MCV10..JPP

INTAKE SIDE

 4
90116-10169

1MZFE..MCV10..JPP

EXHAUST SIDE

 12
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-20010

1MZFE..MCV10..JPP

 1
17173A - GASKET, EXHAUST MANIFOLD TO HEAD, LH
17173-20010

1MZFE..MCV10..JPP

 1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-62030

1MZFE..MCV10..JPP

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-20010

1MZFE..MCV10..JPP

 1
17178 - GASKET, INTAKE MANIFOLD TO HEAD, NO.2
17178-20010

1MZFE..MCV10..JPP

 1
17300 - VALVE ASSY, INTAKE AIR CONTROL
17300-20010

1MZFE..MCV10..JPP

 1
17300A - PLUG, W/HEAD TAPER SCREW(FOR AIR CONTROL VALVE)
90345-51006

1MZFE..MCV10..JPP

 1
17300B - UNION(FOR INTAKE AIR CONTROL VALVE)
90404-51096

1MZFE..MCV10..JPP

 1
17315A - GASKET, INTAKE AIR CONTROL VALVE
17315-62020

1MZFE..MCV10..JPP

 1
Common parts
90110-10013
90116-06048
90116-06127
90116-08231
90116-10149
90119-08A06
90148-80016
90148-80017
90179-08153
90179-08183
90179-08230
90179-10147
90179-10194
90339-07018
91511-B0818
92112-B0822
92122-60850
92132-B1022
94613-10800
