MCV10L-AEPSKA (1993)
Toyota Camry (Jpp)
Production
Aug 1993
-
Aug 1996
Engine
1MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9308- )1MZFE..JPP

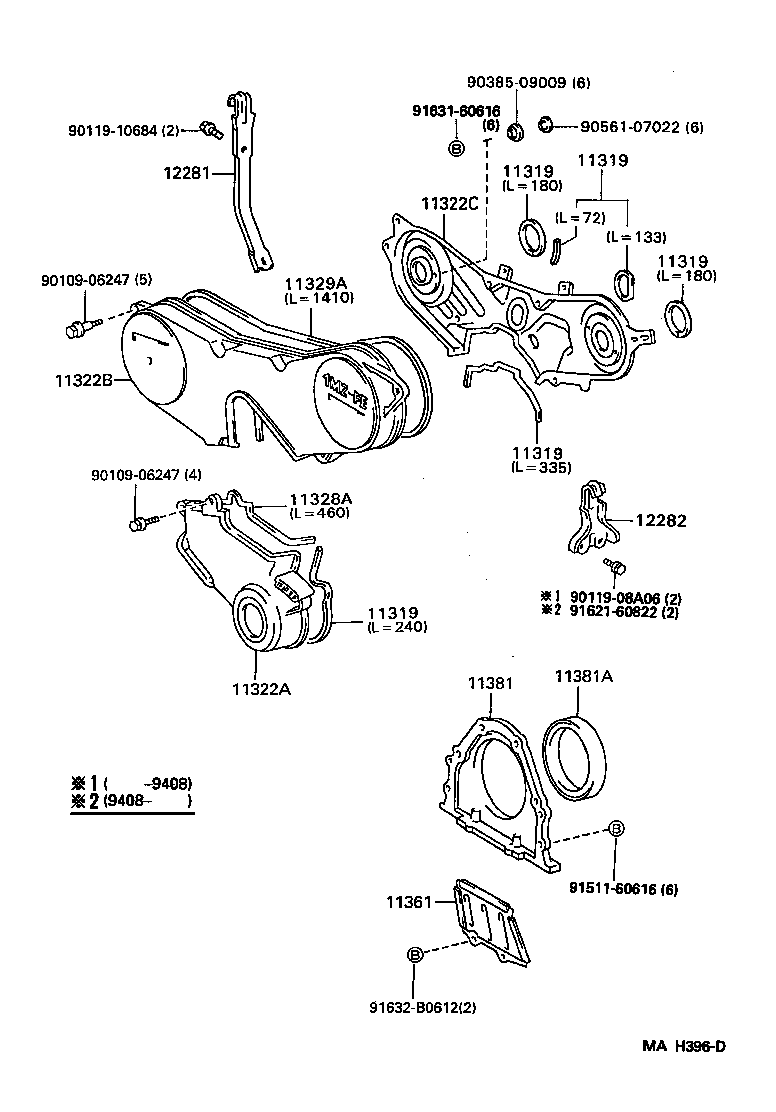

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11319 - GASKET, TIMING BELT COVER, NO.3 | ||||
| 11319-20010 |
1MZFE..MCV10..JPP |
5 | ||
| 11319 - GASKET, TIMING BELT COVER, NO.3 | ||||
| 11319-20010 |
1MZFE..MCV10..JPP |
5 | ||
| 11319 - GASKET, TIMING BELT COVER, NO.3 | ||||
| 11319-20010 |
1MZFE..MCV10..JPP |
5 | ||
| 11319 - GASKET, TIMING BELT COVER, NO.3 | ||||
| 11319-20010 |
1MZFE..MCV10..JPP |
5 | ||
| 11319 - GASKET, TIMING BELT COVER, NO.3 | ||||
| 11319-20010 |
1MZFE..MCV10..JPP |
5 | ||
| 11322A - COVER, TIMING BELT, NO.1 | ||||
| 11321-20900 |
1MZFE..MCV10..JPP |
1 | ||
| 11322B - COVER, TIMING BELT, NO.2 | ||||
| 11322-20900 |
1MZFE..MCV10..JPP |
1 | ||
| 11322-20011 |
1MZFE..MCV10..JPP |
1 | ||
| 11322C - COVER, TIMING BELT, NO.3 | ||||
| 11304-20020 |
1MZFE..MCV10..JPP |
1 | ||
| 11304-20900 |
1MZFE..MCV10..JPP |
1 | ||
| 11328A - GASKET, TIMING BELT COVER, NO.1 | ||||
| 11328-20020 |
1MZFE..MCV10..JPP |
1 | ||
| 11329A - GASKET, TIMING BELT OR CHAIN COVER, NO.2 | ||||
| 11329-20010 |
1MZFE..MCV10..JPP |
1 | ||
| 11361 - COVER, FLYWHEEL HOUSING UNDER | ||||
| 11361-20010 |
1MZFE..MCV10..JPP |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-20010 |
1MZFE..MCV10..JPP |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-92007 |
1MZFE..MCV10..JPP |
1 | ||
| 12281 - HANGER, ENGINE, NO.1 | ||||
| 12281-20020 |
1MZFE..MCV10..JPP |
1 | ||
| 12282 - HANGER, ENGINE, NO.2 | ||||
| 12282-20020 |
1MZFE..MCV10..JPP |
1 | ||
| Common parts | ||||
| 90109-06247 | ||||
| 90119-08A06 | ||||
| 90119-10684 | ||||
| 90385-09009 | ||||
| 90561-07022 | ||||
| 91511-60616 | ||||
| 91621-60822 | ||||
| 91631-60616 | ||||
| 91632-B0612 | ||||
