GSV40L-AETNKA (2006)

Toyota Camry (Jpp)

Production Jan 2006 - Jan 2009
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0601- )JPP

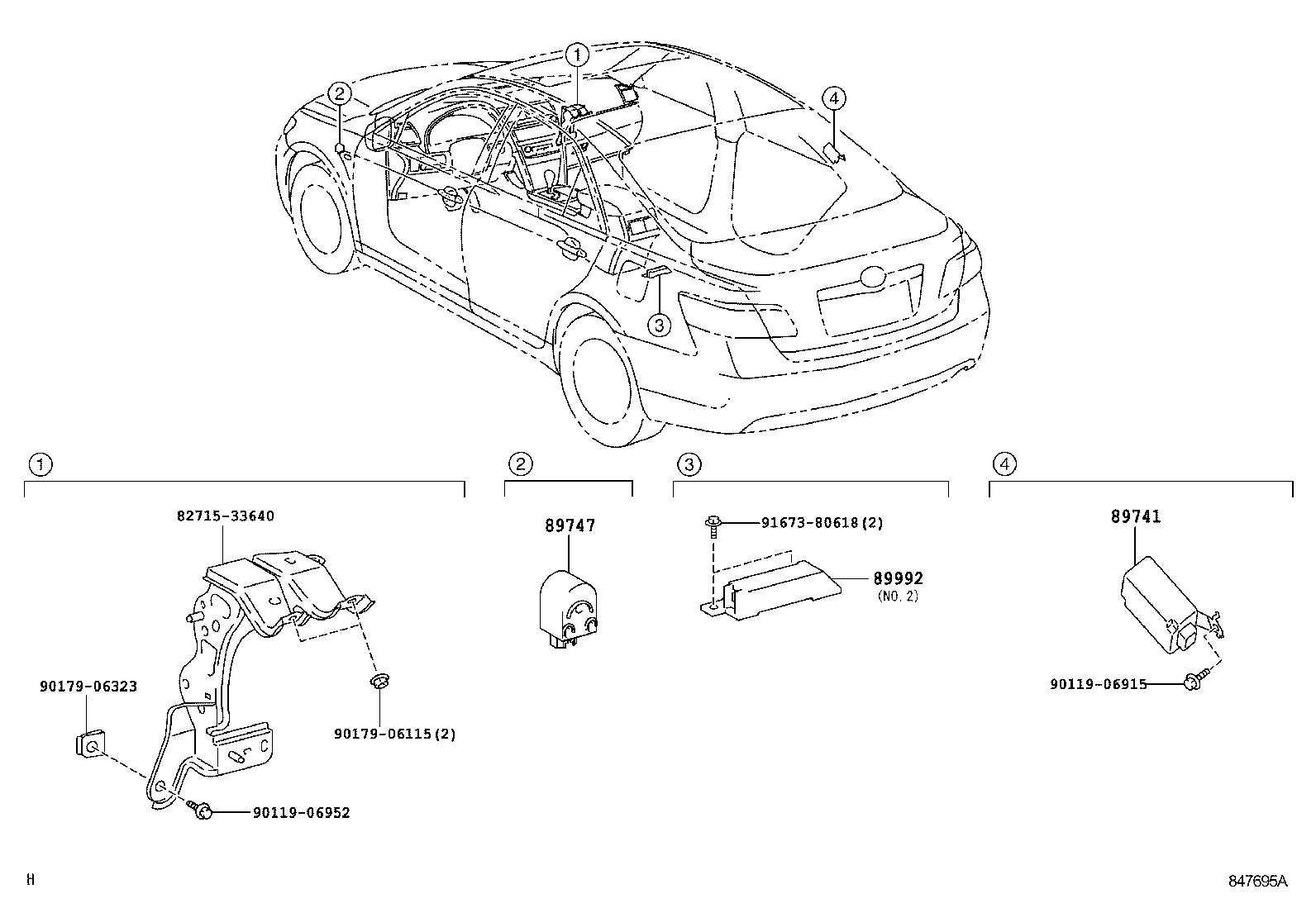

Click highlighted areas on diagram

diagram 8271533640 89741 89747 89992 9011906915 9011906952 9017906115 9017906323 9167380618
Part # Description Qty Price
89741 - RECEIVER, DOOR CONTROL
89741-33450

ACV40,GSV40..JPP

 1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-48020

ACV40,GSV40..JPP

 1
89992 - OSCILLATOR, INDOOR ELECTRICAL KEY
89992-33040

ACV40,GSV40..JPP

 1
Common parts
82715-33640
90119-06915
90119-06952
90179-06115
90179-06323
91673-80618
