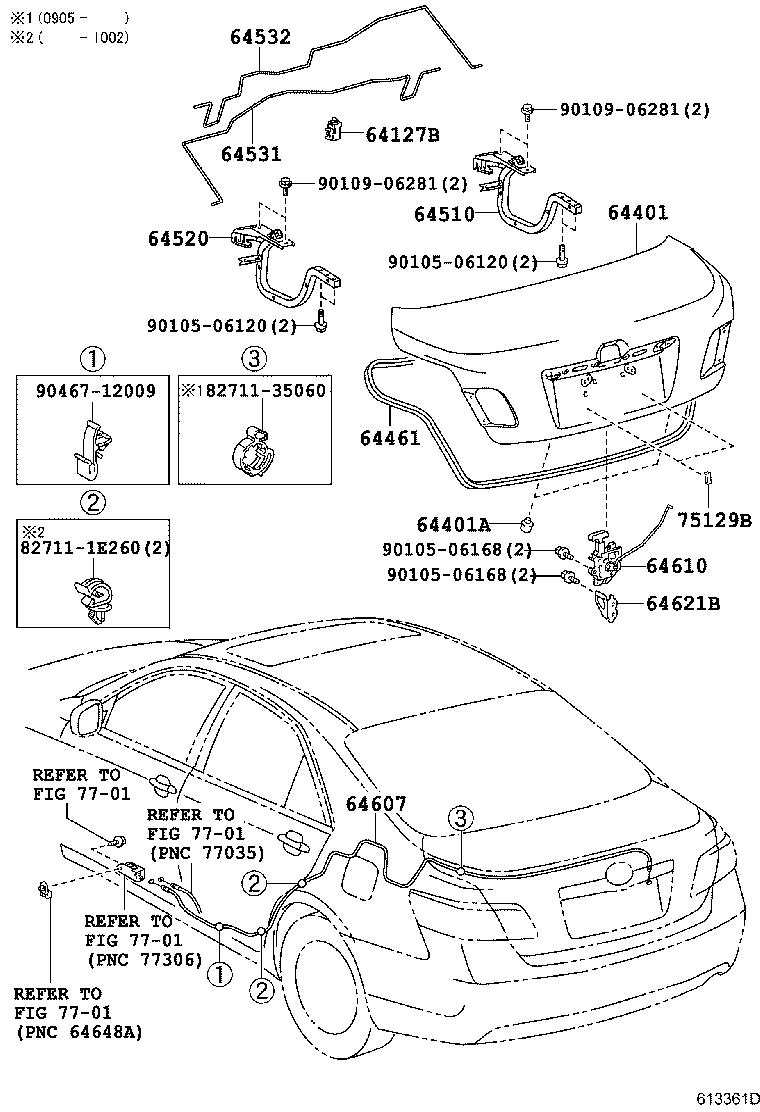

Toyota Camry (jpp) GSV40 LUGGAGE COMPARTMENT DOOR & LOCK

Part #	Description	Period	Qty
64127B - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR
64127-33041	ACV40,GSV40..JPP	01/2006 - 09/2007	1
64127-33070	ACV40,GSV40..JPP	09/2007 - 12/2008	1
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-33420	ACV40,GSV40..JPP	01/2006 - 01/2009	1
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-09116	ACV40,GSV40..JPP	01/2006 - 01/2009	2
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-33070	ACV40,GSV40..JPP	01/2006 - 01/2009	1
64510 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
64510-33060	ACV40,GSV40..JPP	04/2006 - 01/2009	1
64510-33070	ACV40,GSV40..JPP	01/2006 - 04/2006	1
64520 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH
64510-33070	ACV40,GSV40..JPP	01/2006 - 04/2006	1
64510-33060	ACV40,GSV40..JPP	04/2006 - 01/2009	1
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-33220	ACV40,GSV40..JPP	01/2006 - 01/2009	1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-33220	ACV40,GSV40..JPP	01/2006 - 01/2009	1
64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-33130	ACV40,GSV40..JPP	01/2006 - 01/2009	1
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64600-33120	ACV40,GSV40..JPP	01/2006 - 01/2009	1
64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK
64621-33010	ACV40,GSV40..JPP	01/2006 - 01/2009	1
75129B - CUSHION, REAR LICENCE PLATE
75129-13020	ACV40,GSV40..JPP	01/2006 - 01/2009	2
Common parts
82711-1E260
82711-35060
90105-06120
90105-06168
90109-06281
90467-12009
Linked diagrams
7701

GSV40L-AETNKA (2006)
