GSV40L-AETNKA (2006)
Toyota Camry (Jpp)
Production
Jan 2006
-
Jan 2009
Engine
2GRFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0601- )JPP

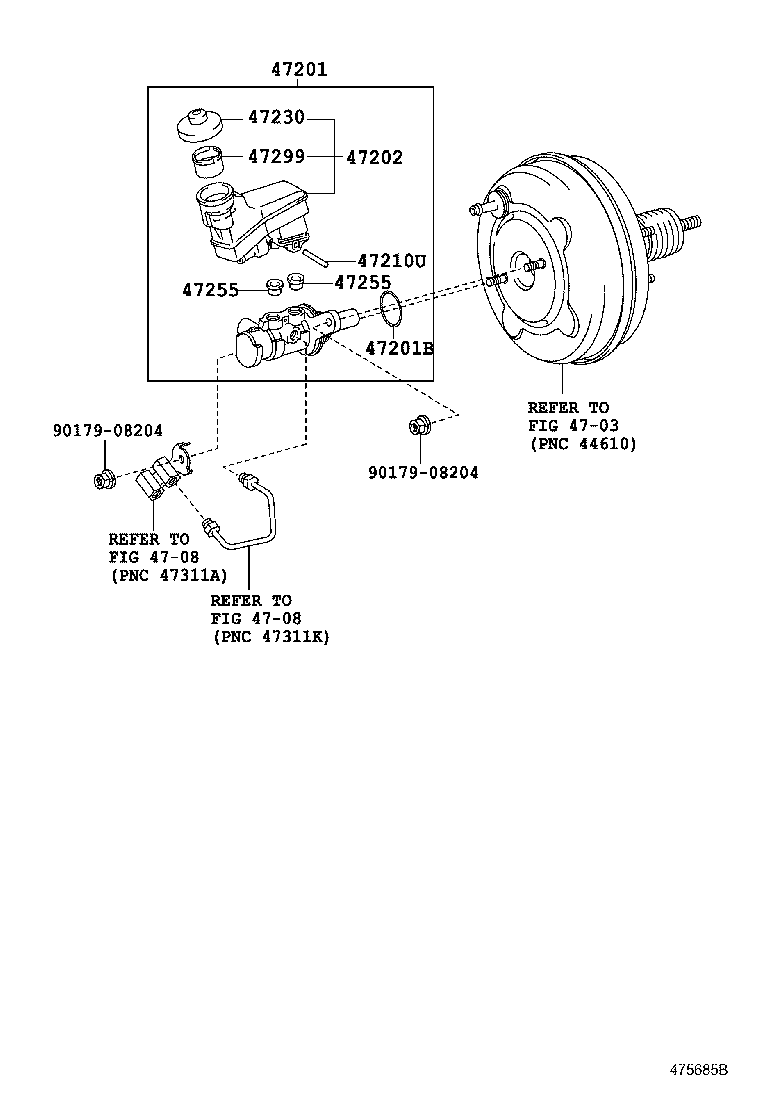

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-33470 |
ACV40,GSV40..JPP..ATM |
1 | ||
| 47201B - RING, O(FOR BRAKE MASTER CYLINDER) | ||||
| 90015-AH001 |
ACV40,GSV40..JPP |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-33060 |
ACV40,GSV40..JPP..ATM |
1 | ||
| 47210U - PIN, STRAIGHT(FOR BRAKE MASTER CYLINDER) | ||||
| 90015-AE401 |
ACV40,GSV40..JPP |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-48090 |
ACV40,GSV40..JPP |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 90015-AT001 |
ACV40,GSV40..JPP |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 90015-AT001 |
ACV40,GSV40..JPP |
2 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-52110 |
ACV40,GSV40..JPP |
1 | ||
| Common parts | ||||
| 90179-08204 | ||||
| Linked diagrams | ||||
| 4703 | ||||
| 4708 | ||||
