GSV40L-AETNKA (2006)

Toyota Camry (Jpp)

Production Jan 2006 - Jan 2009
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0601- )GSV40..JPP

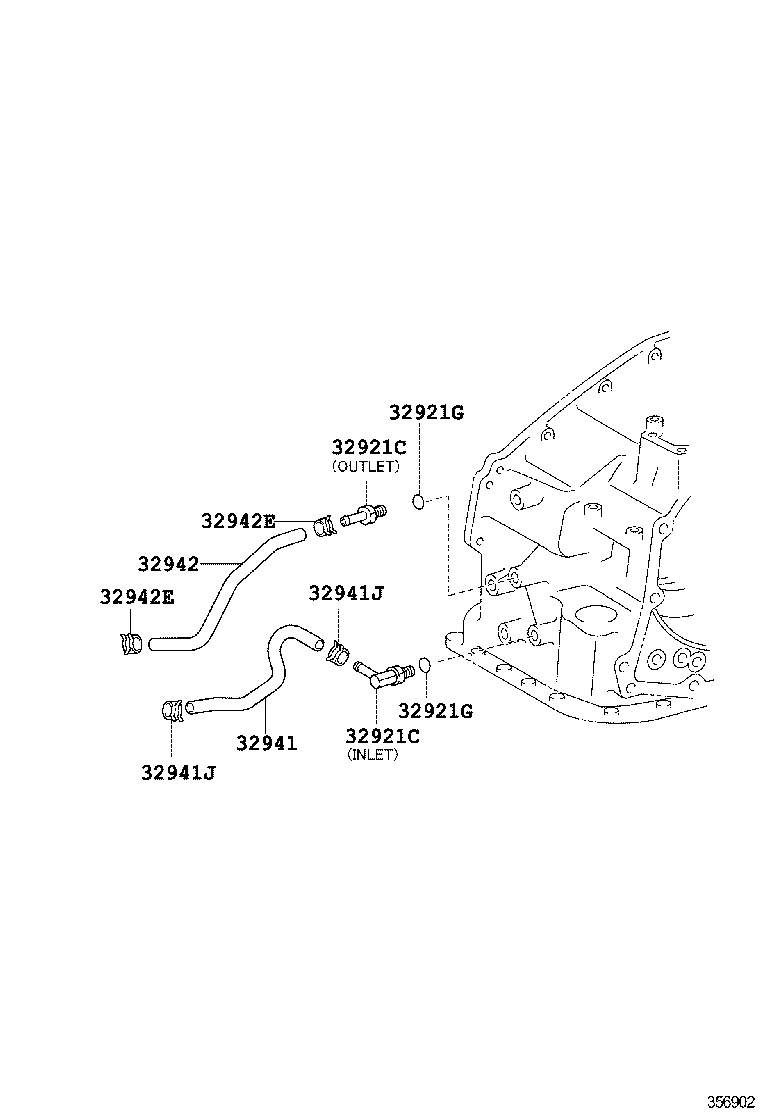

Click highlighted areas on diagram

U660E

diagram 32921C 32921C 32921G 32921G 32941 32941J 32941J 32942 32942E 32942E
Part # Description Qty Price
32921C - UNION(FOR OIL COOLER TUBE)
90404-14027

GSV40..JPP

OUTLET

 1
90407-14032

GSV40..JPP

INLET

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-14027

GSV40..JPP

OUTLET

 1
90407-14032

GSV40..JPP

INLET

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

GSV40..JPP

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

GSV40..JPP

 2
32941 - HOSE, OIL COOLER INLET, NO.1
32941-33070

GSV40..JPP

 1
32941J - CLIP, NO.1(FOR OIL COOLER HOSE)
90467-16022

GSV40..JPP

 2
32941J - CLIP, NO.1(FOR OIL COOLER HOSE)
90467-16022

GSV40..JPP

 2
32942 - HOSE, OIL COOLER OUTLET, NO.1
32942-33050

GSV40..JPP

 1
32942E - CLIP, NO.2(FOR OIL COOLER HOSE)
90467-16022

GSV40..JPP

 2
32942E - CLIP, NO.2(FOR OIL COOLER HOSE)
90467-16022

GSV40..JPP

 2
