GSV40L-AETGKA (2009)
Toyota Camry (Jpp)
Production
Jan 2009
-
Aug 2011
Engine
2GRFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0901- )JPP

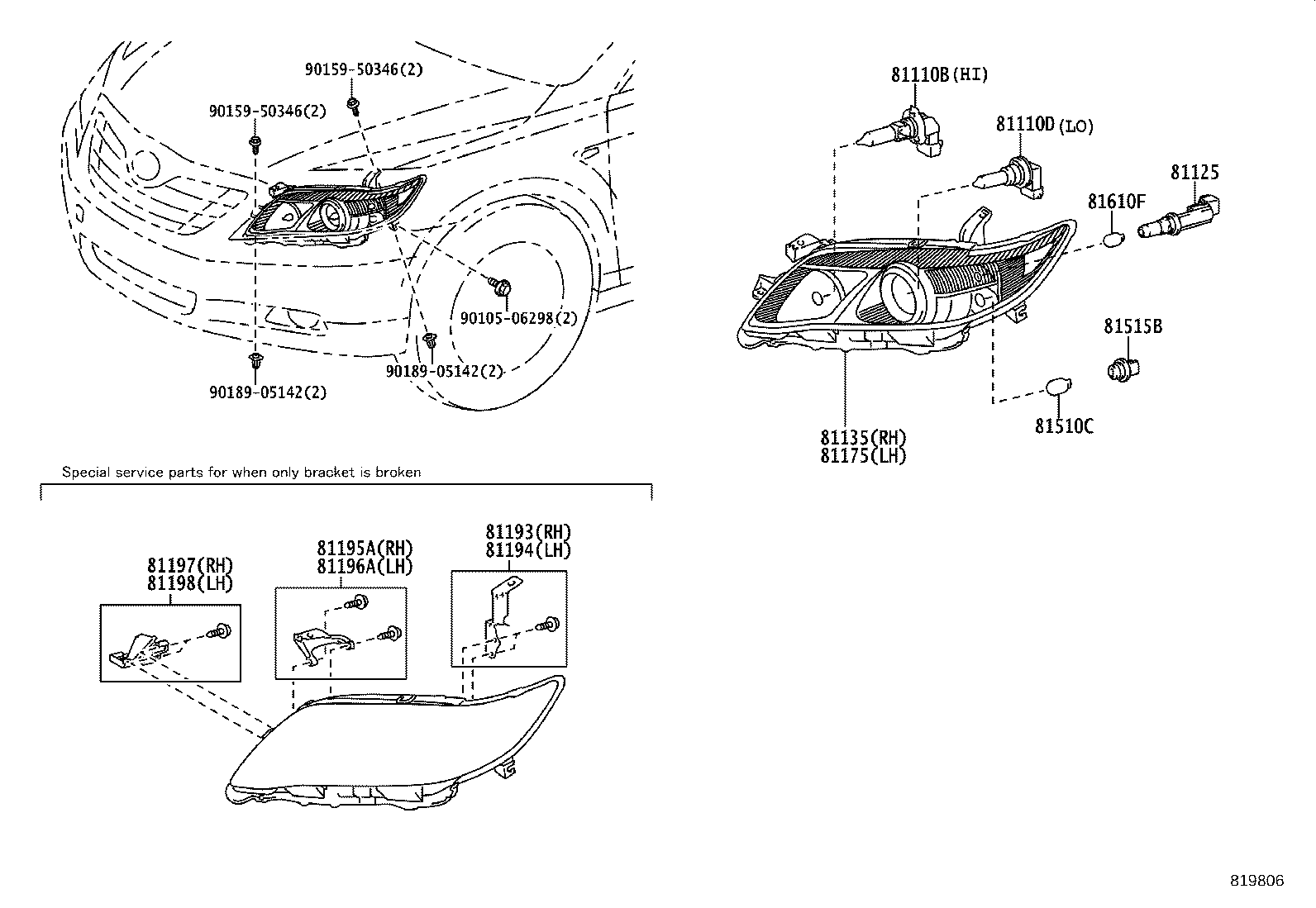

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90080-81041 |
ACV40,GSV40..JPP 12V 65W |
2 | ||
| 90981-13046 |
ASV40,GSV40..JPP 12V65W(SAE),60W(ECE) |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13075 |
ACV40,GSV40..JPP 12V 55W,HALOGEN |
2 | ||
| 90981-13085 |
ASV40,GSV40..JPP 12V 55W,HALOGEN |
2 | ||
| 81125 - CORD, HEADLAMP | ||||
| 81125-33700 |
ASV40,GSV40..JPP |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-33700 |
ASV40,GSV40..JPP |
1 | ||
| 81130-33650 |
ACV40,GSV40..JPP |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-33700 |
ASV40,GSV40..JPP |
1 | ||
| 81170-33650 |
ACV40,GSV40..JPP |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-33050 |
ACV40,GSV40..JPP |
1 | ||
| 81193-33060 |
ASV40,GSV40..JPP |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-33050 |
ACV40,GSV40..JPP |
1 | ||
| 81194-33060 |
ASV40,GSV40..JPP |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-33020 |
ACV40,GSV40..JPP |
1 | ||
| 81195-33020 |
ASV40,GSV40..JPP |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-33020 |
ACV40,GSV40..JPP |
1 | ||
| 81196-33020 |
ASV40,GSV40..JPP |
1 | ||
| 81197 - BRACKET, HEADLAMP, LOWER RH | ||||
| 81197-33010 |
ACV40,GSV40..JPP |
1 | ||
| 81197-33010 |
ASV40,GSV40..JPP |
1 | ||
| 81198 - BRACKET, HEADLAMP, LWR LH | ||||
| 81198-33010 |
ACV40,GSV40..JPP |
1 | ||
| 81198-33010 |
ASV40,GSV40..JPP |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
ASV40,GSV40..JPP 12V 21W,AMBER |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60060 |
ACV40,GSV40..JPP |
2 | ||
| 90075-60028 |
ASV40,GSV40..JPP |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 90981-15012 |
ASV40,GSV40..JPP 12V 5W |
2 | ||
| Common parts | ||||
| 90105-06298 | ||||
| 90159-50346 | ||||
| 90189-05142 | ||||
