GSV40L-AETGKA (2009)
Toyota Camry (Jpp)

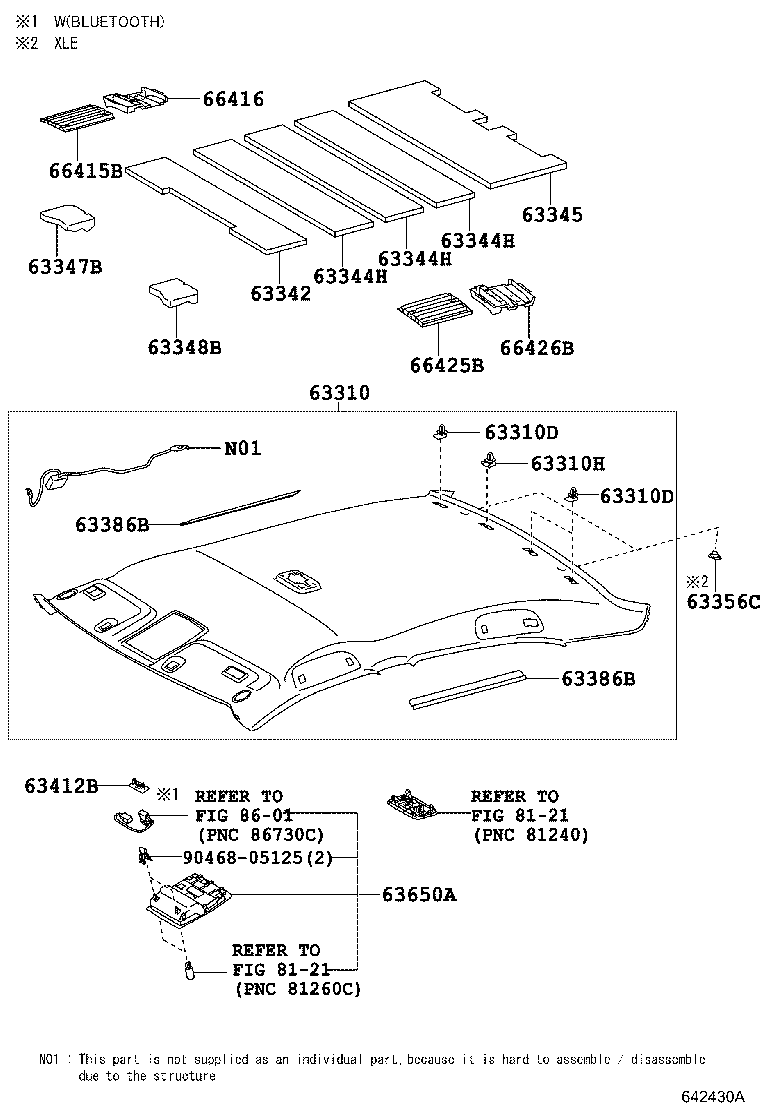

(0601-0901)JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-33570B0 |
ASV40,GSV40..JPP..LE GRAY,TRIM1# |
1 | ||
| 63310-33620B0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH,GRAY,TRIM1# |
1 | ||
| 63310-33570E0 |
ASV40,GSV40..JPP..LE GREGE,TRIM4# |
1 | ||
| 63310-33620E0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH,GREGE,TRIM4# |
1 | ||
| 63310-33630E0 |
ASV40,GSV40..JPP..XLE GREGE,TRIM4# |
1 | ||
| 63310-33630B0 |
ASV40,GSV40..JPP..XLE GRAY,TRIM1# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-09126 |
ASV40,GSV40..JPP |
3 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-09126 |
ASV40,GSV40..JPP |
3 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-10181 |
ASV40,GSV40..JPP |
1 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-33080 |
ASV40,GSV40..JPP..LE |
1 | ||
| 63344H - PAD, ROOF SILENCER, NO.4 | ||||
| 63344-33070 |
ASV40,GSV40..JPP..LE |
3 | ||
| 63344H - PAD, ROOF SILENCER, NO.4 | ||||
| 63344-33070 |
ASV40,GSV40..JPP..LE |
3 | ||
| 63344H - PAD, ROOF SILENCER, NO.4 | ||||
| 63344-33070 |
ASV40,GSV40..JPP..LE |
3 | ||
| 63344H - PAD, ROOF SILENCER, NO.4 | ||||
| 63344-33070 |
ASV40,GSV40..JPP..LE |
3 | ||
| 63344H - PAD, ROOF SILENCER, NO.4 | ||||
| 63344-33070 |
ASV40,GSV40..JPP..LE |
3 | ||
| 63347B - PAD, ROOF SIDE RAIL SILENCER, RH | ||||
| 63347-33020 |
ASV40,GSV40..JPP..LE |
1 | ||
| 63348B - PAD, ROOF SIDE RAIL SILENCER, LH | ||||
| 63348-33020 |
ASV40,GSV40..JPP..LE |
1 | ||
| 63356C - HOLDER, SUNSHADE TRIM | ||||
| 63356-22010E0 |
ASV40,GSV40..JPP..XLE GREGE,TRIM4# |
2 | ||
| 63356-22010B2 |
ASV40,GSV40..JPP..XLE GRAY,TRIM1# |
2 | ||
| 63386B - REINFORCEMENT, ROOF HEADLINING TRIM | ||||
| 63386-33010 |
ASV40,GSV40..JPP |
2 | ||
| 63386B - REINFORCEMENT, ROOF HEADLINING TRIM | ||||
| 63386-33010 |
ASV40,GSV40..JPP |
2 | ||
| 63412B - RETAINER, ROOF CONSOLE | ||||
| 63412-33010 |
ASV40,GSV40..JPP..LE |
1 | ||
| 63650A - BOX ASSY, ROOF CONSOLE | ||||
| 63650-33090E0 |
ASV40,GSV40..JPP..LE AUDIO-CD,6SPEAKER,BLUETOOTH,GREGE,TRIM4# |
1 | ||
| 63650-33120B0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH&AUDIO-6CD CHANGER,8SPEAKER,PREMIUM SYSTEM,GRAY,TRIM1# |
1 | ||
| 63650-33120B0 |
ASV40,GSV40..JPP..XLE GARAGE OPENER-WITHOUT,GRAY,TRIM1# |
1 | ||
| 63650-33110B0 |
ASV40,GSV40..JPP..LE AUDIO-6CD CHANGER,8SPEAKER,PREMIUM SYSTEM&GARAGE OPENER-WITH,GRAY,TRIM1# |
1 | ||
| 63650-33090E0 |
ASV40,GSV40..JPP..LE AUDIO-6CD CHANGER,8SPEAKER,PREMIUM SYSTEM,GREGE,TRIM4# |
1 | ||
| 63650-33120E0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH&AUDIO-CD,6SPEAKER,BLUETOOTH,GREGE,TRIM4# |
1 | ||
| 63650-33110E0 |
ASV40,GSV40..JPP..LE AUDIO-6CD CHANGER,8SPEAKER,PREMIUM SYSTEM&GARAGE OPENER-WITH,GREGE,TRIM4# |
1 | ||
| 63650-33090B0 |
ASV40,GSV40..JPP..LE AUDIO-6CD CHANGER,8SPEAKER,PREMIUM SYSTEM,GRAY,TRIM1# |
1 | ||
| 63650-33090B0 |
ASV40,GSV40..JPP..LE AUDIO-CD,6SPEAKER,BLUETOOTH,GRAY,TRIM1# |
1 | ||
| 63650-33120B0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH&AUDIO-CD,6SPEAKER,BLUETOOTH,GRAY,TRIM1# |
1 | ||
| 63650-33120E0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH&AUDIO-6CD CHANGER,8SPEAKER,PREMIUM SYSTEM,GREGE,TRIM4# |
1 | ||
| 63650-33140B0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH&AUDIO-CD,6SPEAKER,BLUETOOTH&GARAGE OPENER-WITH,GRAY,TRIM1# |
1 | ||
| 63650-33110B0 |
ASV40,GSV40..JPP..LE AUDIO-CD,6SPEAKER,BLUETOOTH&GARAGE OPENER-WITH,GRAY,TRIM1# |
1 | ||
| 63650-33110E0 |
ASV40,GSV40..JPP..LE AUDIO-CD,6SPEAKER,BLUETOOTH&GARAGE OPENER-WITH,GREGE,TRIM4# |
1 | ||
| 63650-33140E0 |
ASV40,GSV40..JPP..XLE GREGE,TRIM4# |
1 | ||
| 63650-33140E0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH&AUDIO-CD,6SPEAKER,BLUETOOTH&GARAGE OPENER-WITH,GREGE,TRIM4# |
1 | ||
| 63650-33271B0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH,GRAY,TRIM1# |
1 | ||
| 63650-33140B0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH&AUDIO-6CD CHANGER,8SPEAKER,PREMIUM SYSTEM&GARAGE OPENER-WITH,GRAY,TRIM1# |
1 | ||
| 63650-33221E0 |
ASV40,GSV40..JPP..LE GREGE,TRIM4# |
1 | ||
| 63650-33140B0 |
ASV40,GSV40..JPP..XLE GRAY,TRIM1# |
1 | ||
| 63650-33251E0 |
ASV40,GSV40..JPP..LE GARAGE OPENER-WITH,GREGE,TRIM4# |
1 | ||
| 63650-33251B0 |
ASV40,GSV40..JPP..LE GARAGE OPENER-WITH,GRAY,TRIM1# |
1 | ||
| 63650-33281B0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH&GARAGE OPENER-WITH,GRAY,TRIM1# |
1 | ||
| 63650-33271E0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH,GREGE,TRIM4# |
1 | ||
| 63650-33221B0 |
ASV40,GSV40..JPP..LE GRAY,TRIM1# |
1 | ||
| 63650-33281E0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH&GARAGE OPENER-WITH,GREGE,TRIM4# |
1 | ||
| 63650-33120E0 |
ASV40,GSV40..JPP..XLE GARAGE OPENER-WITHOUT,GREGE,TRIM4# |
1 | ||
| 63650-33140E0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH&AUDIO-6CD CHANGER,8SPEAKER,PREMIUM SYSTEM&GARAGE OPENER-WITH,GREGE,TRIM4# |
1 | ||
| 66415B - SPACER, SIDE RAIL, REAR NO.2 RH | ||||
| 66415-33030 |
ASV40,GSV40..JPP..LE |
1 | ||
| 66415-33040 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH |
1 | ||
| 66415-33040 |
ASV40,GSV40..JPP..XLE |
1 | ||
| 66416 - SPACER, SIDE RAIL, REAR NO.3 RH | ||||
| 66416-33020 |
ASV40,GSV40..JPP..LE |
1 | ||
| 66425B - SPACER, SIDE RAIL, REAR NO.2 LH | ||||
| 66415-33040 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH |
1 | ||
| 66415-33040 |
ASV40,GSV40..JPP..XLE |
1 | ||
| 66425-33030 |
ASV40,GSV40..JPP..LE |
1 | ||
| 66426B - SPACER, SIDE RAIL, REAR NO.3 LH | ||||
| 66426-33020 |
ASV40,GSV40..JPP..LE |
1 | ||
| Common parts | ||||
| 90468-05125 | None epc.PartDetail.None | |||
| Linked diagrams | ||||
| 8121 | ||||
| 8615 | ||||

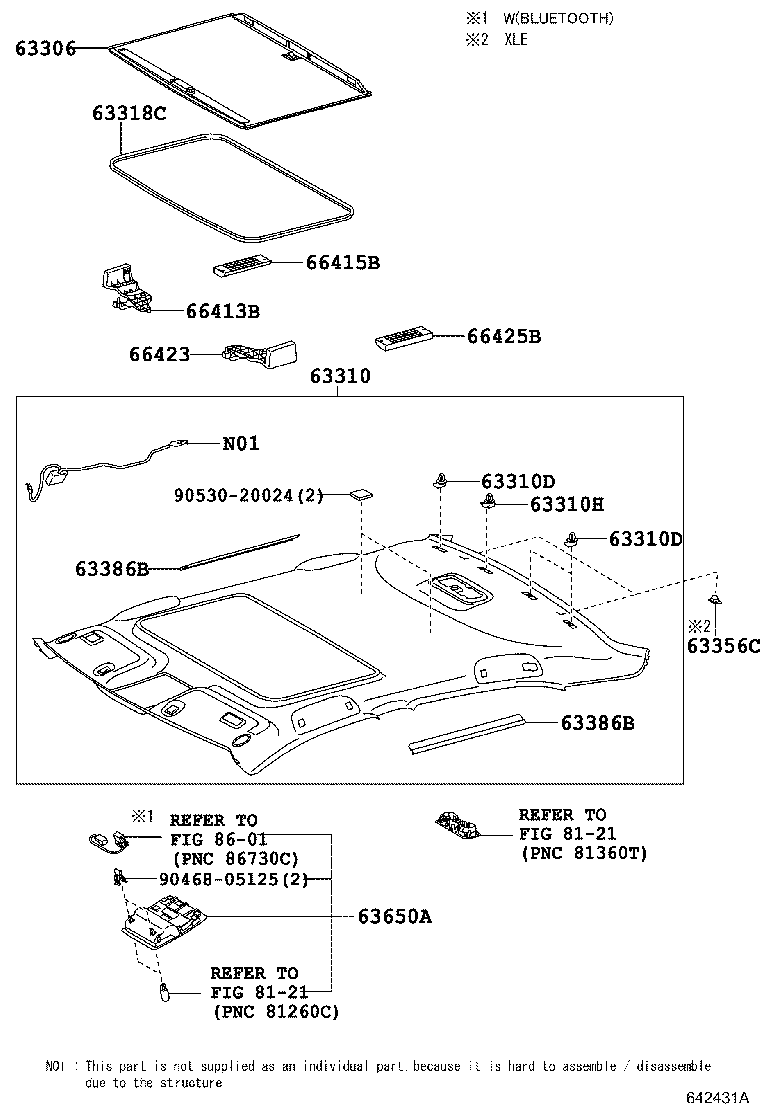

(0601-0901)JPP
W(MOON ROOF)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63306 - TRIM SUB-ASSY, SUNSHADE | ||||
| 63306-33090B0 |
ASV40,GSV40..JPP..XLE GRAY,TRIM1# |
1 | ||
| 63306-33090B0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH,GRAY,TRIM1# |
1 | ||
| 63306-33090E0 |
ASV40,GSV40..JPP..XLE GREGE,TRIM4# |
1 | ||
| 63306-33090E0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH,GREGE,TRIM4# |
1 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-33570B0 |
ASV40,GSV40..JPP..LE GRAY,TRIM1# |
1 | ||
| 63310-33620B0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH,GRAY,TRIM1# |
1 | ||
| 63310-33570E0 |
ASV40,GSV40..JPP..LE GREGE,TRIM4# |
1 | ||
| 63310-33620E0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH,GREGE,TRIM4# |
1 | ||
| 63310-33630E0 |
ASV40,GSV40..JPP..XLE GREGE,TRIM4# |
1 | ||
| 63310-33630B0 |
ASV40,GSV40..JPP..XLE GRAY,TRIM1# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-09126 |
ASV40,GSV40..JPP |
3 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-09126 |
ASV40,GSV40..JPP |
3 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-10181 |
ASV40,GSV40..JPP |
1 | ||
| 63318C - MOULDING, SUN ROOF OPENING TRIM | ||||
| 63318-33050B0 |
ASV40,GSV40..JPP..LE L=2370,MOON ROOF-WITH,GRAY,TRIM1# |
1 | ||
| 63318-33050E0 |
ASV40,GSV40..JPP..XLE L=2370,GREGE,TRIM4# |
1 | ||
| 63318-33050B0 |
ASV40,GSV40..JPP..XLE L=2370,GRAY,TRIM1# |
1 | ||
| 63318-33050E0 |
ASV40,GSV40..JPP..LE L=2370,MOON ROOF-WITH,GREGE,TRIM4# |
1 | ||
| 63356C - HOLDER, SUNSHADE TRIM | ||||
| 63356-22010E0 |
ASV40,GSV40..JPP..XLE GREGE,TRIM4# |
2 | ||
| 63356-22010B2 |
ASV40,GSV40..JPP..XLE GRAY,TRIM1# |
2 | ||
| 63386B - REINFORCEMENT, ROOF HEADLINING TRIM | ||||
| 63386-33010 |
ASV40,GSV40..JPP |
2 | ||
| 63386B - REINFORCEMENT, ROOF HEADLINING TRIM | ||||
| 63386-33010 |
ASV40,GSV40..JPP |
2 | ||
| 63650A - BOX ASSY, ROOF CONSOLE | ||||
| 63650-33090E0 |
ASV40,GSV40..JPP..LE AUDIO-CD,6SPEAKER,BLUETOOTH,GREGE,TRIM4# |
1 | ||
| 63650-33120B0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH&AUDIO-6CD CHANGER,8SPEAKER,PREMIUM SYSTEM,GRAY,TRIM1# |
1 | ||
| 63650-33120B0 |
ASV40,GSV40..JPP..XLE GARAGE OPENER-WITHOUT,GRAY,TRIM1# |
1 | ||
| 63650-33110B0 |
ASV40,GSV40..JPP..LE AUDIO-6CD CHANGER,8SPEAKER,PREMIUM SYSTEM&GARAGE OPENER-WITH,GRAY,TRIM1# |
1 | ||
| 63650-33090E0 |
ASV40,GSV40..JPP..LE AUDIO-6CD CHANGER,8SPEAKER,PREMIUM SYSTEM,GREGE,TRIM4# |
1 | ||
| 63650-33120E0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH&AUDIO-CD,6SPEAKER,BLUETOOTH,GREGE,TRIM4# |
1 | ||
| 63650-33110E0 |
ASV40,GSV40..JPP..LE AUDIO-6CD CHANGER,8SPEAKER,PREMIUM SYSTEM&GARAGE OPENER-WITH,GREGE,TRIM4# |
1 | ||
| 63650-33090B0 |
ASV40,GSV40..JPP..LE AUDIO-6CD CHANGER,8SPEAKER,PREMIUM SYSTEM,GRAY,TRIM1# |
1 | ||
| 63650-33090B0 |
ASV40,GSV40..JPP..LE AUDIO-CD,6SPEAKER,BLUETOOTH,GRAY,TRIM1# |
1 | ||
| 63650-33120B0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH&AUDIO-CD,6SPEAKER,BLUETOOTH,GRAY,TRIM1# |
1 | ||
| 63650-33120E0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH&AUDIO-6CD CHANGER,8SPEAKER,PREMIUM SYSTEM,GREGE,TRIM4# |
1 | ||
| 63650-33140B0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH&AUDIO-CD,6SPEAKER,BLUETOOTH&GARAGE OPENER-WITH,GRAY,TRIM1# |
1 | ||
| 63650-33110B0 |
ASV40,GSV40..JPP..LE AUDIO-CD,6SPEAKER,BLUETOOTH&GARAGE OPENER-WITH,GRAY,TRIM1# |
1 | ||
| 63650-33110E0 |
ASV40,GSV40..JPP..LE AUDIO-CD,6SPEAKER,BLUETOOTH&GARAGE OPENER-WITH,GREGE,TRIM4# |
1 | ||
| 63650-33140E0 |
ASV40,GSV40..JPP..XLE GREGE,TRIM4# |
1 | ||
| 63650-33140E0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH&AUDIO-CD,6SPEAKER,BLUETOOTH&GARAGE OPENER-WITH,GREGE,TRIM4# |
1 | ||
| 63650-33271B0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH,GRAY,TRIM1# |
1 | ||
| 63650-33140B0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH&AUDIO-6CD CHANGER,8SPEAKER,PREMIUM SYSTEM&GARAGE OPENER-WITH,GRAY,TRIM1# |
1 | ||
| 63650-33221E0 |
ASV40,GSV40..JPP..LE GREGE,TRIM4# |
1 | ||
| 63650-33140B0 |
ASV40,GSV40..JPP..XLE GRAY,TRIM1# |
1 | ||
| 63650-33251E0 |
ASV40,GSV40..JPP..LE GARAGE OPENER-WITH,GREGE,TRIM4# |
1 | ||
| 63650-33251B0 |
ASV40,GSV40..JPP..LE GARAGE OPENER-WITH,GRAY,TRIM1# |
1 | ||
| 63650-33281B0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH&GARAGE OPENER-WITH,GRAY,TRIM1# |
1 | ||
| 63650-33271E0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH,GREGE,TRIM4# |
1 | ||
| 63650-33221B0 |
ASV40,GSV40..JPP..LE GRAY,TRIM1# |
1 | ||
| 63650-33281E0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH&GARAGE OPENER-WITH,GREGE,TRIM4# |
1 | ||
| 63650-33120E0 |
ASV40,GSV40..JPP..XLE GARAGE OPENER-WITHOUT,GREGE,TRIM4# |
1 | ||
| 63650-33140E0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH&AUDIO-6CD CHANGER,8SPEAKER,PREMIUM SYSTEM&GARAGE OPENER-WITH,GREGE,TRIM4# |
1 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-33050 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH |
1 | ||
| 66413-33050 |
ASV40,GSV40..JPP..XLE |
1 | ||
| 66415B - SPACER, SIDE RAIL, REAR NO.2 RH | ||||
| 66415-33030 |
ASV40,GSV40..JPP..LE |
1 | ||
| 66415-33040 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH |
1 | ||
| 66415-33040 |
ASV40,GSV40..JPP..XLE |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-33050 |
ASV40,GSV40..JPP..XLE |
1 | ||
| 66423-33050 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH |
1 | ||
| 66425B - SPACER, SIDE RAIL, REAR NO.2 LH | ||||
| 66415-33040 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH |
1 | ||
| 66415-33040 |
ASV40,GSV40..JPP..XLE |
1 | ||
| 66425-33030 |
ASV40,GSV40..JPP..LE |
1 | ||
| Common parts | ||||
| 90468-05125 | None epc.PartDetail.None | |||
| 90530-20024 | None epc.PartDetail.None | |||
| Linked diagrams | ||||
| 8121 | ||||
| 8615 | ||||
(0901- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-33570B0 |
ASV40,GSV40..JPP..LE GRAY,TRIM1# |
1 | ||
| 63310-33620B0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH,GRAY,TRIM1# |
1 | ||
| 63310-33570E0 |
ASV40,GSV40..JPP..LE GREGE,TRIM4# |
1 | ||
| 63310-33620E0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH,GREGE,TRIM4# |
1 | ||
| 63310-33630E0 |
ASV40,GSV40..JPP..XLE GREGE,TRIM4# |
1 | ||
| 63310-33630B0 |
ASV40,GSV40..JPP..XLE GRAY,TRIM1# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-09126 |
ASV40,GSV40..JPP |
3 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-09126 |
ASV40,GSV40..JPP |
3 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-10181 |
ASV40,GSV40..JPP |
1 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-33080 |
ASV40,GSV40..JPP..LE |
1 | ||
| 63344H - PAD, ROOF SILENCER, NO.4 | ||||
| 63344-33070 |
ASV40,GSV40..JPP..LE |
3 | ||
| 63344H - PAD, ROOF SILENCER, NO.4 | ||||
| 63344-33070 |
ASV40,GSV40..JPP..LE |
3 | ||
| 63344H - PAD, ROOF SILENCER, NO.4 | ||||
| 63344-33070 |
ASV40,GSV40..JPP..LE |
3 | ||
| 63345 - PAD, ROOF SILENCER, NO.5 | ||||
| 63345-33060 |
ASV40,GSV40..JPP..LE |
1 | ||
| 63347B - PAD, ROOF SIDE RAIL SILENCER, RH | ||||
| 63347-33020 |
ASV40,GSV40..JPP..LE |
1 | ||
| 63348B - PAD, ROOF SIDE RAIL SILENCER, LH | ||||
| 63348-33020 |
ASV40,GSV40..JPP..LE |
1 | ||
| 63356C - HOLDER, SUNSHADE TRIM | ||||
| 63356-22010E0 |
ASV40,GSV40..JPP..XLE GREGE,TRIM4# |
2 | ||
| 63356-22010B2 |
ASV40,GSV40..JPP..XLE GRAY,TRIM1# |
2 | ||
| 63386B - REINFORCEMENT, ROOF HEADLINING TRIM | ||||
| 63386-33010 |
ASV40,GSV40..JPP |
2 | ||
| 63386B - REINFORCEMENT, ROOF HEADLINING TRIM | ||||
| 63386-33010 |
ASV40,GSV40..JPP |
2 | ||
| 63412B - RETAINER, ROOF CONSOLE | ||||
| 63412-33010 |
ASV40,GSV40..JPP..LE |
1 | ||
| 63650A - BOX ASSY, ROOF CONSOLE | ||||
| 63650-33090E0 |
ASV40,GSV40..JPP..LE AUDIO-CD,6SPEAKER,BLUETOOTH,GREGE,TRIM4# |
1 | ||
| 63650-33120B0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH&AUDIO-6CD CHANGER,8SPEAKER,PREMIUM SYSTEM,GRAY,TRIM1# |
1 | ||
| 63650-33120B0 |
ASV40,GSV40..JPP..XLE GARAGE OPENER-WITHOUT,GRAY,TRIM1# |
1 | ||
| 63650-33110B0 |
ASV40,GSV40..JPP..LE AUDIO-6CD CHANGER,8SPEAKER,PREMIUM SYSTEM&GARAGE OPENER-WITH,GRAY,TRIM1# |
1 | ||
| 63650-33090E0 |
ASV40,GSV40..JPP..LE AUDIO-6CD CHANGER,8SPEAKER,PREMIUM SYSTEM,GREGE,TRIM4# |
1 | ||
| 63650-33120E0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH&AUDIO-CD,6SPEAKER,BLUETOOTH,GREGE,TRIM4# |
1 | ||
| 63650-33110E0 |
ASV40,GSV40..JPP..LE AUDIO-6CD CHANGER,8SPEAKER,PREMIUM SYSTEM&GARAGE OPENER-WITH,GREGE,TRIM4# |
1 | ||
| 63650-33090B0 |
ASV40,GSV40..JPP..LE AUDIO-6CD CHANGER,8SPEAKER,PREMIUM SYSTEM,GRAY,TRIM1# |
1 | ||
| 63650-33090B0 |
ASV40,GSV40..JPP..LE AUDIO-CD,6SPEAKER,BLUETOOTH,GRAY,TRIM1# |
1 | ||
| 63650-33120B0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH&AUDIO-CD,6SPEAKER,BLUETOOTH,GRAY,TRIM1# |
1 | ||
| 63650-33120E0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH&AUDIO-6CD CHANGER,8SPEAKER,PREMIUM SYSTEM,GREGE,TRIM4# |
1 | ||
| 63650-33140B0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH&AUDIO-CD,6SPEAKER,BLUETOOTH&GARAGE OPENER-WITH,GRAY,TRIM1# |
1 | ||
| 63650-33110B0 |
ASV40,GSV40..JPP..LE AUDIO-CD,6SPEAKER,BLUETOOTH&GARAGE OPENER-WITH,GRAY,TRIM1# |
1 | ||
| 63650-33110E0 |
ASV40,GSV40..JPP..LE AUDIO-CD,6SPEAKER,BLUETOOTH&GARAGE OPENER-WITH,GREGE,TRIM4# |
1 | ||
| 63650-33140E0 |
ASV40,GSV40..JPP..XLE GREGE,TRIM4# |
1 | ||
| 63650-33140E0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH&AUDIO-CD,6SPEAKER,BLUETOOTH&GARAGE OPENER-WITH,GREGE,TRIM4# |
1 | ||
| 63650-33271B0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH,GRAY,TRIM1# |
1 | ||
| 63650-33140B0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH&AUDIO-6CD CHANGER,8SPEAKER,PREMIUM SYSTEM&GARAGE OPENER-WITH,GRAY,TRIM1# |
1 | ||
| 63650-33221E0 |
ASV40,GSV40..JPP..LE GREGE,TRIM4# |
1 | ||
| 63650-33140B0 |
ASV40,GSV40..JPP..XLE GRAY,TRIM1# |
1 | ||
| 63650-33251E0 |
ASV40,GSV40..JPP..LE GARAGE OPENER-WITH,GREGE,TRIM4# |
1 | ||
| 63650-33251B0 |
ASV40,GSV40..JPP..LE GARAGE OPENER-WITH,GRAY,TRIM1# |
1 | ||
| 63650-33281B0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH&GARAGE OPENER-WITH,GRAY,TRIM1# |
1 | ||
| 63650-33271E0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH,GREGE,TRIM4# |
1 | ||
| 63650-33221B0 |
ASV40,GSV40..JPP..LE GRAY,TRIM1# |
1 | ||
| 63650-33281E0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH&GARAGE OPENER-WITH,GREGE,TRIM4# |
1 | ||
| 63650-33120E0 |
ASV40,GSV40..JPP..XLE GARAGE OPENER-WITHOUT,GREGE,TRIM4# |
1 | ||
| 63650-33140E0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH&AUDIO-6CD CHANGER,8SPEAKER,PREMIUM SYSTEM&GARAGE OPENER-WITH,GREGE,TRIM4# |
1 | ||
| 66415B - SPACER, SIDE RAIL, REAR NO.2 RH | ||||
| 66415-33030 |
ASV40,GSV40..JPP..LE |
1 | ||
| 66415-33040 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH |
1 | ||
| 66415-33040 |
ASV40,GSV40..JPP..XLE |
1 | ||
| 66416 - SPACER, SIDE RAIL, REAR NO.3 RH | ||||
| 66416-33020 |
ASV40,GSV40..JPP..LE |
1 | ||
| 66425B - SPACER, SIDE RAIL, REAR NO.2 LH | ||||
| 66415-33040 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH |
1 | ||
| 66415-33040 |
ASV40,GSV40..JPP..XLE |
1 | ||
| 66425-33030 |
ASV40,GSV40..JPP..LE |
1 | ||
| 66426B - SPACER, SIDE RAIL, REAR NO.3 LH | ||||
| 66426-33020 |
ASV40,GSV40..JPP..LE |
1 | ||
| Common parts | ||||
| 90468-05125 | None epc.PartDetail.None | |||
| Linked diagrams | ||||
| 8121 | ||||
| 8601 | ||||
(0901- )JPP
W(MOON ROOF)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63306 - TRIM SUB-ASSY, SUNSHADE | ||||
| 63306-33090B0 |
ASV40,GSV40..JPP..XLE GRAY,TRIM1# |
1 | ||
| 63306-33090B0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH,GRAY,TRIM1# |
1 | ||
| 63306-33090E0 |
ASV40,GSV40..JPP..XLE GREGE,TRIM4# |
1 | ||
| 63306-33090E0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH,GREGE,TRIM4# |
1 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-33570B0 |
ASV40,GSV40..JPP..LE GRAY,TRIM1# |
1 | ||
| 63310-33620B0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH,GRAY,TRIM1# |
1 | ||
| 63310-33570E0 |
ASV40,GSV40..JPP..LE GREGE,TRIM4# |
1 | ||
| 63310-33620E0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH,GREGE,TRIM4# |
1 | ||
| 63310-33630E0 |
ASV40,GSV40..JPP..XLE GREGE,TRIM4# |
1 | ||
| 63310-33630B0 |
ASV40,GSV40..JPP..XLE GRAY,TRIM1# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-09126 |
ASV40,GSV40..JPP |
3 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-09126 |
ASV40,GSV40..JPP |
3 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-10181 |
ASV40,GSV40..JPP |
1 | ||
| 63318C - MOULDING, SUN ROOF OPENING TRIM | ||||
| 63318-33050B0 |
ASV40,GSV40..JPP..LE L=2370,MOON ROOF-WITH,GRAY,TRIM1# |
1 | ||
| 63318-33050E0 |
ASV40,GSV40..JPP..XLE L=2370,GREGE,TRIM4# |
1 | ||
| 63318-33050B0 |
ASV40,GSV40..JPP..XLE L=2370,GRAY,TRIM1# |
1 | ||
| 63318-33050E0 |
ASV40,GSV40..JPP..LE L=2370,MOON ROOF-WITH,GREGE,TRIM4# |
1 | ||
| 63356C - HOLDER, SUNSHADE TRIM | ||||
| 63356-22010E0 |
ASV40,GSV40..JPP..XLE GREGE,TRIM4# |
2 | ||
| 63356-22010B2 |
ASV40,GSV40..JPP..XLE GRAY,TRIM1# |
2 | ||
| 63386B - REINFORCEMENT, ROOF HEADLINING TRIM | ||||
| 63386-33010 |
ASV40,GSV40..JPP |
2 | ||
| 63386B - REINFORCEMENT, ROOF HEADLINING TRIM | ||||
| 63386-33010 |
ASV40,GSV40..JPP |
2 | ||
| 63650A - BOX ASSY, ROOF CONSOLE | ||||
| 63650-33090E0 |
ASV40,GSV40..JPP..LE AUDIO-CD,6SPEAKER,BLUETOOTH,GREGE,TRIM4# |
1 | ||
| 63650-33120B0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH&AUDIO-6CD CHANGER,8SPEAKER,PREMIUM SYSTEM,GRAY,TRIM1# |
1 | ||
| 63650-33120B0 |
ASV40,GSV40..JPP..XLE GARAGE OPENER-WITHOUT,GRAY,TRIM1# |
1 | ||
| 63650-33110B0 |
ASV40,GSV40..JPP..LE AUDIO-6CD CHANGER,8SPEAKER,PREMIUM SYSTEM&GARAGE OPENER-WITH,GRAY,TRIM1# |
1 | ||
| 63650-33090E0 |
ASV40,GSV40..JPP..LE AUDIO-6CD CHANGER,8SPEAKER,PREMIUM SYSTEM,GREGE,TRIM4# |
1 | ||
| 63650-33120E0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH&AUDIO-CD,6SPEAKER,BLUETOOTH,GREGE,TRIM4# |
1 | ||
| 63650-33110E0 |
ASV40,GSV40..JPP..LE AUDIO-6CD CHANGER,8SPEAKER,PREMIUM SYSTEM&GARAGE OPENER-WITH,GREGE,TRIM4# |
1 | ||
| 63650-33090B0 |
ASV40,GSV40..JPP..LE AUDIO-6CD CHANGER,8SPEAKER,PREMIUM SYSTEM,GRAY,TRIM1# |
1 | ||
| 63650-33090B0 |
ASV40,GSV40..JPP..LE AUDIO-CD,6SPEAKER,BLUETOOTH,GRAY,TRIM1# |
1 | ||
| 63650-33120B0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH&AUDIO-CD,6SPEAKER,BLUETOOTH,GRAY,TRIM1# |
1 | ||
| 63650-33120E0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH&AUDIO-6CD CHANGER,8SPEAKER,PREMIUM SYSTEM,GREGE,TRIM4# |
1 | ||
| 63650-33140B0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH&AUDIO-CD,6SPEAKER,BLUETOOTH&GARAGE OPENER-WITH,GRAY,TRIM1# |
1 | ||
| 63650-33110B0 |
ASV40,GSV40..JPP..LE AUDIO-CD,6SPEAKER,BLUETOOTH&GARAGE OPENER-WITH,GRAY,TRIM1# |
1 | ||
| 63650-33110E0 |
ASV40,GSV40..JPP..LE AUDIO-CD,6SPEAKER,BLUETOOTH&GARAGE OPENER-WITH,GREGE,TRIM4# |
1 | ||
| 63650-33140E0 |
ASV40,GSV40..JPP..XLE GREGE,TRIM4# |
1 | ||
| 63650-33140E0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH&AUDIO-CD,6SPEAKER,BLUETOOTH&GARAGE OPENER-WITH,GREGE,TRIM4# |
1 | ||
| 63650-33271B0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH,GRAY,TRIM1# |
1 | ||
| 63650-33140B0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH&AUDIO-6CD CHANGER,8SPEAKER,PREMIUM SYSTEM&GARAGE OPENER-WITH,GRAY,TRIM1# |
1 | ||
| 63650-33221E0 |
ASV40,GSV40..JPP..LE GREGE,TRIM4# |
1 | ||
| 63650-33140B0 |
ASV40,GSV40..JPP..XLE GRAY,TRIM1# |
1 | ||
| 63650-33251E0 |
ASV40,GSV40..JPP..LE GARAGE OPENER-WITH,GREGE,TRIM4# |
1 | ||
| 63650-33251B0 |
ASV40,GSV40..JPP..LE GARAGE OPENER-WITH,GRAY,TRIM1# |
1 | ||
| 63650-33281B0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH&GARAGE OPENER-WITH,GRAY,TRIM1# |
1 | ||
| 63650-33271E0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH,GREGE,TRIM4# |
1 | ||
| 63650-33221B0 |
ASV40,GSV40..JPP..LE GRAY,TRIM1# |
1 | ||
| 63650-33281E0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH&GARAGE OPENER-WITH,GREGE,TRIM4# |
1 | ||
| 63650-33120E0 |
ASV40,GSV40..JPP..XLE GARAGE OPENER-WITHOUT,GREGE,TRIM4# |
1 | ||
| 63650-33140E0 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH&AUDIO-6CD CHANGER,8SPEAKER,PREMIUM SYSTEM&GARAGE OPENER-WITH,GREGE,TRIM4# |
1 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-33050 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH |
1 | ||
| 66413-33050 |
ASV40,GSV40..JPP..XLE |
1 | ||
| 66415B - SPACER, SIDE RAIL, REAR NO.2 RH | ||||
| 66415-33030 |
ASV40,GSV40..JPP..LE |
1 | ||
| 66415-33040 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH |
1 | ||
| 66415-33040 |
ASV40,GSV40..JPP..XLE |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-33050 |
ASV40,GSV40..JPP..XLE |
1 | ||
| 66423-33050 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH |
1 | ||
| 66425B - SPACER, SIDE RAIL, REAR NO.2 LH | ||||
| 66415-33040 |
ASV40,GSV40..JPP..LE MOON ROOF-WITH |
1 | ||
| 66415-33040 |
ASV40,GSV40..JPP..XLE |
1 | ||
| 66425-33030 |
ASV40,GSV40..JPP..LE |
1 | ||
| Common parts | ||||
| 90468-05125 | None epc.PartDetail.None | |||
| 90530-20024 | None epc.PartDetail.None | |||
| Linked diagrams | ||||
| 8121 | ||||
| 8601 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
