GSV40L-AETGKA (2006)
Toyota Camry (Jpp)

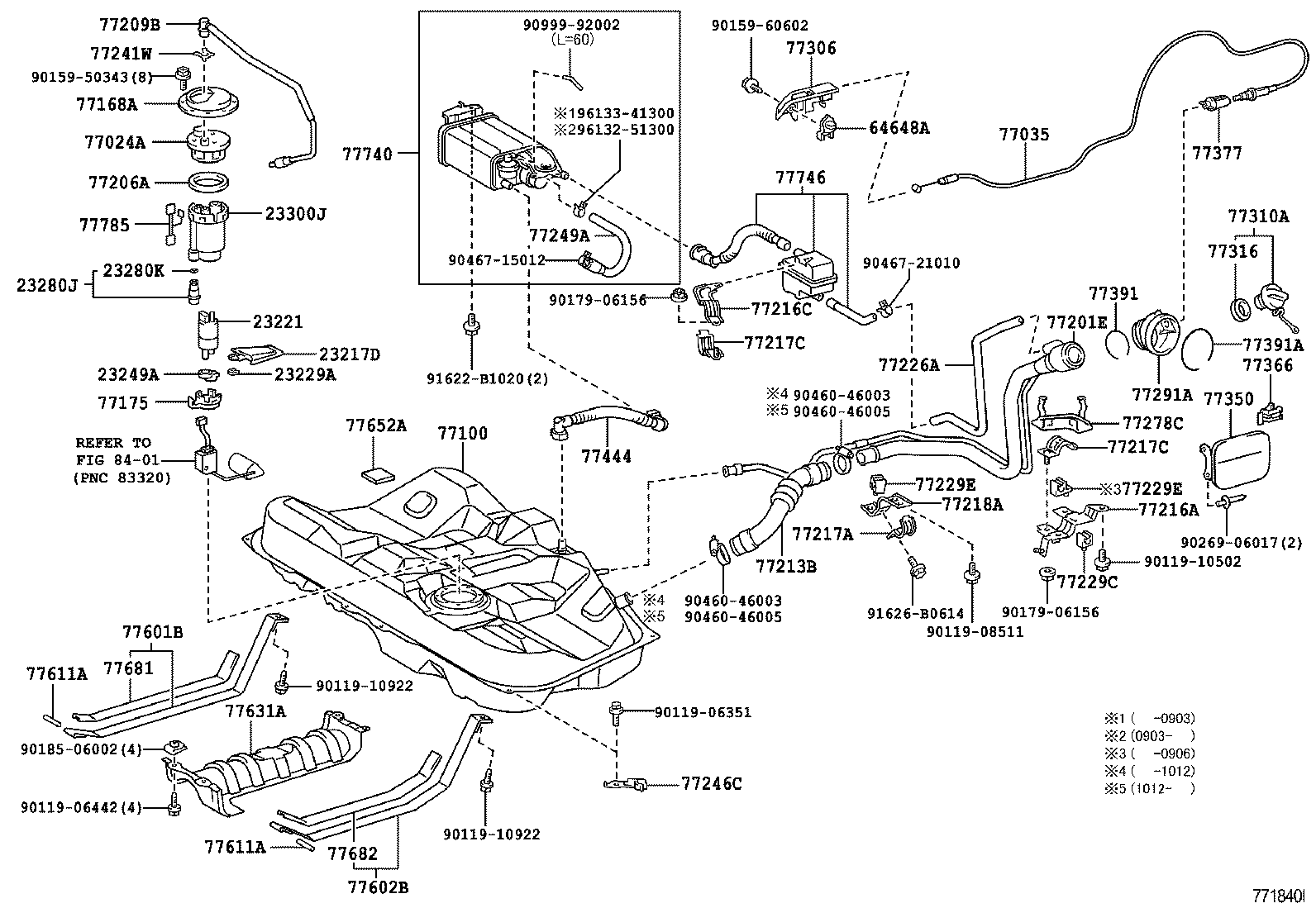

ILLUST NO. 1 OF 2(0601- )GSV40..JPP
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23217D - FILTER, FUEL PUMP | ||||
| 23217-0C010 |
2GRFE..GSV40..JPP |
1 | ||
| 23221 - PUMP, FUEL | ||||
| 23221-0A040 |
2GRFE..GSV40..JPP |
1 | ||
| 23229A - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23219-03010 |
2GRFE..GSV40..JPP |
1 | ||
| 23249A - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-46180 |
2GRFE..GSV40..JPP |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-20060 |
2GRFE..GSV40..JPP |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07020 |
2GRFE..GSV40..JPP |
1 | ||
| 23300J - FILTER ASSY, FUEL | ||||
| 23300-21010 |
2GRFE..GSV40..JPP |
1 | ||
| 64648A - GROMMET, LUGGAGE DOOR LOCK OPENER | ||||
| 64648-12020 |
ACV40,GSV40..JPP |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-33030 |
GSV40..JPP |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-33130 |
ACV40,GSV40..JPP |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-33192 |
ACV40,GSV40..JPP |
1 | ||
| 77001-33190 |
ACV40,GSV40..JPP |
1 | ||
| 77001-33191 |
ACV40,GSV40..JPP |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-33050 |
ACV40,GSV40..JPP |
1 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-33020 |
GSV40..JPP |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-33271 |
ACV40,GSV40..JPP |
1 | ||
| 77201-33270 |
ACV40,GSV40..JPP |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-33020 |
GSV40..JPP |
1 | ||
| 77209B - TUBE SUB-ASSY, FUEL PUMP | ||||
| 77209-33070 |
ACV40,GSV40..JPP |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-33100 |
ACV40,GSV40..JPP |
1 | ||
| 77213-33100 |
ACV40,GSV40..JPP |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-33020 |
ACV40,GSV40..JPP |
1 | ||
| 77216-33020 |
ACV40,GSV40..JPP |
1 | ||
| 77216C - SUPPORT, FUEL TANK FILLER PIPE NO.3 | ||||
| 77216-33070 |
ACV40,GSV40..JPP |
1 | ||
| 77216-33070 |
ACV40,GSV40..JPP |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-33030 |
ACV40,GSV40..JPP |
1 | ||
| 77217-33030 |
ACV40,GSV40..JPP |
1 | ||
| 77217C - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-33020 |
ACV40,GSV40..JPP |
2 | ||
| 77217-33020 |
ACV40,GSV40..JPP |
2 | ||
| 77217C - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-33020 |
ACV40,GSV40..JPP |
2 | ||
| 77217-33020 |
ACV40,GSV40..JPP |
2 | ||
| 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77218-33061 |
ACV40,GSV40..JPP |
1 | ||
| 77218-33060 |
ACV40,GSV40..JPP |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-33030 |
ACV40,GSV40..JPP |
1 | ||
| 77226-33030 |
ACV40,GSV40..JPP |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-33070 |
ACV40,GSV40..JPP |
1 | ||
| 77229-33070 |
ACV40,GSV40..JPP |
1 | ||
| 77229E - CLAMP, BREATHER TUBE | ||||
| 77229-33060 |
ACV40,GSV40..JPP |
2 | ||
| 77229E - CLAMP, BREATHER TUBE | ||||
| 77229-33060 |
ACV40,GSV40..JPP |
2 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
ACV40,GSV40..JPP |
1 | ||
| 77246C - SUPPORT, FUEL MAIN TUBE | ||||
| 77246-33020 |
ACV40,GSV40..JPP |
1 | ||
| 77249A - HOSE, FUEL EMISSION | ||||
| 77249-33070 |
ACV40,GSV40..JPP |
1 | ||
| 77278C - PROTECTOR, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77278-33020 |
ACV40,GSV40..JPP |
1 | ||
| 77278-33020 |
ACV40,GSV40..JPP |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-33060 |
ACV40,GSV40..JPP |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 64606-33030 |
ACV40,GSV40..JPP |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-52040 |
ACV40,GSV40..JPP |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52020 |
ACV40,GSV40..JPP |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-33180 |
ACV40,GSV40..JPP |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-33030 |
ACV40,GSV40..JPP |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-35010 |
ACV40,GSV40..JPP |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
ACV40,GSV40..JPP |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-33030 |
ACV40,GSV40..JPP |
1 | ||
| 77444 - HOSE, FUEL TANK VENT | ||||
| 77404-33060 |
ACV40,GSV40..JPP |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-33040 |
ACV40,GSV40..JPP |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-33050 |
ACV40,GSV40..JPP |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90250-08019 |
ACV40,GSV40..JPP |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90250-08019 |
ACV40,GSV40..JPP |
2 | ||
| 77631A - PROTECTOR, FUEL TANK, LOWER CENTER | ||||
| 77631-33041 |
ACV40,GSV40..JPP |
1 | ||
| 77631-33040 |
ACV40,GSV40..JPP |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-33020 |
ACV40,GSV40..JPP |
7 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-32060 |
ACV40,GSV40..JPP |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-32060 |
ACV40,GSV40..JPP |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-33170 |
ACV40,GSV40..JPP |
1 | ||
| 77746 - FILTER, CHARCOAL CANISTER, NO.2 | ||||
| 77706-33040 |
ACV40,GSV40..JPP |
1 | ||
| 77706-33040 |
ACV40,GSV40..JPP |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-52020 |
GSV40..JPP |
1 | ||
| Common parts | ||||
| 90119-06351 | ||||
| 90119-06442 | ||||
| 90119-08511 | ||||
| 90119-10502 | ||||
| 90119-10922 | ||||
| 90159-50343 | ||||
| 90159-60602 | ||||
| 90179-06156 | ||||
| 90185-06002 | ||||
| 90269-06017 | ||||
| 90460-46003 | ||||
| 90460-46005 | ||||
| 90467-15012 | ||||
| 90467-21010 | ||||
| 91622-B1020 | ||||
| 91626-B0614 | ||||
| 96132-51300 | ||||
| 96133-41300 | ||||
| Linked diagrams | ||||
| 8401 | ||||

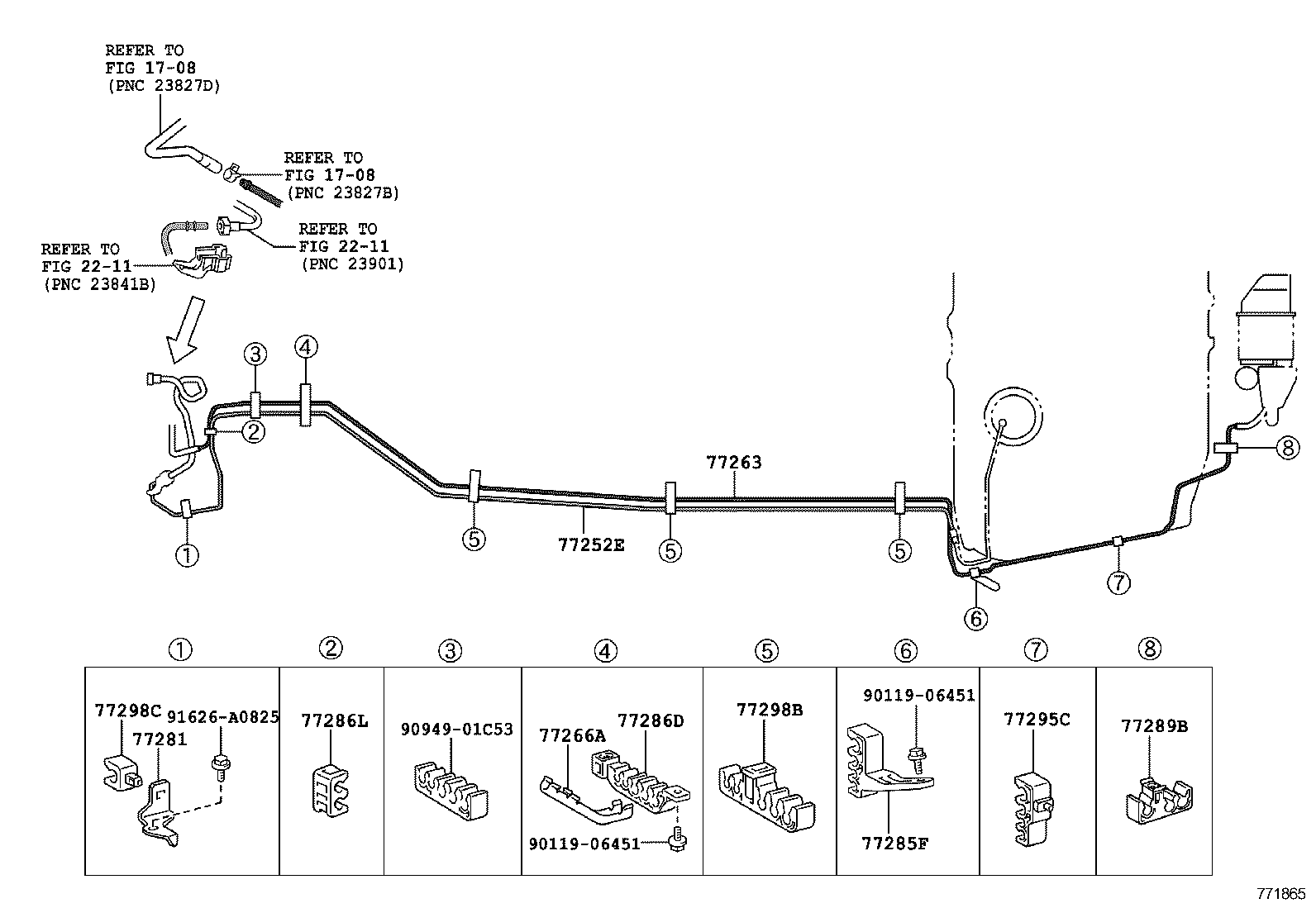

ILLUST NO. 2 OF 2(0601- )GSV40..JPP
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77252E - TUBE, FUEL MAIN, NO.2 (FOR FRONT FUEL MAIN) | ||||
| 77251-33150 |
ACV40,GSV40..JPP |
1 | ||
| 77263 - TUBE, FUEL TANK TO CANISTER, NO.3 | ||||
| 77261-33140 |
ACV40,GSV40..JPP |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-33041 |
ACV40,GSV40..JPP |
1 | ||
| 77281 - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-33030 |
ACV40,GSV40..JPP |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77299-33040 |
ACV40,GSV40..JPP |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-33040 |
ACV40,GSV40..JPP |
1 | ||
| 77286L - CLAMP, FUEL TUBE, NO.5 | ||||
| 77285-42110 |
ACV40,GSV40..JPP |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-33050 |
ACV40,GSV40..JPP |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-33020 |
ACV40,GSV40..JPP |
1 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-20110 |
ACV40,GSV40..JPP |
3 | ||
| 77298C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-30170 |
ACV40,GSV40..JPP |
1 | ||
| Common parts | ||||
| 90119-06451 | ||||
| 90949-01C53 | ||||
| 91626-A0825 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
