GSV40L-AETGKA (2006)
Toyota Camry (Jpp)
(0601- )JPP

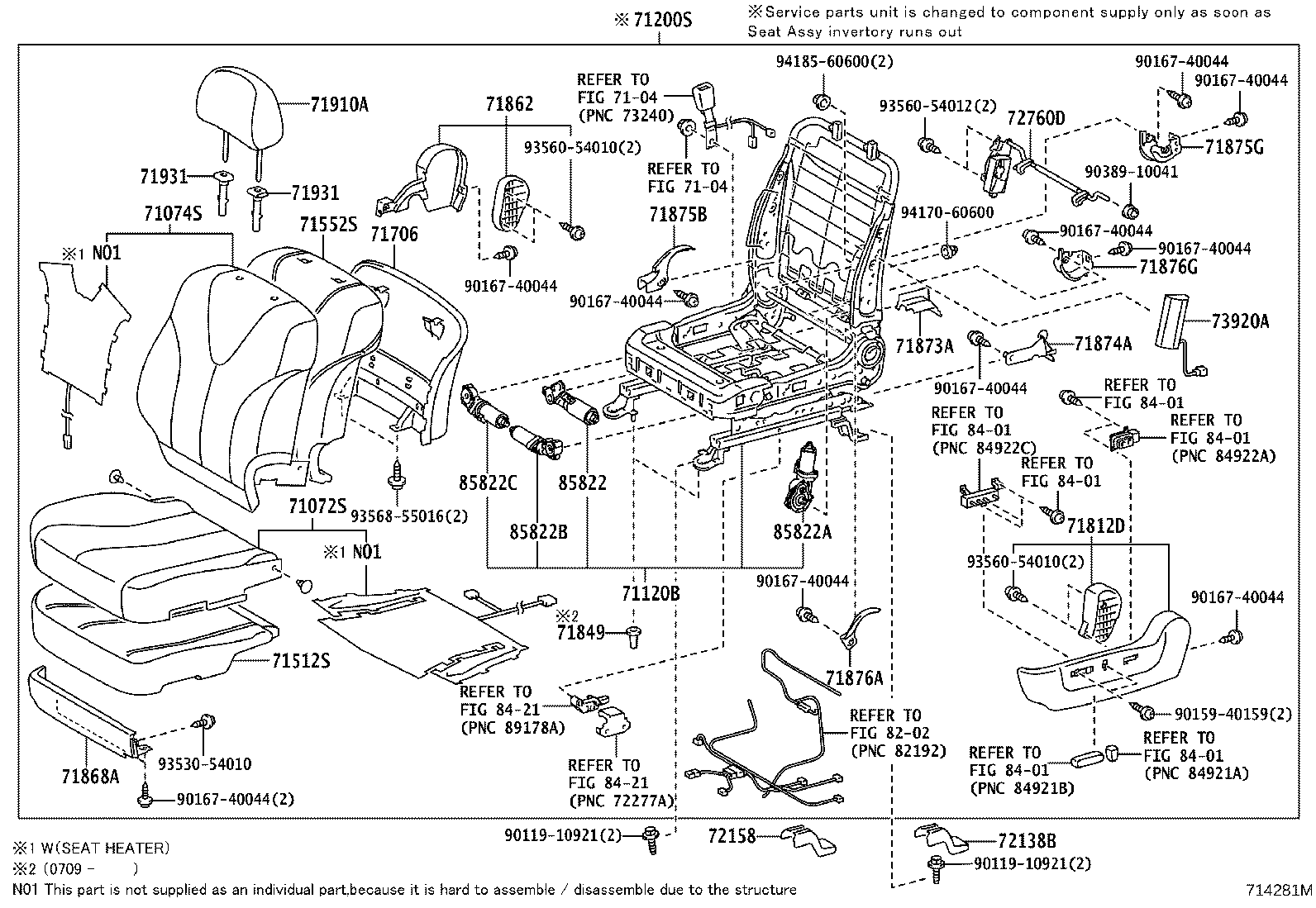

DRIVER SEAT(POWER SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-33E30B1 |
GSV40..JPP..XLE SEAT HEATER-WITH,MD. GRAY,TRIM1# |
1 | ||
| 71072-33E30E1 |
GSV40..JPP..XLE SEAT HEATER-WITH,GREGE,TRIM4# |
1 | ||
| 71072-33E31E1 |
GSV40..JPP..XLE SEAT HEATER-WITH,GREGE,TRIM4# |
1 | ||
| 71072-33E20B1 |
GSV40..JPP..XLE MD. GRAY,TRIM1# |
1 | ||
| 71072-33E20E1 |
GSV40..JPP..XLE GREGE,TRIM4# |
1 | ||
| 71072-33E00B4 |
ACV40,GSV40..JPP..LE MD. GRAY,TRIM1# |
1 | ||
| 71072-33E00E2 |
ACV40,GSV40..JPP..LE GREGE,TRIM4# |
1 | ||
| 71072-33E31B1 |
GSV40..JPP..XLE SEAT HEATER-WITH,GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-33B40B4 |
ACV40,GSV40..JPP..LE MD. GRAY,TRIM1# |
1 | ||
| 71074-33G60B1 |
GSV40..JPP..XLE SEAT HEATER-WITH,MD. GRAY,TRIM1# |
1 | ||
| 71074-33B70B1 |
GSV40..JPP..XLE MD. GRAY,TRIM1# |
1 | ||
| 71074-33G60E1 |
GSV40..JPP..XLE SEAT HEATER-WITH,GREGE,TRIM4# |
1 | ||
| 71074-33B40E2 |
ACV40,GSV40..JPP..LE GREGE,TRIM4# |
1 | ||
| 71074-33G61E1 |
GSV40..JPP..XLE SEAT HEATER-WITH,GREGE,TRIM4# |
1 | ||
| 71074-33G61B1 |
GSV40..JPP..XLE SEAT HEATER-WITH,GRAY,TRIM1# |
1 | ||
| 71074-33B70E1 |
GSV40..JPP..XLE GREGE,TRIM4# |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-33230 |
ACV40,GSV40..JPP..(5F,6FC) |
1 | ||
| 71120-33231 |
ACV40,GSV40..JPP..(5F,6FC) |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-33G80E2 |
GSV40..JPP..XLE SEAT HEATER-WITH,GREGE,TRIM4# |
1 | ||
| 71200-33G80B2 |
GSV40..JPP..XLE SEAT HEATER-WITH,MD.GRAY,TRIM1# |
1 | ||
| 71200-33G50B6 |
ACV40,GSV40..JPP..(5F,6FC)..LE GRAY,TRIM1# |
1 | ||
| 71200-33G50E3 |
ACV40,GSV40..JPP..(5F,6FC)..LE GREGE,TRIM4# |
1 | ||
| 71200-33G50B8 |
ACV40,GSV40..JPP..(5F,6FC)..LE GRAY,TRIM1# |
1 | ||
| 71200-33G50E5 |
ACV40,GSV40..JPP..(5F,6FC)..LE GREGE,TRIM4# |
1 | ||
| 71200-33G70B2 |
GSV40..JPP..XLE MD.GRAY,TRIM1# |
1 | ||
| 71200-33G70E5 |
GSV40..JPP..XLE GREGE,TRIM4# |
1 | ||
| 71200-33G80B5 |
GSV40..JPP..XLE SEAT HEATER-WITH,GRAY,TRIM1# |
1 | ||
| 71200-33G70B5 |
GSV40..JPP..XLE GRAY,TRIM1# |
1 | ||
| 71200-33G80E5 |
GSV40..JPP..XLE SEAT HEATER-WITH,GREGE,TRIM4# |
1 | ||
| 71200-33G81E0 |
GSV40..JPP..XLE SEAT HEATER-WITH,GREGE,TRIM4# |
1 | ||
| 71200-33G51B0 |
ACV40,GSV40..JPP..(5F,6FC)..LE GRAY,TRIM1# |
1 | ||
| 71200-33G71B0 |
GSV40..JPP..XLE GRAY,TRIM1# |
1 | ||
| 71200-33G51E0 |
ACV40,GSV40..JPP..(5F,6FC)..LE GREGE,TRIM4# |
1 | ||
| 71200-33G71E0 |
GSV40..JPP..XLE GREGE,TRIM4# |
1 | ||
| 71200-33G51B1 |
ACV40,GSV40..JPP..(5F,6FC)..LE GRAY,TRIM1# |
1 | ||
| 71200-33G51E1 |
ACV40,GSV40..JPP..(5F,6FC)..LE GREGE,TRIM4# |
1 | ||
| 71200-33G82E1 |
GSV40..JPP..XLE SEAT HEATER-WITH,GREGE,TRIM4# |
1 | ||
| 71200-33G81B0 |
GSV40..JPP..XLE SEAT HEATER-WITH,GRAY,TRIM1# |
1 | ||
| 71200-33G82B1 |
GSV40..JPP..XLE SEAT HEATER-WITH,GRAY,TRIM1# |
1 | ||
| 71200-33G71E1 |
GSV40..JPP..XLE GREGE,TRIM4# |
1 | ||
| 71200-33G71B1 |
GSV40..JPP..XLE GRAY,TRIM1# |
1 | ||
| 71200-33G52B0 |
ACV40,GSV40..JPP..(5F,6FC)..LE GRAY,TRIM1# |
1 | ||
| 71200-33G52E0 |
ACV40,GSV40..JPP..(5F,6FC)..LE GREGE,TRIM4# |
1 | ||
| 71200-33G72B0 |
GSV40..JPP..XLE GRAY,TRIM1# |
1 | ||
| 71200-33G83B0 |
GSV40..JPP..XLE SEAT HEATER-WITH,GRAY,TRIM1# |
1 | ||
| 71200-33G83E0 |
GSV40..JPP..XLE SEAT HEATER-WITH,GREGE,TRIM4# |
1 | ||
| 71200-33G72E0 |
GSV40..JPP..XLE GREGE,TRIM4# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-33210 |
ACV40,GSV40..JPP |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-33160 |
ACV40,GSV40..JPP |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71706-33030E0 |
ACV40,GSV40..JPP GREGE,TRIM4# |
1 | ||
| 71706-33030B1 |
ACV40,GSV40..JPP GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-33250B1 |
ACV40,GSV40..JPP GRAY,TRIM1# |
1 | ||
| 71812-33250E0 |
ACV40,GSV40..JPP GREGE,TRIM4# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-33010 |
ACV40,GSV40..JPP |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-33120B1 |
ACV40,GSV40..JPP GRAY,TRIM1# |
1 | ||
| 71862-33120E0 |
ACV40,GSV40..JPP GREGE,TRIM4# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-33050B1 |
ACV40,GSV40..JPP GRAY,TRIM1# |
1 | ||
| 71868-33050E0 |
ACV40,GSV40..JPP GREGE,TRIM4# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-33070B0 |
ACV40,GSV40..JPP GRAY,TRIM1# |
1 | ||
| 71873-33070E0 |
ACV40,GSV40..JPP GREGE,TRIM4# |
1 | ||
| 71873-33070 |
ACV40,GSV40..JPP |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-30020 |
ACV40,GSV40..JPP |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71876-60170E2 |
ACV40,GSV40..JPP GREGE,TRIM4# |
1 | ||
| 71876-60170B6 |
ACV40,GSV40..JPP GRAY,TRIM1# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-60140 |
ACV40,GSV40..JPP |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-60150B5 |
ACV40,GSV40..JPP GRAY,TRIM1# |
1 | ||
| 71876-60150E1 |
ACV40,GSV40..JPP GREGE,TRIM4# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-60140 |
ACV40,GSV40..JPP |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-33550E1 |
ACV40,GSV40..JPP..LE GREGE,TRIM4# |
2 | ||
| 71910-33550B2 |
ACV40,GSV40..JPP..LE MD. GRAY,TRIM1# |
2 | ||
| 71910-33560B1 |
GSV40..JPP..XLE MD. GRAY,TRIM1# |
2 | ||
| 71910-33561 |
GSV40..JPP..XLE |
2 | ||
| 71910-33560E1 |
GSV40..JPP..XLE GREGE,TRIM4# |
2 | ||
| 71910-33551 |
ACV40,GSV40..JPP..LE |
2 | ||
| 71910-33551B2 |
ACV40,GSV40..JPP..LE MD. GRAY,TRIM1# |
2 | ||
| 71910-33551E1 |
ACV40,GSV40..JPP..LE GREGE,TRIM4# |
2 | ||
| 71910-33561E1 |
GSV40..JPP..XLE GREGE,TRIM4# |
2 | ||
| 71910-33551B4 |
ACV40,GSV40..JPP..LE MD. GRAY,TRIM1# |
2 | ||
| 71910-33561B3 |
GSV40..JPP..XLE GRAY,TRIM1# |
2 | ||
| 71910-33551E2 |
ACV40,GSV40..JPP..LE GREGE,TRIM4# |
2 | ||
| 71910-33561B1 |
GSV40..JPP..XLE MD.GRAY,TRIM1# |
2 | ||
| 71910-33561E2 |
GSV40..JPP..XLE GREGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B7 |
ACV40,GSV40..JPP W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-52030B1 |
ACV40,GSV40..JPP..XLE W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-42020E1 |
ACV40,GSV40..JPP W(LOCK)&W(BUTTON),GREGE,TRIM4# |
2 | ||
| 71931-42020E1 |
ACV40,GSV40..JPP W(LOCK)&W/O(BUTTON),GREGE,TRIM4# |
2 | ||
| 71931-42020B7 |
ACV40,GSV40..JPP W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-52030E0 |
ACV40,GSV40..JPP..XLE W(LOCK)&W(BUTTON),GREGE,TRIM4# |
2 | ||
| 71930-52030E0 |
ACV40,GSV40..JPP..LE W(LOCK)&W(BUTTON),GREGE,TRIM4# |
4 | ||
| 71930-52030B1 |
ACV40,GSV40..JPP..LE W(LOCK)&W(BUTTON),GRAY,TRIM1# |
4 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B7 |
ACV40,GSV40..JPP W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-52030B1 |
ACV40,GSV40..JPP..XLE W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-42020E1 |
ACV40,GSV40..JPP W(LOCK)&W(BUTTON),GREGE,TRIM4# |
2 | ||
| 71931-42020E1 |
ACV40,GSV40..JPP W(LOCK)&W/O(BUTTON),GREGE,TRIM4# |
2 | ||
| 71931-42020B7 |
ACV40,GSV40..JPP W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-52030E0 |
ACV40,GSV40..JPP..XLE W(LOCK)&W(BUTTON),GREGE,TRIM4# |
2 | ||
| 71930-52030E0 |
ACV40,GSV40..JPP..LE W(LOCK)&W(BUTTON),GREGE,TRIM4# |
4 | ||
| 71930-52030B1 |
ACV40,GSV40..JPP..LE W(LOCK)&W(BUTTON),GRAY,TRIM1# |
4 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-33070E0 |
ACV40,GSV40..JPP GREGE,TRIM4# |
1 | ||
| 72138-33070B1 |
ACV40,GSV40..JPP GRAY,TRIM1# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72138-33070B1 |
ACV40,GSV40..JPP GRAY,TRIM1# |
1 | ||
| 72138-33070E0 |
ACV40,GSV40..JPP GREGE,TRIM4# |
1 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-48020 |
ACV40,GSV40..JPP |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-33020 |
ACV40,GSV40..JPP |
1 | ||
| 85822 - MOTOR ASSY, POWER SEAT SLIDE, LH | ||||
| 85801-60010 |
ACV40,GSV40..JPP |
1 | ||
| 85822A - MOTOR ASSY, POWER SEAT RECLINING, LH | ||||
| 85801-60020 |
ACV40,GSV40..JPP |
1 | ||
| 85822B - MOTOR ASSY, POWER SEAT TILT, LH | ||||
| 85801-60040 |
ACV40,GSV40..JPP |
1 | ||
| 85822C - MOTOR ASSY, POWER SEAT LIFTER, LH | ||||
| 85801-60030 |
ACV40,GSV40..JPP |
1 | ||
| Common parts | ||||
| 90119-10921 | None epc.PartDetail.None | |||
| 90159-40159 | None epc.PartDetail.None | |||
| 90167-40044 | None epc.PartDetail.None | |||
| 90389-10041 | None epc.PartDetail.None | |||
| 93530-54010 | None epc.PartDetail.None | |||
| 93560-54010 | None epc.PartDetail.None | |||
| 93560-54012 | None epc.PartDetail.None | |||
| 93568-55016 | None epc.PartDetail.None | |||
| 94170-60600 | None epc.PartDetail.None | |||
| 94185-60600 | None epc.PartDetail.None | |||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||
(0601- )JPP..LE

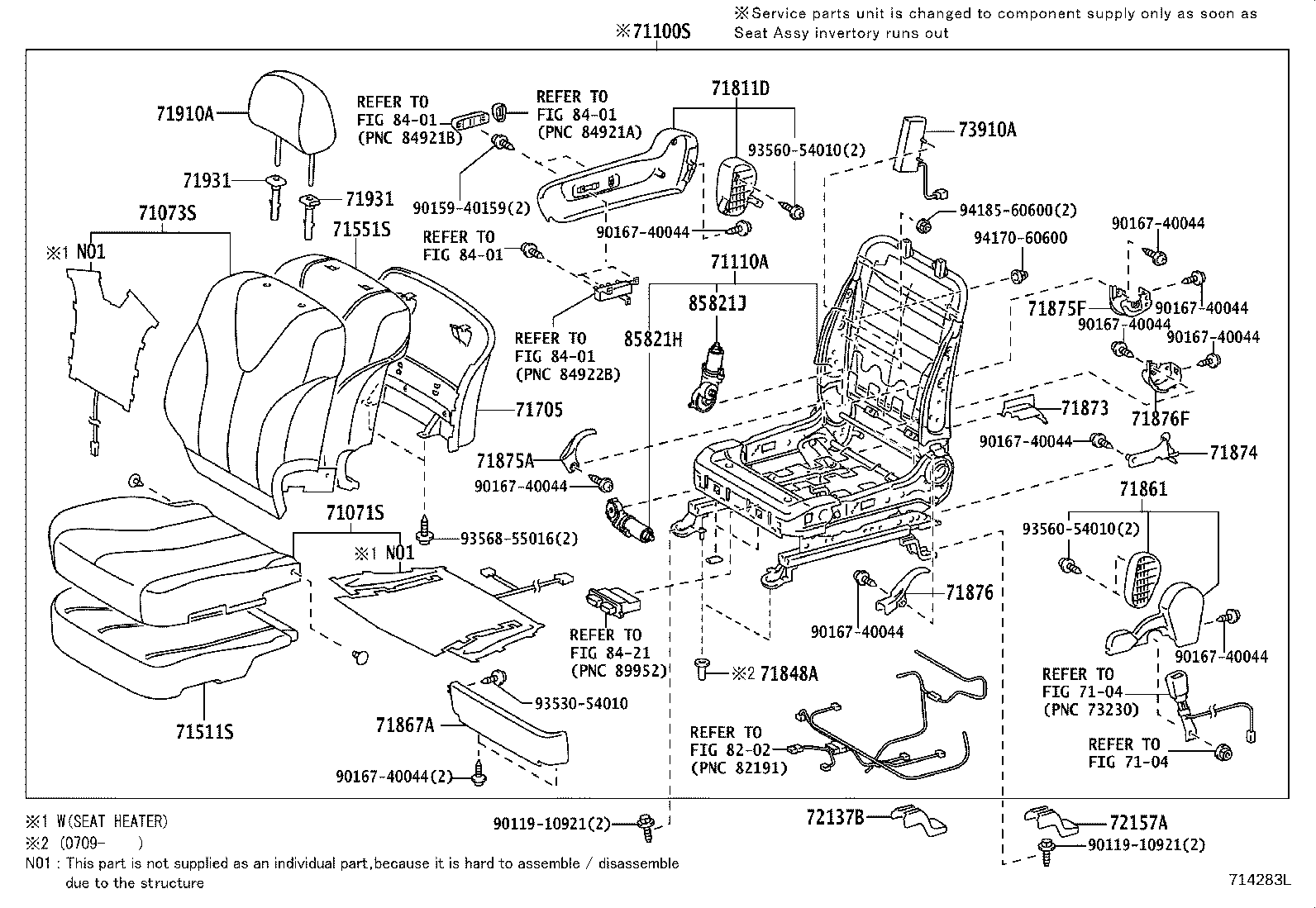

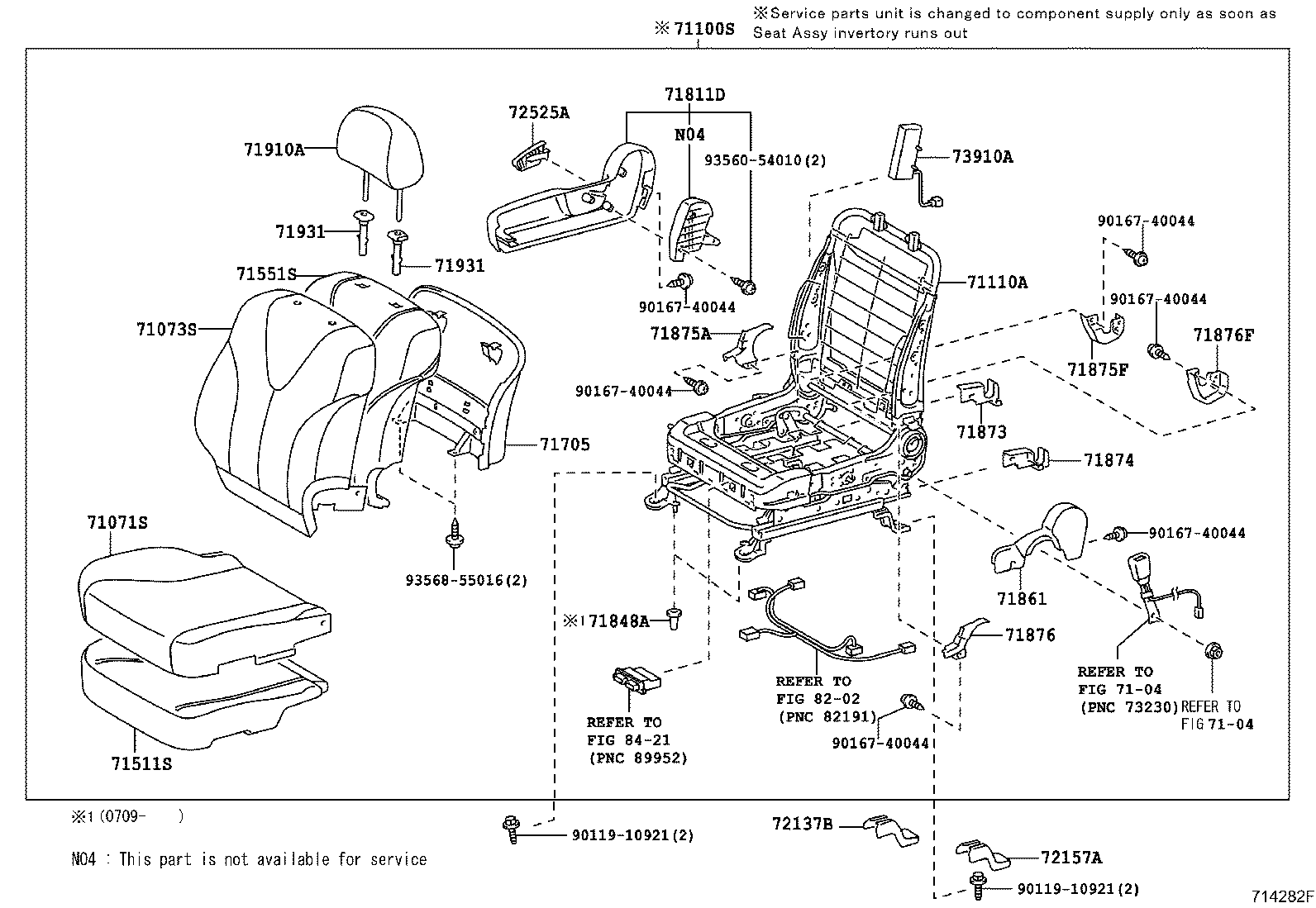

PASSENGER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-33D30B4 |
ACV40,GSV40..JPP..LE MD. GRAY,TRIM1# |
1 | ||
| 71071-33D60E1 |
GSV40..JPP..XLE SEAT HEATER-WITH,GREGE,TRIM4# |
1 | ||
| 71071-33D30E2 |
ACV40,GSV40..JPP..LE GREGE,TRIM4# |
1 | ||
| 71071-33D50B1 |
GSV40..JPP..XLE MD. GRAY,TRIM1# |
1 | ||
| 71071-33D61E1 |
GSV40..JPP..XLE SEAT HEATER-WITH,GREGE,TRIM4# |
1 | ||
| 71071-33D61B1 |
GSV40..JPP..XLE SEAT HEATER-WITH,GRAY,TRIM1# |
1 | ||
| 71071-33D50E1 |
GSV40..JPP..XLE GREGE,TRIM4# |
1 | ||
| 71071-33D60B1 |
GSV40..JPP..XLE SEAT HEATER-WITH,MD. GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-33C00B4 |
ACV40,GSV40..JPP..LE MD. GRAY,TRIM1# |
1 | ||
| 71073-33C00E2 |
ACV40,GSV40..JPP..LE GREGE,TRIM4# |
1 | ||
| 71073-33G40E1 |
GSV40..JPP..XLE SEAT HEATER-WITH,GREGE,TRIM4# |
1 | ||
| 71073-33G40B1 |
GSV40..JPP..XLE SEAT HEATER-WITH,MD. GRAY,TRIM1# |
1 | ||
| 71073-33J00B1 |
GSV40..JPP..XLE GRAY,TRIM1# |
1 | ||
| 71073-33G41E1 |
GSV40..JPP..XLE SEAT HEATER-WITH,GREGE,TRIM4# |
1 | ||
| 71073-33J00E1 |
GSV40..JPP..XLE GREGE,TRIM4# |
1 | ||
| 71073-33G41B1 |
GSV40..JPP..XLE SEAT HEATER-WITH,GRAY,TRIM1# |
1 | ||
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-33B70B3 |
GSV40..JPP..XLE SEAT HEATER-WITH,GRAY,TRIM1# |
1 | ||
| 71100-33B60B3 |
GSV40..JPP..XLE GRAY,TRIM1# |
1 | ||
| 71100-33B30B7 |
ACV40,GSV40..JPP..LE GRAY,TRIM1# |
1 | ||
| 71100-33B70E4 |
GSV40..JPP..XLE SEAT HEATER-WITH,GREGE,TRIM4# |
1 | ||
| 71100-33B60E4 |
GSV40..JPP..XLE GREGE,TRIM4# |
1 | ||
| 71100-33B70E5 |
GSV40..JPP..XLE SEAT HEATER-WITH,GREGE,TRIM4# |
1 | ||
| 71100-33B60B4 |
GSV40..JPP..XLE GRAY,TRIM1# |
1 | ||
| 71100-33B70B4 |
GSV40..JPP..XLE SEAT HEATER-WITH,GRAY,TRIM1# |
1 | ||
| 71100-33B30E7 |
ACV40,GSV40..JPP..LE GREGE,TRIM4# |
1 | ||
| 71100-33B60E5 |
GSV40..JPP..XLE GREGE,TRIM4# |
1 | ||
| 71100-33B31E0 |
ACV40,GSV40..JPP..LE GREGE,TRIM4# |
1 | ||
| 71100-33B61B0 |
GSV40..JPP..XLE GRAY,TRIM1# |
1 | ||
| 71100-33B61E0 |
GSV40..JPP..XLE GREGE,TRIM4# |
1 | ||
| 71100-33B31B0 |
ACV40,GSV40..JPP..LE GRAY,TRIM1# |
1 | ||
| 71100-33B61B1 |
GSV40..JPP..XLE GRAY,TRIM1# |
1 | ||
| 71100-33B31E1 |
ACV40,GSV40..JPP..LE GREGE,TRIM4# |
1 | ||
| 71100-33B71E0 |
GSV40..JPP..XLE SEAT HEATER-WITH,GREGE,TRIM4# |
1 | ||
| 71100-33B71B0 |
GSV40..JPP..XLE SEAT HEATER-WITH,GRAY,TRIM1# |
1 | ||
| 71100-33B72E1 |
GSV40..JPP..XLE SEAT HEATER-WITH,GREGE,TRIM4# |
1 | ||
| 71100-33B32E0 |
ACV40,GSV40..JPP..LE GREGE,TRIM4# |
1 | ||
| 71100-33B32B0 |
ACV40,GSV40..JPP..LE GRAY,TRIM1# |
1 | ||
| 71100-33B62E0 |
GSV40..JPP..XLE GREGE,TRIM4# |
1 | ||
| 71100-33B31B1 |
ACV40,GSV40..JPP..LE GRAY,TRIM1# |
1 | ||
| 71100-33B72B1 |
GSV40..JPP..XLE SEAT HEATER-WITH,GRAY,TRIM1# |
1 | ||
| 71100-33B73B0 |
GSV40..JPP..XLE SEAT HEATER-WITH,GRAY,TRIM1# |
1 | ||
| 71100-33B61E1 |
GSV40..JPP..XLE GREGE,TRIM4# |
1 | ||
| 71100-33B73E0 |
GSV40..JPP..XLE SEAT HEATER-WITH,GREGE,TRIM4# |
1 | ||
| 71100-33B62B0 |
GSV40..JPP..XLE GRAY,TRIM1# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-33210 |
ACV40,GSV40..JPP..LE |
1 | ||
| 71110-33220 |
ACV40,GSV40..JPP..XLE |
1 | ||
| 71110-33211 |
ACV40,GSV40..JPP..LE |
1 | ||
| 71110-33221 |
ACV40,GSV40..JPP..XLE |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-33380 |
ACV40,GSV40..JPP..LE |
1 | ||
| 71511-33390 |
ACV40,GSV40..JPP..XLE |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-33250 |
ACV40,GSV40..JPP |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-33470B1 |
ACV40,GSV40..JPP..XLE GRAY,TRIM1# |
1 | ||
| 71705-33470E0 |
ACV40,GSV40..JPP..XLE GREGE,TRIM4# |
1 | ||
| 71705-33500E0 |
ACV40,GSV40..JPP..LE GREGE,TRIM4# |
1 | ||
| 71705-33500B1 |
ACV40,GSV40..JPP..LE GRAY,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-33220B1 |
ACV40,GSV40..JPP..XLE GRAY,TRIM1# |
1 | ||
| 71811-33210E0 |
ACV40,GSV40..JPP..LE GREGE,TRIM4# |
1 | ||
| 71811-33220E0 |
ACV40,GSV40..JPP..XLE GREGE,TRIM4# |
1 | ||
| 71811-33210B1 |
ACV40,GSV40..JPP..LE GRAY,TRIM1# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-33010 |
ACV40,GSV40..JPP |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-33100E0 |
ACV40,GSV40..JPP..LE GREGE,TRIM4# |
1 | ||
| 71861-33110E0 |
ACV40,GSV40..JPP..XLE GREGE,TRIM4# |
1 | ||
| 71861-33110B1 |
ACV40,GSV40..JPP..XLE GRAY,TRIM1# |
1 | ||
| 71861-33100B1 |
ACV40,GSV40..JPP..LE GRAY,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-33070 |
ACV40,GSV40..JPP..XLE |
1 | ||
| 71873-33070B0 |
ACV40,GSV40..JPP..XLE GRAY,TRIM1# |
1 | ||
| 71873-33070E0 |
ACV40,GSV40..JPP..XLE GREGE,TRIM4# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-33080 |
ACV40,GSV40..JPP..XLE |
1 | ||
| 71874-33080E0 |
ACV40,GSV40..JPP..XLE GREGE,TRIM4# |
1 | ||
| 71874-33080B0 |
ACV40,GSV40..JPP..XLE GRAY,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58030B5 |
ACV40,GSV40..JPP..XLE GRAY,TRIM1# |
1 | ||
| 71875-58030E1 |
ACV40,GSV40..JPP..XLE GREGE,TRIM4# |
1 | ||
| 71875-58040B6 |
ACV40,GSV40..JPP..LE GRAY,TRIM1# |
1 | ||
| 71875-58040E1 |
ACV40,GSV40..JPP..LE GREGE,TRIM4# |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-58050 |
ACV40,GSV40..JPP..XLE |
1 | ||
| 71875-58060 |
ACV40,GSV40..JPP..LE |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58040B6 |
ACV40,GSV40..JPP..LE GRAY,TRIM1# |
1 | ||
| 71875-60150E2 |
ACV40,GSV40..JPP..XLE GREGE,TRIM4# |
1 | ||
| 71875-60150B5 |
ACV40,GSV40..JPP..XLE GRAY,TRIM1# |
1 | ||
| 71876-58040E1 |
ACV40,GSV40..JPP..LE GREGE,TRIM4# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-58050 |
ACV40,GSV40..JPP..XLE |
1 | ||
| 71876-58060 |
ACV40,GSV40..JPP..LE |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-33550E1 |
ACV40,GSV40..JPP..LE GREGE,TRIM4# |
2 | ||
| 71910-33550B2 |
ACV40,GSV40..JPP..LE MD. GRAY,TRIM1# |
2 | ||
| 71910-33560B1 |
GSV40..JPP..XLE MD. GRAY,TRIM1# |
2 | ||
| 71910-33561 |
GSV40..JPP..XLE |
2 | ||
| 71910-33560E1 |
GSV40..JPP..XLE GREGE,TRIM4# |
2 | ||
| 71910-33551 |
ACV40,GSV40..JPP..LE |
2 | ||
| 71910-33551B2 |
ACV40,GSV40..JPP..LE MD. GRAY,TRIM1# |
2 | ||
| 71910-33551E1 |
ACV40,GSV40..JPP..LE GREGE,TRIM4# |
2 | ||
| 71910-33561E1 |
GSV40..JPP..XLE GREGE,TRIM4# |
2 | ||
| 71910-33551B4 |
ACV40,GSV40..JPP..LE MD. GRAY,TRIM1# |
2 | ||
| 71910-33561B3 |
GSV40..JPP..XLE GRAY,TRIM1# |
2 | ||
| 71910-33551E2 |
ACV40,GSV40..JPP..LE GREGE,TRIM4# |
2 | ||
| 71910-33561B1 |
GSV40..JPP..XLE MD.GRAY,TRIM1# |
2 | ||
| 71910-33561E2 |
GSV40..JPP..XLE GREGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B7 |
ACV40,GSV40..JPP W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-52030B1 |
ACV40,GSV40..JPP..XLE W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-42020E1 |
ACV40,GSV40..JPP W(LOCK)&W(BUTTON),GREGE,TRIM4# |
2 | ||
| 71931-42020E1 |
ACV40,GSV40..JPP W(LOCK)&W/O(BUTTON),GREGE,TRIM4# |
2 | ||
| 71931-42020B7 |
ACV40,GSV40..JPP W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-52030E0 |
ACV40,GSV40..JPP..XLE W(LOCK)&W(BUTTON),GREGE,TRIM4# |
2 | ||
| 71930-52030E0 |
ACV40,GSV40..JPP..LE W(LOCK)&W(BUTTON),GREGE,TRIM4# |
4 | ||
| 71930-52030B1 |
ACV40,GSV40..JPP..LE W(LOCK)&W(BUTTON),GRAY,TRIM1# |
4 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B7 |
ACV40,GSV40..JPP W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-52030B1 |
ACV40,GSV40..JPP..XLE W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-42020E1 |
ACV40,GSV40..JPP W(LOCK)&W(BUTTON),GREGE,TRIM4# |
2 | ||
| 71931-42020E1 |
ACV40,GSV40..JPP W(LOCK)&W/O(BUTTON),GREGE,TRIM4# |
2 | ||
| 71931-42020B7 |
ACV40,GSV40..JPP W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-52030E0 |
ACV40,GSV40..JPP..XLE W(LOCK)&W(BUTTON),GREGE,TRIM4# |
2 | ||
| 71930-52030E0 |
ACV40,GSV40..JPP..LE W(LOCK)&W(BUTTON),GREGE,TRIM4# |
4 | ||
| 71930-52030B1 |
ACV40,GSV40..JPP..LE W(LOCK)&W(BUTTON),GRAY,TRIM1# |
4 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-33090E0 |
ACV40,GSV40..JPP..XLE GREGE,TRIM4# |
1 | ||
| 72137-33070E0 |
ACV40,GSV40..JPP..LE GREGE,TRIM4# |
1 | ||
| 72137-33070B1 |
ACV40,GSV40..JPP..LE GRAY,TRIM1# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-33080E0 |
ACV40,GSV40..JPP..LE GREGE,TRIM4# |
1 | ||
| 72137-33090E0 |
ACV40,GSV40..JPP..XLE GREGE,TRIM4# |
1 | ||
| 72157-33080B1 |
ACV40,GSV40..JPP..LE GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-42010B1 |
ACV40,GSV40..JPP..LE GRAY,TRIM1# |
1 | ||
| 72525-42010E1 |
ACV40,GSV40..JPP..LE GREGE,TRIM4# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-33020 |
ACV40,GSV40..JPP |
1 | ||
| Common parts | ||||
| 90119-10921 | None epc.PartDetail.None | |||
| 90167-40044 | None epc.PartDetail.None | |||
| 93560-54010 | None epc.PartDetail.None | |||
| 93568-55016 | None epc.PartDetail.None | |||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8421 | ||||
(0601- )JPP..XLE
PASSENGER SEAT(POWER SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-33D30B4 |
ACV40,GSV40..JPP..LE MD. GRAY,TRIM1# |
1 | ||
| 71071-33D60E1 |
GSV40..JPP..XLE SEAT HEATER-WITH,GREGE,TRIM4# |
1 | ||
| 71071-33D30E2 |
ACV40,GSV40..JPP..LE GREGE,TRIM4# |
1 | ||
| 71071-33D50B1 |
GSV40..JPP..XLE MD. GRAY,TRIM1# |
1 | ||
| 71071-33D61E1 |
GSV40..JPP..XLE SEAT HEATER-WITH,GREGE,TRIM4# |
1 | ||
| 71071-33D61B1 |
GSV40..JPP..XLE SEAT HEATER-WITH,GRAY,TRIM1# |
1 | ||
| 71071-33D50E1 |
GSV40..JPP..XLE GREGE,TRIM4# |
1 | ||
| 71071-33D60B1 |
GSV40..JPP..XLE SEAT HEATER-WITH,MD. GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-33C00B4 |
ACV40,GSV40..JPP..LE MD. GRAY,TRIM1# |
1 | ||
| 71073-33C00E2 |
ACV40,GSV40..JPP..LE GREGE,TRIM4# |
1 | ||
| 71073-33G40E1 |
GSV40..JPP..XLE SEAT HEATER-WITH,GREGE,TRIM4# |
1 | ||
| 71073-33G40B1 |
GSV40..JPP..XLE SEAT HEATER-WITH,MD. GRAY,TRIM1# |
1 | ||
| 71073-33J00B1 |
GSV40..JPP..XLE GRAY,TRIM1# |
1 | ||
| 71073-33G41E1 |
GSV40..JPP..XLE SEAT HEATER-WITH,GREGE,TRIM4# |
1 | ||
| 71073-33J00E1 |
GSV40..JPP..XLE GREGE,TRIM4# |
1 | ||
| 71073-33G41B1 |
GSV40..JPP..XLE SEAT HEATER-WITH,GRAY,TRIM1# |
1 | ||
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-33B70B3 |
GSV40..JPP..XLE SEAT HEATER-WITH,GRAY,TRIM1# |
1 | ||
| 71100-33B60B3 |
GSV40..JPP..XLE GRAY,TRIM1# |
1 | ||
| 71100-33B30B7 |
ACV40,GSV40..JPP..LE GRAY,TRIM1# |
1 | ||
| 71100-33B70E4 |
GSV40..JPP..XLE SEAT HEATER-WITH,GREGE,TRIM4# |
1 | ||
| 71100-33B60E4 |
GSV40..JPP..XLE GREGE,TRIM4# |
1 | ||
| 71100-33B70E5 |
GSV40..JPP..XLE SEAT HEATER-WITH,GREGE,TRIM4# |
1 | ||
| 71100-33B60B4 |
GSV40..JPP..XLE GRAY,TRIM1# |
1 | ||
| 71100-33B70B4 |
GSV40..JPP..XLE SEAT HEATER-WITH,GRAY,TRIM1# |
1 | ||
| 71100-33B30E7 |
ACV40,GSV40..JPP..LE GREGE,TRIM4# |
1 | ||
| 71100-33B60E5 |
GSV40..JPP..XLE GREGE,TRIM4# |
1 | ||
| 71100-33B31E0 |
ACV40,GSV40..JPP..LE GREGE,TRIM4# |
1 | ||
| 71100-33B61B0 |
GSV40..JPP..XLE GRAY,TRIM1# |
1 | ||
| 71100-33B61E0 |
GSV40..JPP..XLE GREGE,TRIM4# |
1 | ||
| 71100-33B31B0 |
ACV40,GSV40..JPP..LE GRAY,TRIM1# |
1 | ||
| 71100-33B61B1 |
GSV40..JPP..XLE GRAY,TRIM1# |
1 | ||
| 71100-33B31E1 |
ACV40,GSV40..JPP..LE GREGE,TRIM4# |
1 | ||
| 71100-33B71E0 |
GSV40..JPP..XLE SEAT HEATER-WITH,GREGE,TRIM4# |
1 | ||
| 71100-33B71B0 |
GSV40..JPP..XLE SEAT HEATER-WITH,GRAY,TRIM1# |
1 | ||
| 71100-33B72E1 |
GSV40..JPP..XLE SEAT HEATER-WITH,GREGE,TRIM4# |
1 | ||
| 71100-33B32E0 |
ACV40,GSV40..JPP..LE GREGE,TRIM4# |
1 | ||
| 71100-33B32B0 |
ACV40,GSV40..JPP..LE GRAY,TRIM1# |
1 | ||
| 71100-33B62E0 |
GSV40..JPP..XLE GREGE,TRIM4# |
1 | ||
| 71100-33B31B1 |
ACV40,GSV40..JPP..LE GRAY,TRIM1# |
1 | ||
| 71100-33B72B1 |
GSV40..JPP..XLE SEAT HEATER-WITH,GRAY,TRIM1# |
1 | ||
| 71100-33B73B0 |
GSV40..JPP..XLE SEAT HEATER-WITH,GRAY,TRIM1# |
1 | ||
| 71100-33B61E1 |
GSV40..JPP..XLE GREGE,TRIM4# |
1 | ||
| 71100-33B73E0 |
GSV40..JPP..XLE SEAT HEATER-WITH,GREGE,TRIM4# |
1 | ||
| 71100-33B62B0 |
GSV40..JPP..XLE GRAY,TRIM1# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-33210 |
ACV40,GSV40..JPP..LE |
1 | ||
| 71110-33220 |
ACV40,GSV40..JPP..XLE |
1 | ||
| 71110-33211 |
ACV40,GSV40..JPP..LE |
1 | ||
| 71110-33221 |
ACV40,GSV40..JPP..XLE |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-33380 |
ACV40,GSV40..JPP..LE |
1 | ||
| 71511-33390 |
ACV40,GSV40..JPP..XLE |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-33250 |
ACV40,GSV40..JPP |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-33470B1 |
ACV40,GSV40..JPP..XLE GRAY,TRIM1# |
1 | ||
| 71705-33470E0 |
ACV40,GSV40..JPP..XLE GREGE,TRIM4# |
1 | ||
| 71705-33500E0 |
ACV40,GSV40..JPP..LE GREGE,TRIM4# |
1 | ||
| 71705-33500B1 |
ACV40,GSV40..JPP..LE GRAY,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-33220B1 |
ACV40,GSV40..JPP..XLE GRAY,TRIM1# |
1 | ||
| 71811-33210E0 |
ACV40,GSV40..JPP..LE GREGE,TRIM4# |
1 | ||
| 71811-33220E0 |
ACV40,GSV40..JPP..XLE GREGE,TRIM4# |
1 | ||
| 71811-33210B1 |
ACV40,GSV40..JPP..LE GRAY,TRIM1# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-33010 |
ACV40,GSV40..JPP |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-33100E0 |
ACV40,GSV40..JPP..LE GREGE,TRIM4# |
1 | ||
| 71861-33110E0 |
ACV40,GSV40..JPP..XLE GREGE,TRIM4# |
1 | ||
| 71861-33110B1 |
ACV40,GSV40..JPP..XLE GRAY,TRIM1# |
1 | ||
| 71861-33100B1 |
ACV40,GSV40..JPP..LE GRAY,TRIM1# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-33050E0 |
ACV40,GSV40..JPP..XLE GREGE,TRIM4# |
1 | ||
| 71867-33050B1 |
ACV40,GSV40..JPP..XLE GRAY,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-33070 |
ACV40,GSV40..JPP..XLE |
1 | ||
| 71873-33070B0 |
ACV40,GSV40..JPP..XLE GRAY,TRIM1# |
1 | ||
| 71873-33070E0 |
ACV40,GSV40..JPP..XLE GREGE,TRIM4# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-33080 |
ACV40,GSV40..JPP..XLE |
1 | ||
| 71874-33080E0 |
ACV40,GSV40..JPP..XLE GREGE,TRIM4# |
1 | ||
| 71874-33080B0 |
ACV40,GSV40..JPP..XLE GRAY,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58030B5 |
ACV40,GSV40..JPP..XLE GRAY,TRIM1# |
1 | ||
| 71875-58030E1 |
ACV40,GSV40..JPP..XLE GREGE,TRIM4# |
1 | ||
| 71875-58040B6 |
ACV40,GSV40..JPP..LE GRAY,TRIM1# |
1 | ||
| 71875-58040E1 |
ACV40,GSV40..JPP..LE GREGE,TRIM4# |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-58050 |
ACV40,GSV40..JPP..XLE |
1 | ||
| 71875-58060 |
ACV40,GSV40..JPP..LE |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58040B6 |
ACV40,GSV40..JPP..LE GRAY,TRIM1# |
1 | ||
| 71875-60150E2 |
ACV40,GSV40..JPP..XLE GREGE,TRIM4# |
1 | ||
| 71875-60150B5 |
ACV40,GSV40..JPP..XLE GRAY,TRIM1# |
1 | ||
| 71876-58040E1 |
ACV40,GSV40..JPP..LE GREGE,TRIM4# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-58050 |
ACV40,GSV40..JPP..XLE |
1 | ||
| 71876-58060 |
ACV40,GSV40..JPP..LE |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-33550E1 |
ACV40,GSV40..JPP..LE GREGE,TRIM4# |
2 | ||
| 71910-33550B2 |
ACV40,GSV40..JPP..LE MD. GRAY,TRIM1# |
2 | ||
| 71910-33560B1 |
GSV40..JPP..XLE MD. GRAY,TRIM1# |
2 | ||
| 71910-33561 |
GSV40..JPP..XLE |
2 | ||
| 71910-33560E1 |
GSV40..JPP..XLE GREGE,TRIM4# |
2 | ||
| 71910-33551 |
ACV40,GSV40..JPP..LE |
2 | ||
| 71910-33551B2 |
ACV40,GSV40..JPP..LE MD. GRAY,TRIM1# |
2 | ||
| 71910-33551E1 |
ACV40,GSV40..JPP..LE GREGE,TRIM4# |
2 | ||
| 71910-33561E1 |
GSV40..JPP..XLE GREGE,TRIM4# |
2 | ||
| 71910-33551B4 |
ACV40,GSV40..JPP..LE MD. GRAY,TRIM1# |
2 | ||
| 71910-33561B3 |
GSV40..JPP..XLE GRAY,TRIM1# |
2 | ||
| 71910-33551E2 |
ACV40,GSV40..JPP..LE GREGE,TRIM4# |
2 | ||
| 71910-33561B1 |
GSV40..JPP..XLE MD.GRAY,TRIM1# |
2 | ||
| 71910-33561E2 |
GSV40..JPP..XLE GREGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B7 |
ACV40,GSV40..JPP W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-52030B1 |
ACV40,GSV40..JPP..XLE W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-42020E1 |
ACV40,GSV40..JPP W(LOCK)&W(BUTTON),GREGE,TRIM4# |
2 | ||
| 71931-42020E1 |
ACV40,GSV40..JPP W(LOCK)&W/O(BUTTON),GREGE,TRIM4# |
2 | ||
| 71931-42020B7 |
ACV40,GSV40..JPP W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-52030E0 |
ACV40,GSV40..JPP..XLE W(LOCK)&W(BUTTON),GREGE,TRIM4# |
2 | ||
| 71930-52030E0 |
ACV40,GSV40..JPP..LE W(LOCK)&W(BUTTON),GREGE,TRIM4# |
4 | ||
| 71930-52030B1 |
ACV40,GSV40..JPP..LE W(LOCK)&W(BUTTON),GRAY,TRIM1# |
4 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B7 |
ACV40,GSV40..JPP W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-52030B1 |
ACV40,GSV40..JPP..XLE W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-42020E1 |
ACV40,GSV40..JPP W(LOCK)&W(BUTTON),GREGE,TRIM4# |
2 | ||
| 71931-42020E1 |
ACV40,GSV40..JPP W(LOCK)&W/O(BUTTON),GREGE,TRIM4# |
2 | ||
| 71931-42020B7 |
ACV40,GSV40..JPP W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-52030E0 |
ACV40,GSV40..JPP..XLE W(LOCK)&W(BUTTON),GREGE,TRIM4# |
2 | ||
| 71930-52030E0 |
ACV40,GSV40..JPP..LE W(LOCK)&W(BUTTON),GREGE,TRIM4# |
4 | ||
| 71930-52030B1 |
ACV40,GSV40..JPP..LE W(LOCK)&W(BUTTON),GRAY,TRIM1# |
4 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-33090E0 |
ACV40,GSV40..JPP..XLE GREGE,TRIM4# |
1 | ||
| 72137-33070E0 |
ACV40,GSV40..JPP..LE GREGE,TRIM4# |
1 | ||
| 72137-33070B1 |
ACV40,GSV40..JPP..LE GRAY,TRIM1# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-33080E0 |
ACV40,GSV40..JPP..LE GREGE,TRIM4# |
1 | ||
| 72137-33090E0 |
ACV40,GSV40..JPP..XLE GREGE,TRIM4# |
1 | ||
| 72157-33080B1 |
ACV40,GSV40..JPP..LE GRAY,TRIM1# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-33020 |
ACV40,GSV40..JPP |
1 | ||
| 85821H - MOTOR ASSY, POWER SEAT SLIDE, RH | ||||
| 85801-58010 |
ACV40,GSV40..JPP..XLE |
1 | ||
| 85821J - MOTOR ASSY, POWER SEAT RECLINING, RH | ||||
| 85801-58020 |
ACV40,GSV40..JPP..XLE |
1 | ||
| Common parts | ||||
| 90119-10921 | None epc.PartDetail.None | |||
| 90159-40159 | None epc.PartDetail.None | |||
| 90167-40044 | None epc.PartDetail.None | |||
| 93530-54010 | None epc.PartDetail.None | |||
| 93560-54010 | None epc.PartDetail.None | |||
| 93568-55016 | None epc.PartDetail.None | |||
| 94170-60600 | None epc.PartDetail.None | |||
| 94185-60600 | None epc.PartDetail.None | |||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
