GSV40L-AETGKA (2006)

Toyota Camry (Jpp)

Production Jan 2006 - Jan 2009
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0601- )2GRFE..JPP

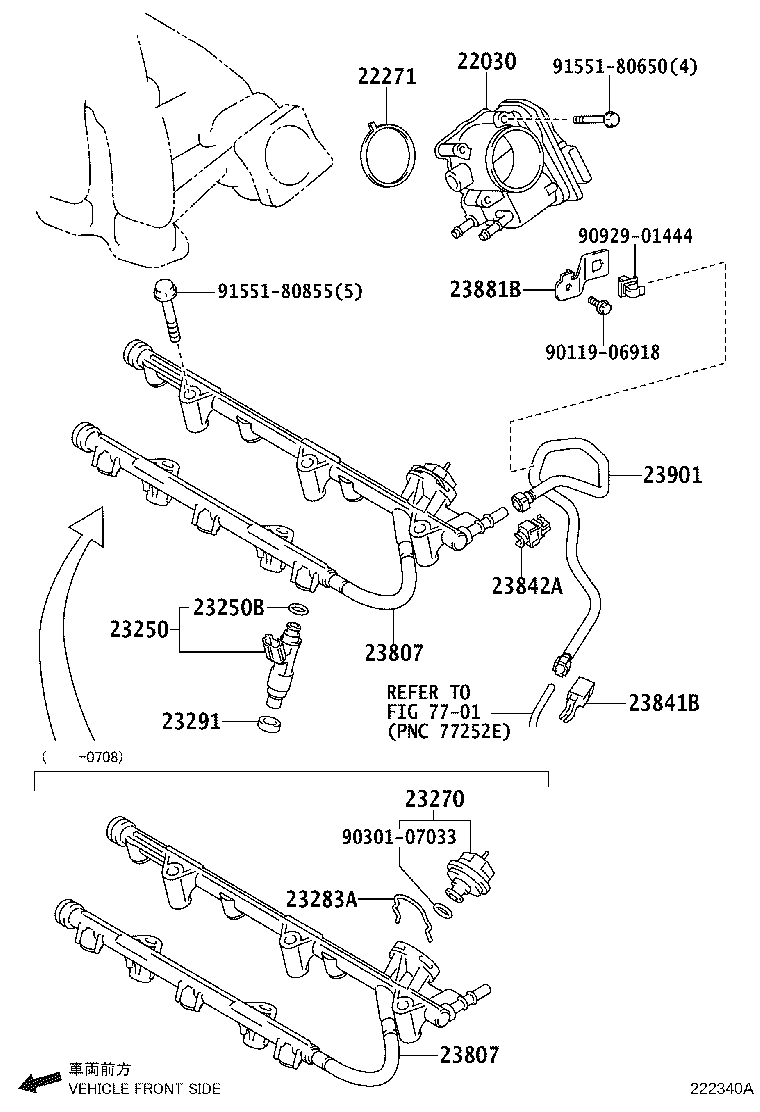

Click highlighted areas on diagram

diagram 22030 22271 23250 23250B 23270 23283A 23291 23807 23807 23841B 23842A 23881B 23901 7701 9011906918 9030107033 9092901444 9155180650 9155180855
Part # Description Qty Price
22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-31030

2GRFE..GSV40..JPP

 1
22271 - GASKET, THROTTLE BODY
22271-31040

2GRFE..GSV40..JPP

 1
23250 - INJECTOR ASSY, FUEL
23209-31050

2GRFE..GSV40..JPP

 6
23250B - RING, O(FOR FUEL INJECTOR)
90301-07033

2GRFE..GSV40..JPP

 6
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-31010

2GRFE..GSV40..JPP

 1
23283A - HOLDER, FUEL PRESSURE REGULATOR
23283-31010

2GRFE..GSV40..JPP

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-23010

2GRFE..GSV40..JPP

 6
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-31040

2GRFE..GSV40..JPP

 1
23807-31090

2GRFE..GSV40..JPP

 1
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-31040

2GRFE..GSV40..JPP

 1
23807-31090

2GRFE..GSV40..JPP

 1
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-21050

2GRFE..GSV40..JPP

 1
23841-28010

2GRFE..GSV40..JPP

 1
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23842-31040

2GRFE..GSV40..JPP

 1
23881B - BRACKET, FUEL HOSE
23881-31020

2GRFE..GSV40..JPP

 1
23901 - TUBE SUB-ASSY, FUEL
23901-31060

2GRFE..GSV40..JPP

 1
Common parts
90119-06918
90301-07033
90929-01444
91551-80650
91551-80855
Linked diagrams
7701
