AXVA70L-AEZNBA (2017)

Toyota Camry (Jpp)

Production Mar 2017 - Nov 2018
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1703- )

Click highlighted areas on diagram

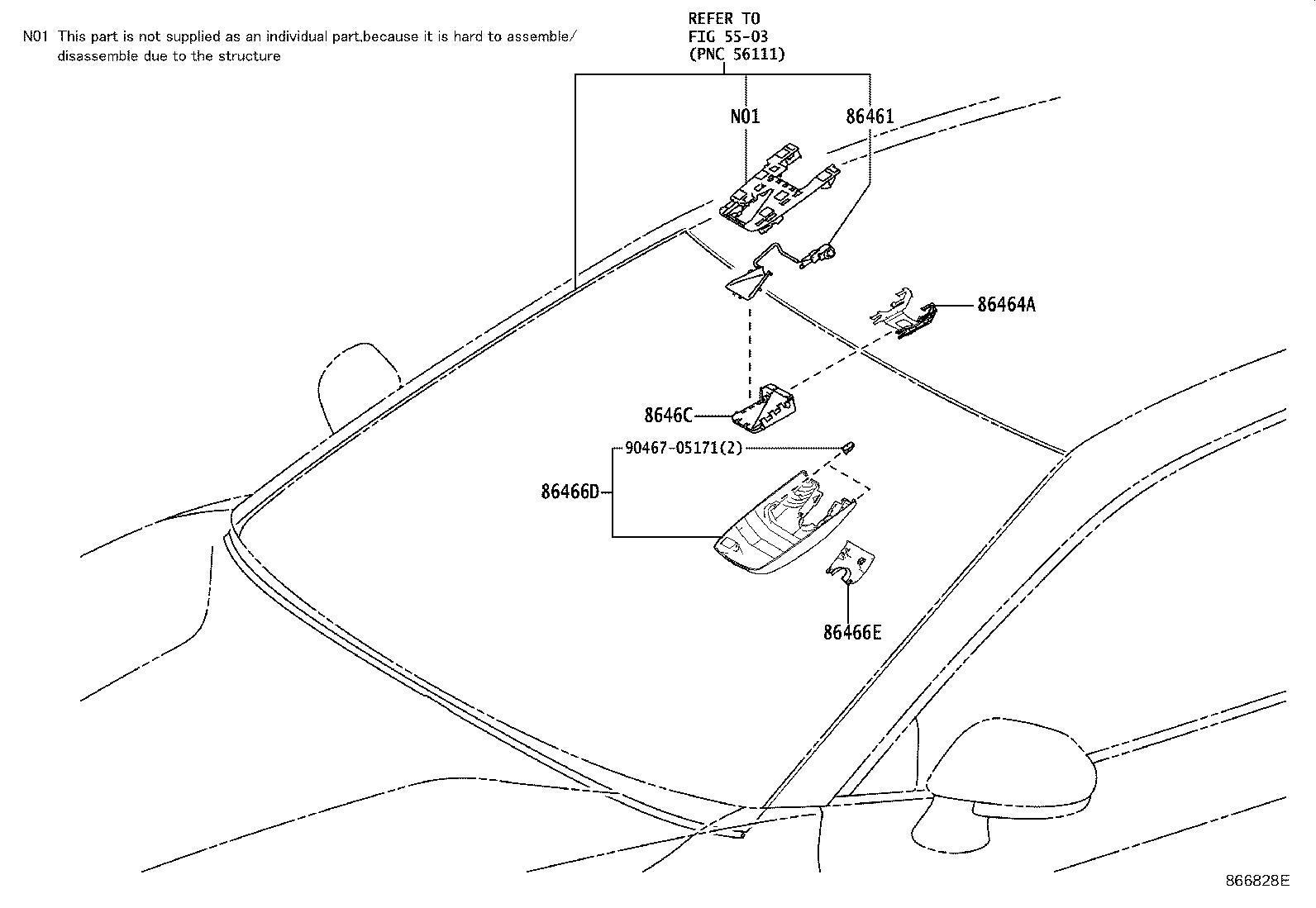

diagram 5503 86461 86464A 86466D 86466E 8646C 9046705171
Part # Description Qty Price
86461 - HOOD, FORWARD RECOGNITION
86461-33030

AXVA70..LE

PRE-COLLISION SYSTEM-WITH

 1
86461-33030

AXVA70..SE

 1
86464A - LATCH, FORWARD RECOGNITION
86464-71010

AXVA70..LE

PRE-COLLISION SYSTEM-WITH

 1
86464-71010

AXVA70..SE

 1
86466D - COVER, FORWARD RECOGNITION, NO.1
86466-33060

AXVA70..LE

PRE-COLLISION SYSTEM-WITH

 1
86466-33060

AXVA70..SE

 1
86466E - COVER, FORWARD RECOGNITION, NO.2
86466-33070

AXVA70..SE

 1
86466-33070

AXVA70..LE

PRE-COLLISION SYSTEM-WITH

 1
8646C - CAMERA, FORWARD RECOGNITION
8646C-06030

AXVA70..LE

PRE-COLLISION SYSTEM-WITH

 1
8646C-06050

AXVA70..SE

 1
8646C-06050

AXVA70..LE

PRE-COLLISION SYSTEM-WITH

 1
8646C-06030

AXVA70..SE

 1
Common parts
90467-05171
Linked diagrams
5503
