ASV40L-AETNKA (2009)

Toyota Camry (Jpp)

Production Jan 2009 - Aug 2011
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

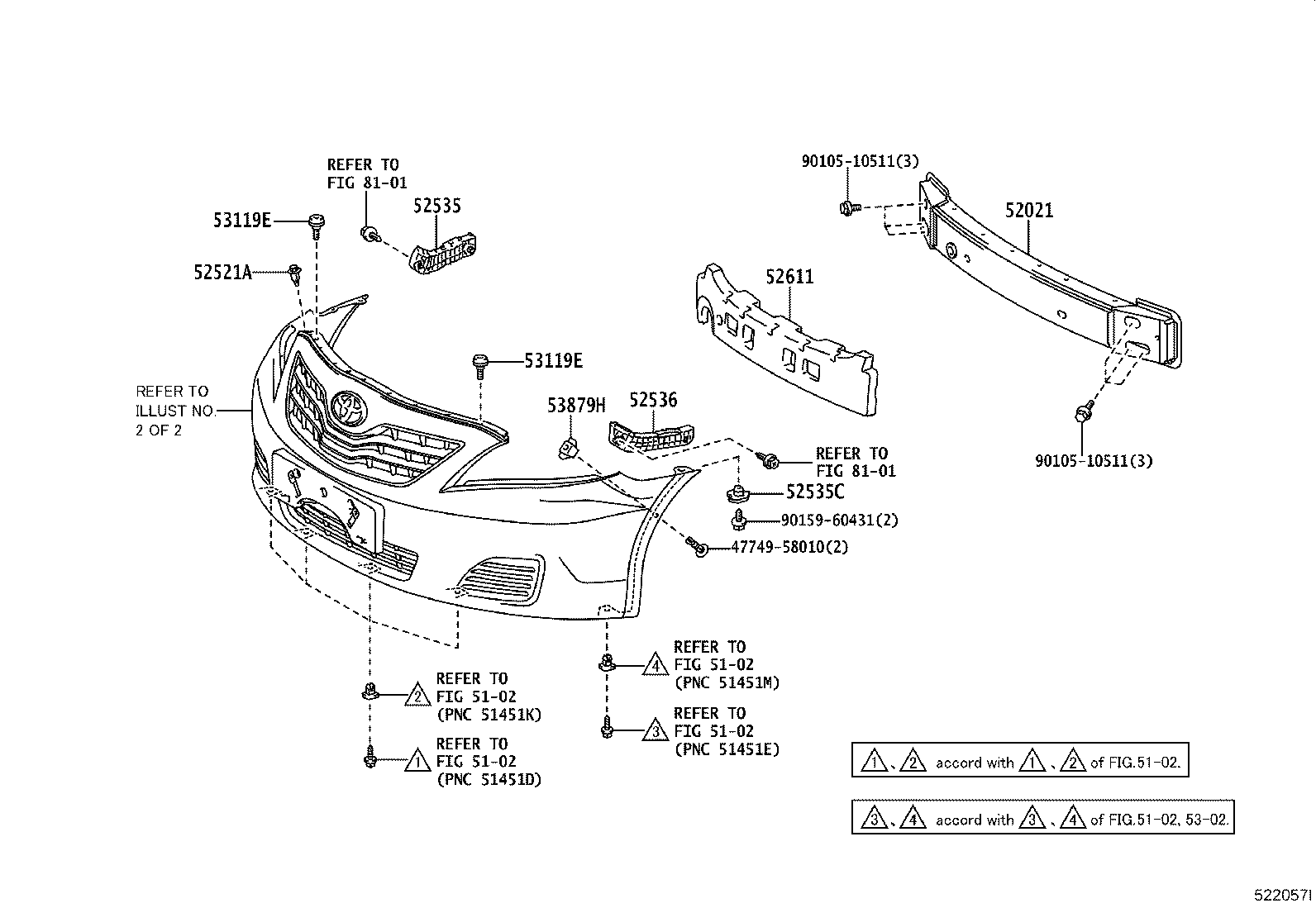

ILLUST NO. 1 OF 2(0901- )JPP

Click highlighted areas on diagram

diagram 4774958010 5102 5102 5102 5102 52021 52521A 52535 52535C 52536 52611 53119E 53119E 53879H 8101 8101 9010510511 9010510511 9015960431
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-33150

ASV40,GSV40..JPP

 1
52021-33140

ASV40,GSV40..JPP

 1
52521A - CLIP(FOR FRONT BUMPER RETAINER)
90467-08180

ASV40,GSV40..JPP

 2
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-33040

ASV40,GSV40..JPP

 1
52535C - RETAINER, FRONT BUMPER SIDE
52535-50060

ASV40,GSV40..JPP

 2
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-33040

ASV40,GSV40..JPP

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-33140

ASV40,GSV40..JPP

 1
53119E - PROTECTOR, RADIATOR GRILLE
53119-20120

ASV40,GSV40..JPP

 2
53119E - PROTECTOR, RADIATOR GRILLE
53119-20120

ASV40,GSV40..JPP

 2
53879H - RETAINER, FRONT FENDER LINER
53879-58010

ASV40,GSV40..JPP

 2
Common parts
47749-58010
90105-10511
90159-60431
Linked diagrams
5102
8101

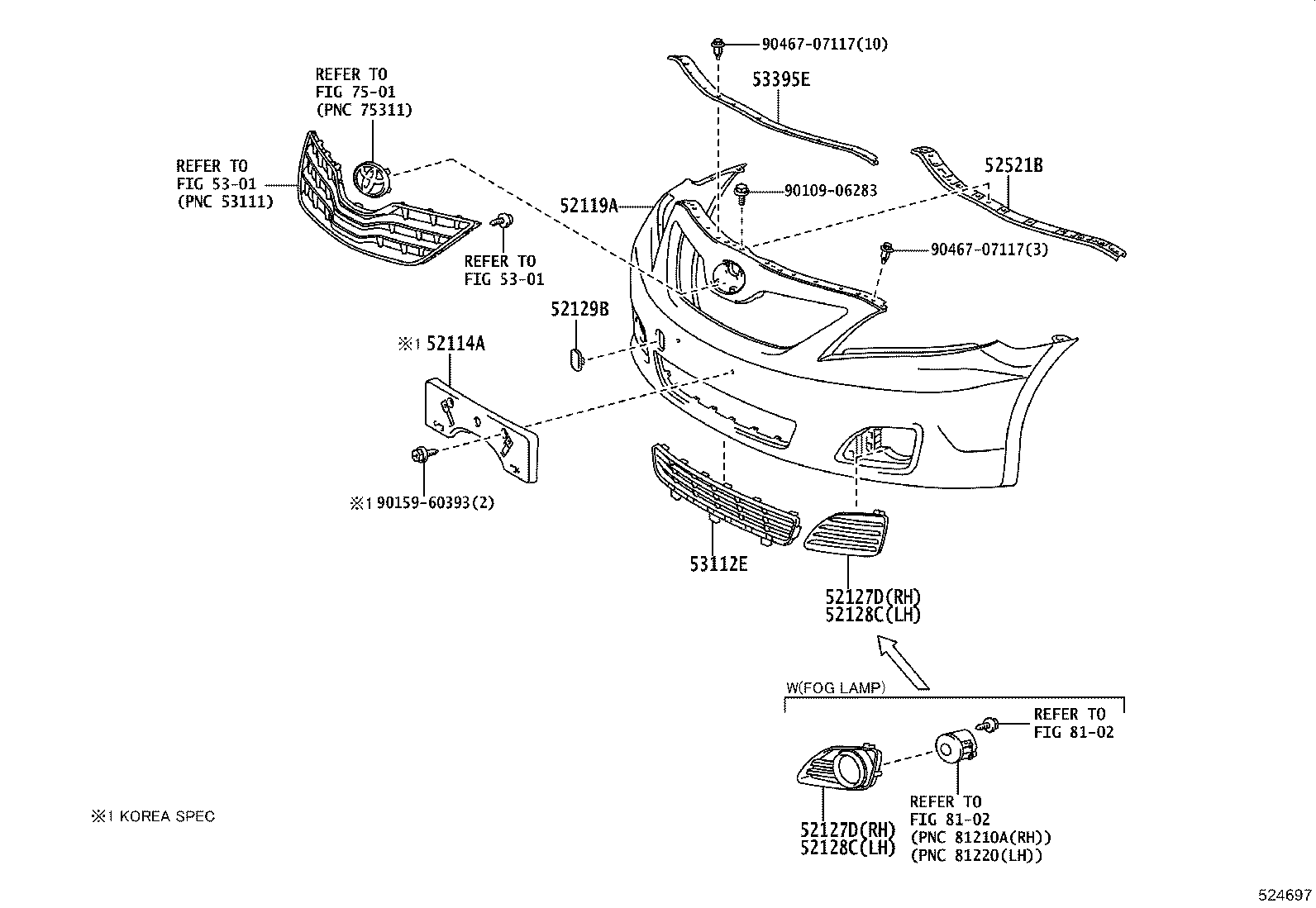

ILLUST NO. 2 OF 2(0901- )JPP

Click highlighted areas on diagram

diagram 52114A 52119A 52127D 52127D 52128C 52128C 52129B 52521B 5301 5301 53112E 53395E 7501 8102 8102 9010906283 9015960393 9046707117 9046707117
Part # Description Qty Price
52119A - COVER, FRONT BUMPER
52119-33966

ASV40,GSV40..JPP

PAINT REQ.

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-33080

ASV40,GSV40..JPP..LE

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-33080

ASV40,GSV40..JPP..LE

 1
52128C - COVER, FRONT BUMPER HOLE, LH
52128-33080

ASV40,GSV40..JPP..LE

 1
52128C - COVER, FRONT BUMPER HOLE, LH
52128-33080

ASV40,GSV40..JPP..LE

 1
52129B - COVER, FRONT BUMPER, LOWER
52129-33902

ASV40,GSV40..JPP

 1
52521B - RETAINER, FRONT BUMPER, UPPER
52521-33080

ASV40,GSV40..JPP

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-33040

ASV40,GSV40..JPP

NO PAINT REQ.

 1
53395E - SEAL, HOOD TO FRONT END PANEL
53395-33010

ASV40,GSV40..JPP

 1
Common parts
90109-06283
90159-60393
90467-07117
Linked diagrams
5301
7501
8102
