ASV40L-AETNKA (2009)

Toyota Camry (Jpp)

Production Jan 2009 - Aug 2011
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0901- )ASV40..JPP

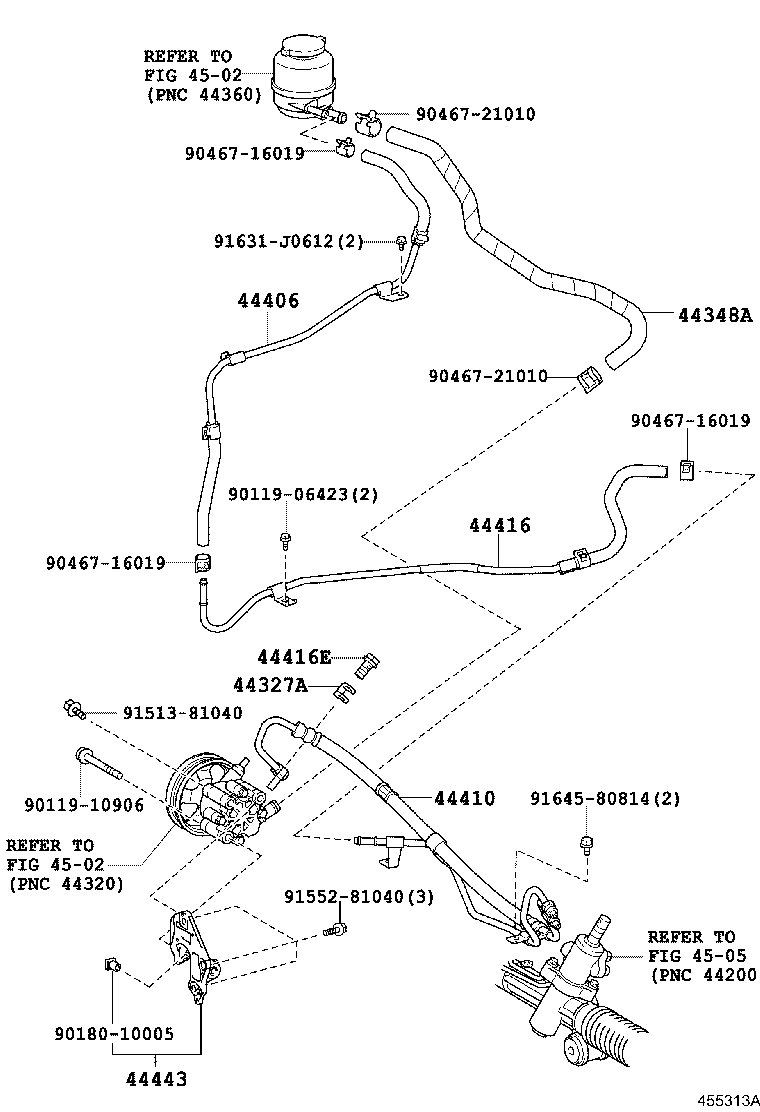

Click highlighted areas on diagram

diagram 44327A 44348A 44406 44410 44416 44416E 44443 4502 4502 4505 9011906423 9011910906 9018010005 9046716019 9046716019 9046716019 9046721010 9046721010 9151381040 9155281040 91631J0612 9164580814
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-30030

ASV40,GSV40..JPP

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-33270

ASV40..JPP

 1
44406 - TUBE SUB-ASSY, RETURN
44406-33121

ASV40,GSV40..JPP

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-33260

ASV40..JPP

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-33230

ASV40..JPP

 1
44416E - BOLT, UNION(FOR RETURN TUBE)
96341-41603

ASV40,GSV40..JPP

 1
44443 - BRACKET, PUMP
44443-33050

ASV40..JPP

 1
Common parts
90119-06423
90119-10906
90180-10005
90467-16019
90467-21010
91513-81040
91552-81040
91631-J0612
91645-80814
Linked diagrams
4502
4505
