ASV40L-AETNKA (2009)
Toyota Camry (Jpp)
(0901- )2ARFE..JPP

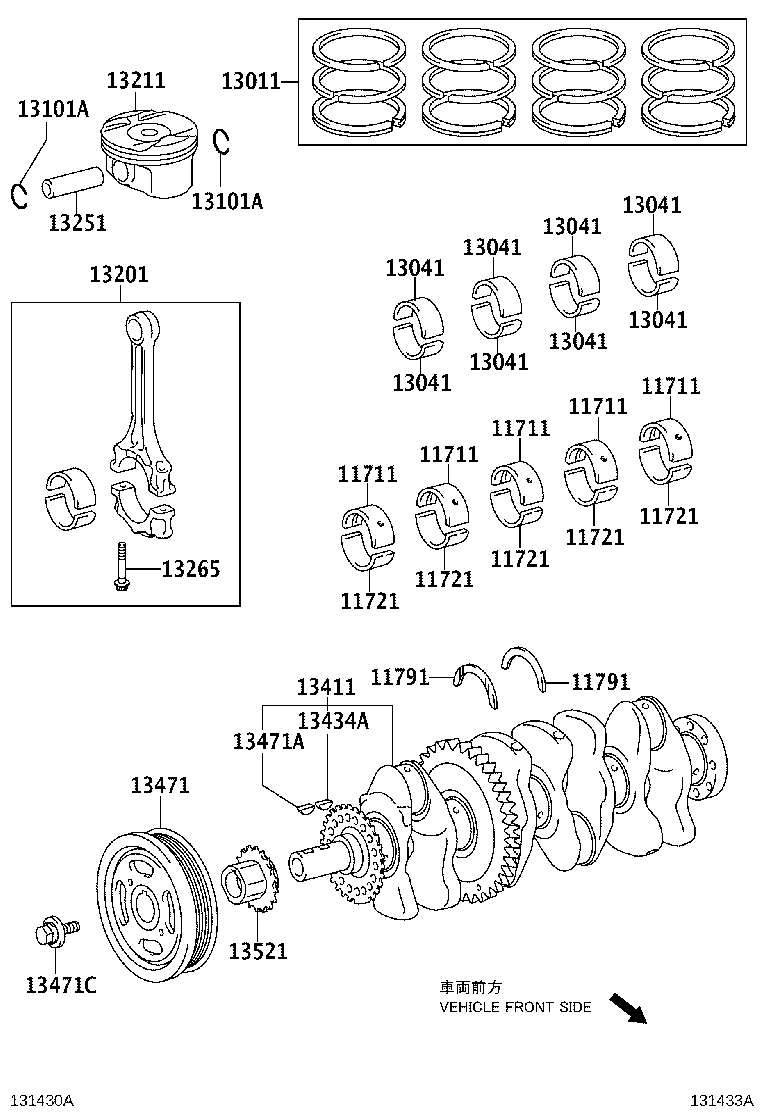

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11711 - BEARING, CRANKSHAFT | ||||
| 11711-3602004 |
2ARFE..ASV40..JPP MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11711-3602003 |
2ARFE..ASV40..JPP MARK 3,REFER REPAIR MANUAL |
5 | ||
| 11711-3602001 |
2ARFE..ASV40..JPP MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11711-3602002 |
2ARFE..ASV40..JPP MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11711-3602004 |
2ARFE..ASV40..JPP MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11711-3602003 |
2ARFE..ASV40..JPP MARK 3,REFER REPAIR MANUAL |
5 | ||
| 11711-3602001 |
2ARFE..ASV40..JPP MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11711-3602002 |
2ARFE..ASV40..JPP MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11711-3602004 |
2ARFE..ASV40..JPP MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11711-3602003 |
2ARFE..ASV40..JPP MARK 3,REFER REPAIR MANUAL |
5 | ||
| 11711-3602001 |
2ARFE..ASV40..JPP MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11711-3602002 |
2ARFE..ASV40..JPP MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11711-3602004 |
2ARFE..ASV40..JPP MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11711-3602003 |
2ARFE..ASV40..JPP MARK 3,REFER REPAIR MANUAL |
5 | ||
| 11711-3602001 |
2ARFE..ASV40..JPP MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11711-3602002 |
2ARFE..ASV40..JPP MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11711-3602004 |
2ARFE..ASV40..JPP MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11711-3602003 |
2ARFE..ASV40..JPP MARK 3,REFER REPAIR MANUAL |
5 | ||
| 11711-3602001 |
2ARFE..ASV40..JPP MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11711-3602002 |
2ARFE..ASV40..JPP MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11721 - BEARING, CRANKSHAFT, NO.2 | ||||
| 11721-3602002 |
2ARFE..ASV40..JPP MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11721-3602001 |
2ARFE..ASV40..JPP MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11721-3602003 |
2ARFE..ASV40..JPP MARK 3,REFER REPAIR MANUAL |
5 | ||
| 11721-3602004 |
2ARFE..ASV40..JPP MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11721 - BEARING, CRANKSHAFT, NO.2 | ||||
| 11721-3602002 |
2ARFE..ASV40..JPP MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11721-3602001 |
2ARFE..ASV40..JPP MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11721-3602003 |
2ARFE..ASV40..JPP MARK 3,REFER REPAIR MANUAL |
5 | ||
| 11721-3602004 |
2ARFE..ASV40..JPP MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11721 - BEARING, CRANKSHAFT, NO.2 | ||||
| 11721-3602002 |
2ARFE..ASV40..JPP MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11721-3602001 |
2ARFE..ASV40..JPP MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11721-3602003 |
2ARFE..ASV40..JPP MARK 3,REFER REPAIR MANUAL |
5 | ||
| 11721-3602004 |
2ARFE..ASV40..JPP MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11721 - BEARING, CRANKSHAFT, NO.2 | ||||
| 11721-3602002 |
2ARFE..ASV40..JPP MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11721-3602001 |
2ARFE..ASV40..JPP MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11721-3602003 |
2ARFE..ASV40..JPP MARK 3,REFER REPAIR MANUAL |
5 | ||
| 11721-3602004 |
2ARFE..ASV40..JPP MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11721 - BEARING, CRANKSHAFT, NO.2 | ||||
| 11721-3602002 |
2ARFE..ASV40..JPP MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11721-3602001 |
2ARFE..ASV40..JPP MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11721-3602003 |
2ARFE..ASV40..JPP MARK 3,REFER REPAIR MANUAL |
5 | ||
| 11721-3602004 |
2ARFE..ASV40..JPP MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11791 - WASHER, CRANKSHAFT THRUST, UPPER | ||||
| 11791-36010 |
2ARFE..ASV40..JPP STD |
2 | ||
| 11791 - WASHER, CRANKSHAFT THRUST, UPPER | ||||
| 11791-36010 |
2ARFE..ASV40..JPP STD |
2 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-36030 |
2ARFE..ASV40..JPP STD |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13281-3602002 |
2ARFE..ASV40..JPP MARK 2,REFER REPAIR MANUAL |
8 | ||
| 13281-3602003 |
2ARFE..ASV40..JPP MARK 3,REFER REPAIR MANUAL |
8 | ||
| 13281-3602001 |
2ARFE..ASV40..JPP MARK 1,REFER REPAIR MANUAL |
8 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13281-3602002 |
2ARFE..ASV40..JPP MARK 2,REFER REPAIR MANUAL |
8 | ||
| 13281-3602003 |
2ARFE..ASV40..JPP MARK 3,REFER REPAIR MANUAL |
8 | ||
| 13281-3602001 |
2ARFE..ASV40..JPP MARK 1,REFER REPAIR MANUAL |
8 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13281-3602002 |
2ARFE..ASV40..JPP MARK 2,REFER REPAIR MANUAL |
8 | ||
| 13281-3602003 |
2ARFE..ASV40..JPP MARK 3,REFER REPAIR MANUAL |
8 | ||
| 13281-3602001 |
2ARFE..ASV40..JPP MARK 1,REFER REPAIR MANUAL |
8 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13281-3602002 |
2ARFE..ASV40..JPP MARK 2,REFER REPAIR MANUAL |
8 | ||
| 13281-3602003 |
2ARFE..ASV40..JPP MARK 3,REFER REPAIR MANUAL |
8 | ||
| 13281-3602001 |
2ARFE..ASV40..JPP MARK 1,REFER REPAIR MANUAL |
8 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13281-3602002 |
2ARFE..ASV40..JPP MARK 2,REFER REPAIR MANUAL |
8 | ||
| 13281-3602003 |
2ARFE..ASV40..JPP MARK 3,REFER REPAIR MANUAL |
8 | ||
| 13281-3602001 |
2ARFE..ASV40..JPP MARK 1,REFER REPAIR MANUAL |
8 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13281-3602002 |
2ARFE..ASV40..JPP MARK 2,REFER REPAIR MANUAL |
8 | ||
| 13281-3602003 |
2ARFE..ASV40..JPP MARK 3,REFER REPAIR MANUAL |
8 | ||
| 13281-3602001 |
2ARFE..ASV40..JPP MARK 1,REFER REPAIR MANUAL |
8 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13281-3602002 |
2ARFE..ASV40..JPP MARK 2,REFER REPAIR MANUAL |
8 | ||
| 13281-3602003 |
2ARFE..ASV40..JPP MARK 3,REFER REPAIR MANUAL |
8 | ||
| 13281-3602001 |
2ARFE..ASV40..JPP MARK 1,REFER REPAIR MANUAL |
8 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13281-3602002 |
2ARFE..ASV40..JPP MARK 2,REFER REPAIR MANUAL |
8 | ||
| 13281-3602003 |
2ARFE..ASV40..JPP MARK 3,REFER REPAIR MANUAL |
8 | ||
| 13281-3602001 |
2ARFE..ASV40..JPP MARK 1,REFER REPAIR MANUAL |
8 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-22025 |
2ARFE..ASV40..JPP |
8 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-22025 |
2ARFE..ASV40..JPP |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-39225A0 |
2ARFE..ASV40..JPP MARK A,REFER REPAIR MANUAL |
4 | ||
| 13201-39225B0 |
2ARFE..ASV40..JPP MARK B,REFER REPAIR MANUAL |
4 | ||
| 13201-39225C0 |
2ARFE..ASV40..JPP MARK C,REFER REPAIR MANUAL |
4 | ||
| 13211 - PISTON | ||||
| 13211-36031B0 |
2ARFE..ASV40..JPP MARK B,REFER REPAIR MANUAL |
4 | ||
| 13211-36032A0 |
2ARFE..ASV40..JPP MARK A,REFER REPAIR MANUAL |
4 | ||
| 13211-36031A0 |
2ARFE..ASV40..JPP MARK A,REFER REPAIR MANUAL |
4 | ||
| 13211-36031C0 |
2ARFE..ASV40..JPP MARK C,REFER REPAIR MANUAL |
4 | ||
| 13211-36032C0 |
2ARFE..ASV40..JPP MARK C,REFER REPAIR MANUAL |
4 | ||
| 13211-36032B0 |
2ARFE..ASV40..JPP MARK B,REFER REPAIR MANUAL |
4 | ||
| 13251 - PIN, PISTON | ||||
| 13251-28020A0 |
2ARFE..ASV40..JPP MARK A,REFER REPAIR MANUAL |
4 | ||
| 13251-28020B0 |
2ARFE..ASV40..JPP MARK B,REFER REPAIR MANUAL |
4 | ||
| 13251-28020C0 |
2ARFE..ASV40..JPP MARK C,REFER REPAIR MANUAL |
4 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-31020 |
2ARFE..ASV40..JPP |
8 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-36010 |
2ARFE..ASV40..JPP |
1 | ||
| 13434A - KEY(FOR OIL PUMP DRIVE SPLINE) | ||||
| 95161-30516 |
2ARFE..ASV40..JPP |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-36020 |
2ARFE..ASV40..JPP |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 95161-30516 |
2ARFE..ASV40..JPP |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90119-16020 |
2ARFE..ASV40..JPP |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-36010 |
2ARFE..ASV40..JPP |
1 | ||
